DAEWOO HORIZONTAL MACHINING CENTER.

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


DHP-500
Stock No. EZ 7614
Machining Centers Vertical Horizontal CNC
Horizontal Machining Centers
used
41000 (LB)
2001
$79,500.00

Description

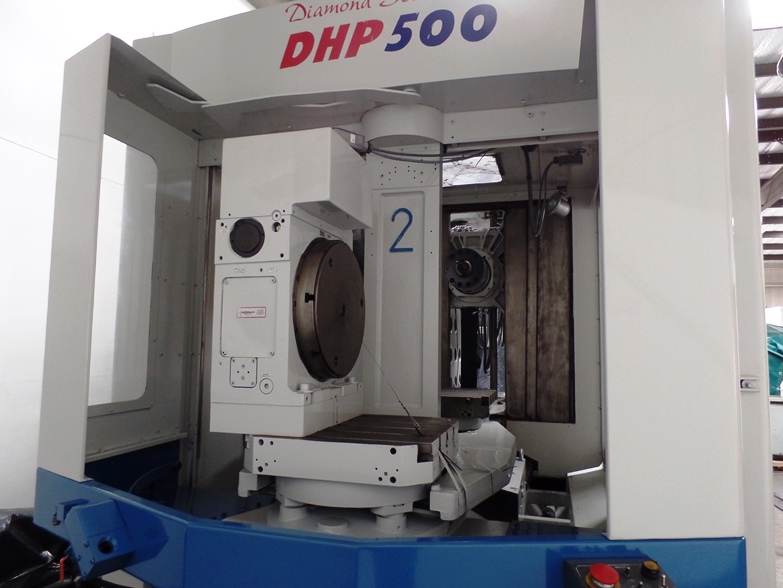

Model DHP-500

Stock No. EZ 7614

Year of manufacture 2001

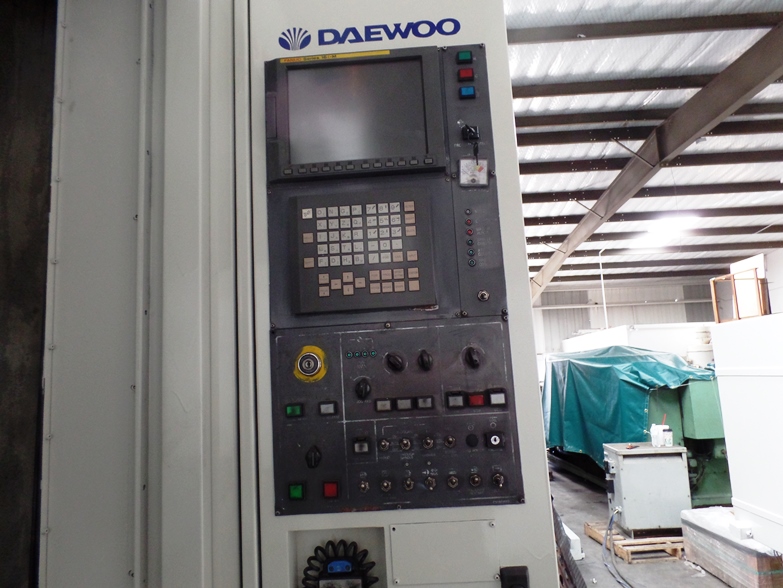

CNC control Fanuc 16iM,

Main motor/15 min. 40/33 hp.
Spindle speed 600-12,000 rpm
Tool shank Cat 50

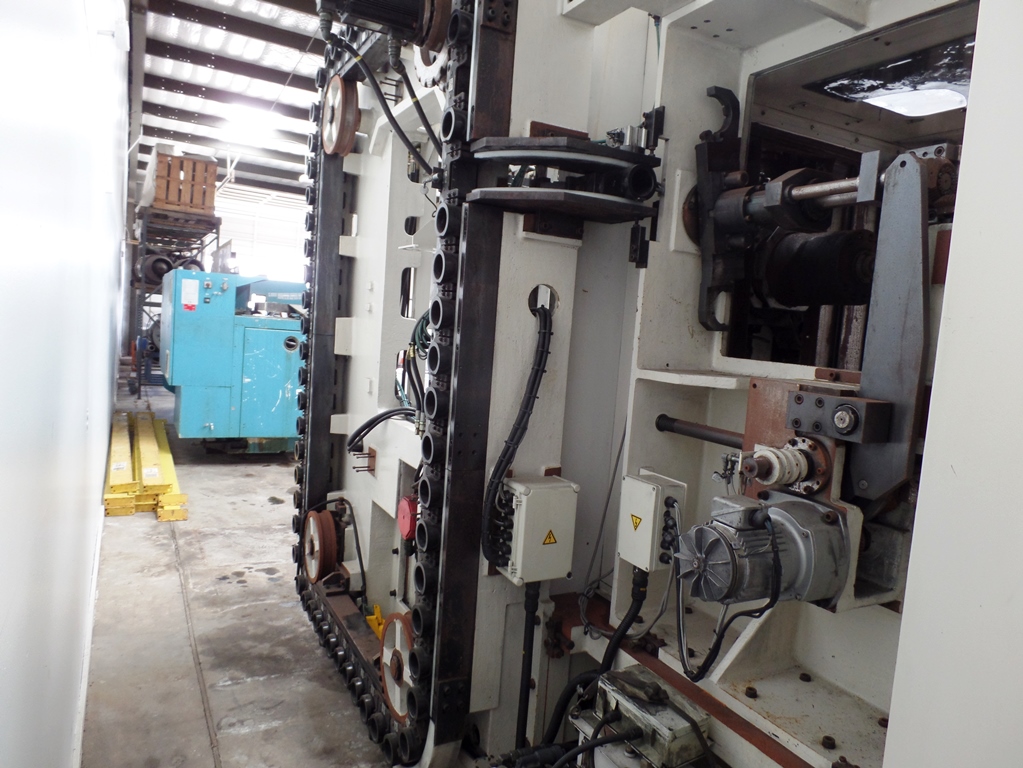

Tool stations 60 stations
Pallet size 19.68 in x 19.68 in
American standard Number of pallets
Two X-axis 31.49 in/800 mm Y-axis 27.56 in/700 mm Z-axis 29.52 in/750 mm
Rapid traverse X-Y-Z1,575 ipm
Max feed thrust force 2,701/lb.f
Cutting feed rate 0.04-787.40/ipm
Positioning accuracy 0.0002 in/full stroke Repeatability 0.00008 in
Spindle nose to table center 5.91 in to 35.43 in
Spindle center to pallet top 2.95 in to 30.51 in
Coolant Flood type,
120 psi Spindle oil chiller
Yes Manuals
Yes, Gen, Ops,
Parts, Electrical Dimensions 198 in W x 128 in L x 120 in H
Weight 41,000 lbs.
