Type: Lathes, VTL (Vertical Turret Lathe)
Category: Lathes & Turning Machines
Manufacturer: D-F
Model: CK5280
Condition: New In-Stock
Year: 2022
Stock #: 1094
Status: For Sale
Description:

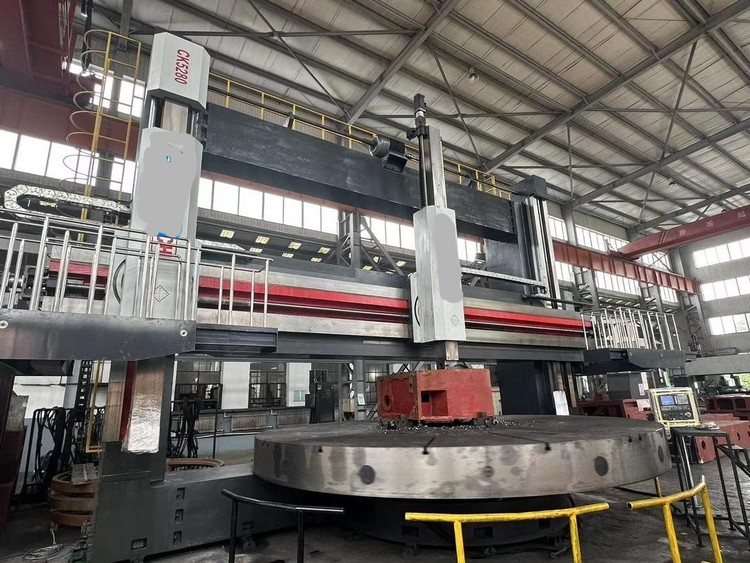

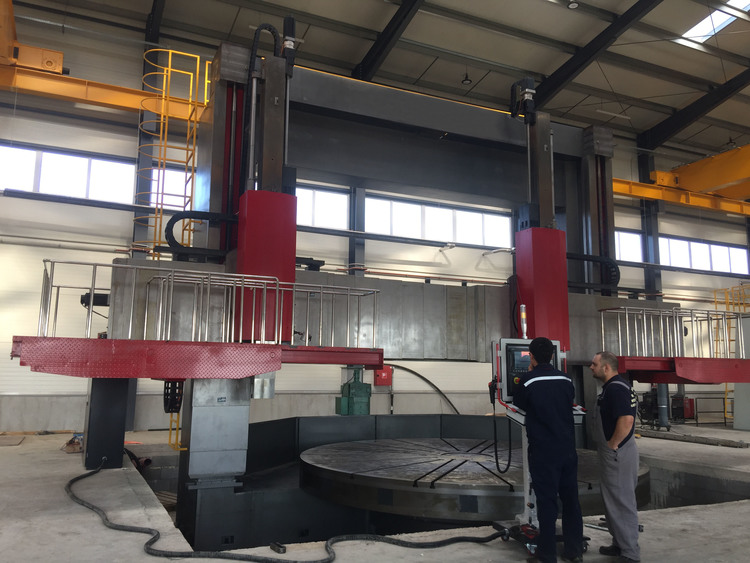

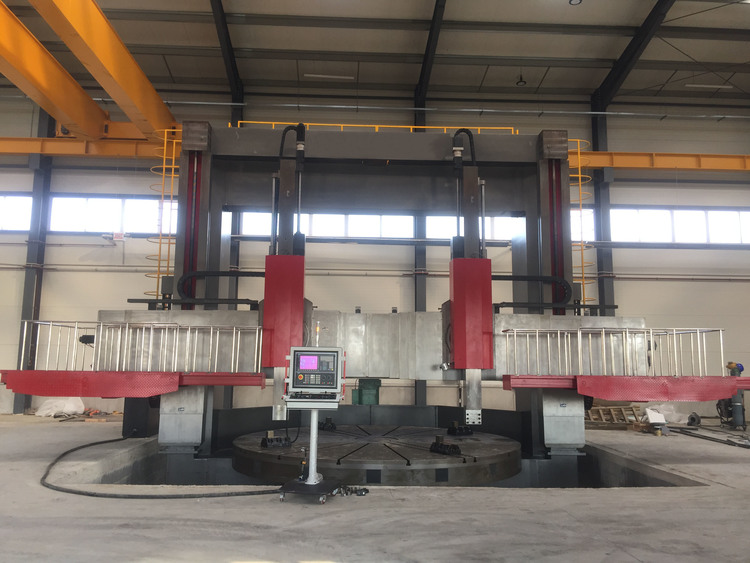

D-F 8,000mm (315 in) Model CK5280 CNC Double Column Vertical Turning Lathe
Specifications:
Table Dia 240"
Swing 315"
Work Ht-U/R 160"
Control CNC (Siemens)
D-F 8,000mm (315 in) Model CK5280 CNC Double Column Vertical Turning Lathe CK5280(100)
Max.vertical turret cutting diameter mm 8000
Diameter of worktable(2/3 parts for transportation) mm 6000
Max. height of workpiece mm 4000
Max.weight of workpiece ton 100
Main motor power kw 110
CNC system Siemens 828D
Worktable
Max.Torque of table turning KN.m 150
Speed steps of worktable step 2 steps
Speed of worktable rpm 0.2-20
Ram and crossbeam
Ram- Two rams One is CNC and One is manual.
Ram section size mm 280x280
Right ram machining capacity KN 50
Left ram machining capacity KN 40
Horizontal travel of Ram-X axis mm 4100
Vertical travel of Ram-Z axis mm 2000
Rapid travel speed of Ram mm/min 4100
Rapid travel speed of crossbeam mm/min 350
Travel of crossbeam mm 3400
3. Main features
Suitable for 400-380V/50HZ/3Ph local power supply, other voltage should be indicated.
