SPECIFICATIONS

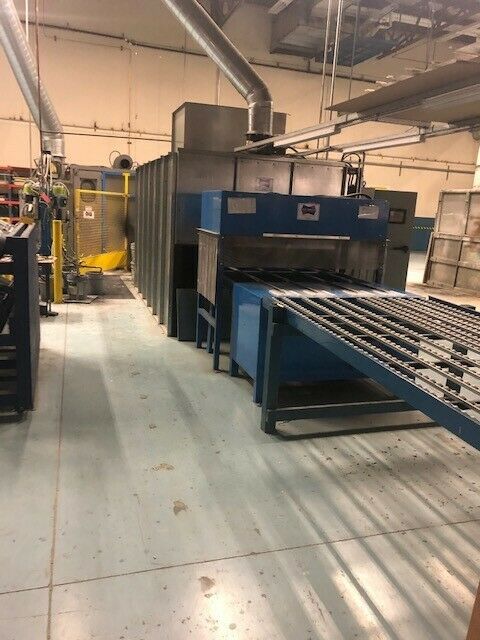

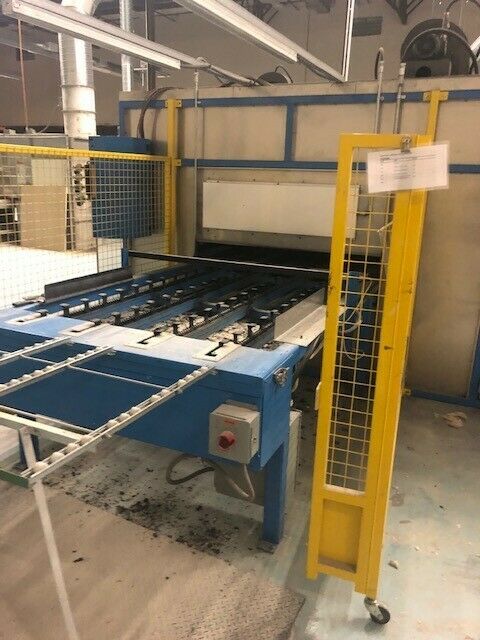

Variable Speed Booth Roller Conveyor
66" Overall width conveyor x 196" long
1-1/2 HP drive motor with Inverter speed control
54 in Wide, 2" diameter rolls on 9 in centers
0 fpm to 15 fpm operating speed range, design speed 2.5 fpm
Powder coated steel framework
DVLE-66 Heavy Duty Electric Reciprocator
66 in Stroke heavy duty electric reciprocator
Powder coated steel structural steel support framework
Gun bar position interface
Gun bar angling unit
Reciprocator auto start/stop
Severe duty electronic limits package
UCS-1000-16 automatic gun triggering system
60 in Light Curtain w/3/8" Resolution
Stainless Steel Semi-Downdraft Spray Booth
Totally enclosed spray booth, inside dimensions 8 ft H x 8 ft W x 106 in D
Overall depth ------------------- 127"
Overall width ---------- 9 ft 4 in
Overall height -------------------- 9 ft 2 in
7200 CFM 24" diameter heavy duty fan, 1-1/2 HP exhaust motor
Precision flanged and punched 18 gauge SS panels
Visible manometer draft gauge indicates filter load condition

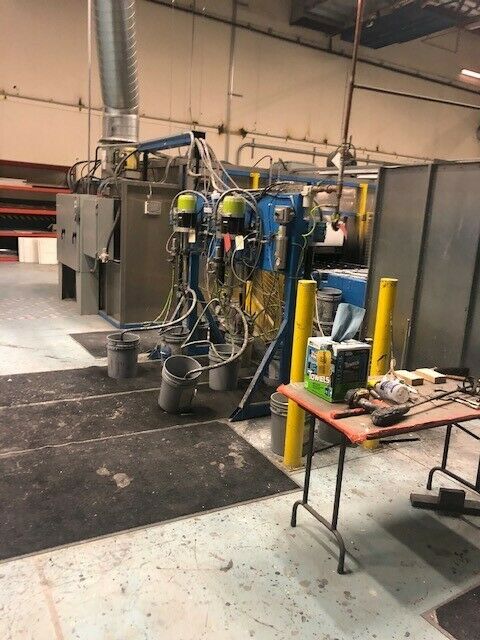

[4] Graco Air Pro compliant low pressure spray guns
[4] Graco diaphragm pumps (3 colors and 1 water flush)
[3] Graco 5-gallon SS lids w/agitators (3 colors)
[4] Graco SS 5-gallon pickup tubes (3 colors, 1 water)
[3] Graco SS back pressure recirculation regulators (3 colors)
[3] Graco SS fluid regulators (3 colors)
[1] Deimco powder coated and pre-plumbed pump stand
5 ft Wide x 12 ft Long Non-Solvent Rated Cure Oven
Oven fully erected and tested prior to shipment
18 gauge galvanized steel flanged exterior panel construction
IR Panels Totaling 30kW, 460V, 37.5 Amps) - Panels are mounted horizontally
above the conveyor. Emitter height is pre-set but is adjustable from the exterior of the oven.
Oven has a broad operating temp range.
5,000 CFM recirculation fan with 3 HP variable frequency drive.
12" diameter tube-axial 1,400 CFM exhaust fan
Forced Air Cool Down Fans
Powder coated steel framework
System clear spans oven conveyor
[2] Heavy duty 24" diameter 5750 CFM fans with 1/2 HP 3 phase motors
