'REFERENCE NUMBER: 28052H

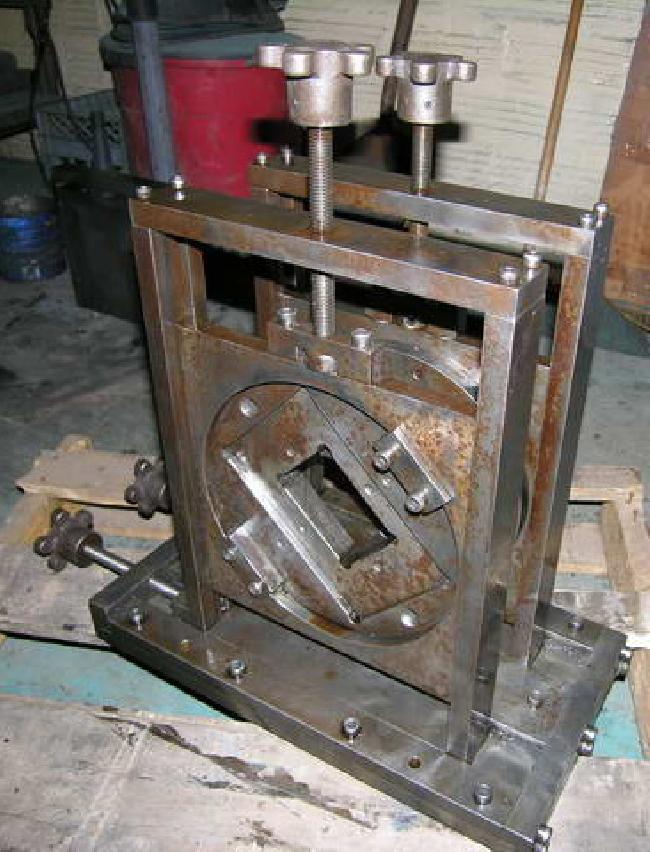

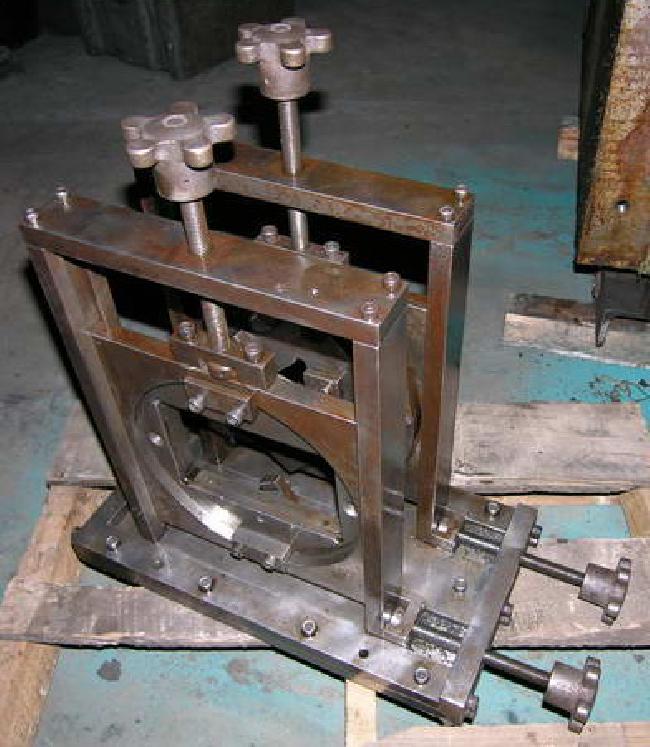

3-AXIS ADJUSTMENT
4″ TOTAL SIDE-TO-SIDE VIA HAND SCREW
3-1/2″ TOTAL UP & DOWN VIA HAND SCREW
360 DEGREES ROTATIONAL ADJUSTMENT
PROFILE, MAX.: 4″ x 6″ (EST)
LARGEST TOOL PROFILE WITH CURRENT:

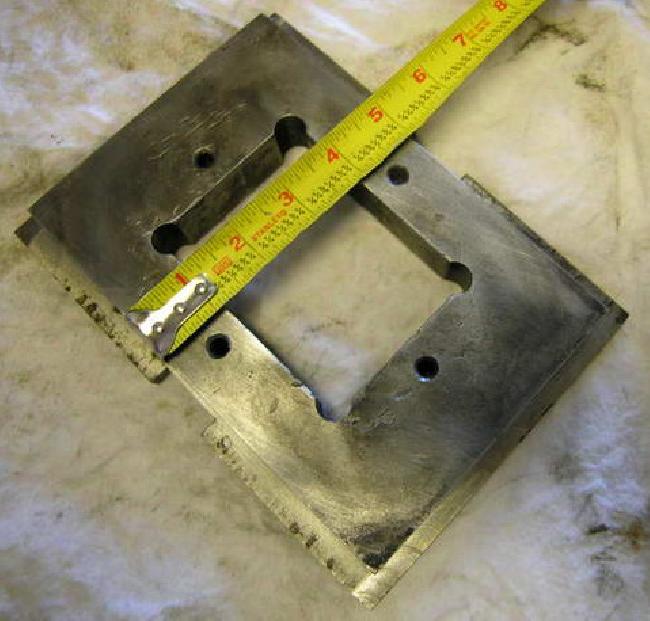

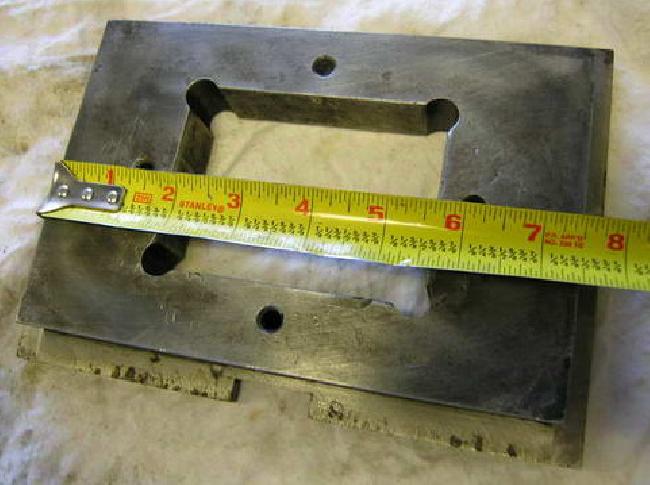

INSERT HOLDER: 2-3/4″ X 3-3/4″
SIZE OF CURRENT TOOL HOLDER: 5″ x 7-1/2″
DIAMETER OF ROTARY INSERT: 9-3/4″
PASSLINE HEIGHT, WITHOUT MOUNTING PLATE: 7″ TO 10-1/2″

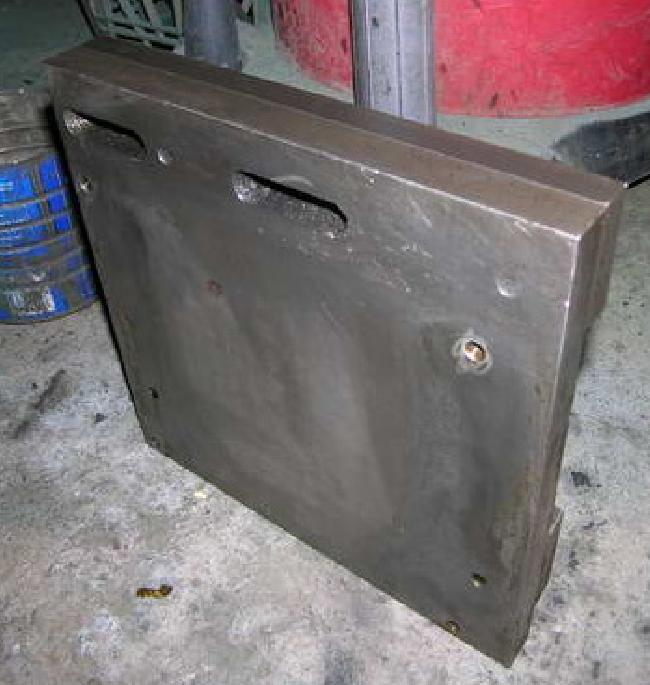

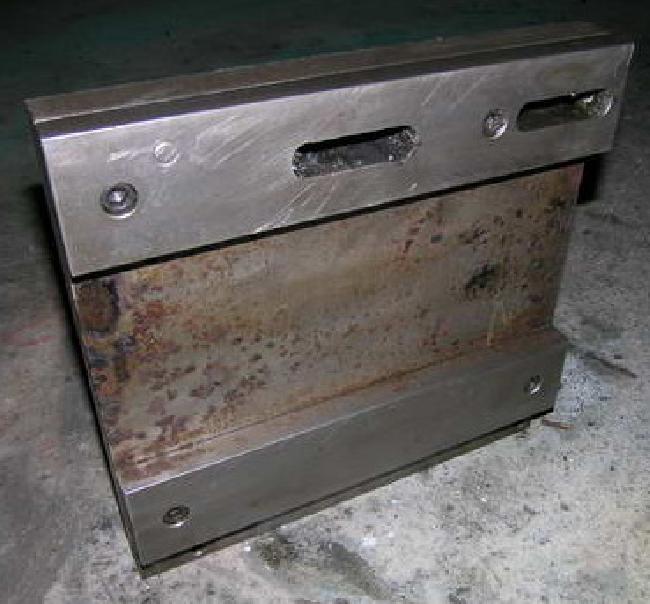

PASSLINE HEIGHT, WITH MOUNTING PLATE: 8-3/4″ TO 12-1/4″
To view more information on the CUSTOM EXIT STRAIGHTENER 2 HEAD, 3 AXIS, including reviews, brand information, photos, videos, and more,
