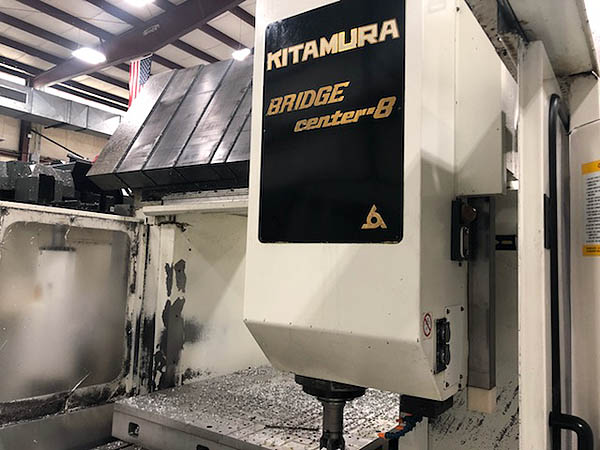

KITAMURA CNC BRIDGEMILL

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


BRIDGE Center-8
Stock Number: 3074
Milling Machines
MILLERS, GANTRY, NC and CNC
used
37400 (LB)
1998
$0.00

Description


Work
Area 35.4in x 118.1in

T-slot
(width x quantitiy) 0.7in x 1

Load
Capacity 1,100 lbs


Travel
Table
travel X axis 98.4in

Cross
travel Y axis 42.1in

Vertical
Travel Z axis 28in

Distance
from Table Center

to
Spindle nose 9.9in ~ 37.9in


Spindle
Spindle
Taper N.S.T. NO.50

Spindle
Speed 60 - 6,000 R.P.M.


Feed

Rapid
Feed Z axis 393.7 in/min

X,
Y axis 472.4 in/min

*
in case the work weight

is
more than 1,000 kg 393.7 in/min

Cutting
feed X, Y and Z axis 0-196.8 in/min


ATC
Tool
storage capacity 30

Tool
selection method Random Bi-Directional

Tool
holder CAT 50

Max.
tool size 5in

Tool
change time 9 SEC

Max.
Tool Weight

(with
tool holder) 33 pounds

Chip
to chip

(with
tool orientation) MINIMUM 15 SECOND


Motor
Spindle
motor 30 min. operating AC 18.5 KW (AC 25 HP)

Hydraulic
pump motor AC 2.2 KW (AC 3 HP)

Coolant
motor AC 400 W (AC 0.5 HP)

Lubrication
pump AC 20 w (AC 0.027 HP)


Machine
weight 37,400 lbs
