Under Power and Ready for Inspection
EZ Systems Machine Reference Number: ez33607
Machine Location: Van Nuys, CA 91406

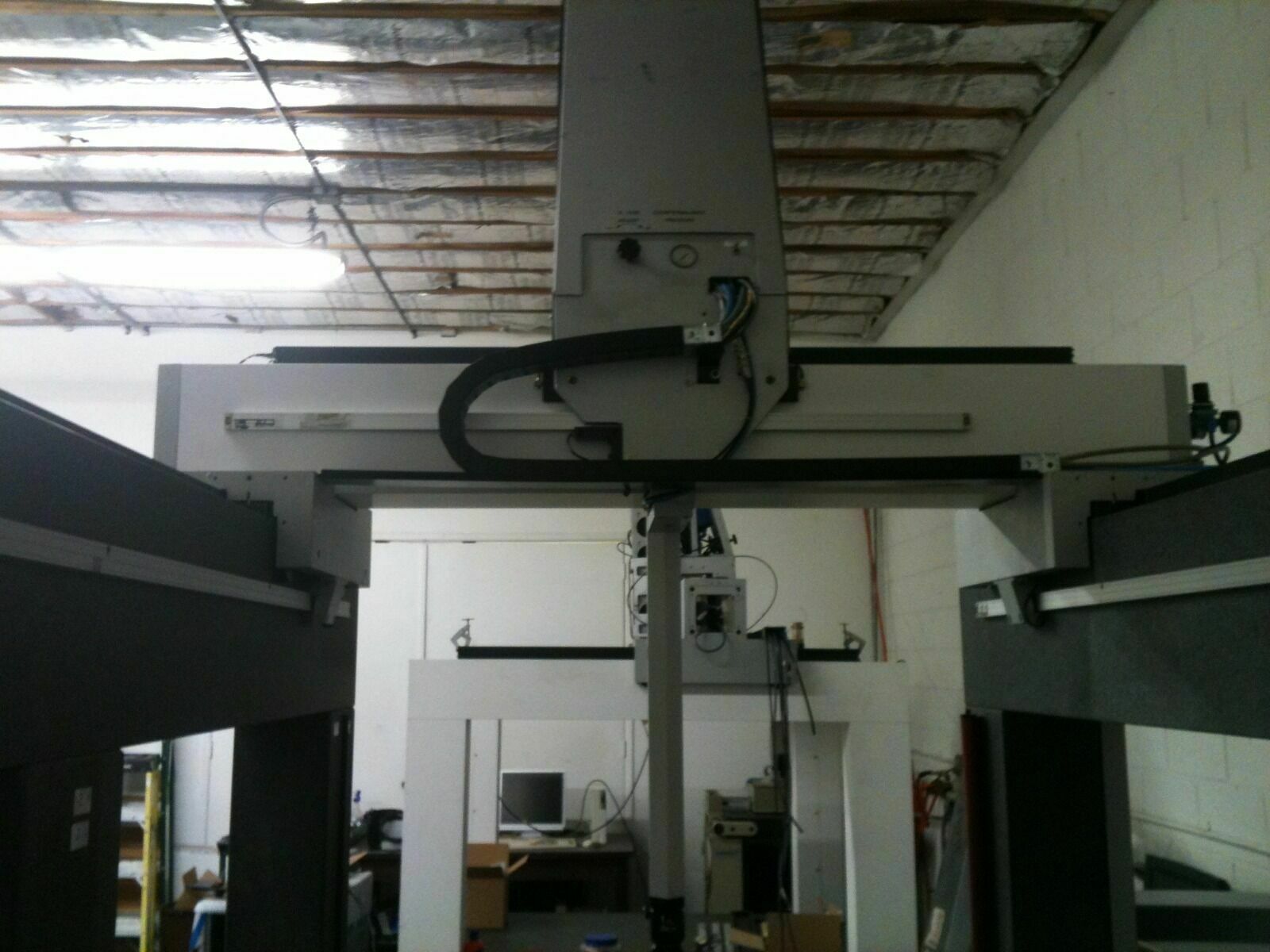

Granite Base Assembly: 64 in x 120 in x 135 in
Linear Motors
Linear Glass Scales
Dual axis Configuration

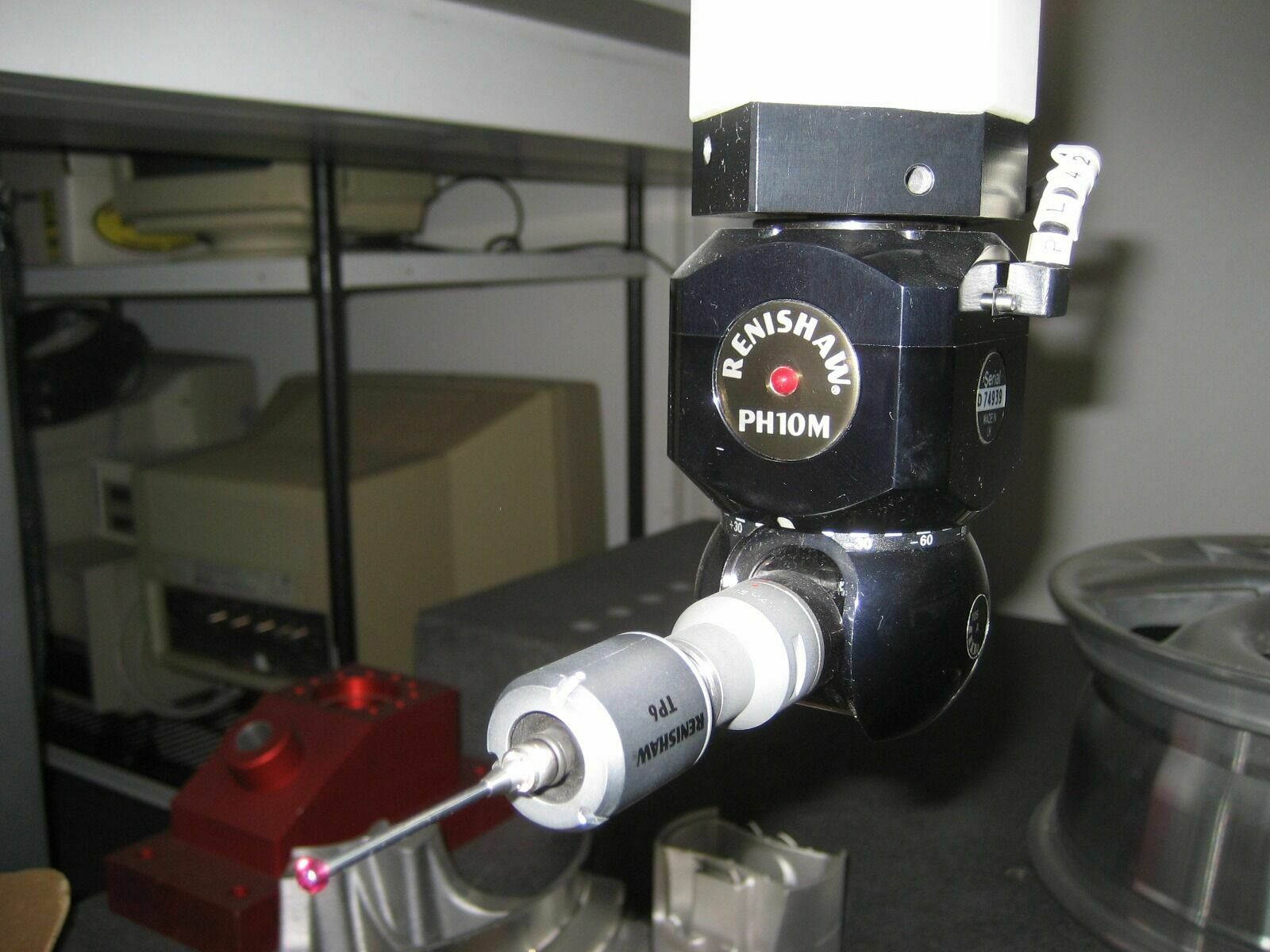

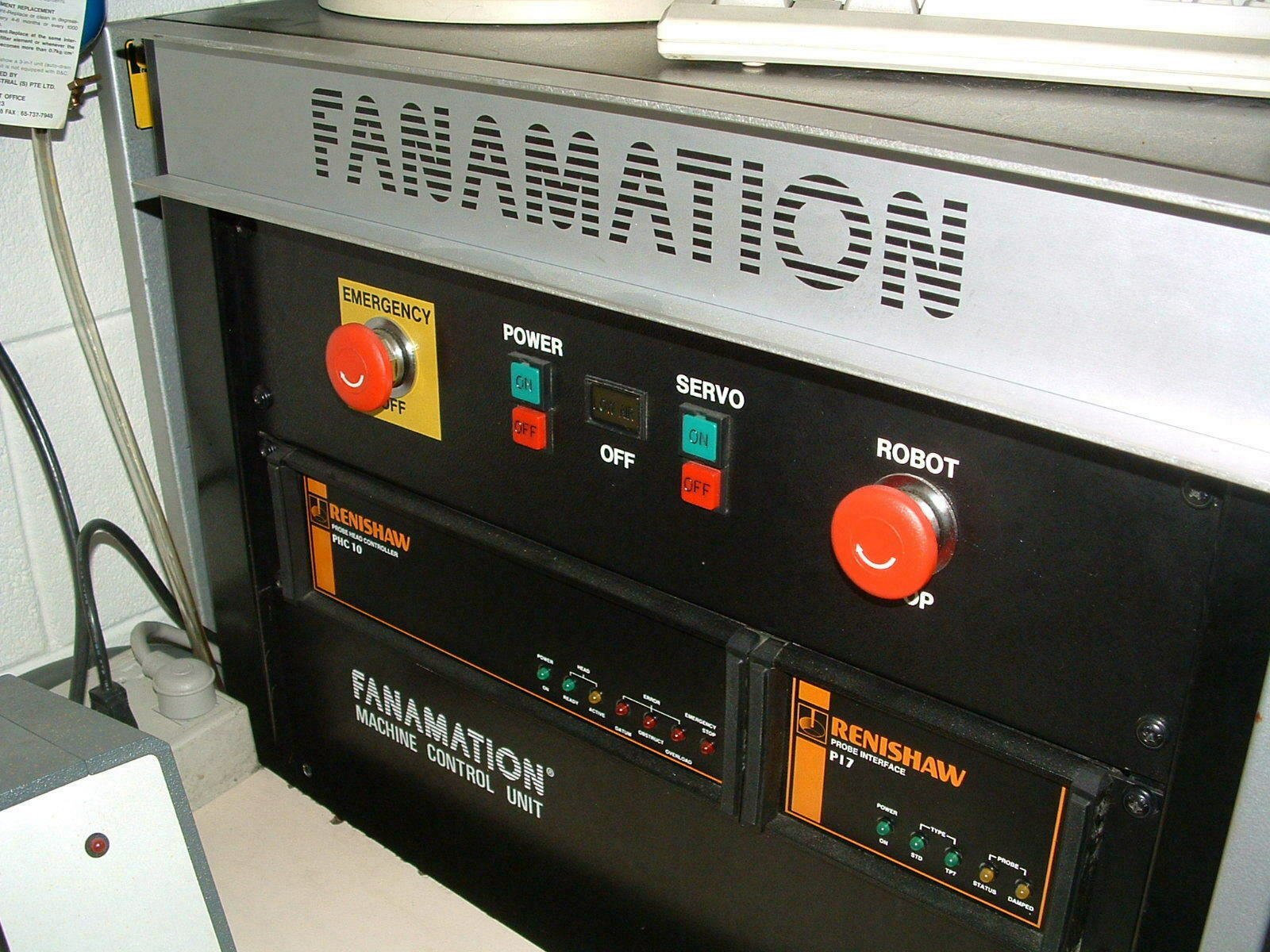

Probe Head: Renishaw PH10M
Touch Probe Renishaw TP7
Windows Host Computer
Includes AXIOM SOFTWARE : DMIS NATIVE
Extra Cost Options: OFF-LINE PROGRAMMING , CheckMate for SolidWorks. www.info.originintl.com/checkmate, training, installation
and calibration.
COMPARES WITH THE FOLLOWING MACHINES:
Mitutoya Bright 12.30.10 : 47 x 118 x 39
Mitutoya Crysta-Apex S12 48 X 120 X 40
Helmel 1045-404 45 X 100 X 40
Shefield RS 150 48 x 80 x 40
Nikon Metrology G90C 20.12.10 80 X 48 X 40
Specifications
Measuring Range ( Y axis ) 100 in
( X axis ) 40 in
( Z axis) 40 in
Resolution 1 micron
Linear scale type Glass
Compensated Vol.Accuracy Total Bandwidth 21 micron
Compensated Axial Accuracy ( X axis) 8 micron
( Y axis ) 8 micron
( Z axis) 8 micron
Repeatability Volumetric 4 micron
Maximum Drive Speed Point to Point 250mm/sec
Maximum Drive Accel Point to Point 500 mm/sec2
Probing speed 50 mm/sec
Overall Dimensions LxWxH 64 in x 120 in x 135 in
Machine weight 24000lbs.

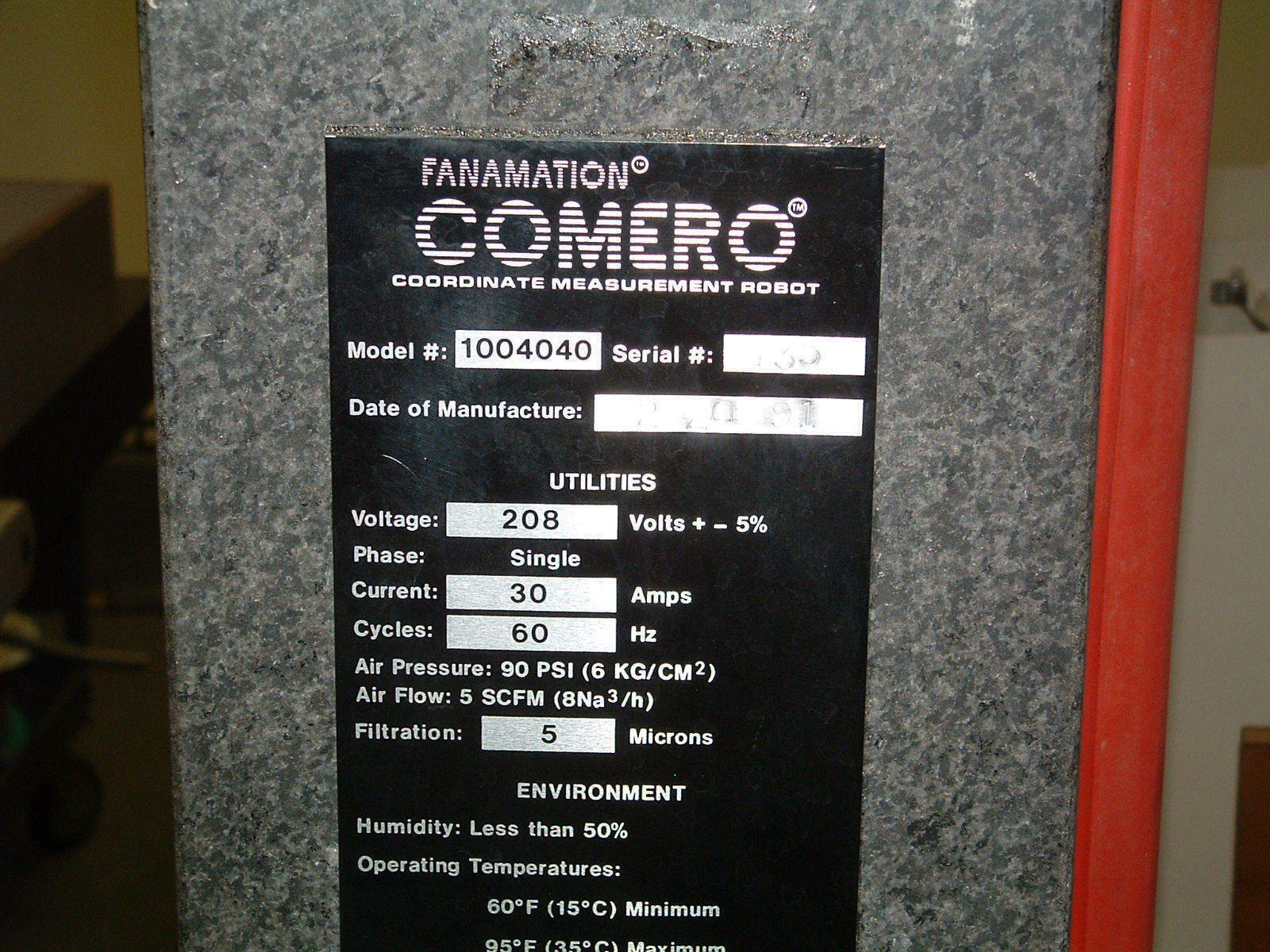

Power Requirements 20830A or 220 25A
AIR Requirements 95PSI, 20 SCFM
