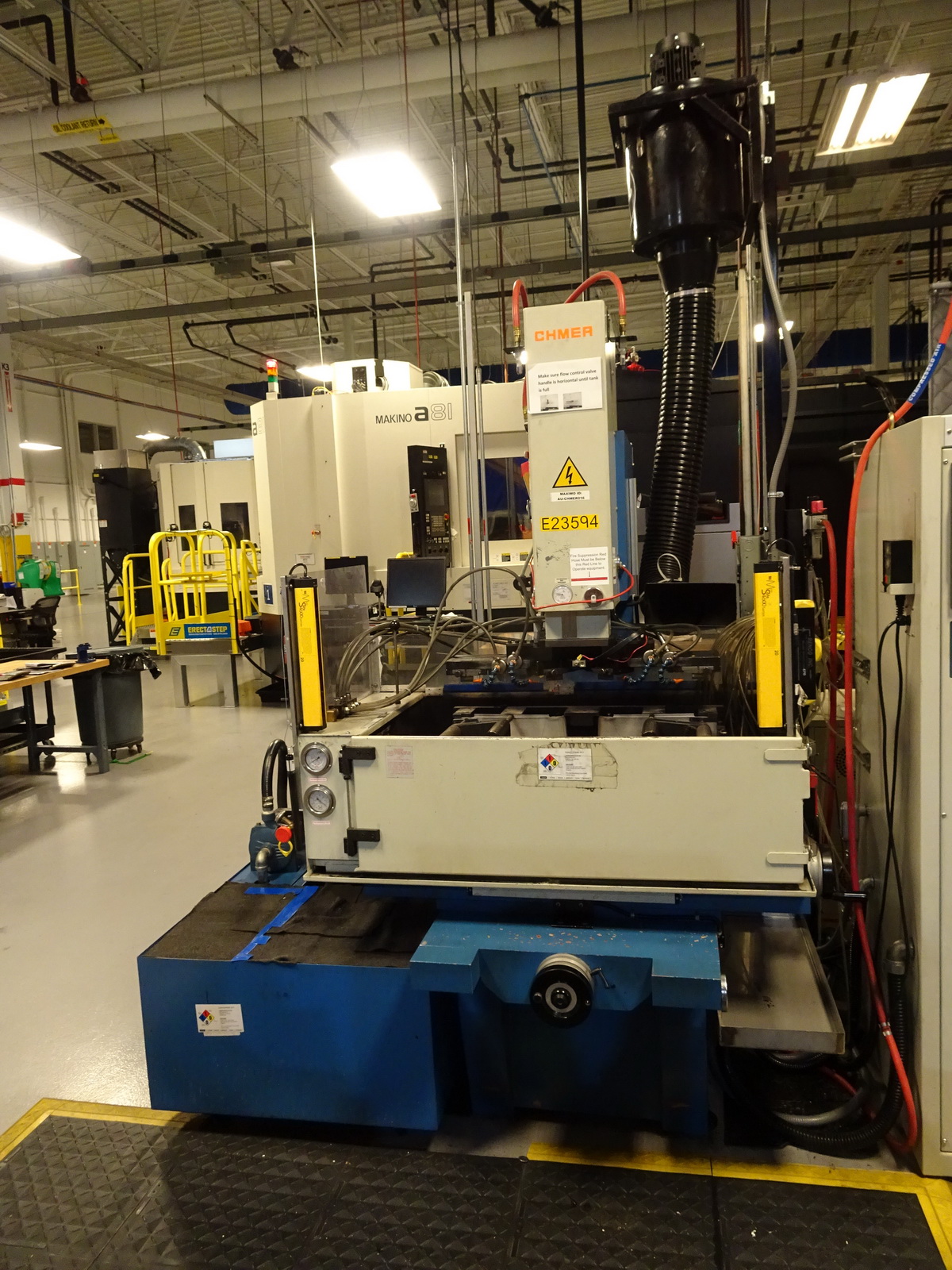

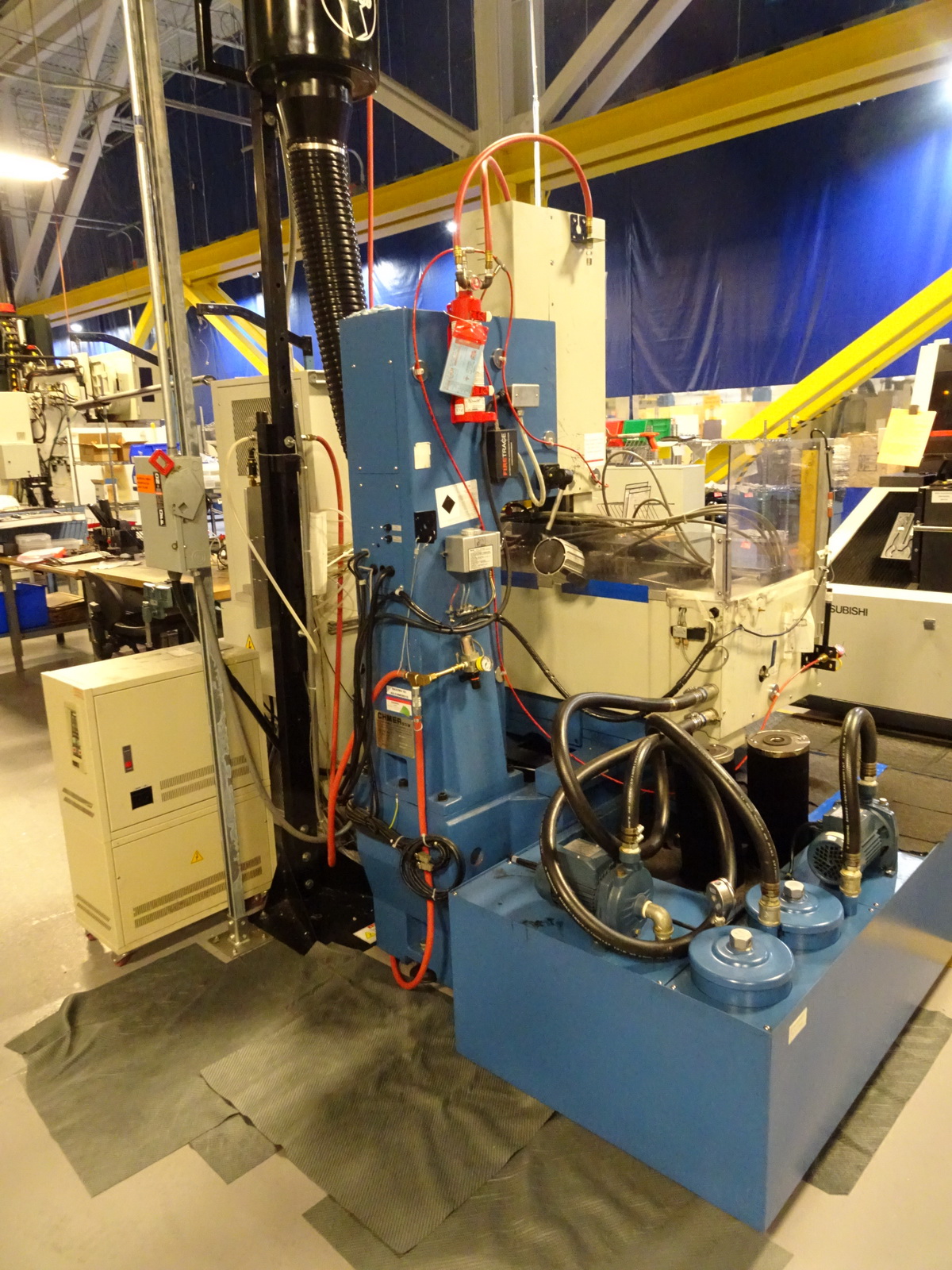

CNC SInker EDM,
Table size (WxD) mm/inch 650 x 400 / 25.5 in x 15.7 in,
Work tank size (WxDxH) mm/inch 1050 x 630 x 350 / 41.3 in x24.8 in x 13.8 in,
Table travel (X,Y) mm/inch 400 x 300/ 15.7 in x 11.8 in,
Ram travel (Z1) mm/inch 350 / 13.8 in,
Distance from RAM platen to work table mm/inch 305-655/9.8 in - 23.6 in,
Max. electrode weight kg/lb 100 kg / 200 lb,
Max. workpiece weight kg/lb 1000 kg /2200 lb,
Outside dimensions mm/inch 1240 x 1380 x 2230 / 48.8 in x 54.3 in x 87.8 in,
Weight kg/lb 1400kg / 3080 lb
Renown Jet Engine Component Mfg. Facility
CNC Machine Tools as Late as 2019 by:
Makino-Magerle-Campbell-Lagun Republic
CNC Grinding-EDMs-Horizontal & Vertical Machining(20) EDMs, Zeiss CMM, (5) 5-Axis Grinding Centers Welding Systems, Robotic Deburring, Much More
To view more information on the CHMER CNC SINKER EDM., including reviews, brand information, photos, videos, and more,
Fill in the form below to see Seller Info.
