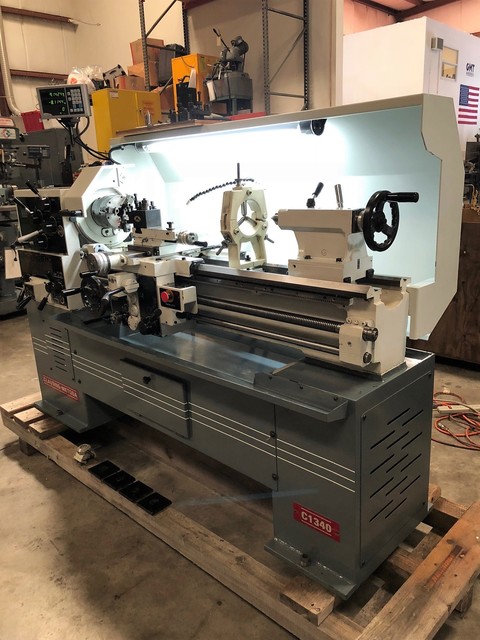

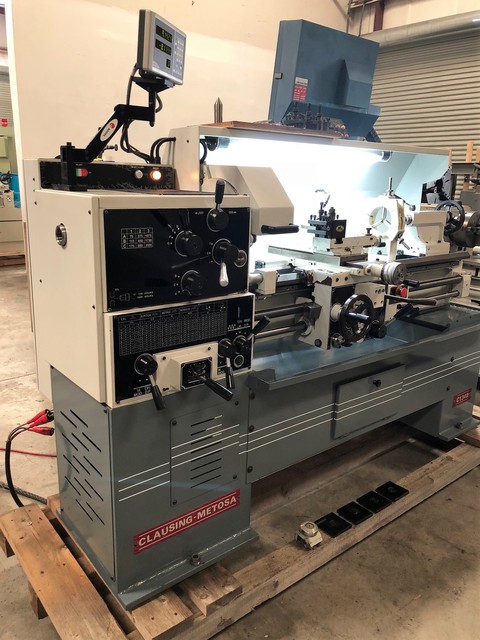

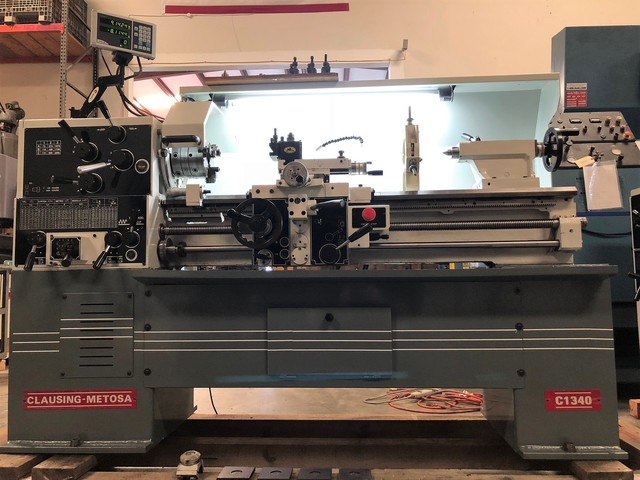

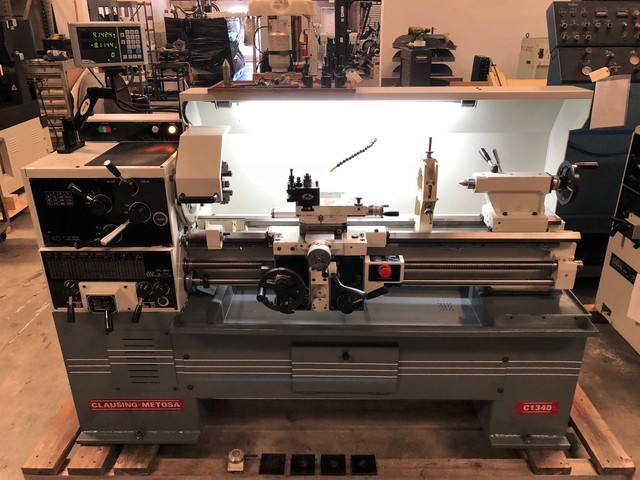

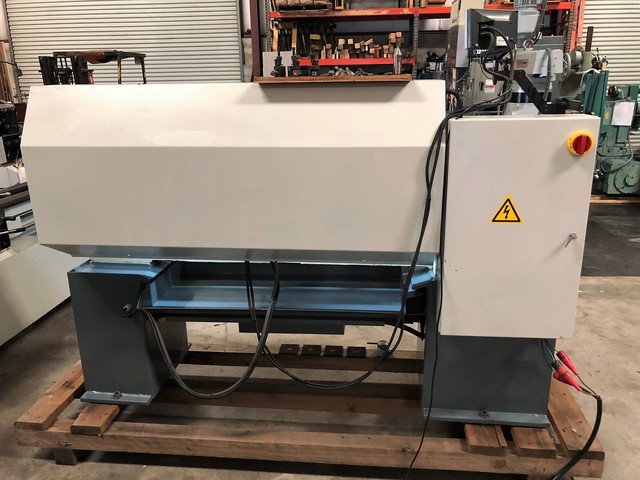

CLAUSING METOSA CC GAP LATHE

Add to Your File

Brand: CLAUSING METOSA CC GAP LATHE

Model: GMT-1509

Serial No. : 54168

Category: Lathes (Manual)

Sub Category: Gap Bed Lathes

Condition: used

Weight: 2250 (LB)

Year Built: 2006

Status:

Price: $10,500.00

Feature Video

Description

SPECIFICATIONS:

Reference #: GMT-1509
Model #: C1340
Serial #: 54168
Year of manufacture: 2006
Swing over bed: 13-3/16 in
Swing over gap: 19-1/4 in
Swing over carriage: 12-3/16 in
Swing over cross slide: 6-7/8 in
Bed width: 10"
Gap length: 4-3/4 in
Spindle bore: 1-5/8 in
Spindle taper: D1-6 Camlock
Spindle Morse taper: #4 Morse
Longitudinal feeds: (44) .0018 in - .026 in
Cross feeds: (44) .0005 in - .0076 in
Metric threads: .5mm 7.5mm
Whitmore threads: 60 in 4 T.P.I.
Modular threads: .25 -3.75
Diametral threads: 120
Cross slide travel: 9-5/8 in
Tool post slide travel: 4-3/4 in
Tailstock quill diameter: 1-7/8 in
Tailstock quill travel: 5-1/2 in
Tailstock taper: #3 Morse

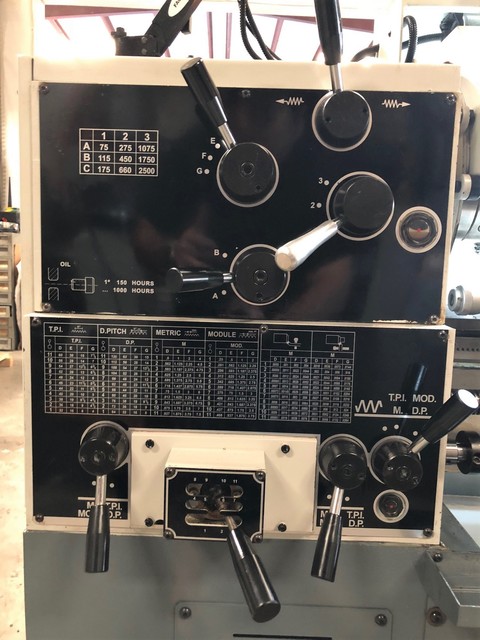

Spindle speeds: (9) 75 in 2500 R.P.M.

EQUIPPED WITH:

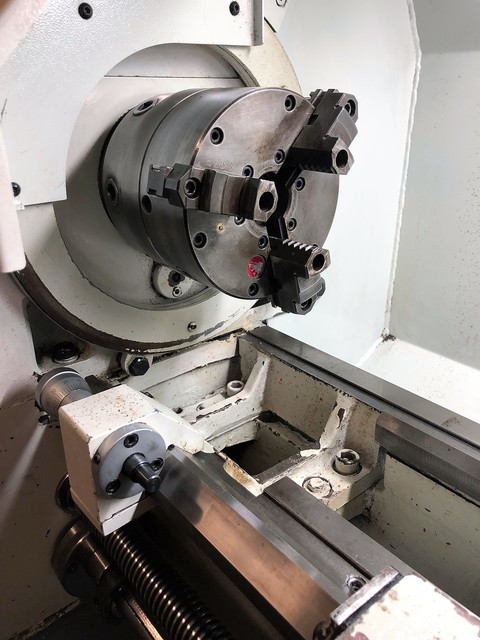

6.25 in 3-Jaw chuck

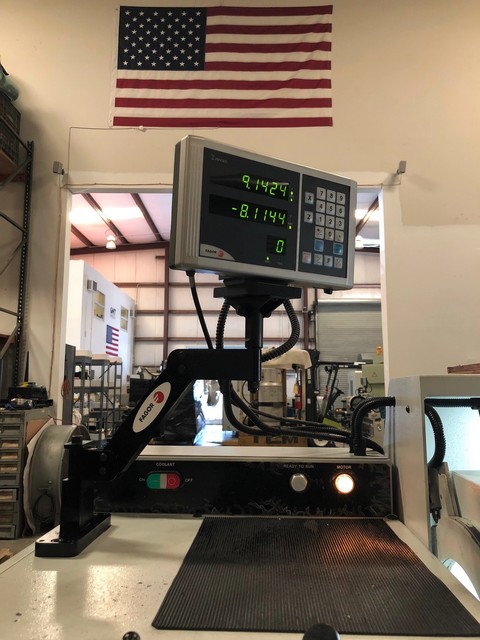

FAGOR 2 Axis Digital readout

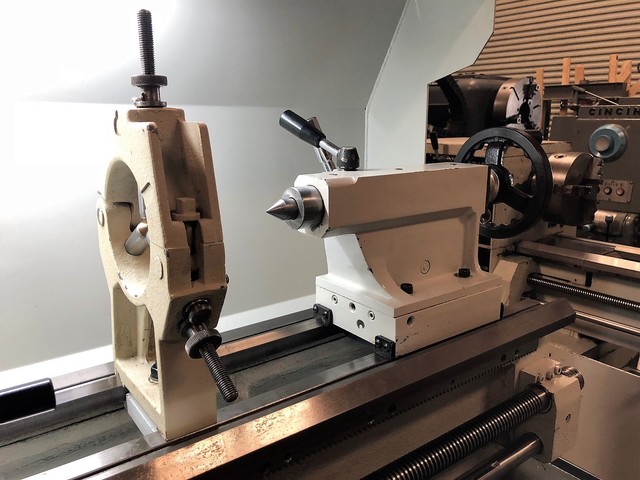

Steady rest (new)
Tool post & (4) holders
(2) Centers
Micrometer carriage stop
(2) Chuck wrenches
Threading dial
Inch / metric hand dials
(4) Foot pads
Machine manuals
Coolant pump & Nozzle
3 H.P. Motor
Machine is wired for 230 Volt / 3 phase / 60 HZ
***Machine came out of a fish tank manufacturer and cut Acrylic / Plastic materials***

APPROXIMATE WEIGHT (MACHINE ONLY):: 2250 Lbs.

APPROXIMATE DIMENSIONS:: 83 in L x 32 in W x 67 in

LOCATION:: F.O.B. Bradenton, Florida

REFERENCE #:: Lathe -GMT-511

PRICE #:: $10,500.00
