CLAUSING COLCHESTER ENGINE LATHE (SOLD)

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images


No.: 17
7/0220/11885
Lathes (Manual)
Engine Lathes
used
(LB)
0
$10,500.00

Description

SOLD                 SOLD                SOLD

Description & Specifications

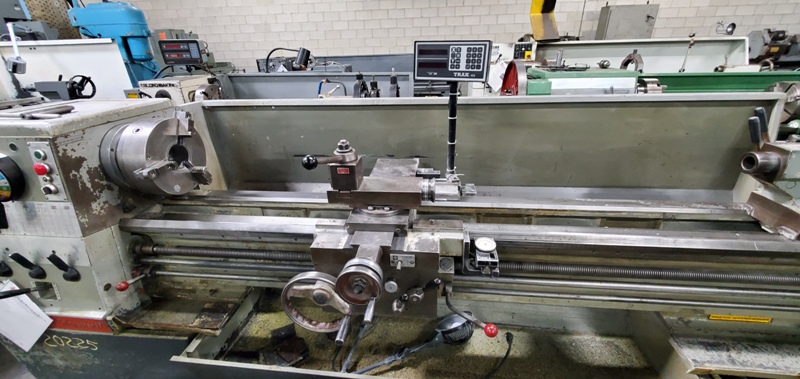

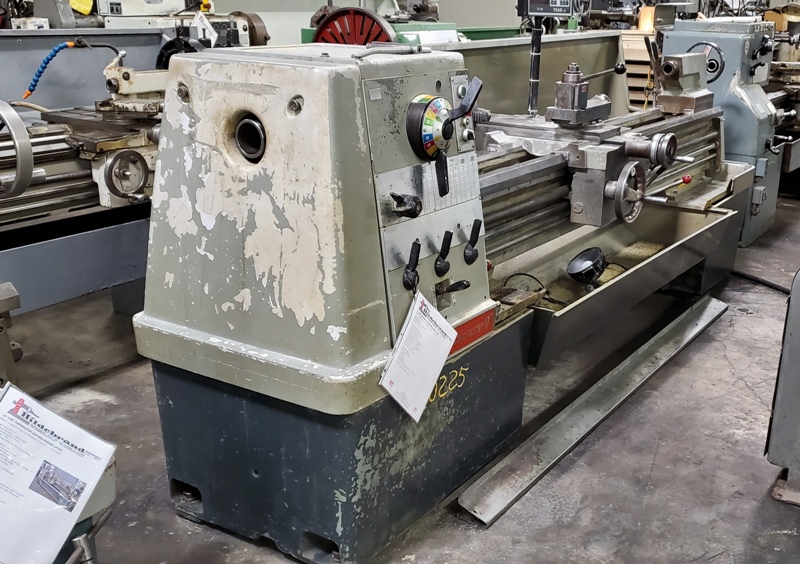

17" X 80" CLAUSING COLCHESTER ENGINE LATHE

PRICE: Loaded on Truck, Our Warehouse, York, PA    $10,500.00

HMC Stock # 20225

Machine Serial No.: 7/0220/11885

Machine Model No.: 17"
New Date: Unknown

Swing Over Bed: 17-1/4"
Swing Over Cross Slide: 10-1/2"
Distance Between Centers: 80"
Hole Thru Spindle: 3-1/16"
Spindle Nose: D1-8 Camlock
(16) Spindle Speeds: 20 to 1600 RPM
(38) Standard Threads: 2 to 72 TPI
(40) Metric Threads: .4 to 14 MM
Longitudinal Feeds: .002" to .032" Per Rev.
Cross Feeds: .001" to .016" Per Rev.
Tailstock Diameter: 2-15/16"
Tailstock Taper: #5 Morse
Tailstock Spindle Travel: 8-1/2"

EQUIPPED WITH:
Trak 102 Digital Read-Out
12" 3-Jaw Chuck
Coolant Pan
Splash Guard
Aloris Tool Post
10 HP Main Motor
Wired for 3 Phase, 60 Cycle, 230/480 Volts
Current Voltage: TBD

Overall Size: 140" LR x 44" FB x 60" High
