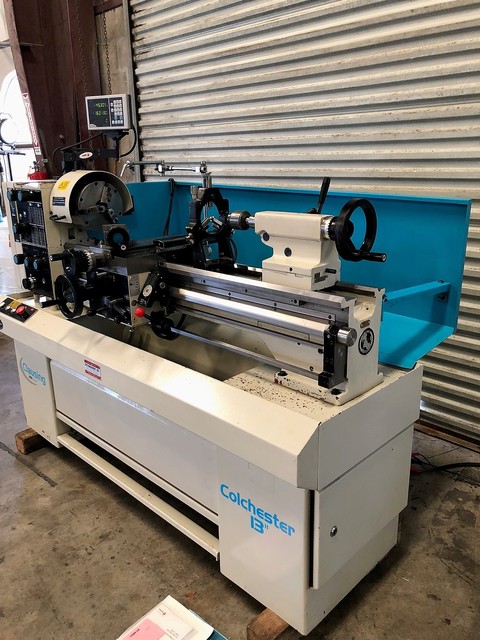

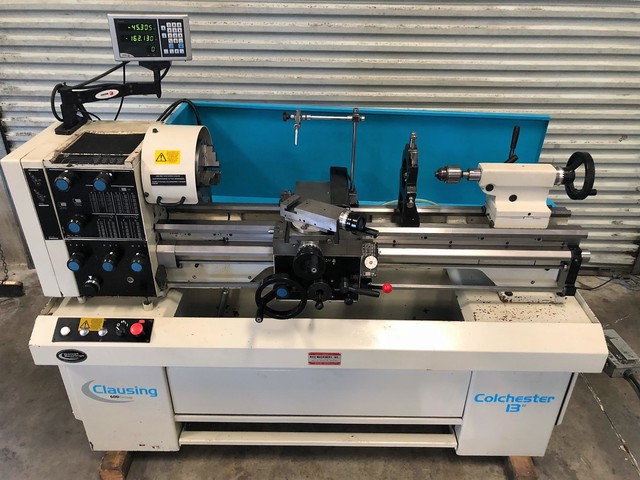

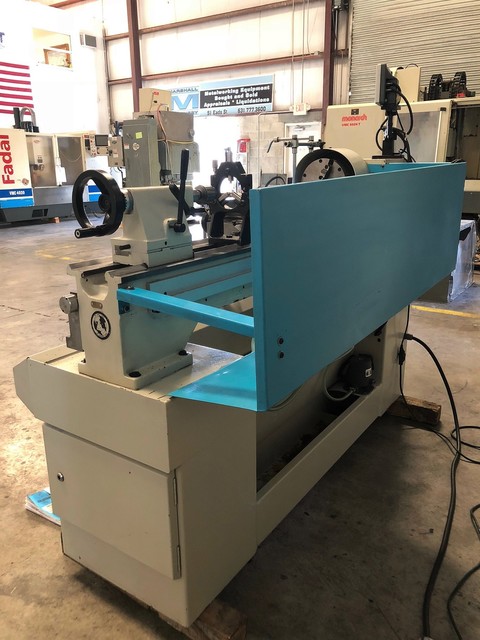

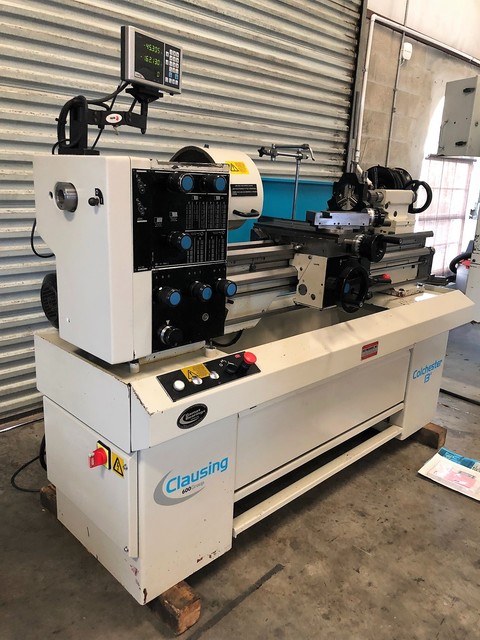

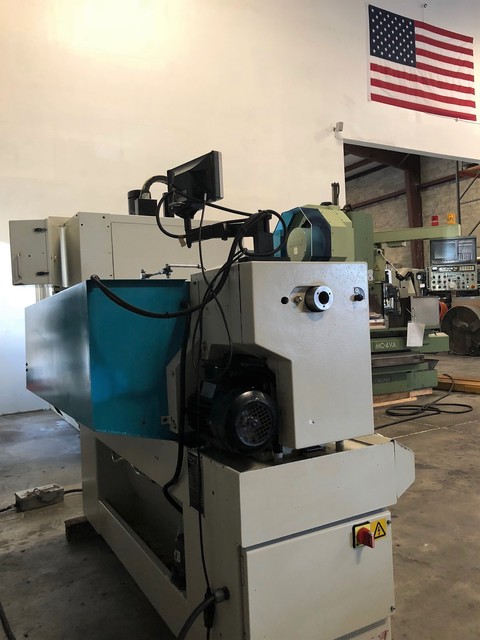

CLAUSING COLCHESTER 13 X 40 CC REMOVABLE GAP LATHE

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


GMT-1458
307099
Lathes (Manual)
Gap Bed Lathes
used
1960 (LB)
2005
$10,500.00

Feature Video

Description

SPECIFICATIONS:
Reference #
GMT-1458
Model #
2500
Serial #
307099
Year of Manufacture
2005
Swing over bed
13"
Swing over gap
18.8"
Swing over cross slide
8.26 in
Distance between centers
40"
Bedways width
8"
Spindle bore
1.5"
Spindle nose
D1-4
Spindle nose taper
3 Morse taper
Number of spindle speeds
12
Spindle speed range
40 -2500 R.P.M.
Travel of cross slide
7.5 in
Width of cross slide
5.5 in
Travel of top slide
3.63 in
Width of top slide
3.25 in
Tailstock quill travel
4.38 in
Quill diameter
1.63 in
Quill taper
3 Morse taper
Longitudinal feeds
Inch
.001 in - .080 in/rev
mm
.03-2.00 mm/rev
Number of inch pitches
35
Range in inch pitches
2 in 56 T.P.I
Number of metric pitches
39
Range of metric pitches
.2 in 14mm

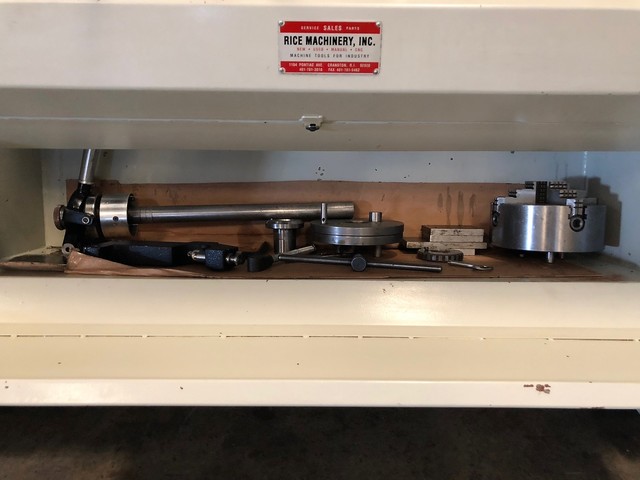

EQUIPPED WITH:
  • FAGOR 2 Axis Digital readout #20-I
  • 8.2 in PRATT BURNERD 3-Jaw chuck
  • 8 in BISON 4-Jaw Chuck
  • 7 in Dog plate

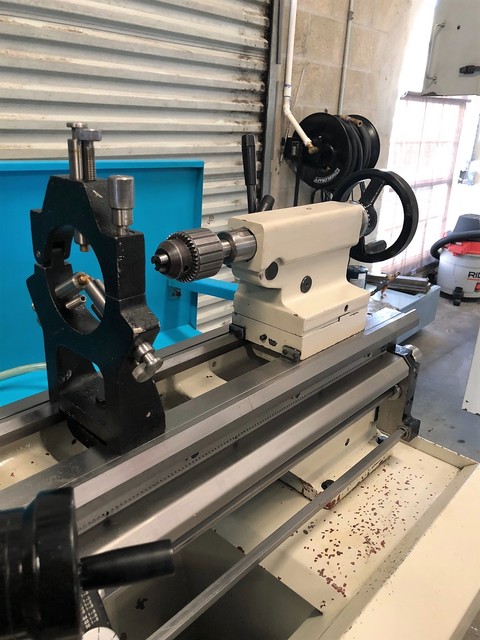

  • Steady rest
  • Follow rest
  • Jacobs #14 drill chuck
  • Collet nose piece
  • 5-C draw bar
  • 1/8 H.P. Coolant pump and built in tank
  • Spindle motor 3 H.P.
  • Machine is 230/460 volt / 3 phase / 60 HZ
  • Machine is currently wired for 230 volt
APPROXIMATE WEIGHT (MACHINE ONLY):
1960 Lbs.
APPROXIMATE DIMENSIONS:
82 in L x 37 in W x 58 in H
LOCATION:
F.O.B. Bradenton, Florida
REFERENCE #:
Lathe -GMT-483
PRICE #:
$10,500.00
