CINCINNATI SABRE 1000 CNC VERTICAL MACHINING CENTER
TABLE SIZE ---- ( WORKING SURFACE ) ------- 20" X 44"
TRAVELS:
LONGITUDINAL- ( TABLE, X-AXIS ) --------- 40"
CROSS ------- ( SADDLE, Y-AXIS ) -------- 20"
VERTICAL ---- ( SPINDLE CARRIER, Z-AXIS ) 22"
SPINDLE SPEED RANGE ----------------------- 60 TO 8000 RPM
SPINDLE TAPER ----------------------------- CAT. 40
FEED RATES ---------- ( X, Y, Z ) --------- .1181 TO 590 IPM
RAPID TRAVERSE RATE - ( X, Y, Z ) --------- 590 IPM
TOOL CHANGER POSITIONS -------------------- 21
MAXIMUM TABLE LOAD ------------------------ 1500 LBS.
SPINDLE DRIVE ----------------------------- 15 HP A.C.
EQUIPPED WITH ---

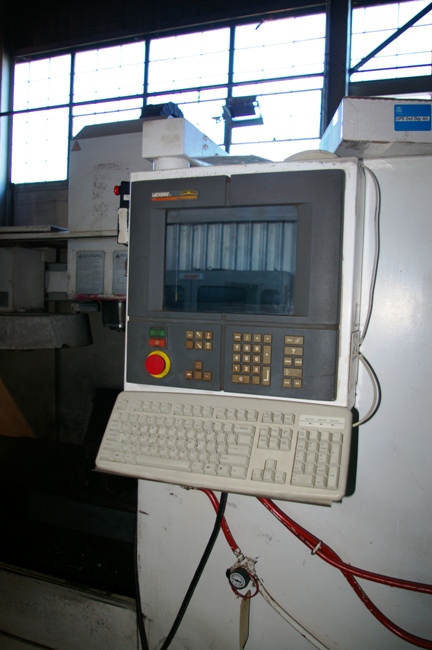

ACRAMATIC ( VICKERS ) 2100 CNC CONTROL ( WINDOWS BASED )
FULL ENCLOSURE
21 POSITION AUTOMATIC TOOL CHANGER
COOLANT SYSTEM
CHIP CONVEYOR

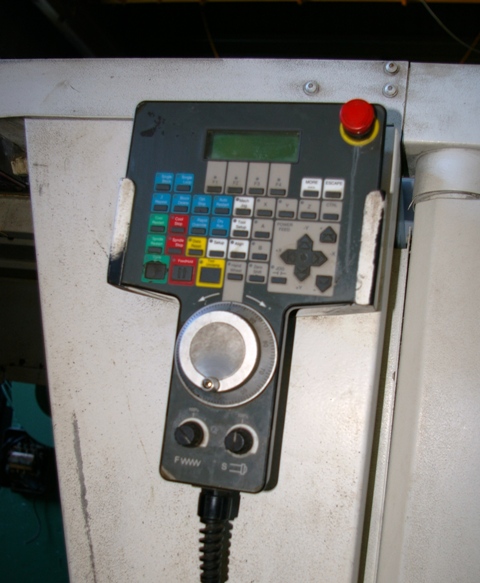

MANUAL PULSE GENERATOR
STAINLESS STEEL WAY COVERS
TO VIEW VIDEO, PLEASE CLICK LINK www.racomachinery.com/vlink/15914.mp4
STOCK# 15914
