Robofil 310
Electrical Discharge Machining EDM
Wire Cut EDM
used
5500 (LB)
1995
$0.00

Description

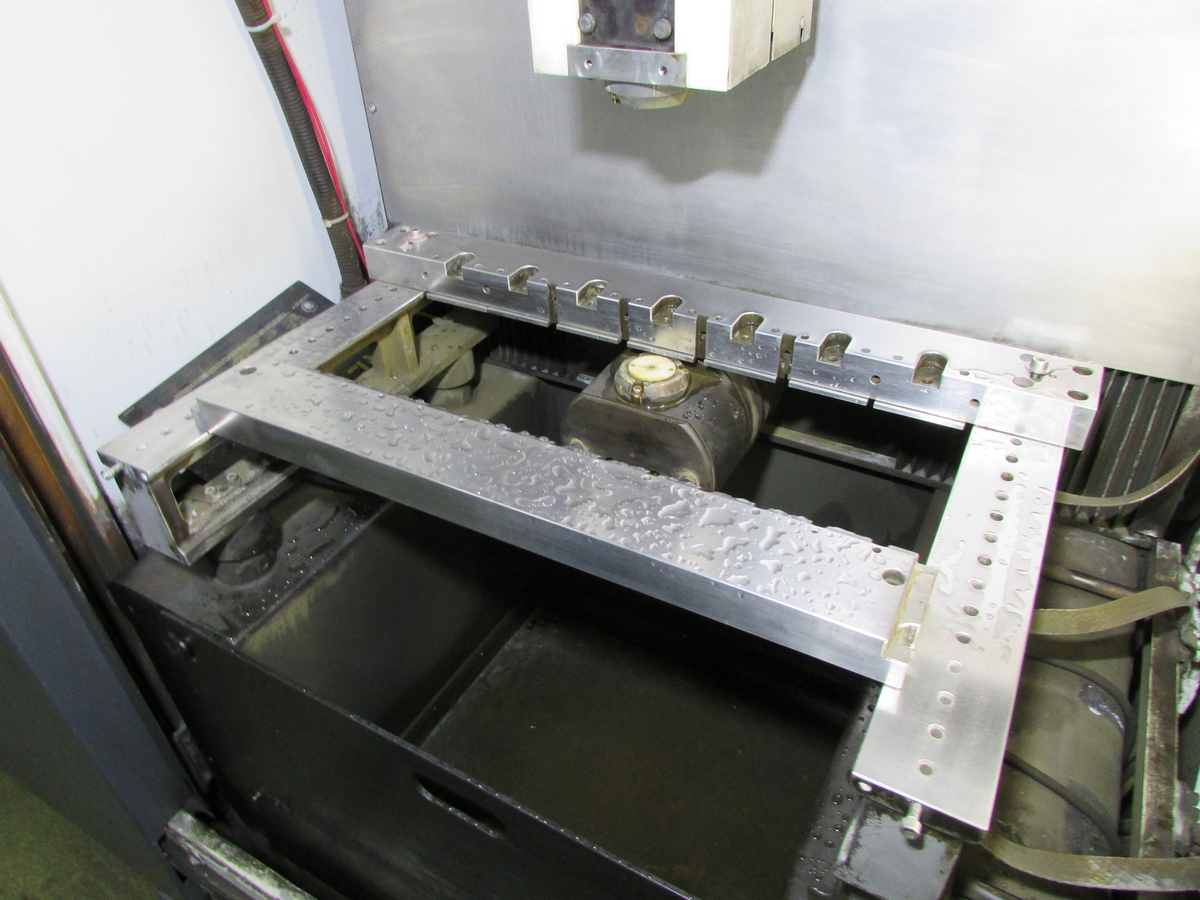

Charmilles Robofil 310 Wire EDM with automatic wire threader, dielectric system is fully enclosed in a space saving design.



Request A Quote On Our Stock Number: 0823 Charmilles Robofil 310 Wire EDMRequest a quote on stock# 0823

Specification                                                                   Description

Machining Stroke ( X x Y x Z )                                     15.7" x 9.8" x 15.7"

Machining Stroke ( U x V )                                                 15.7" x 9.8"

Maximum Workpiece Size                                              33.5" x 19.7" x 15.7"

Maximum Workpiece Weight                                           2,207 lbs

Taper Capacity                                                               0 to 30 Degrees

Wire Diameter Capability                                               .004" to 0.012"

Wire Guides Included                                                    .010"

Wire Spool Capacity                                                         44 lbs (20KG)

Electrical Requirements                                               380V/3Phz/60Hz

Approximate Overall Dimensions                            71"LR x 63"FB x 88"H

Approximate Machine Weight                                         5,500 lbs

Equipped With:

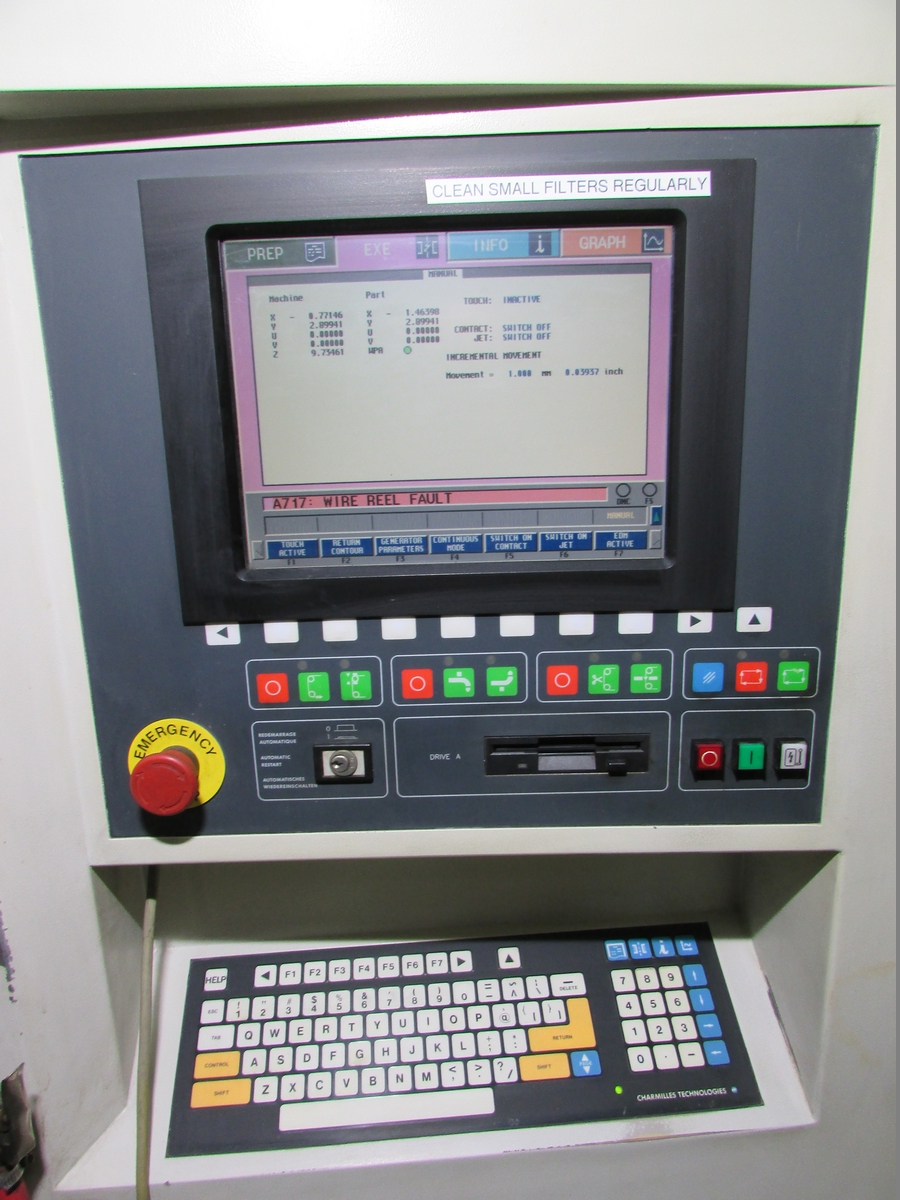

* Charmilles CNC Control * Auto Wire Threading * Glass Scale Feedback * Non-Submerged Cutting Capability * 2 Stainless Steel Table Rails * Large Wire Spooler (44 lbs) * Anti-Collision Protection for All Axis * Remote Hand Control * 14" Color Graphics Monitor * RS 232 Port * 16-Bit Microprocessor * 3.5" Floppy Drive * Filtration System * Heat Exchanger (No Chiller Included) * Transformer * All Available Manuals, Disks, and Accessories

Stock Number: 0823

Charmilles Robofil 310

Age: 1995

Condition: As Is, Where Is
