Robofil 240MP
Electrical Discharge Machining EDM
Wire Cut EDM
used
5716 (LB)
2006
$0.00

Description

Stock Number: 0836

Charmilles Robofil 240MP
Age: 2006
Condition: As Is, Where Is
Key Points * Space Saving Compact Design * 56Rc Chrome Harden Table * Heavy Workpiece Design without the loss of accuracy * Low consumable cost filtration system * 30 deg Taper capability at max Z height * 0.00002" resolution glass scales on all axes * Industrial speed of 28sq. inches/hour * Collision protection on all axes * Rhenocast base for thermo stability and vibration dampening * 0.008" diameter brass wire technology that with one rough cut can equal in surface finish a rough and 1 skim with 0.01" brass wire


Request A Quote On Our Stock Number: 0836 Charmilles Robofil 240MP Wire EDMRequest a quote on stock# 0836
Specification                                                                           Description
X, Y, Z Travels                                                                     13.77" x 8.66" x 8.66"
U, V Travel                                                                     13.77" x 8.66"
Maximum Taper Angle                                                       +/- 30 Deg / 8.66"
Maximum Workpiece Dimensions                                     39.37" x 21.65" x 8.66"
Maximum Workpiece Weight                                                     1,650 lbs
Table Dimensions                                                               26.77" x 17.72"
Inside Tank Dimensions                                                       39.37" x 21.65"
Reservoir Capacity                                                                 201 Gallons
Power Supply                                                                   380/400 V , 10 KVA
Machine Dimensions                                                                80" x 81" x 79"
Machine Weight                                                                            5,716 lbs

Equipped With:

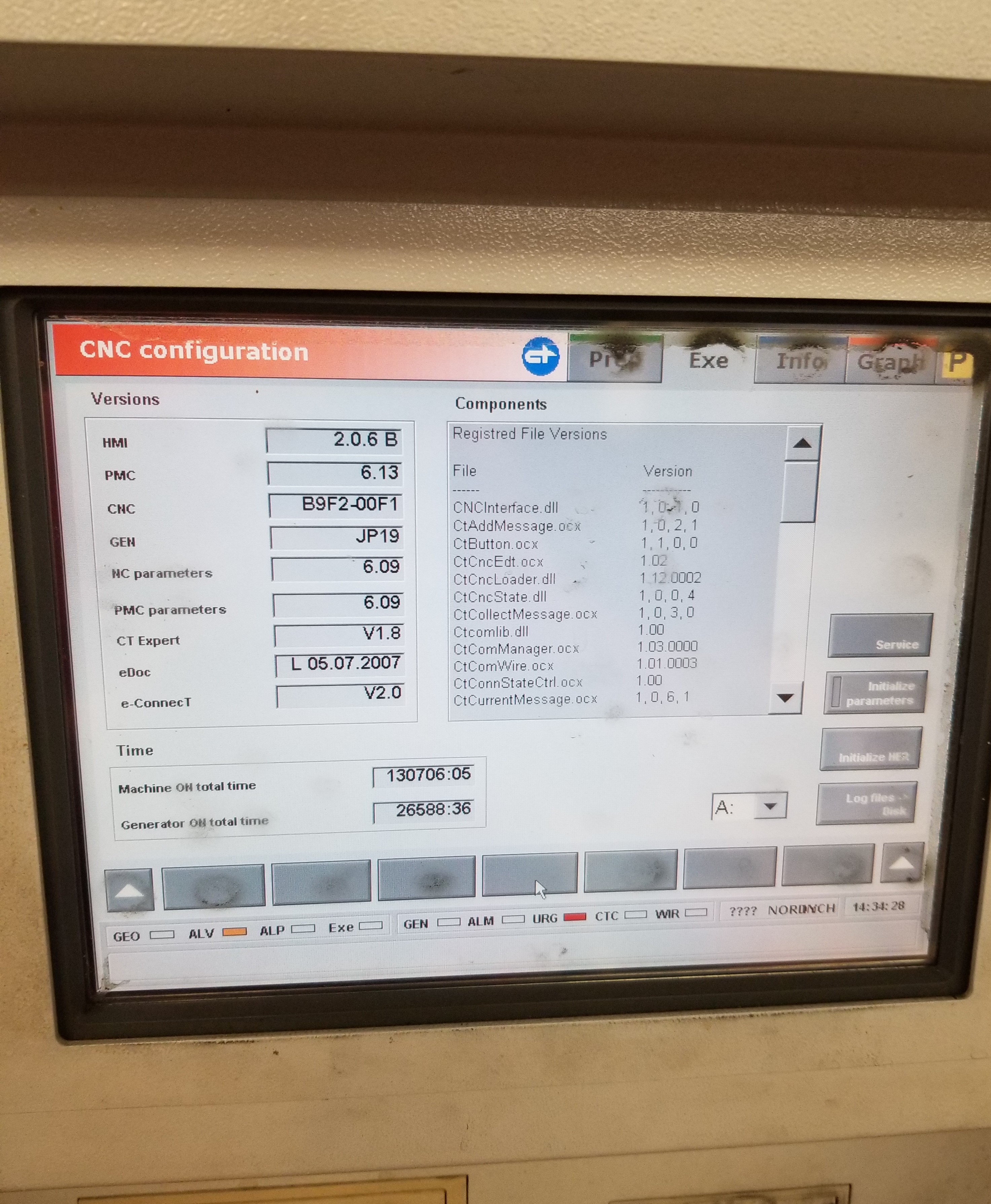

* Charmilles Millennium CNC Control * Submerged Cutting Capability * Automatic Wire Threader * Anti-Collison Protection * Transformer * All Available Manuals and Accessories
