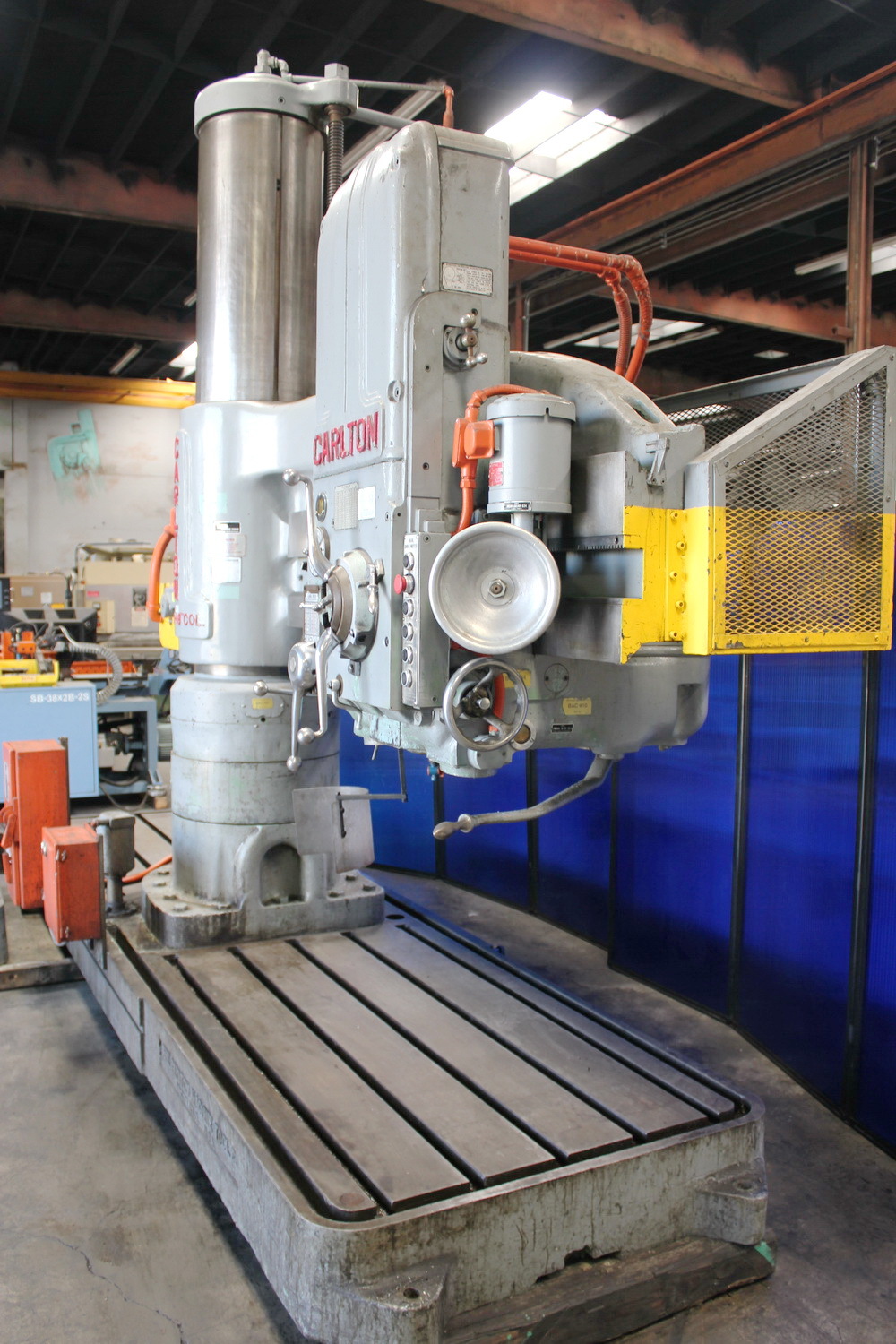

CARLTON TWIN BASE TABLE RADIAL ARM DRILL 6

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


4A
5953
Drills Manual and CNC
Radial Drill
used
(LB)
0
$0.00

Description

Basic Information

Model: 4A

Manufacturer: Carlton

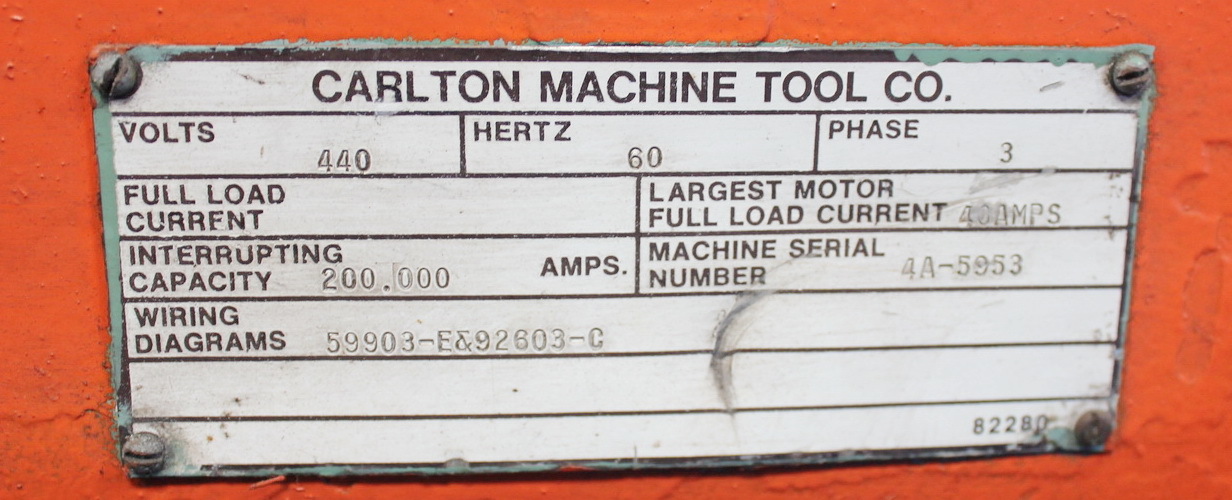

Serial #: 5953
Location: Huntington Park, CA
Year Built: -


Specifications

Arm Length: 6

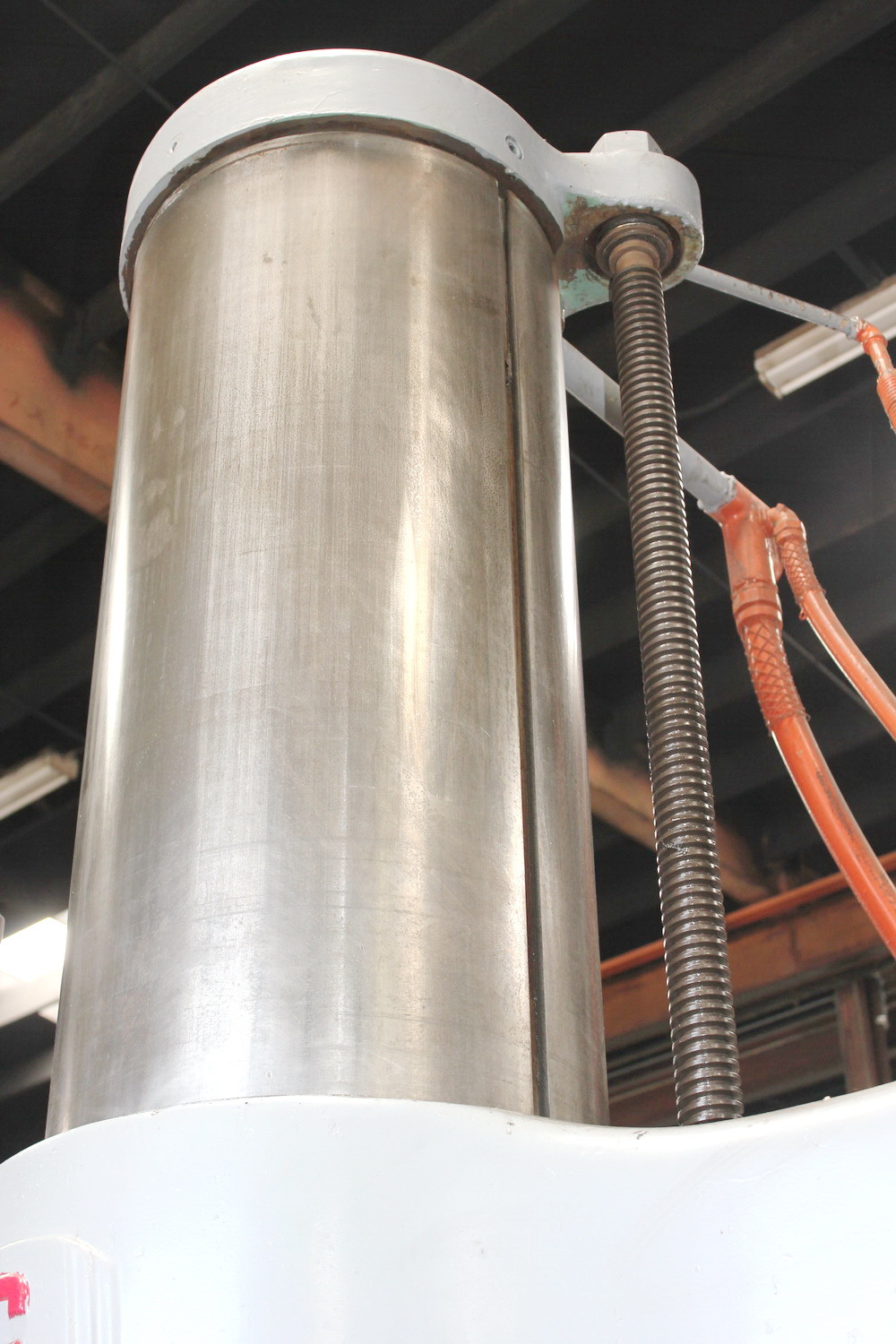

Column Diameter: 19"

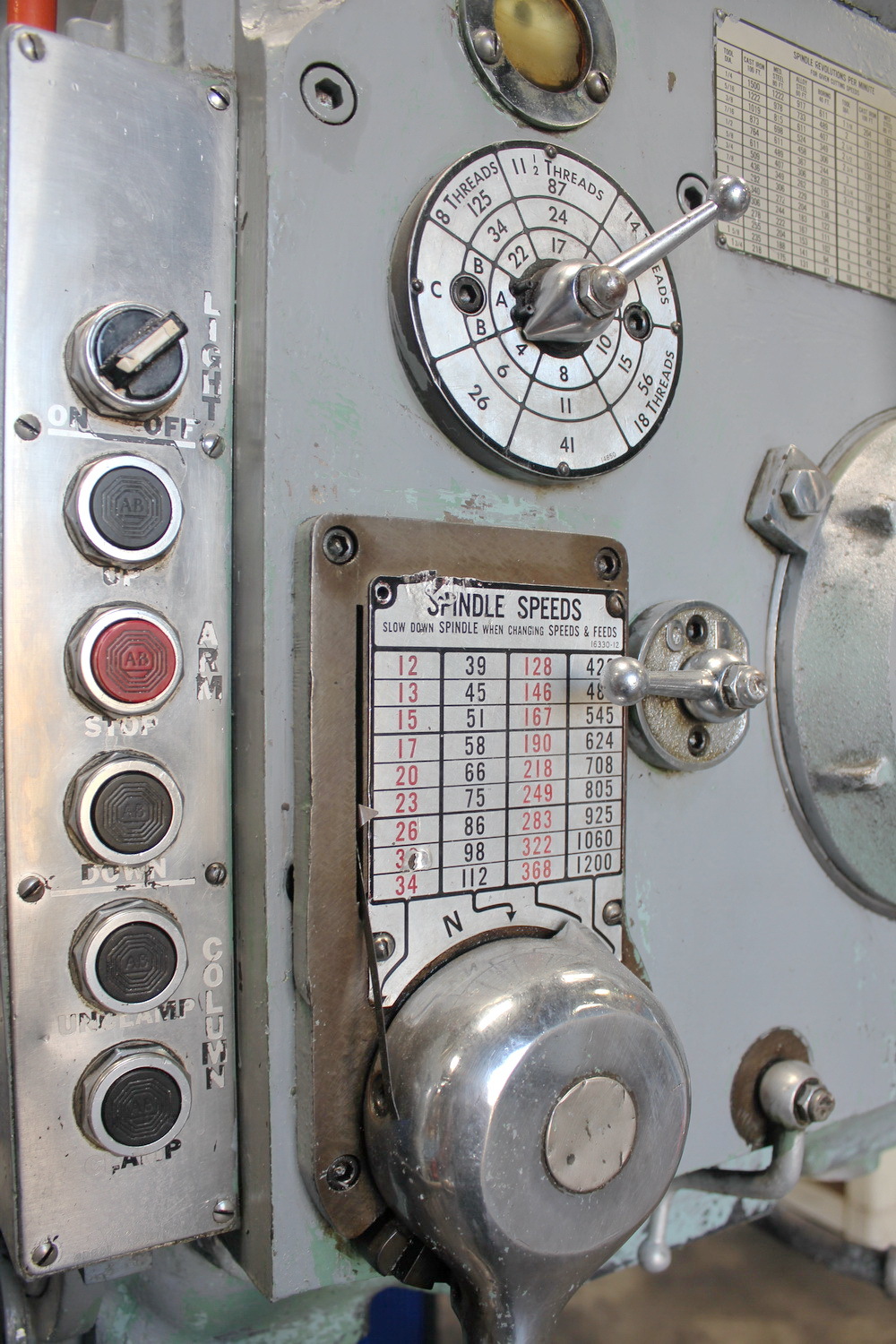

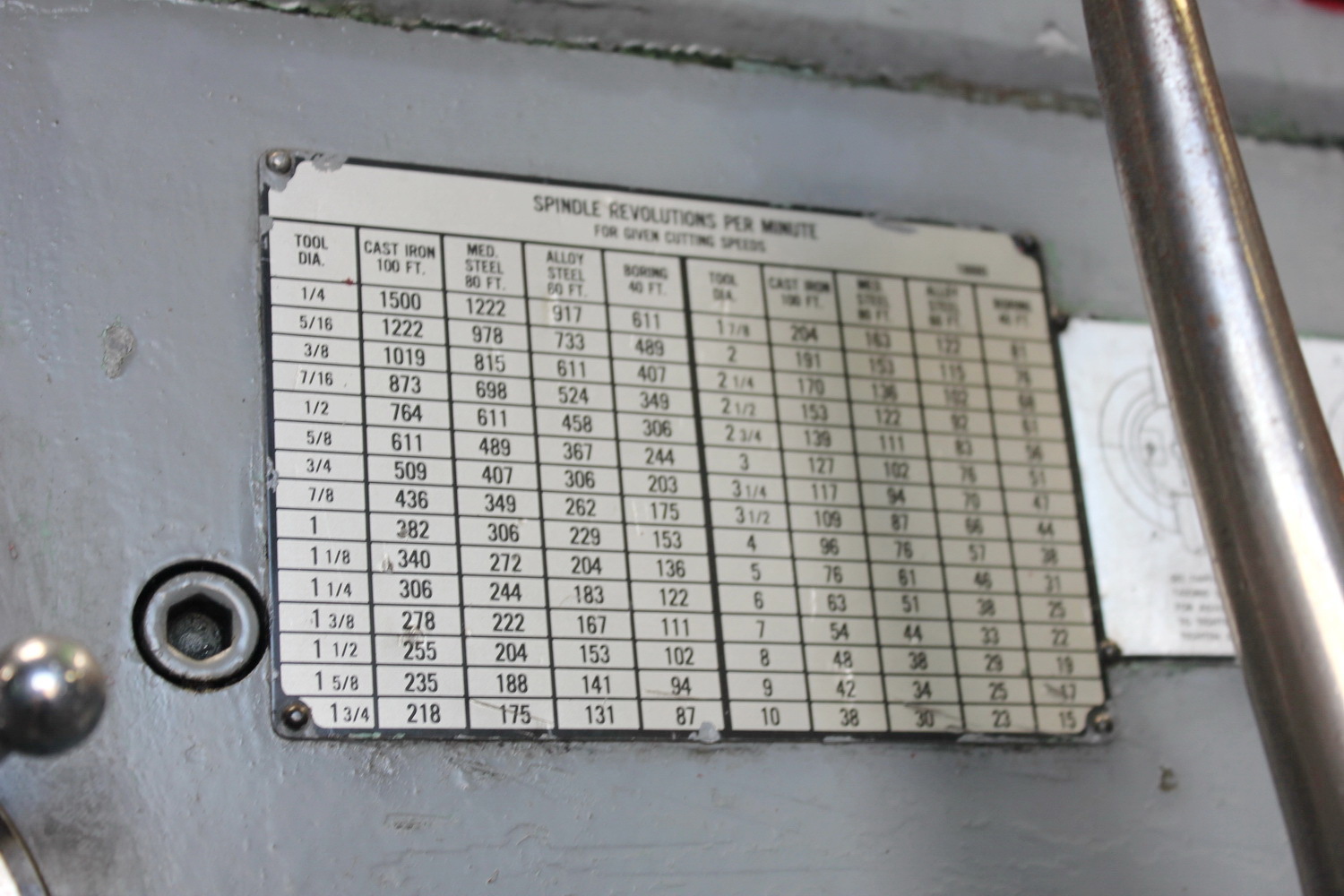

Spindle Speeds : 12- 1,200 RPM
Spindle Nose: #6 MT
Spindle Quill Travel: 20"
Spindle Quill Feed: 0.004" - 0.125"
Thread Leads: 8 - 11 1/2 - 14 - 18
Spindle Nose To Base: 14 1/2" - 78"

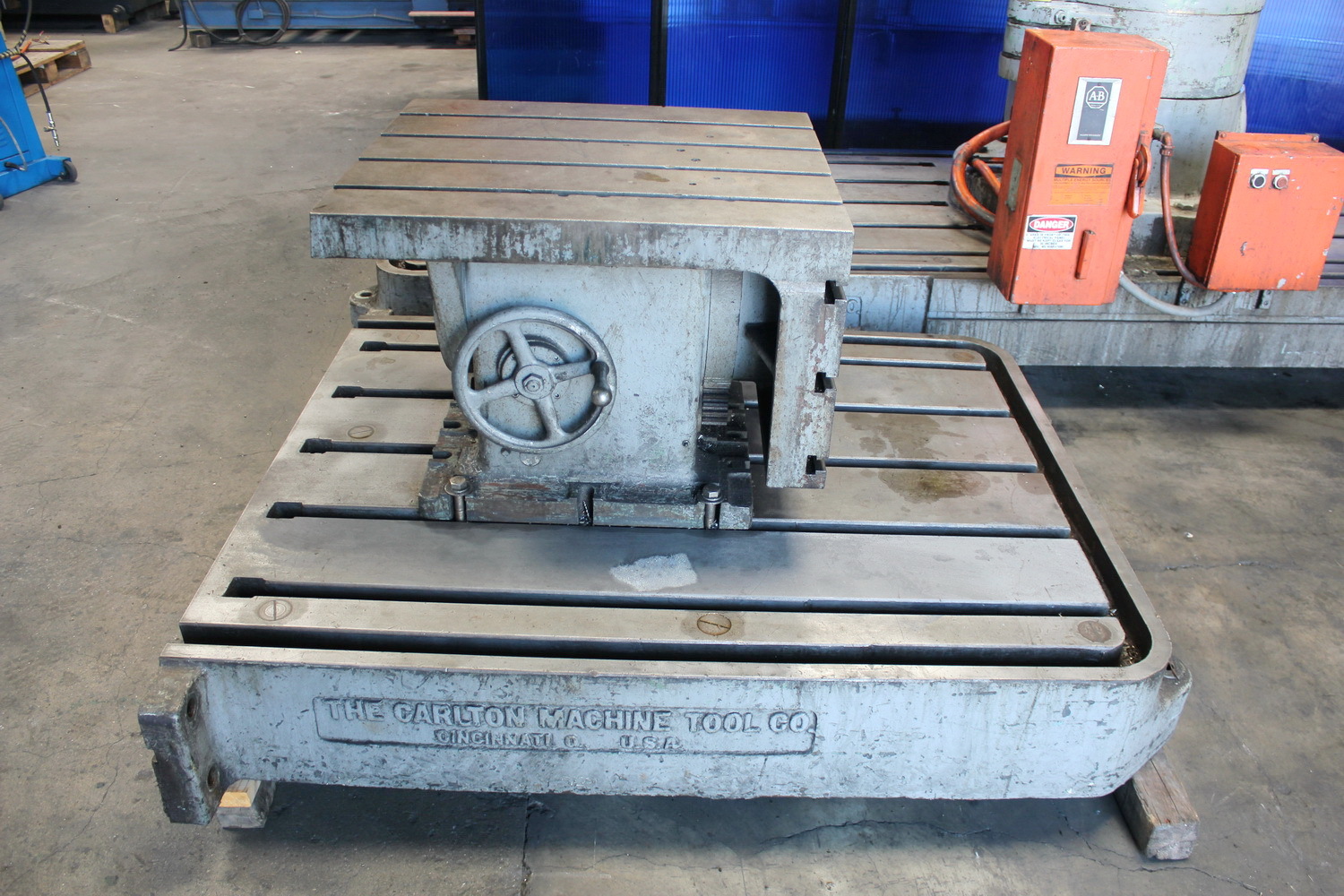

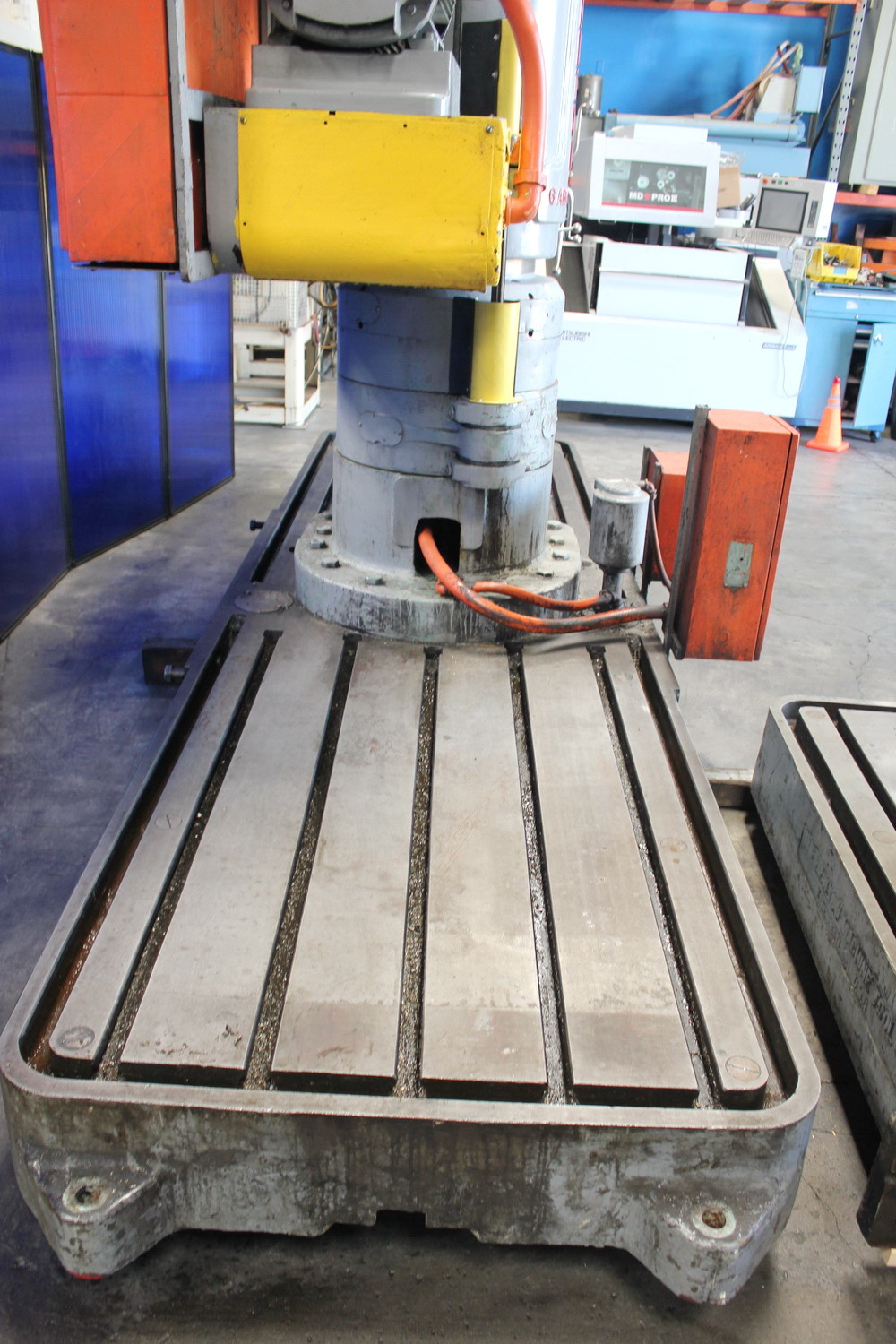

Sub Base Table Size: 66" x 50"
Column Face To Spindle: 13 1/4" - 72"

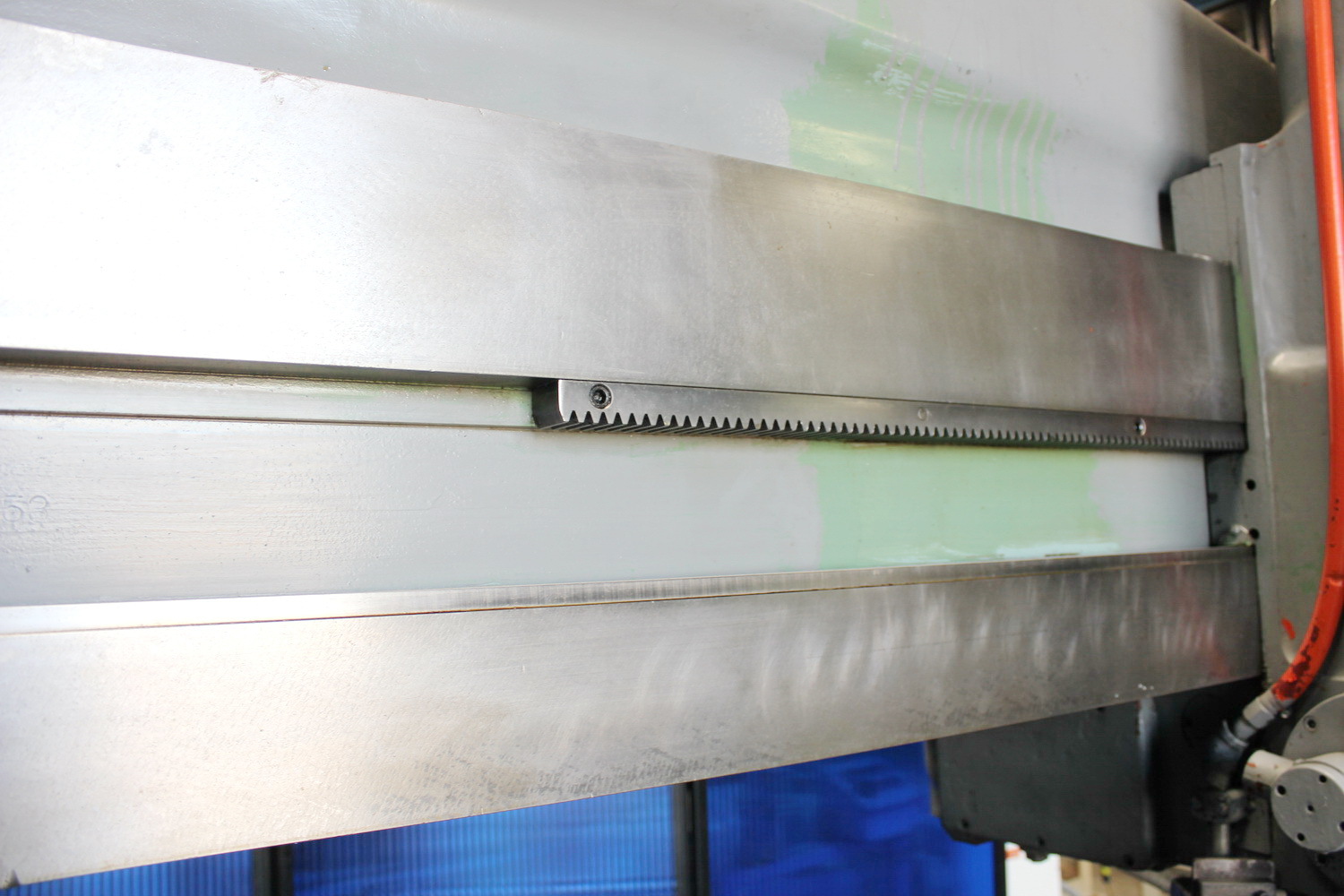

Travel Of Head On Arm: 59"
Vertical Arm Travel: 46"
Dimensions (L x W x H): 200" x 65" x 150"
Weight: 27,500 Lbs.

Equipped with

  • Power Elevation
  • Power Head Traverse
  • Power Clamping On Head & Arm
  • Tapping

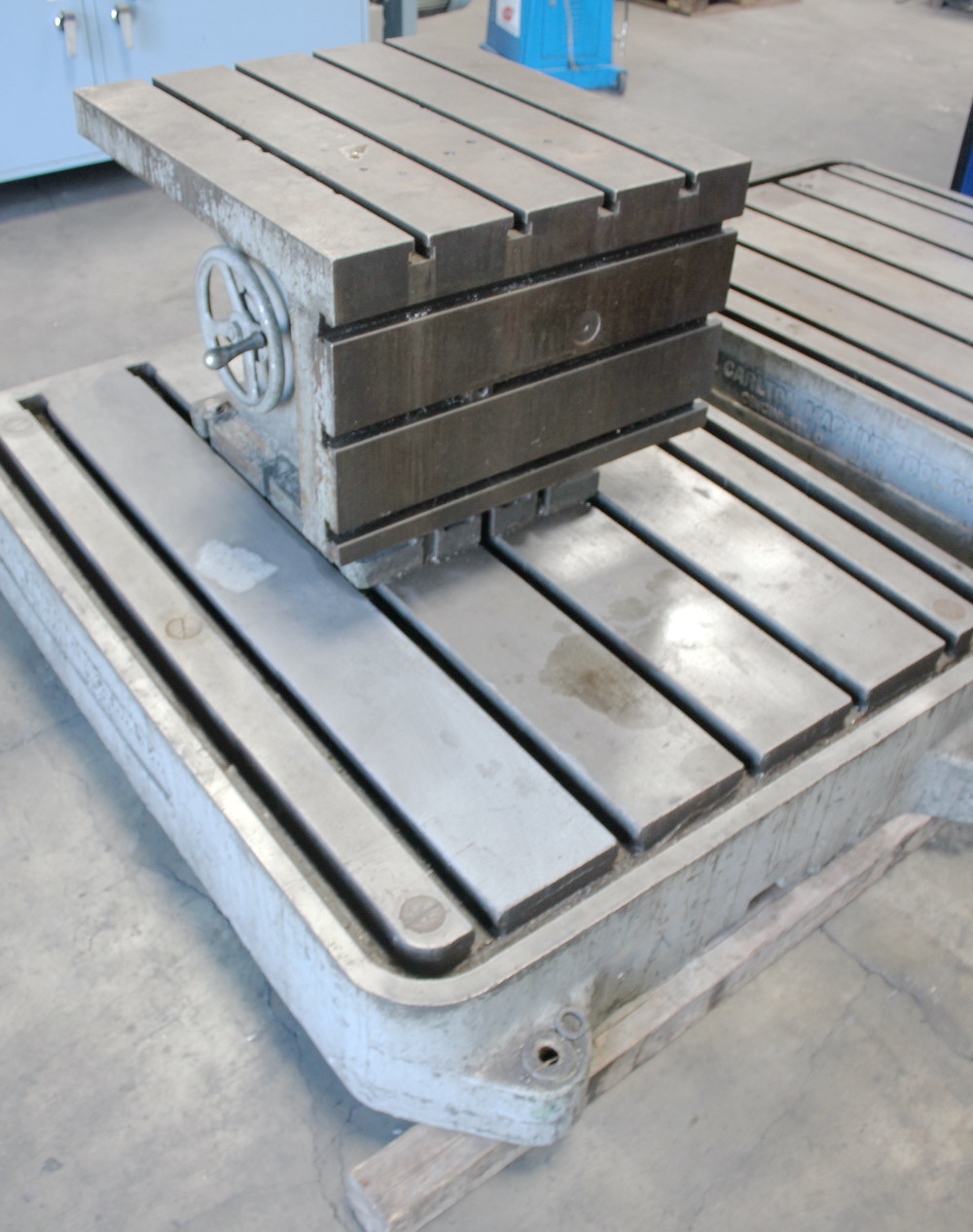

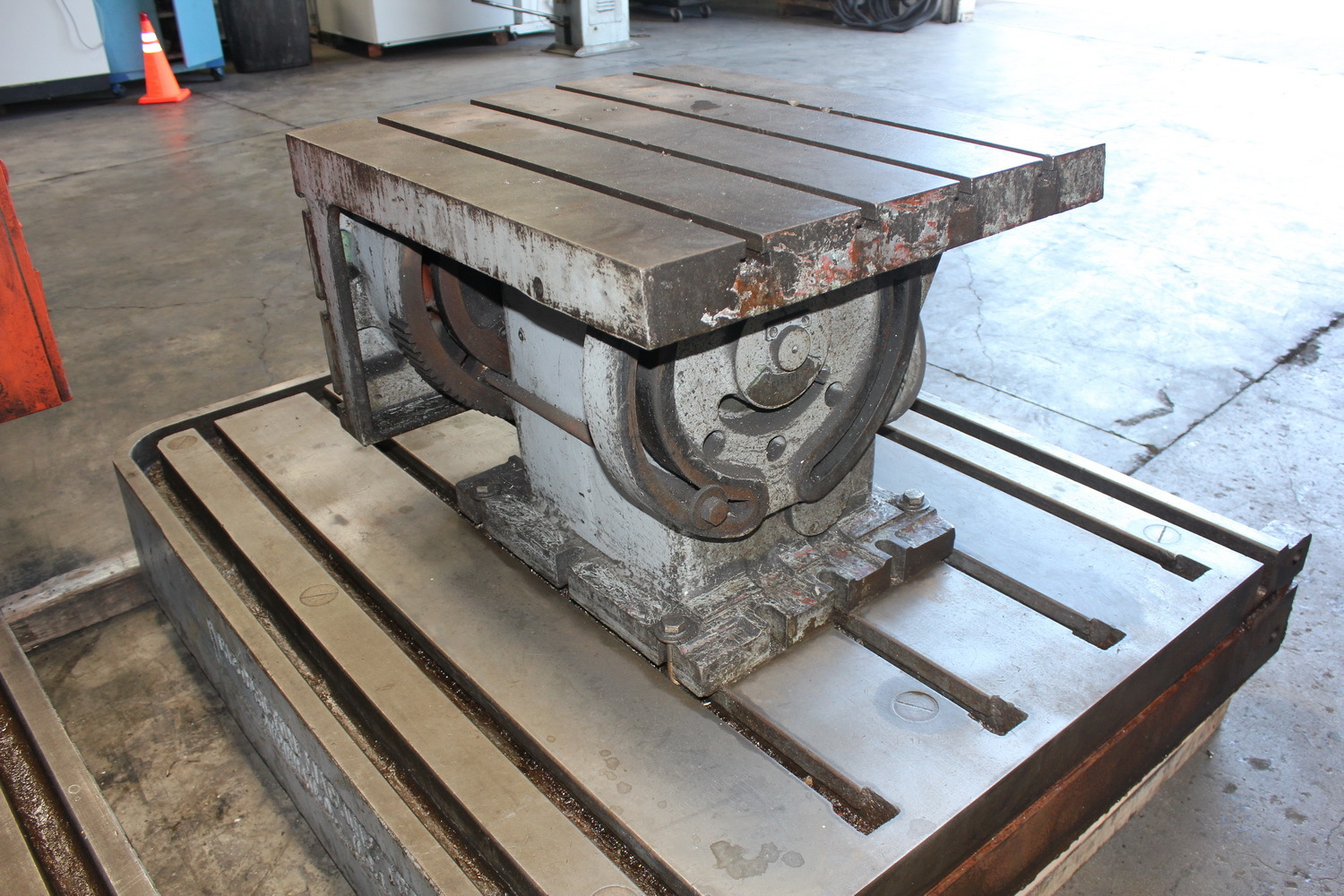

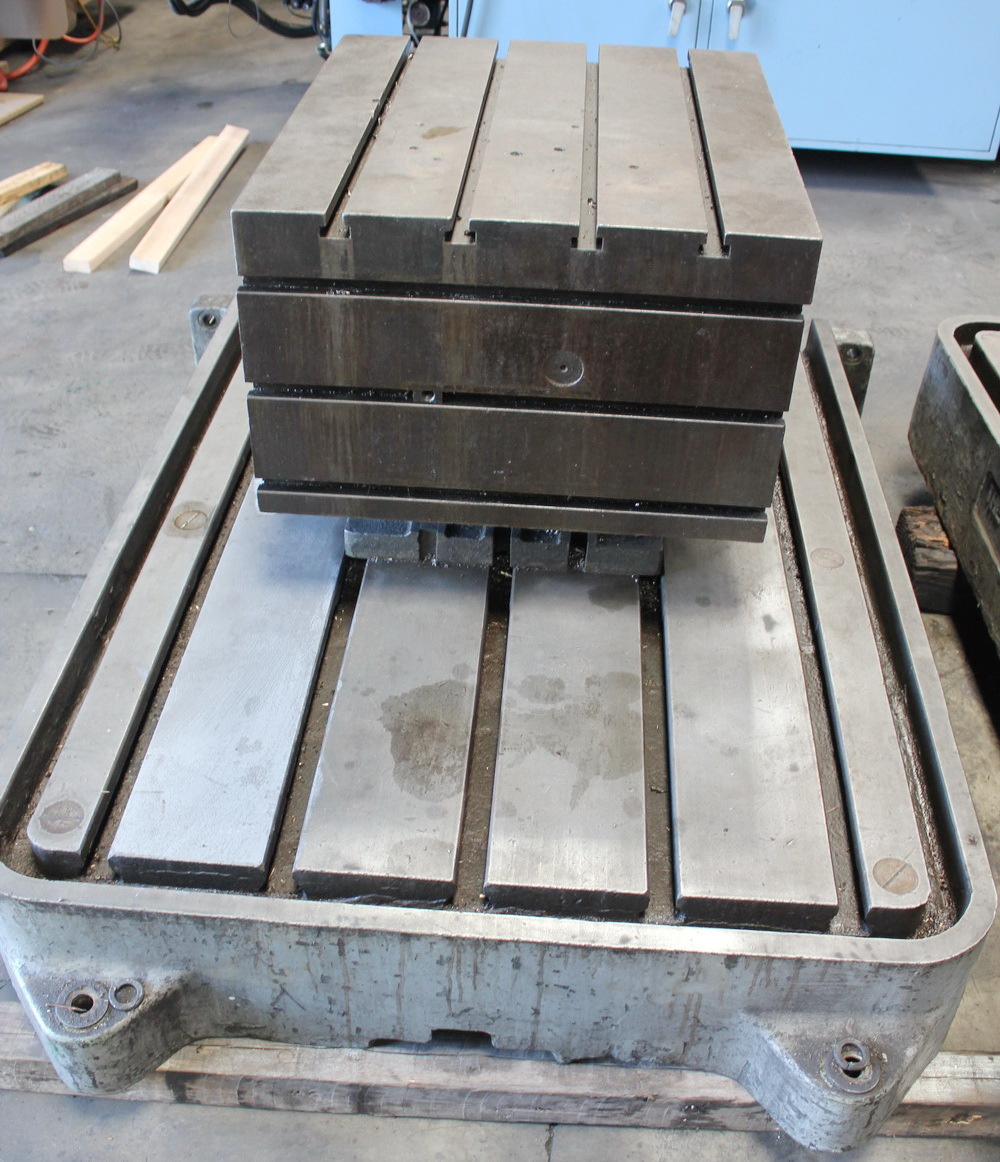

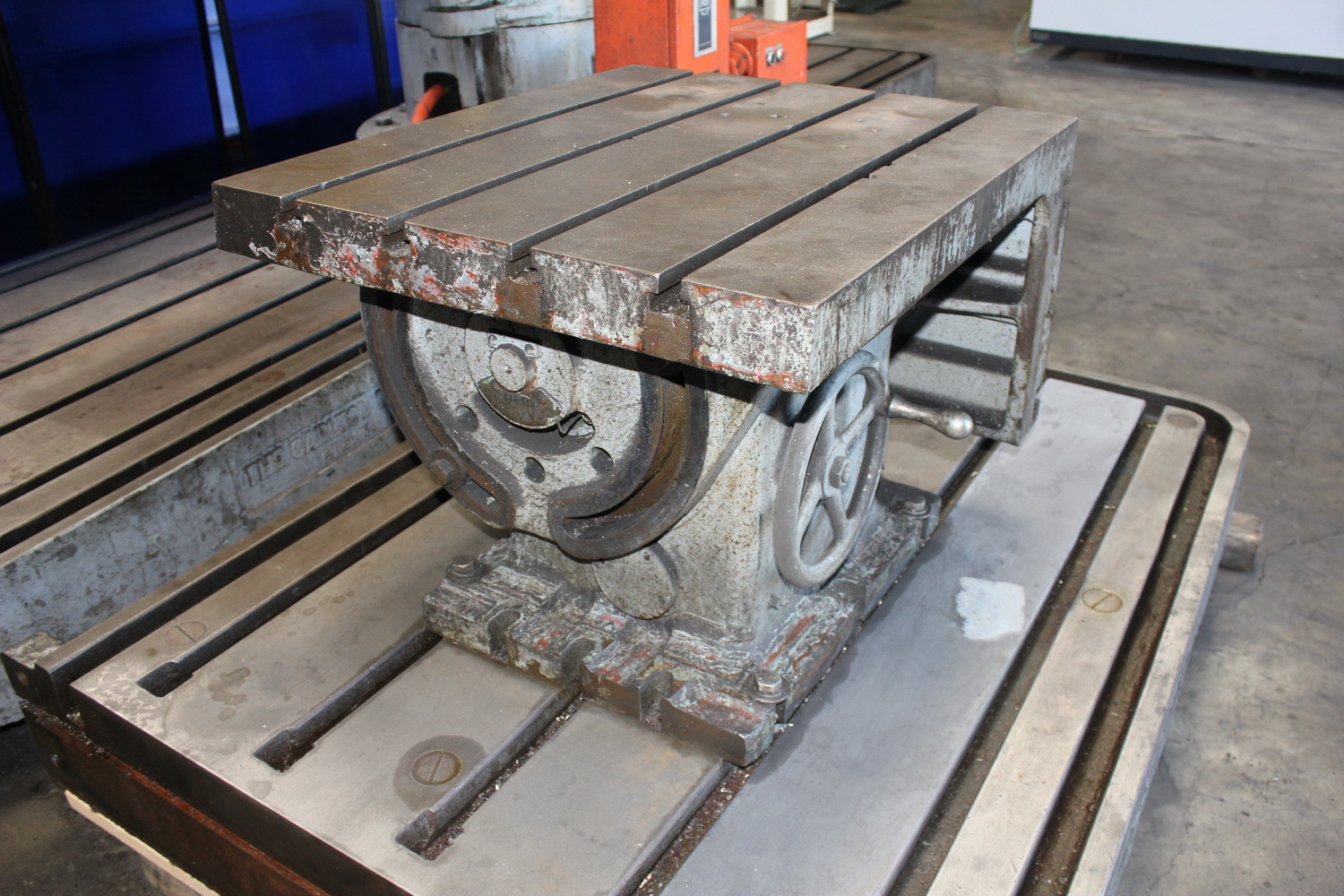

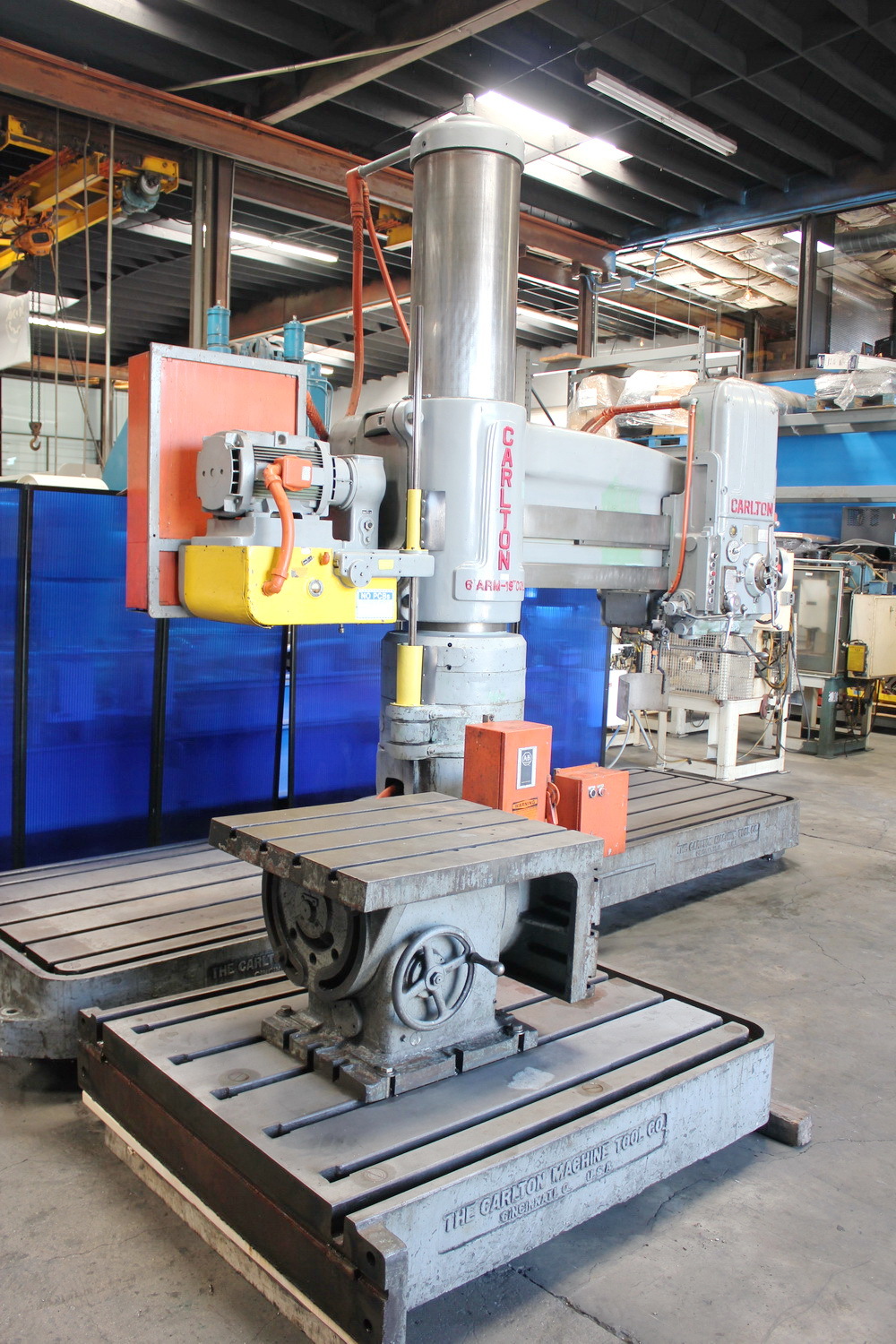

  • Universal Tilting Box Table
  • Coolant System
  • Horsepower: 30
