Model: FR-5264-23D Manufacturer: Campbell Serial #: 621-82 Location: Huntington Park, CA Year Built: 1999
Specifications

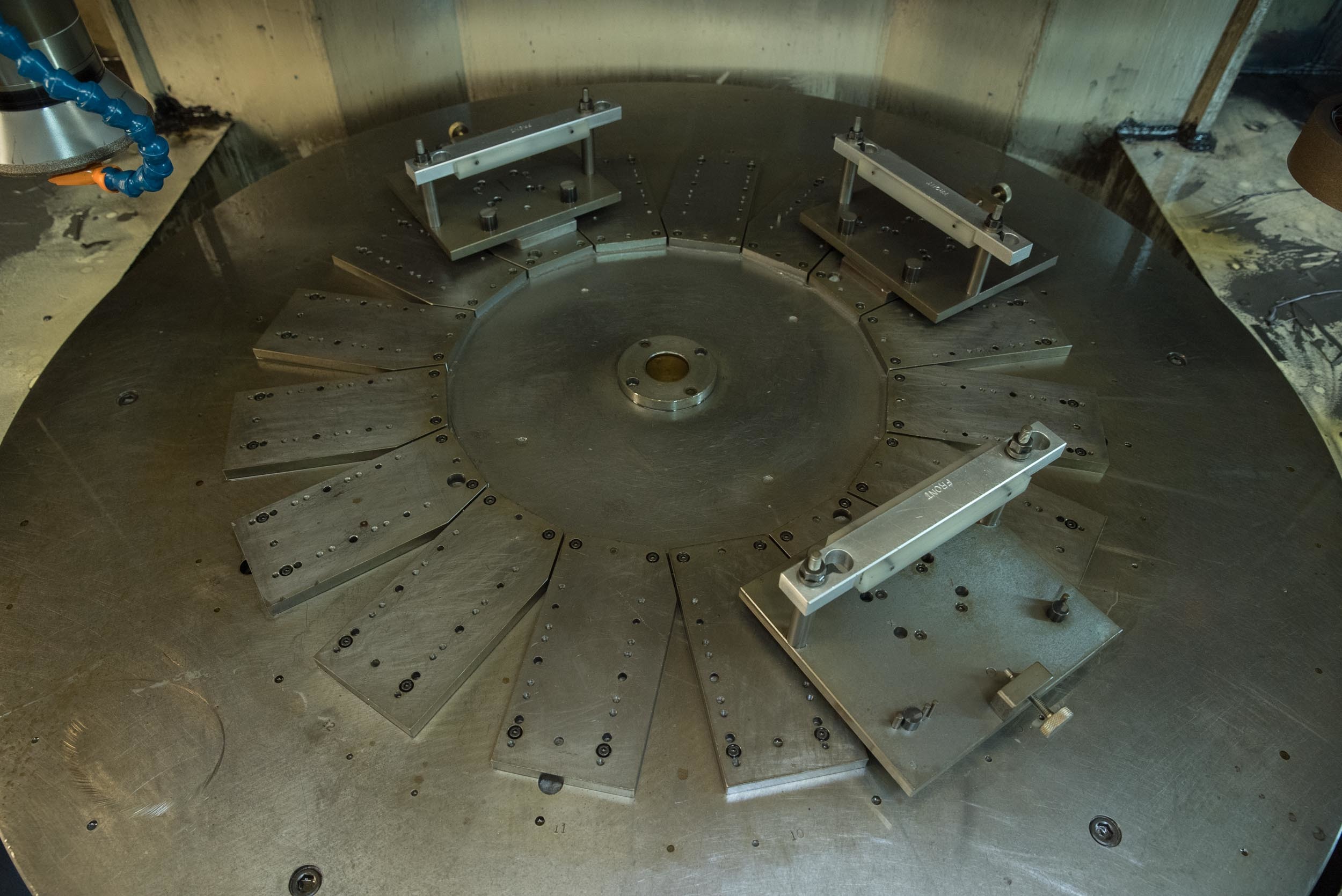

Table Diameter: 60" Max. Swing: 73" Table Speeds: 5- 100 RPM Left Grinding Slide Stroke: 17.24" Right Grinding Slide Stroke: 15.69" Left Grinding Slide Cross Traverse: 55.70" Right Grinding Slide Cross Traverse: 47.24" Grinding Wheel Speed (Left): 10,000 ROM Grinding Wheel Speed (Right): 4,500 RPM Grinding Slide Swivel (Left/Right): 45 Degrees Rail Traverse: 21" Feed Range: 0.001- 200 IPM Dimensions (L x W x H): 113" x 170" x 132" Weight: 30,000 Lbs.
Equipped with
GE Fanuc 16I-T 5 Axis CNC Control
2 Airflow Mist Collectors
Auto Lube System
Coolant System
Hours On Machine:
Power On 25,818 Hours
Operating 5,704 Hours
Cutting 4,714 Hours
Retrofitted By Chromalloy Aerospace in (1999)
Horsepower: 10
'
