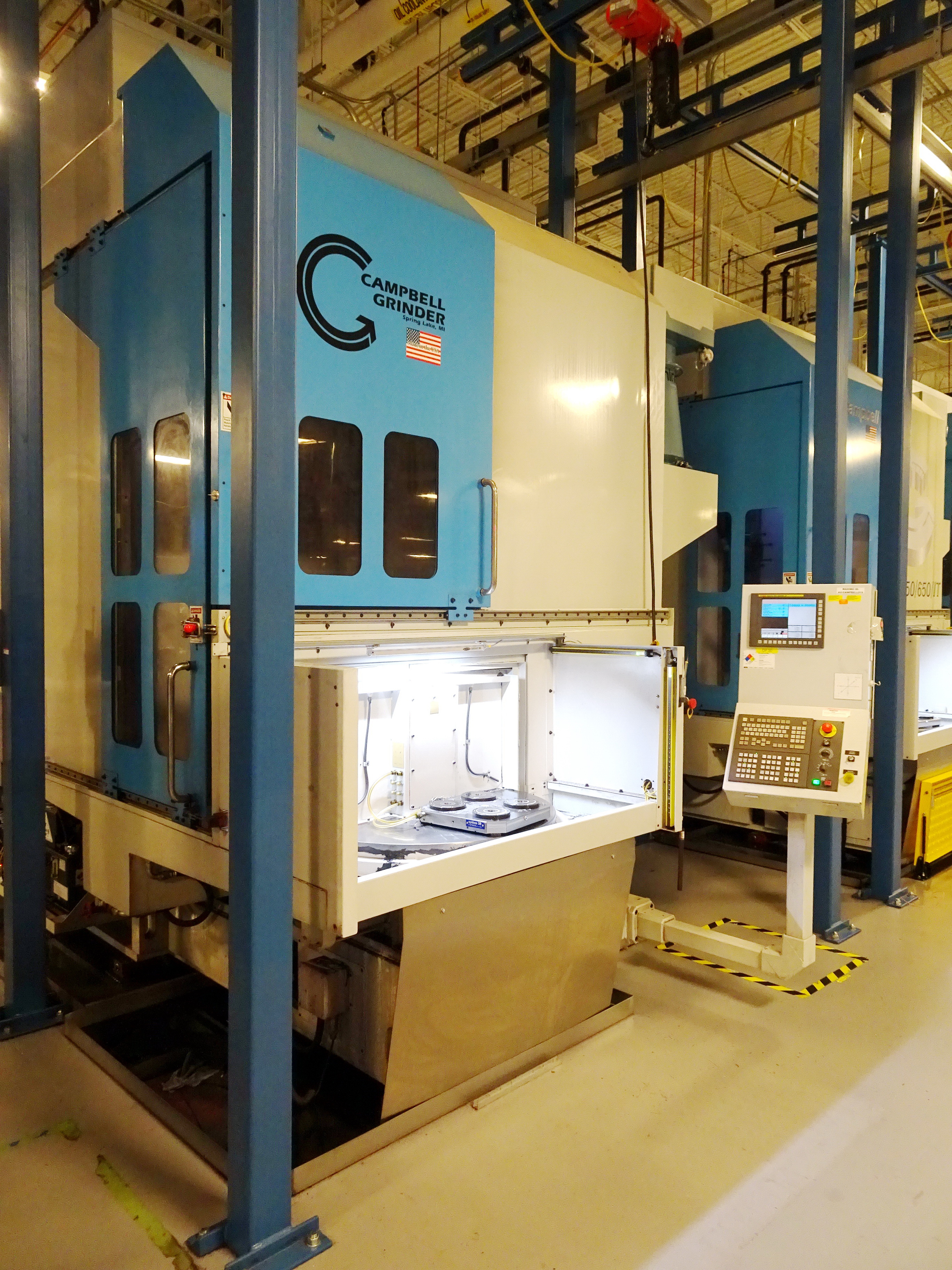

CNC Grinding Machine,
Asset 402800
Axis: X-Axis Travel 6 inches,
3 inches of travel on each side of the part,
Z-Axis Travel 609mm (24 inches),
Y-Axis Travel 609mm (24 inches),
Approximate Floor Space Requirements (Machine Only):
Left To Right 2.89M (9.5 Feet),
Front To Back 3.66M (12 Feet),
Height 3.20M (10.5 Feet),
Approximate Weight: 24,947Kg (55,000 pounds) (estimate), Work Envelope: Long 609mm (24 inches),
Width 609mm (24 inches),
Height 609mm (24 inches)
Rapid Traverse Speed 7620mm (300 inches) per minute, Positioning Accuracy 5 Microns (0.0002 inch),
Linear Scales: Scales Absolute Scales,
Table Tops: Long 406mm (16 inches),
Width 406mm (16 inches),
Tee Slots Standard 16mm (5/8 inches),

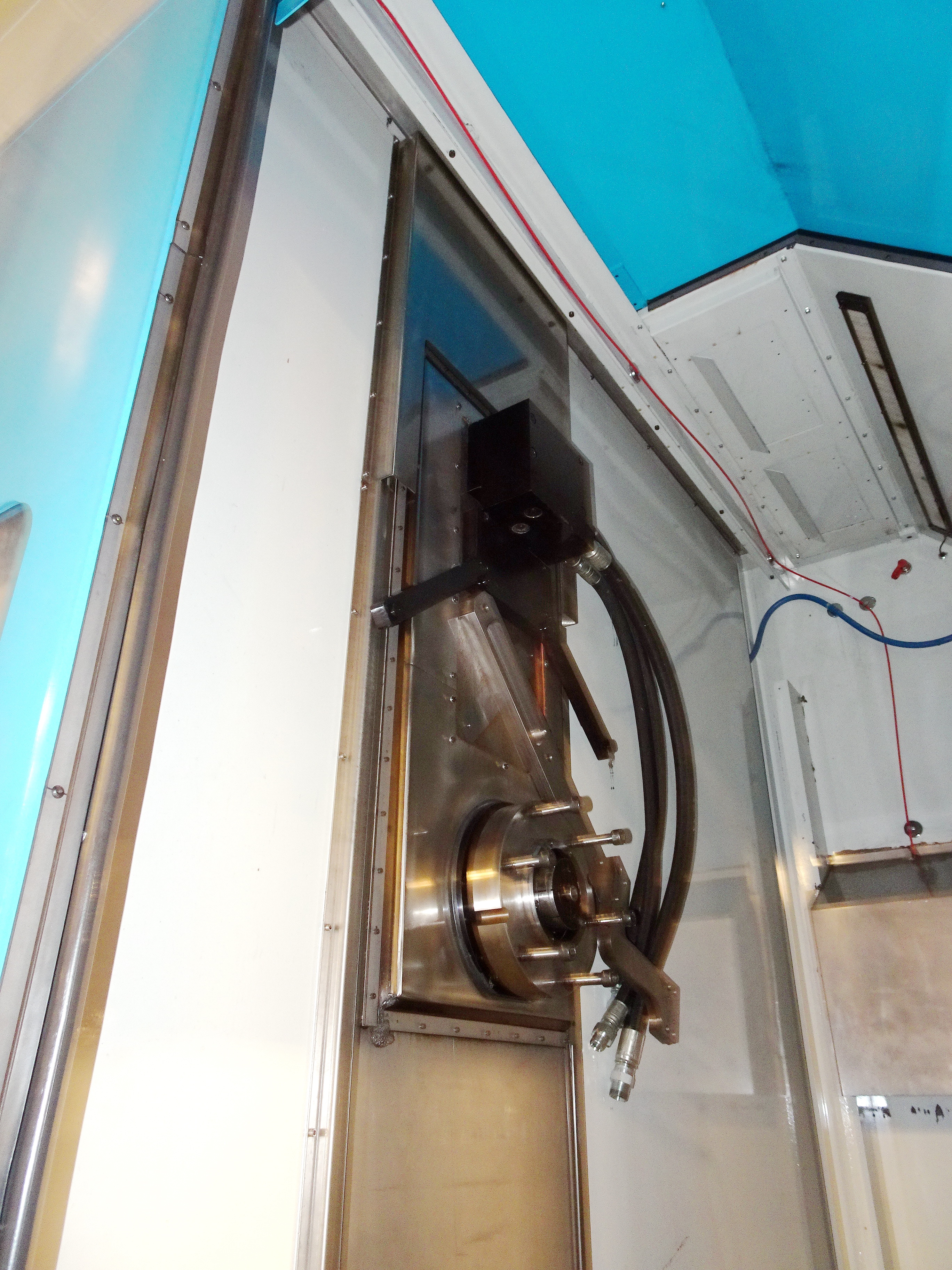

Grinding Spindle: Power 45 kW (60hp)
from 35 to 1,600 RPM, RPM Speed Range 0 to 1,600 RPM,
Run Out Both Radially and Axially 2.5 Microns (0.0001 inch), Wheel Size Max 60 inch x 12 inch wide,
Tool Connection Integrated wheel hub,
Electrical Requirements: Machine Only 460 V to 60Hz 3 phase Wye configuration, 200-225 amps (approximate),
Pneumatic Requirements: 1700 to 2300 l/min @ 5.5 bar (60-80 cfm @ 80 psi) (approximate),
Run Hours: 5,406, For a representative video please click on the following link
