Table Dia 56"
Swing 60"
Work Ht-U/R 60"
Power 40 hp
RPM 200 RPM
Dimensions 200"H x 135" FB x 131" D
Weight 74000
SPEC SHEET

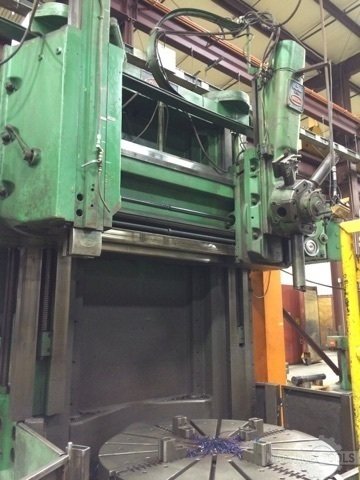

56 in BULLARD DYNATROL HI COLUMN VERTICAL TURRET LATHE
Serial No. 33660
New 1983
Maximum Height under Cross Rail (12 in extra hi) 60 in
Maximum Height under Turret Face 71.75 in
Speed Range (20) 5.0 to 200 RPM
Feed Range Infinity Variable .001 in to .250 in / rev
Vertical Travel of Turret Head 30.75 in
Vertical Travel of 11 in Heavy Duty Ram Head 60 in
Toolpost Holes 2.75 in
MACHINE FEATURES:
Automatic Lubrication
Compact Unified Remote Control Pendant for all Machine Functions
Variable Rapid Traverse to Maximum of 9 Feet per Minute
EQUIPPED WITH:
Hardened and Grounded Ways on Cross Rail and Turret Swivel
Power Index Turret
Pistol Grip Pendant Controls
4-Jaw Manual Chuck
40 HP Main Motor
5 HP Rail Elevation
Approximate Dimensions: Height w/Rail Up and Pendant up 200 in
Width 135 in
Front to Back 131 in
Approximate Weight: 74,000 LBS.
Temporary Specification sheet and subject to change
