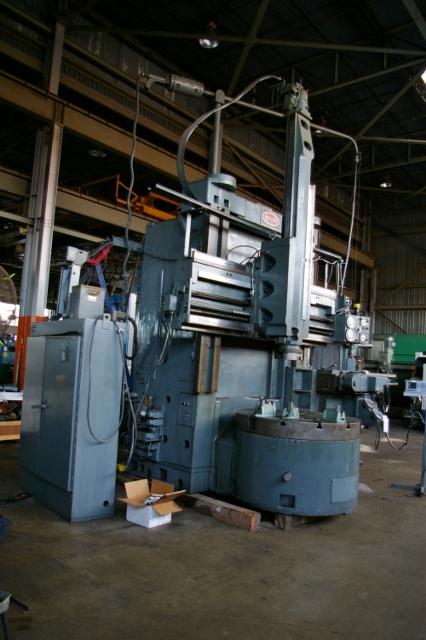

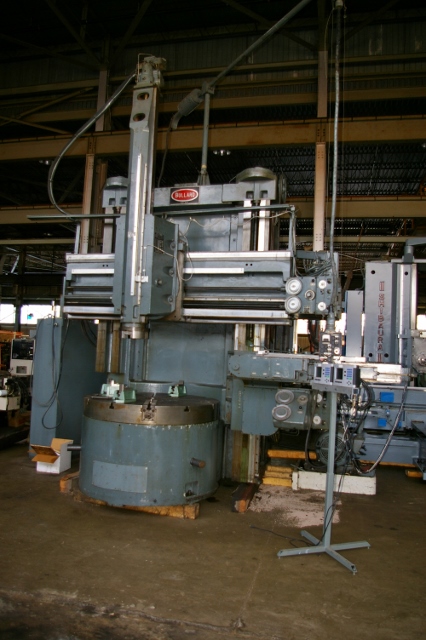

56" BULLARD DYNATROL HI COLUMN VERTICAL BORING MILL
WITH 4 POSITION POWER INDEX SWIVELLING RAM HEAD & SIDE HEAD
DIAMETER OF 3 JAW CHUCK TABLE ------------- 56"
MAX. SWING, SIDE HEAD BELOW TABLE --------- 68"
MAX. SWING, SIDE HEAD IN WORKING POSITION - 62"
APPROX. WORK HEIGHT TO RAIL FROM CHUCK ---- 60"
20 TABLE SPEEDS --------------------------- 7 TO 250 RPM
VARIABLE FEED RANGE ----------------------- .001" TO .250 IPR
POWER FEEDS AND RAPID TRAVERSE TO BOTH
RAM AND SIDE HEADS
4 POSITION RAM HEAD SWIVELLING 30 DEG.
IN EITHER DIRECTION AND WITH 60" TRAVEL

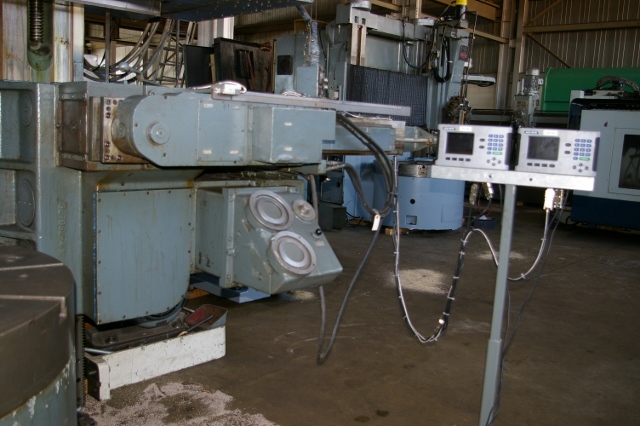

ADJUSTABLE RAIL; SIDE HEAD
MAIN DRIVE MOTOR -------------------------- 60 HP 230/460/3/60
EQUIPPED WITH ---
3 JAW POWER CHUCK 4 BOLT ON HEAVY DUTY JAWS
4 POSITION POWER INDEXING RAM HEAD CHROME WAYS

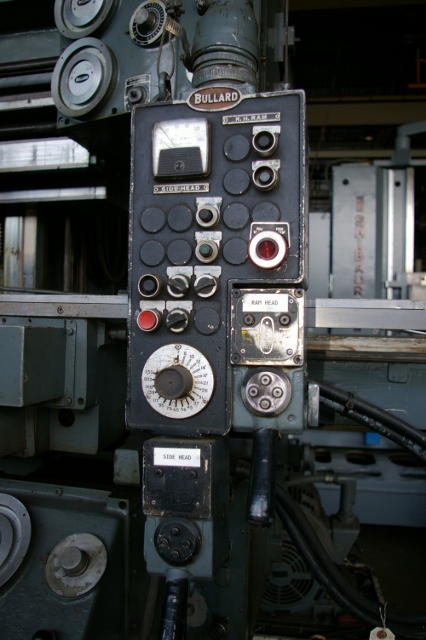

HARDENED & GROUND CROSS FEED SCREW PENDANT CONTROL
4 WAY TOOL POST ON SIDE HEAD
TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
TO VIEW VIDEO, CLICK LINK www.racomachinery.com/vlink/17606.mp4
STOCK# 17606
