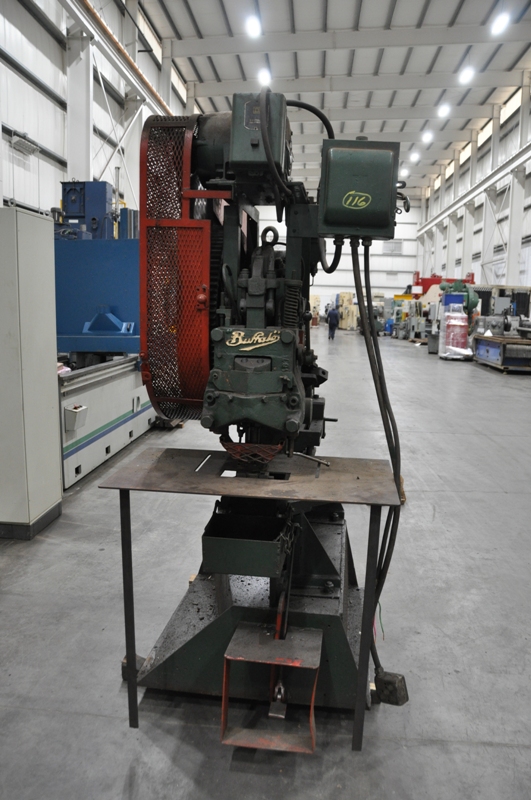

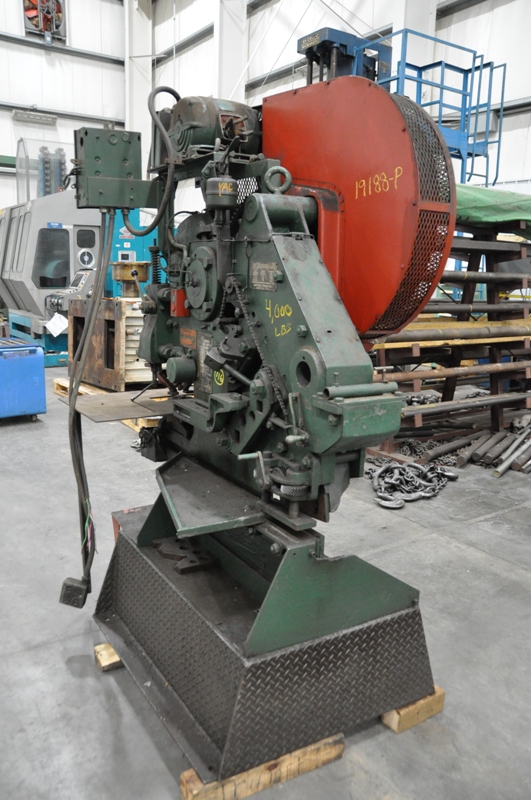

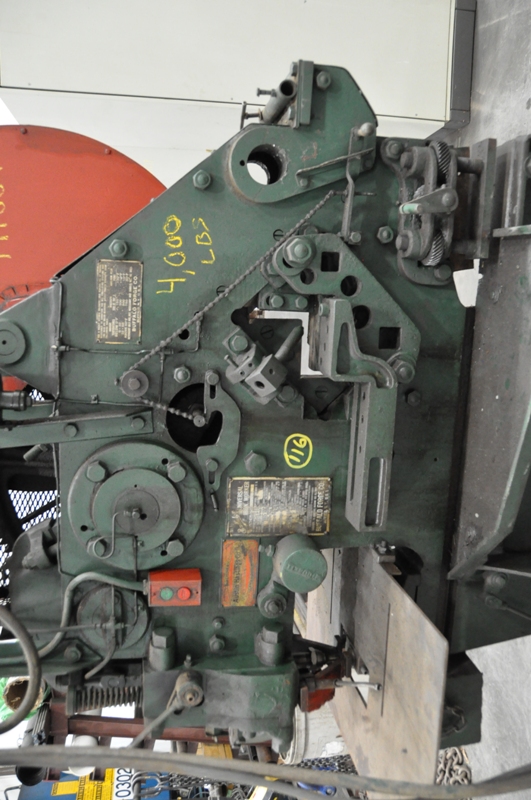

BUFFALO 50 TON UNIVERSAL IRONWORKER

PRICE: Loaded on Truck, Our Warehouse, York, PA    $4,950.00

HMC Stock #19188-P

Machine Serial No.: 57U4108

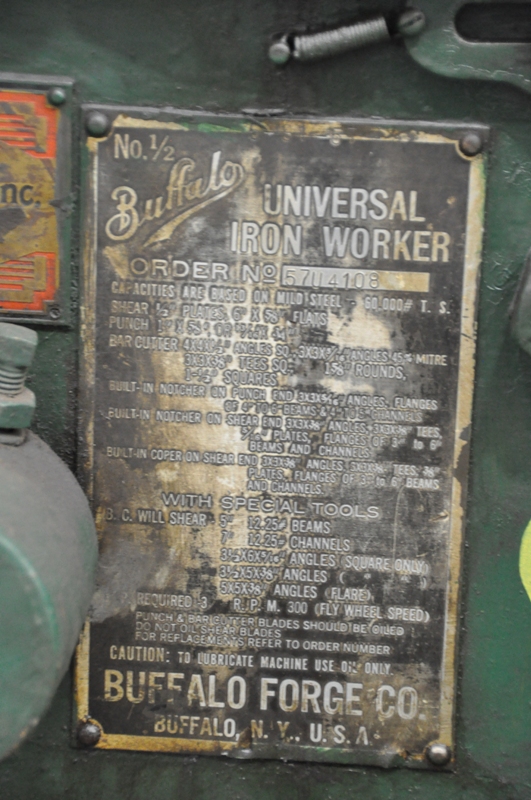

Machine Model No.: 1/2 Universal
New Date: 1957

Mechanical Operation
Ram Pressure: 50 Tons
Punch Capacity: 1-1/16" x 5/8" - 13/16" x 3/4"
Strokes per Minute: 42
Length of Stroke: 1-1/8"
Depth of Punch Throat: 20"
Height of Punch Throat: 14-3/4"

SHEAR CAPACITY:
Flats - with Standard Knives: 6" x 5/8" or 8" x 1/2"
Length of Knives: 10"

BAR CUTTER CAPACITY WITH STANDARD KNIVES, SUPPLIED:
Rounds: 1-5/8"
Squares: 1-1/2"
Angles - Square: 4" x 4" x 1/2"
Angles - 45 deg: 3" x 3" x 5/16"

BAR CUTTER CAPACITY WITH SPECIAL KNIVES, NOT SUPPLIED:
I-Beams: 5" - 10.0 Lbs.
Channels: 7" - 12.25 Lbs.
Angels - Square: 6" x 3-1/2" x 5/16"
T - Square: 4" x 4" x 7/16"

BUILT-IN 90 deg V-NOTCHER IN PUNCH HEAD:
Angels: 3" x 5/16"
Tees - Flanges: 2-1/2" x 5/16"
Beams - Flanges: 4" to 6"
Channels - Flanges: 4" to 5"
Plates: 5/16"
Depth of Cut: 2-3/4"

BUILT-IN SQUARE COPER ON SHEAR END: PARTS MISSING - NOT OPERATIONAL:
Angels: 3" x 3/8"
Tees - Flanges: 3" x 3/8"
Beams - Flanges: 3" to 6"
Channels - Flanges: 3" to 6"
Plates: 3/8"
Width of Cut: 2"
Depth of Cut: 3"

EQUIPPED WITH:

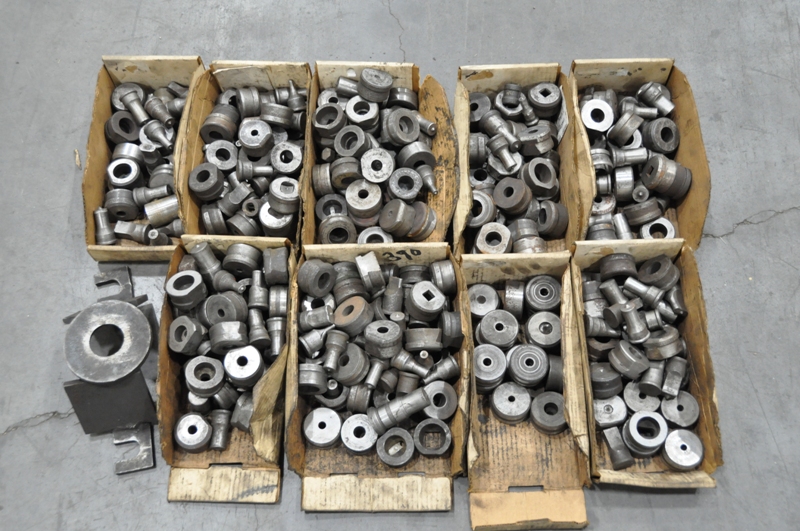

Cabinet with a Large Assortment of Punches and Dies
One Shot Lubrication System
Mechanical Foot Pedal Cycle Operation
Flat Bar, Angle Bar, V Notch Knives
(1) Set of Knives for Round Bard and Square Stock
Standard Punch Holder

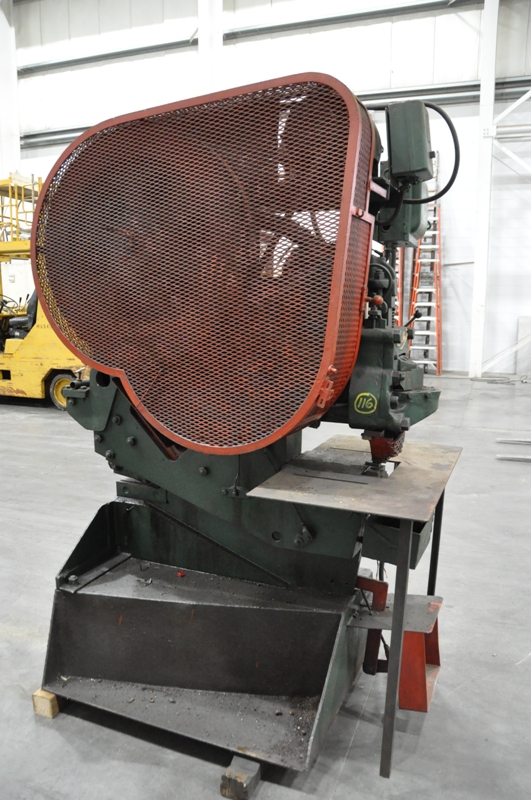

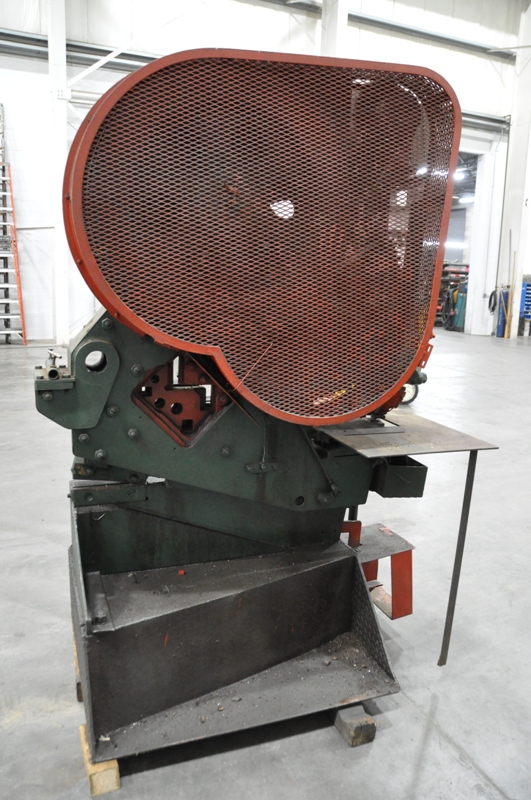

Motor and Flywheel Guards
3 HP Motor, Wired for 3 Phase, 60 Hz, 220 / 440 Volts

Overall Size: Machine Size: 60" LR x 36" FB x 84" High x 4,000 Lbs.
Stand with Punches: 22" LR x 32" FB x 32" High
