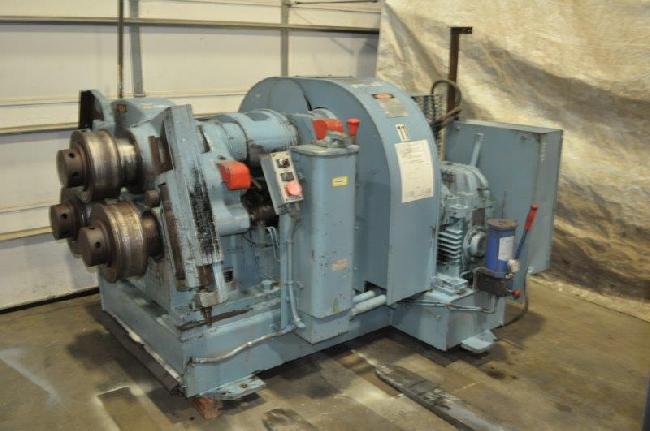

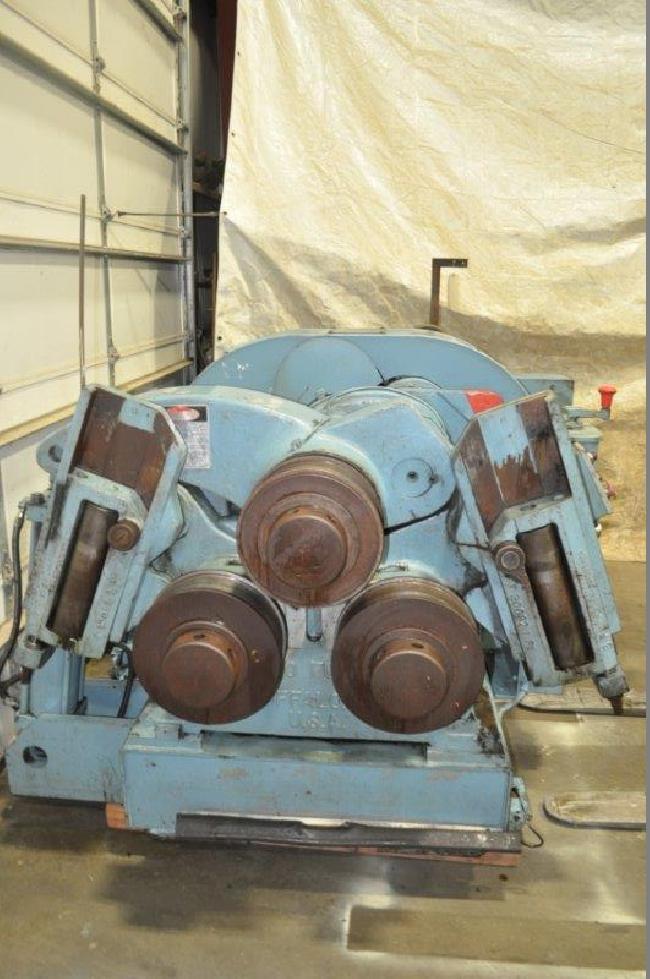

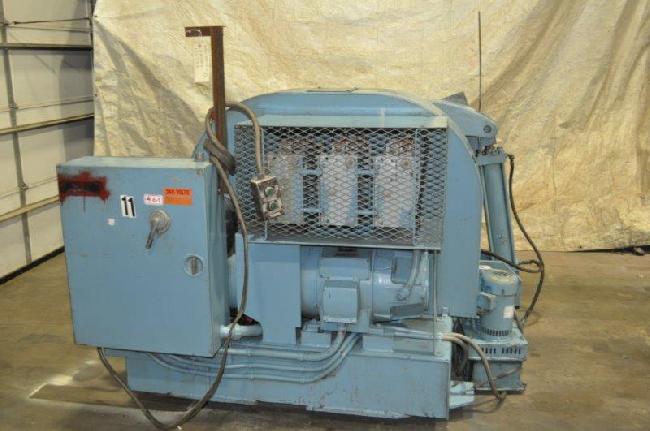

BUFFALO 2VBR VERTICAL ANGLE BENDING ROLL

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


2VBR
N/A
Roll Formers
4-High Cold Rolls
used
13500 (LBS)
$0.00

Description

'REFERENCE NUMBER: 17039B

MODEL #:  2VBR
SERIAL #:  N/A
LEG IN ANGLE: ANGLE SIDES 3.5″ x 3.5″
LEG IN ANGLES: ANGLE THICKNESS 5/8″
LEG OUT ANGLES : ANGLE SIDES 5″ x 5″
LEG OUT ANGLES : ANGLE THICKNESS 3/8″
FLAT ON FLAT: 9″ x 1.25″
FLAT ON EDGE: 4″ x 1″
FLANGE IN CHANNELS” 7″ @ 14.7#
FLANGE OUT CHANNELS: 9″ @ 20#
BEAM ON FLANGE: 8″ @ 18#
BEAM ON WEB: 4″ @ 9.5″
SOLID ROUND BARS: 2.75″
SOLID SQUARE BARS: 2.5″
STANDARD PIPE: 3.5″
TOP ROLL DIAMETER: 6″
BOTTOM ROLL DIAMETER: 5″
ROLL SPEED MAXIMUM: 7.3 RPM
WORK PIECE LINEAR SPEED MAXIMUM: 31 FPM
TONNAGE CAPACITY FOR ROLL ADJUSTMENT: 50 TONS
20 HP MAIN MOTOR
2 HP HYDRAULIC ADJUSTMENT MOTOR
7′ x 7′ x 5′ TALL
13500 LBS ESTIMATED WEIGHT

'

More on this model

To view more information on the BUFFALO 2VBR VERTICAL ANGLE BENDING ROLL, including reviews, brand information, photos, videos, and more,
