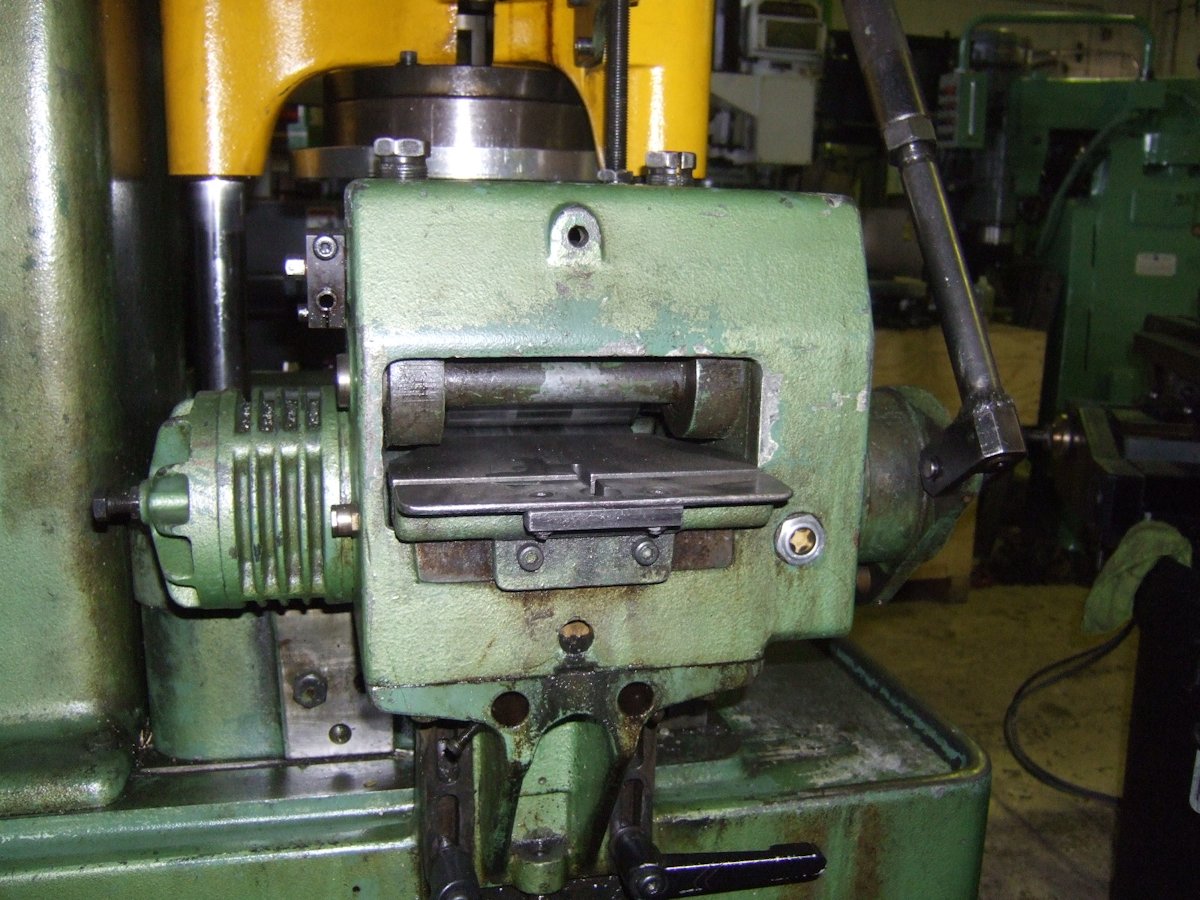

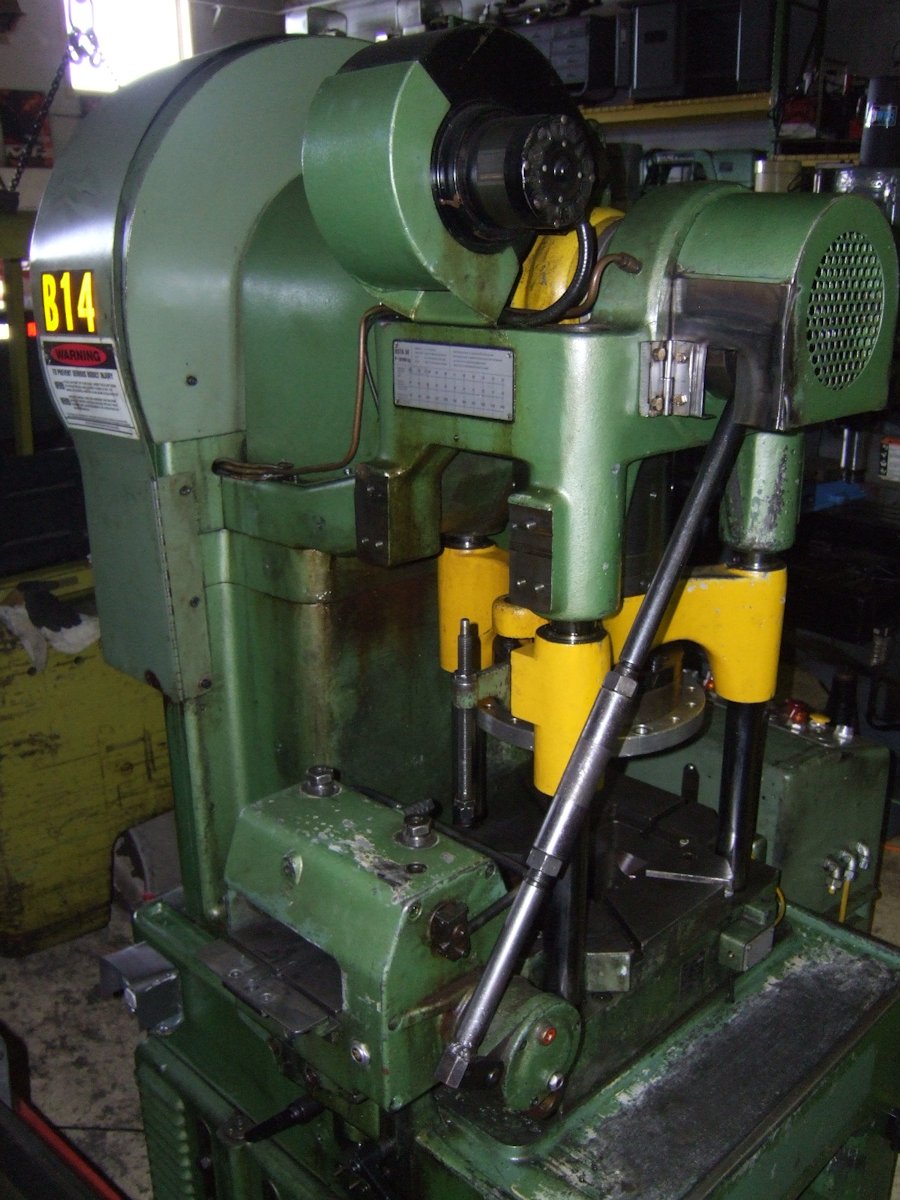

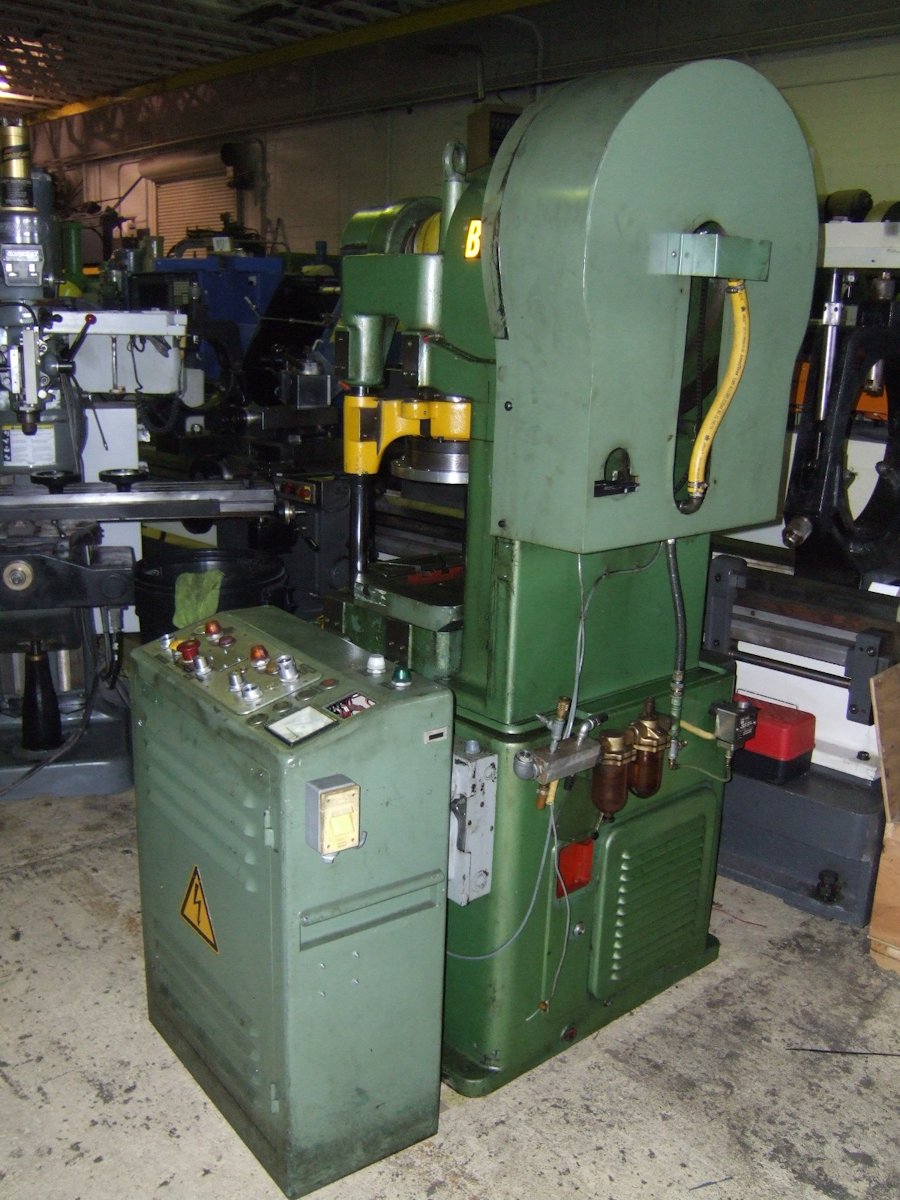

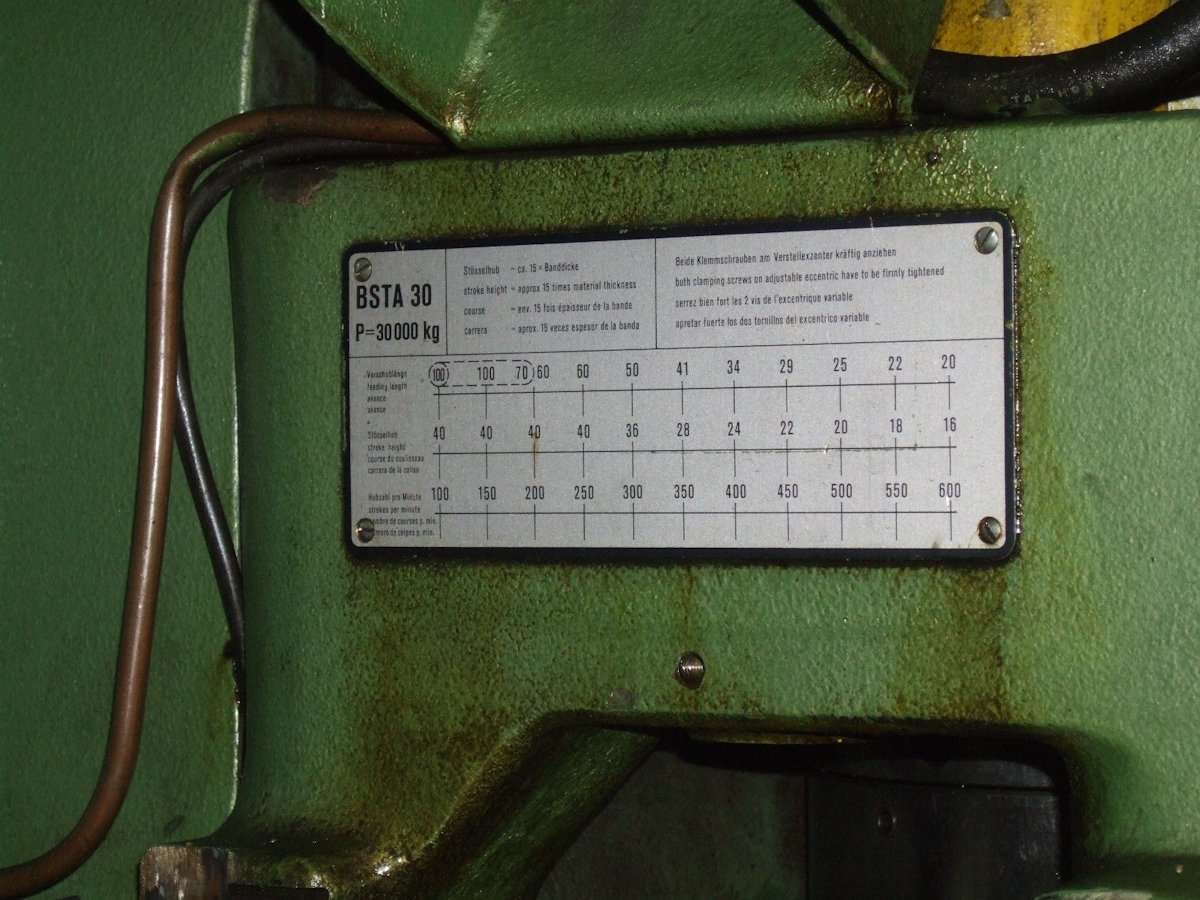

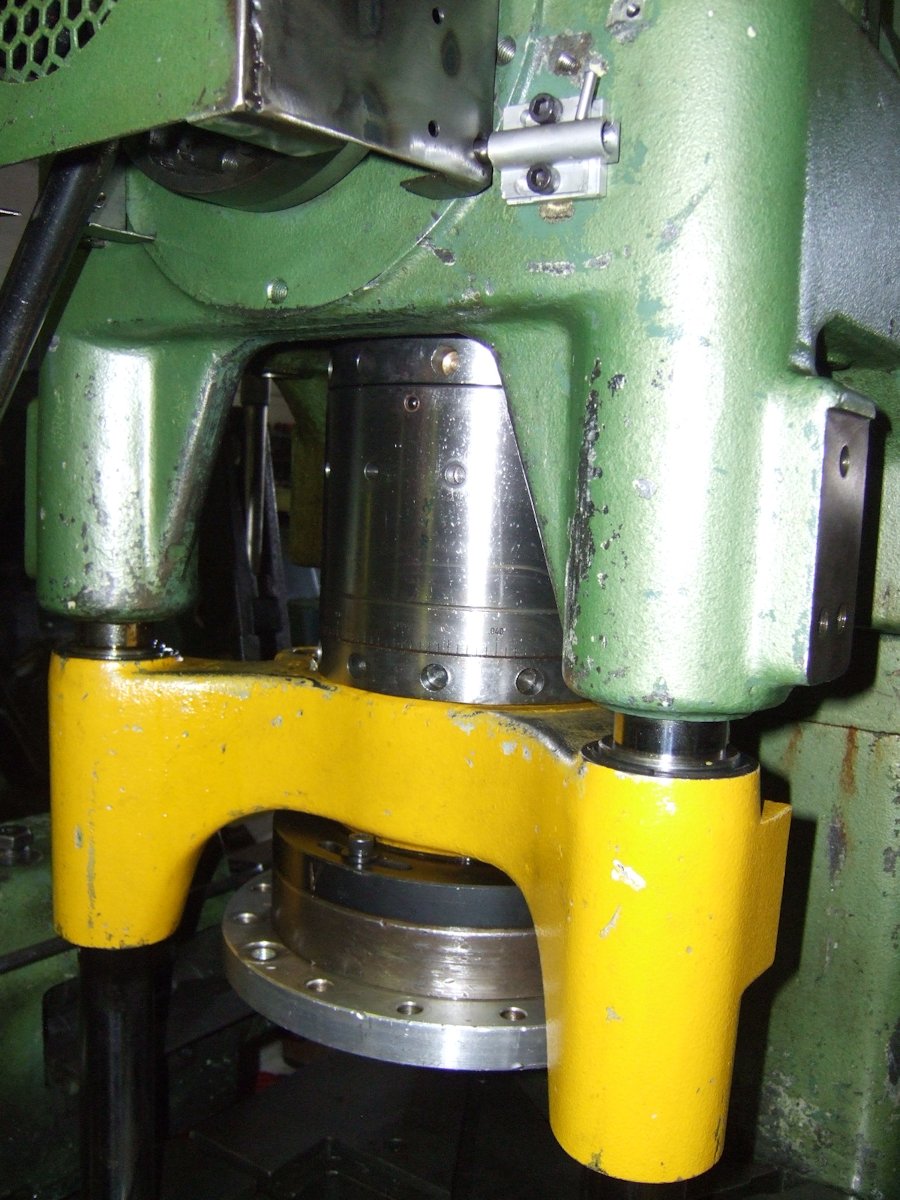

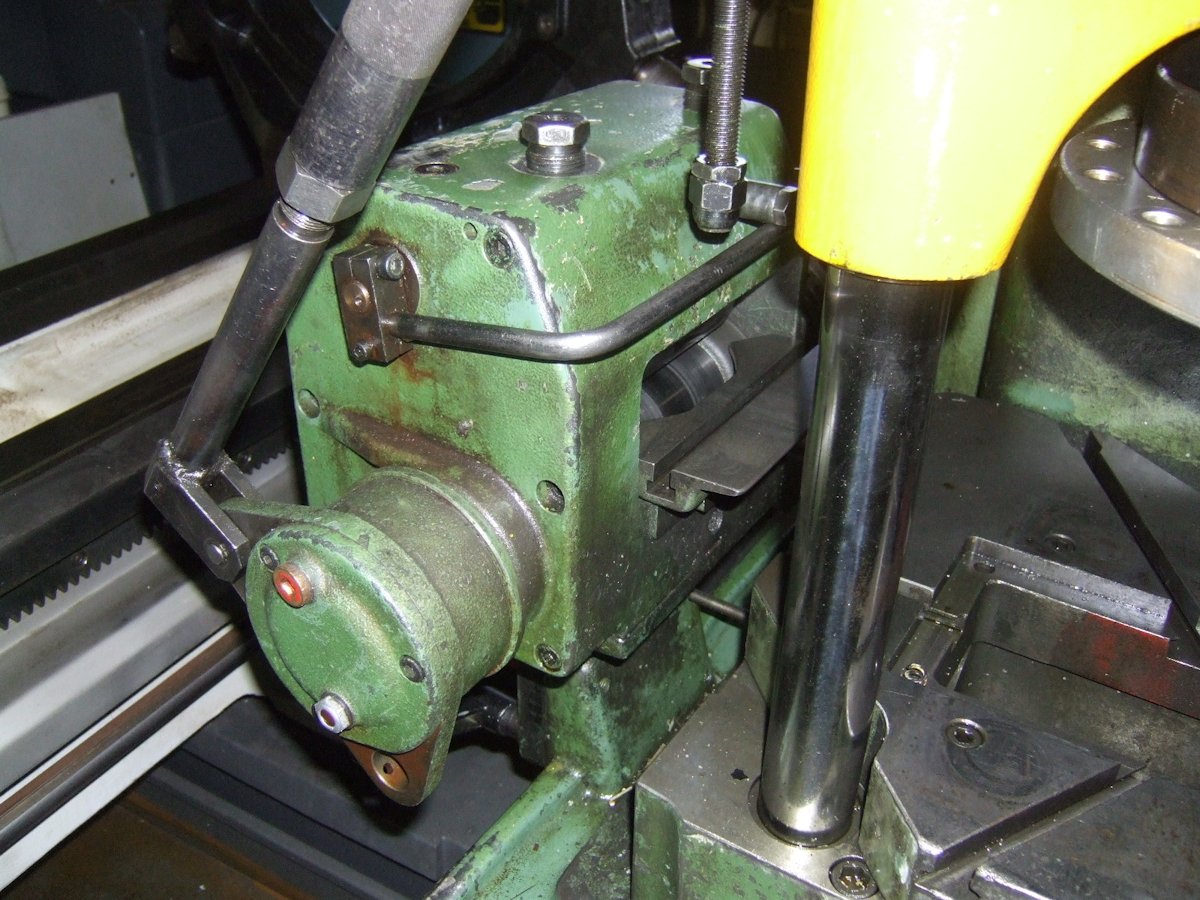

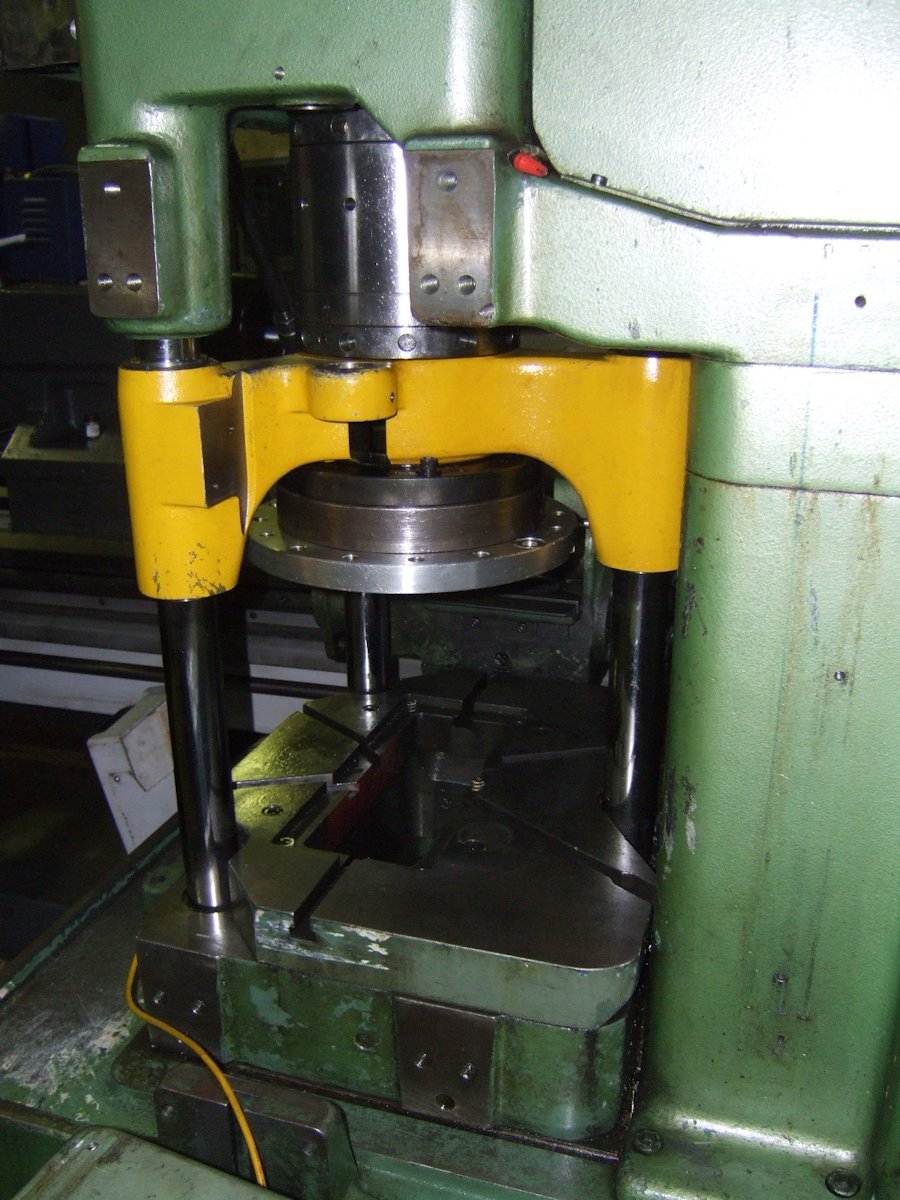

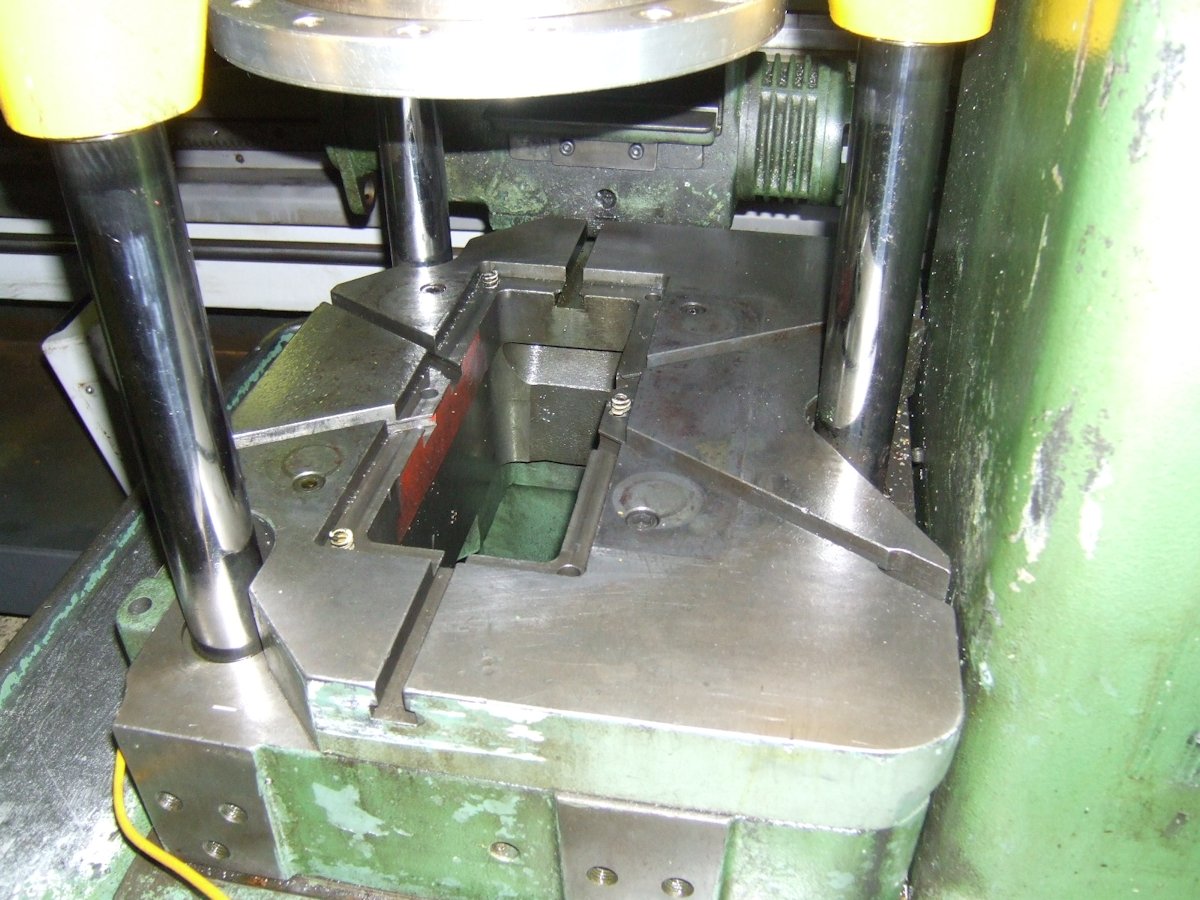

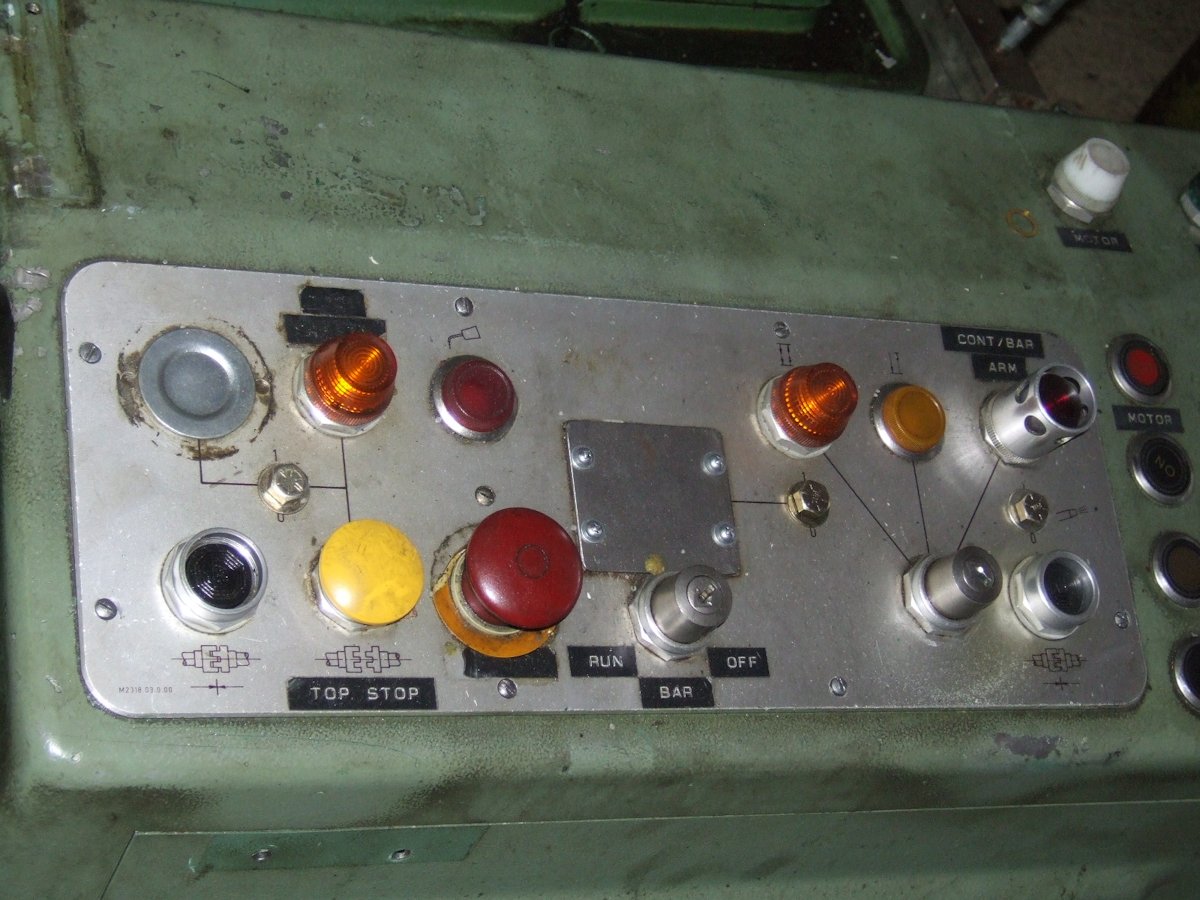

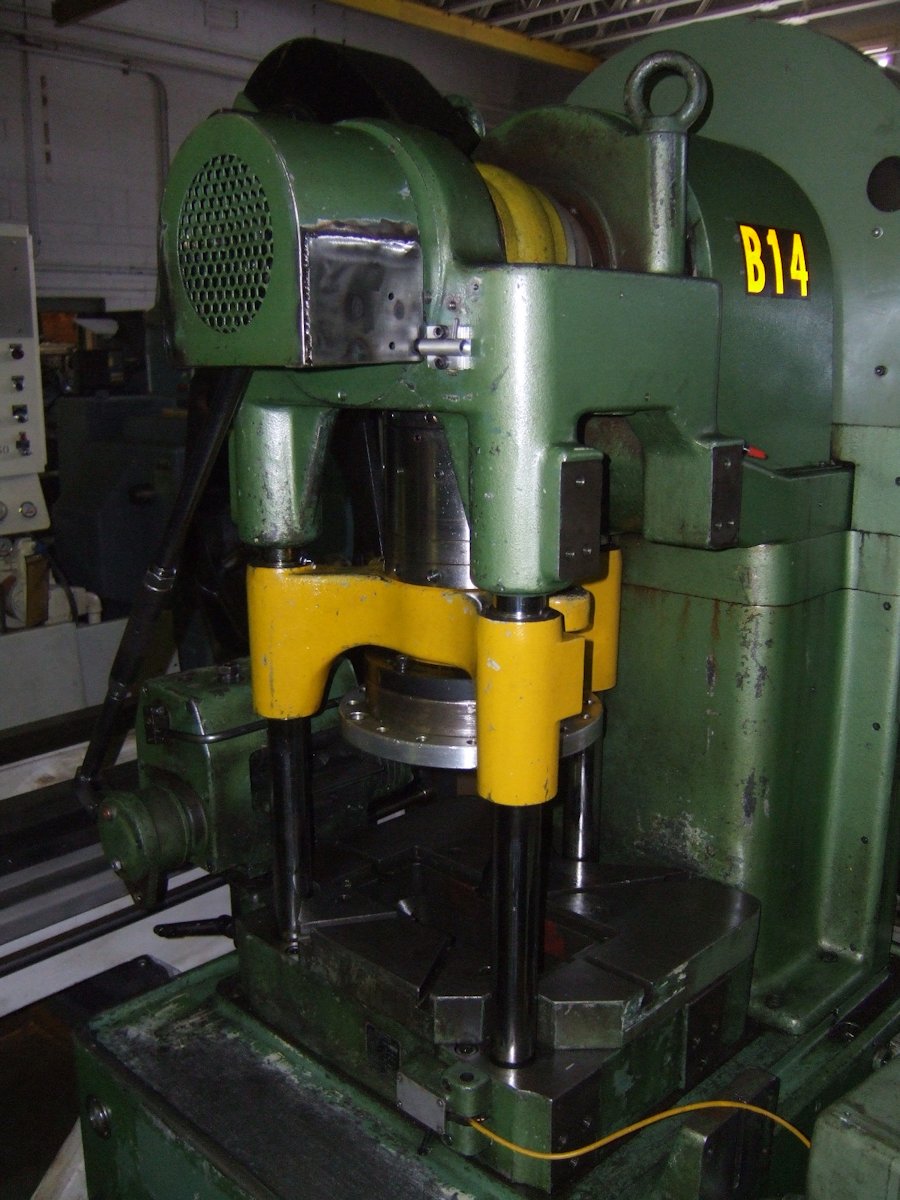

Model BSTA 30, S# 9080, Date Mfg. 1989, Max pressure 30 tons, 100 to 600 SPM, Drive performance 0.96 to 5.75hp, 220v AC, Air required 85 to 140 PSI, Adjustable stroke 8 to 40mm, Ram height 40mm, Adjustable shut height 230mm + 20mm, Max width of tool bed opening 330mm, Max width of strip inlet 170mm, Machine bed 4mm 596, Lower bolster plate 4mm 595, Upper bolster plate 4mm 380, Max cutting length and stroke setting 4mm 270, Auto infeed system 5"L roller, Manual height adjustment & depth stop system, Control stand station, Press Dim. 45"W x 4L x 7H, Est. Wt. 5,550 lbs., Control Dim. 34"W x 14"L x 38"H, Est. Wt. 280 lbs., Operations & electrical prints in English, Parts manual in German
To view more information on the BRUDERER 30 TON AIR CLUTCH PUNCH PRESS, including reviews, brand information, photos, videos, and more,
