Description & Specifications:

BROWN & SHARPE COORDINATE MEASURING MACHINE

PRICE: In Plant, Net AS IS Loaded on Truck, York, PA      $32,500.00

HMC Stock #22500

Machine Serial No.: 0804-6115

Machine Model No.: Global FX 9128

New Date: August 2004

Made By Brown & Sharpe in the USA

This machine was purchased with the intention of being used. It was then decided that because they also have a larger CMM in use, that this machine would not be needed. So it was left on the shipping skid to make it easier for removal and sale to the next buyer. It is believed that all operational pieces and parts are with the machine but NOT guaranteed. Your physical inspection and discussion with the current owner is strongly suggested.

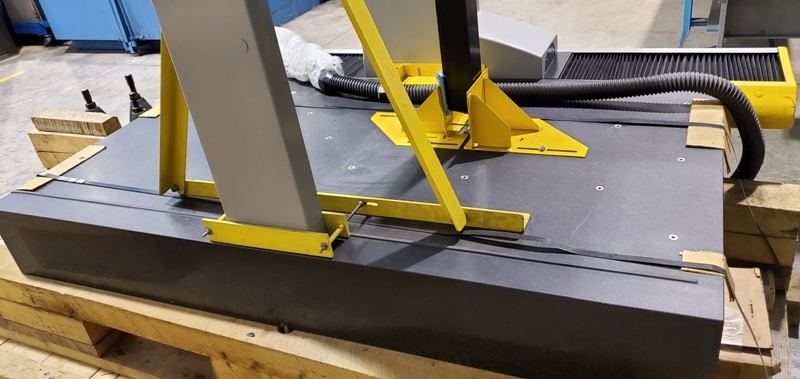

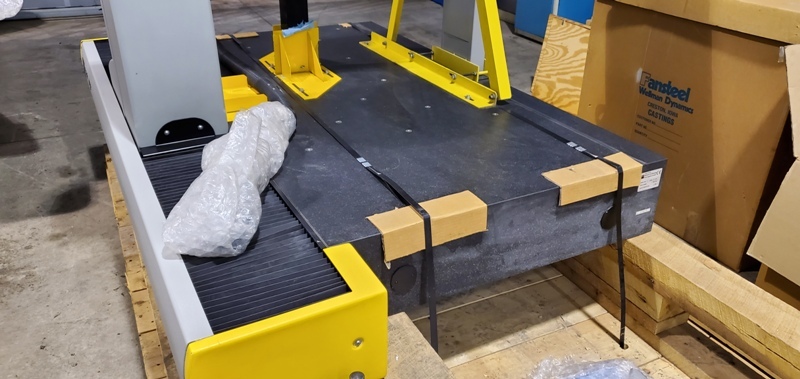

Granite Table Size: 43" x 80" x 10" Thick

Distance Between Columns: 41"

Height Under Cross Rail: 37"

Ram Size: 3-1/2" Square

Table Top To Top of Ram: 60"

Table Top is Arrayed with 0.25" Diameter Threaded Steel Inserts

Table Load Capacity: 2,866 Lbs.

EQUIPPED WITH:

Head Cover and Guards that are not Seen in the pictures

CE Rated Electrics

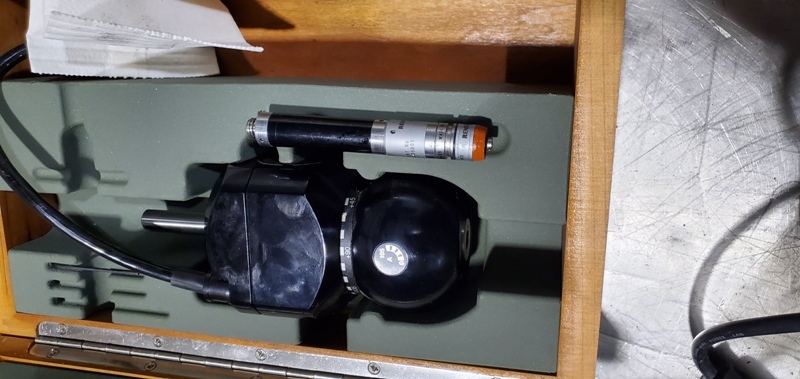

(1) Renishaw Swiveling Probe Head Model PH10T-105A

(1) Renishaw Screw In Probe Model TP20

(1) Renishaw Probe Head Controller Model PHC 10-2

(1) Renishaw Hand Held Controller Model HCU1

(5) 19" +/- Adjustable Table Leg Supports

HP desktop Computer with IBM Monitor, Keyboard, Mouse and Cables

Hankison SPX Compressed Air Dryer

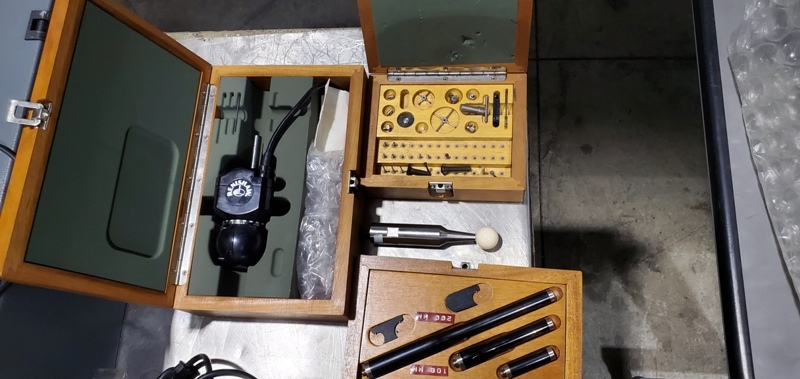

Other Assorted Probes and accessories in Wood Case

Last Calibrated March 11, 2011

Computer Desk on Wheels 30" x 48" x 34" High

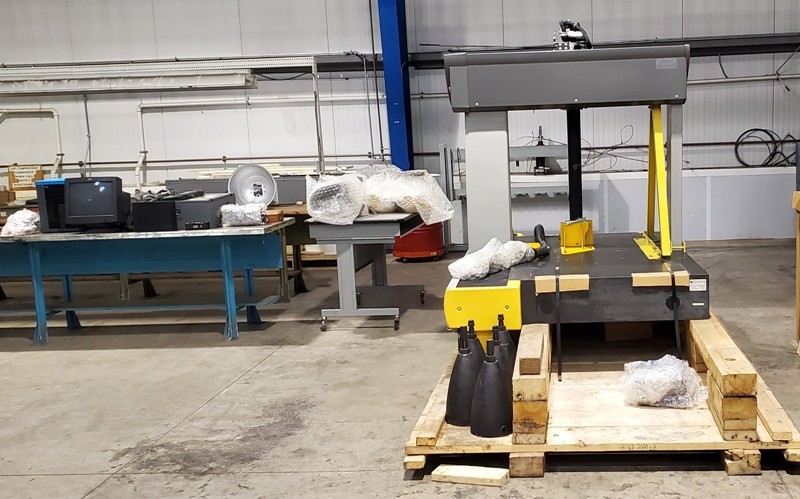

Overall Size on Skid: Main Unit Only 138" Long x 70" Wide x 98" High
