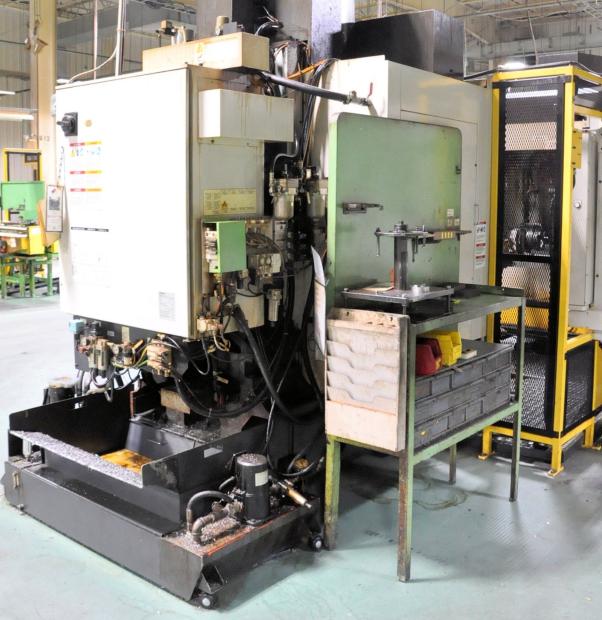

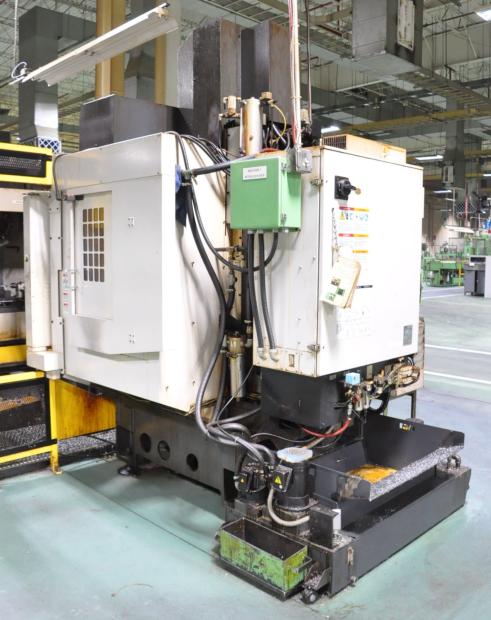

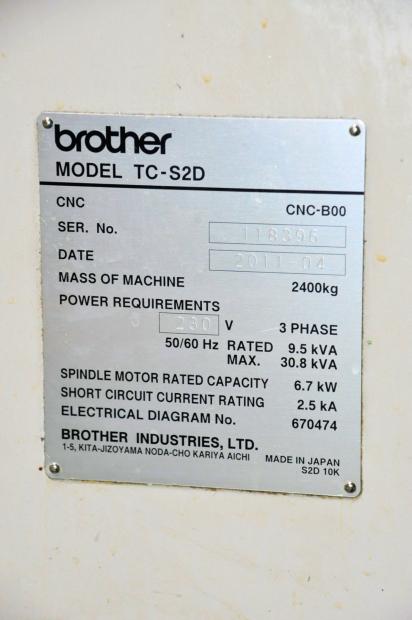

BROTHER TC-S2D 4-AXIS CNC DRILL TAP VERTICAL MACHINING CENTER - BROTHER TC-S2DN
TC-S2DN
Drills Manual and CNC
DRILLING and TAPPING MACHINES, NC and CNC
used
5300 (LB)
2011
$0.00

Description

Specifications:
X 19.7
Y 15.7
Z 11.8
Power 10.1
RPM 16000.0
# ATC 14.0
Taper 7/24 #30

X-Axis Travel 19.7"
Y-Axis Travel 15.7"
Z-Axis Travel 11.8"
Distance Between Table top and Spindle 7.1" to 18.9"
Work area size 23.6" x 15.7"
Max. Table load capacity 551 Lbs.
Spindle speeds 10 to 16,000 RPM
Speed during tapping 6,000 RPM
Spindle Taper BT-30
Spindle Motor 14 HP
Tool Storage Capacity 14
Cutting Feed Rate (X,Y) 04 to 394 IPM
Cutting Feed Rate (Z) 0.4-7.87 IPM
Rapid Traverse Rate 1969 IPM
Floor 81"x 87" x 112"H
Machine weight 5,300 lbs.

Equipped With:

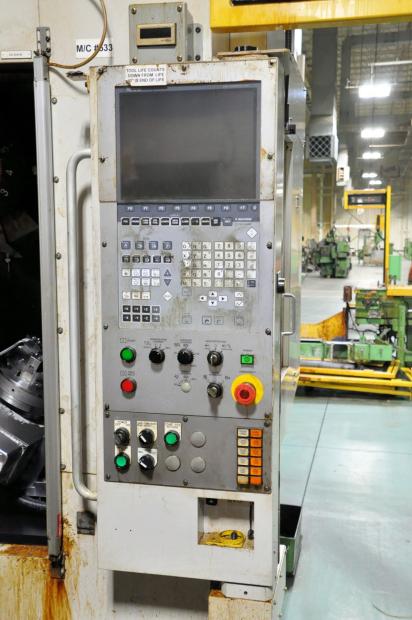

CNC B00 Controls
4-Axis Drives, 4 simultaneous,

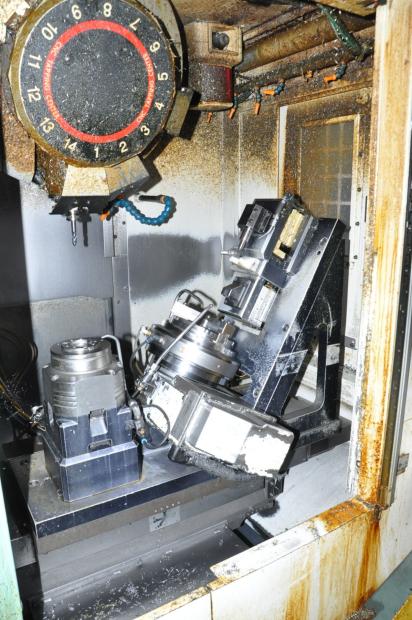

Rotary 4th Axis Table, 3-JAW CHUCK WITH ACCUATOR AND TAILSTOCK
Coolant System

BROTHER TC-S2D 4-AXIS CNC DRILL TAP VERTICAL MACHINING CENTER

Stock Number 12862
