Description

Specifications:

X 16.5 Y 12.6 Z 12.0 RPM 10000.0 # ATC 14.0 Taper 7/24 #30 Table Size: 23.6" x 16.5" (each side) Table Capacity: 256 lbs (one side) Table Position Time: 2.9 S/180 deg. X-Axis Travel: 16.5" Y-Axis Travel: 12.8" Z-Axis Travel: 12" X-Axis Rapid Feedrate: 1969 ipm Y-Axis Rapid Feedrate: 1969 ipm Z-Axis Rapid Feedrate: 1969 ipm Cutting Rate: 394 (X, Y) 787 (Z) Spindle Speed: 10,000 IPM Spindle Taper: 30 Main Motor: 15 HP Travel Distance X-Axis 420mm Y-Axis 320mm Z-Axis 305mm Distance from table top surface to spindle and face Table work area 200-505mm 8”-20” Work area size 600 x 300 23.6 x 11.8” Max. load weight (uniform load) 120 kg. Spinlde spee (min) 10-10,000 Spinlde speed when tapping (min) 6,000 Max. Spindle taper hole 7/24 Taper No.30 Feed Rate Rapid traverse rate (m/min) 50x50x50 m/min Cutting feed rate (m/min) 1-10,000 mm/min Z Axis 1-20,000 RPM ATC Tool shank type MAS.BT30 Pull stud type MAS.P30T-2 Tool storeage capacity (pcs) 14 Max. tool length 200mm Distance from taper gauge/max. diameter 30-150/D80 mm 160-200/D40 MM Max. Tool weight (total weight 25) 3.0 kg. Tool selection method Randaom short cut Tool change time Tool to tool .09 Chip to chip 1.7 Motor Spindle motor (continuous for 30 min.) 10.1/6,7 Feed axis motor 1.0 kw xy 1-5 kw z (CONT.) Machine

Dimensions:

Height 2,588mm Installation are 1,617 x 2,658 mm (when control box is open) 1,456 x 2,644 mm

Weight:

(including box and splash guard) 2600 kg

Equipped With:

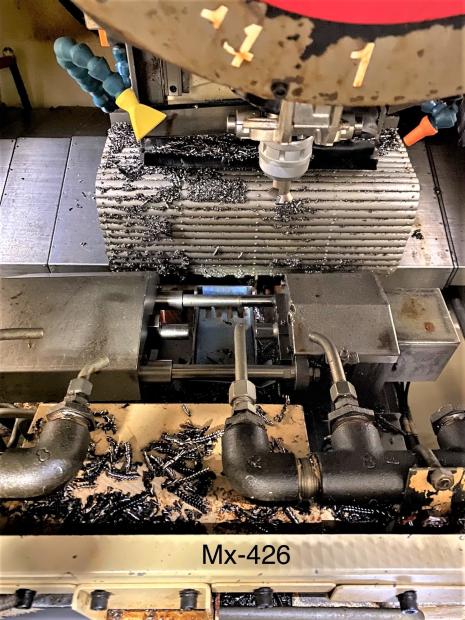

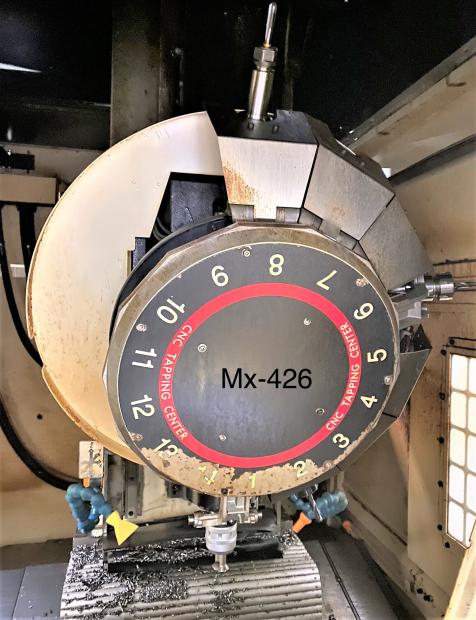

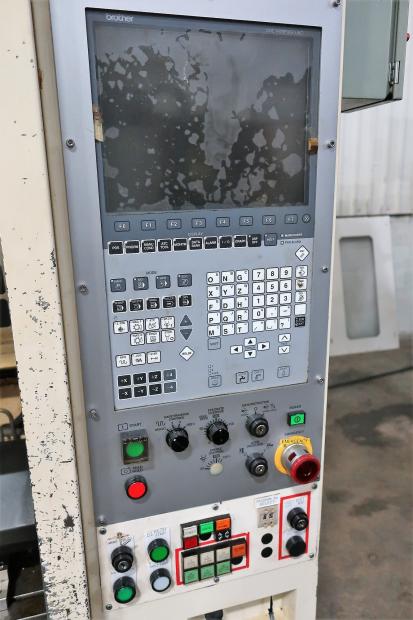

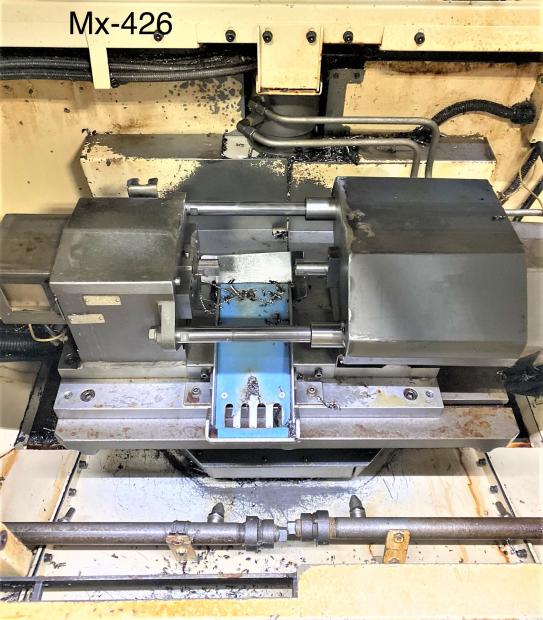

Equipped with CNC-BOO CNC Control 14 Position turret 180-degree pallet changer Chip conveyor Coolant system

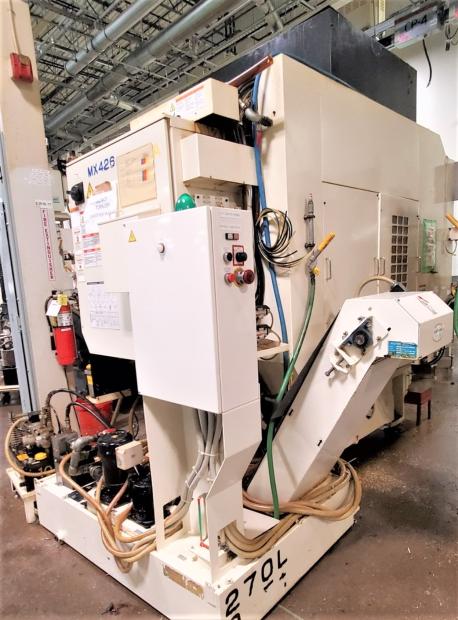

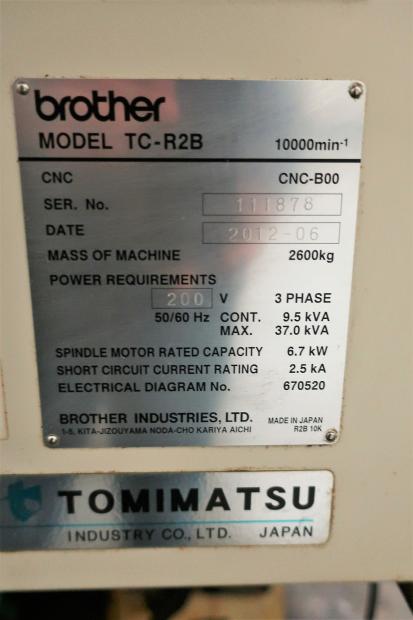

RBROTHER TC-R2B CNC DRILL TAP VERTICAL MACHING CENTER 180 DEGREE PALLET CHANGER

Stock Number 12830
