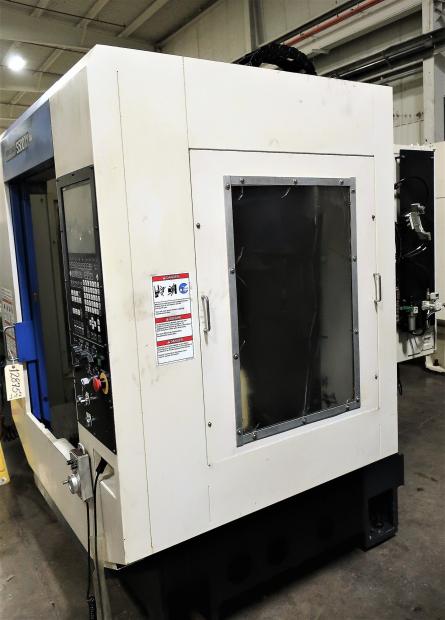

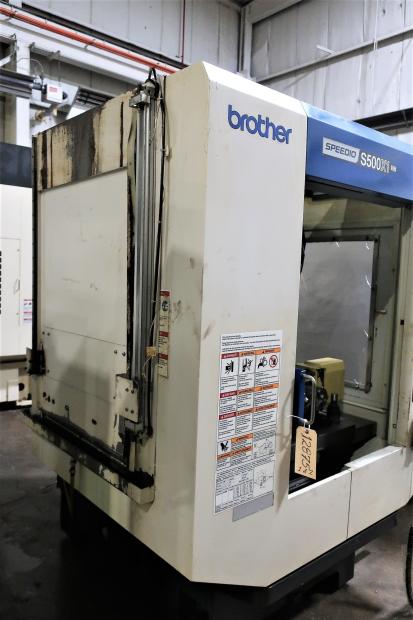

BROTHER SPEEDIO S500X1 4-AXIS CNC DRILL TAP CENTER NEW 2014 - BROTHER SPEEDIO S500X1
SPEEDIO S500X1
Drills Manual and CNC
DRILLING and TAPPING MACHINES, NC and CNC
used
4960 (LB)
2014
$0.00

Description

Specifications:
X 19.7 Y 15.7 Z 11.8 Power 10.1 RPM 10000.0 # ATC 21.0 Taper 7/24 #30 Table-W 15.7 Table-L 23.6 # Axis 4.0 Main Spindle Power/Maximum Spindle Speed/Taper: 10.1 kw/10,000 rpm/BT 30 / 13/5 hp/10,000 rpm/BT 30 Distance between table top and spindle nose end: 180 - 480 mm / 7.1 - 18.9 inches Table Size/Work Load: 600 x 400 mm/250 kg / 23.6 x 15.7 inches/551 pounds X-Axis Travel & Feedrate: 500 mm/50 meters per minute / 7.9 inch/1,969 inches per minute Y-Axis Travel & Feedrate: 400 mm/50 meters per minute / 17.3 inch/1,969 inches per minute Z-Axis Travel & Feedrate: 300 mm/56 meters per minute / 12 inches/12,205 inches per minute Cutting Feed Rates; X, Y, Z: 1 - 30,000 mm per minute / 0.04 - 1,181 inches per minute Automatic Tool Changer (ATC) Storage: 14 tools / 14 tools Maximum Tool Length x Diameter x weight: 250 x 110 mm x 3 kg / 9.8 x 4.3 inches x 6.6 pounds Tool Change Time, Tool to Tool/Chip to Chip: 0.8/1.4 Seconds / 0.8/1.4 Seconds Overall Dimensions (L x D x H): 61.4 x 87.4 x 106 inches / 1,560 x 2,200 x 1,080 Machine Weight: 4,960 pounds / 2,250 kg
Equipped With:

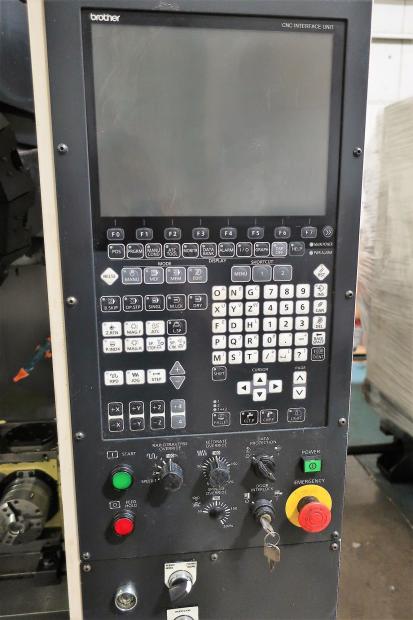

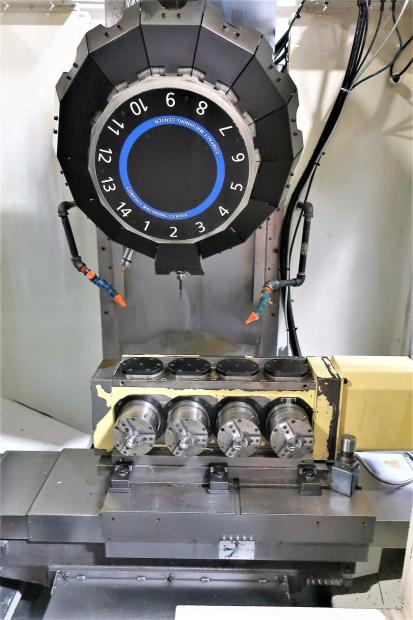

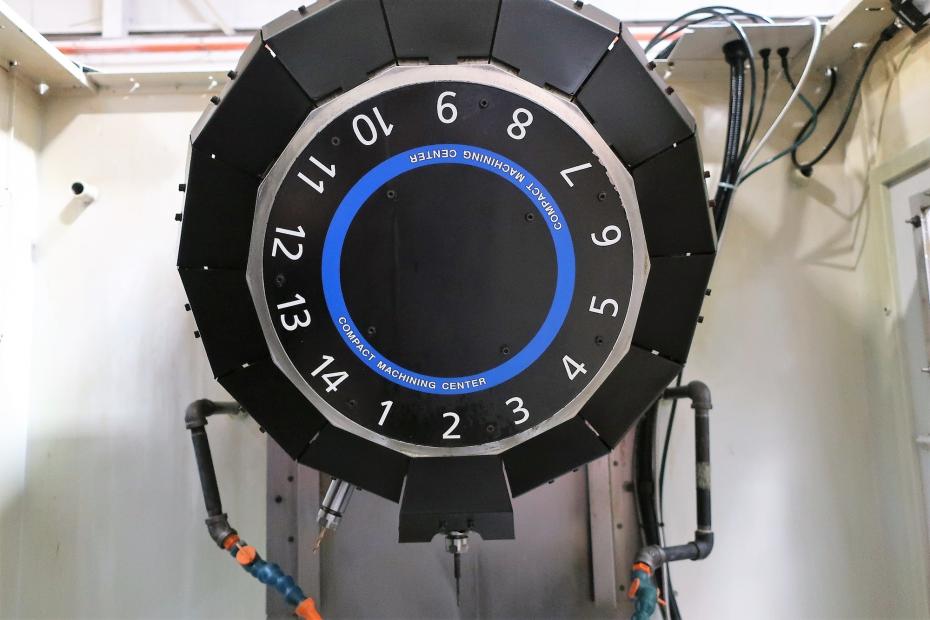

Brother CNC-C00 with 5 axes controlled (X, Y, Z, plus two additional axes); Interpolation: Linear: 4 axes ( X, Y, Z, one additional axis); Circular: 2 axes Helical / conical: 3 axes (X, Y, Z) 12.1 Inch Color LCD Monitor 60 Standard NC Functions Available 10,000-Rpm Max. Spindle Speed, 14-Position Tool Turret, Tsudakoma RN Series 4-Position Rotary 4-Axis Table, Coolant System

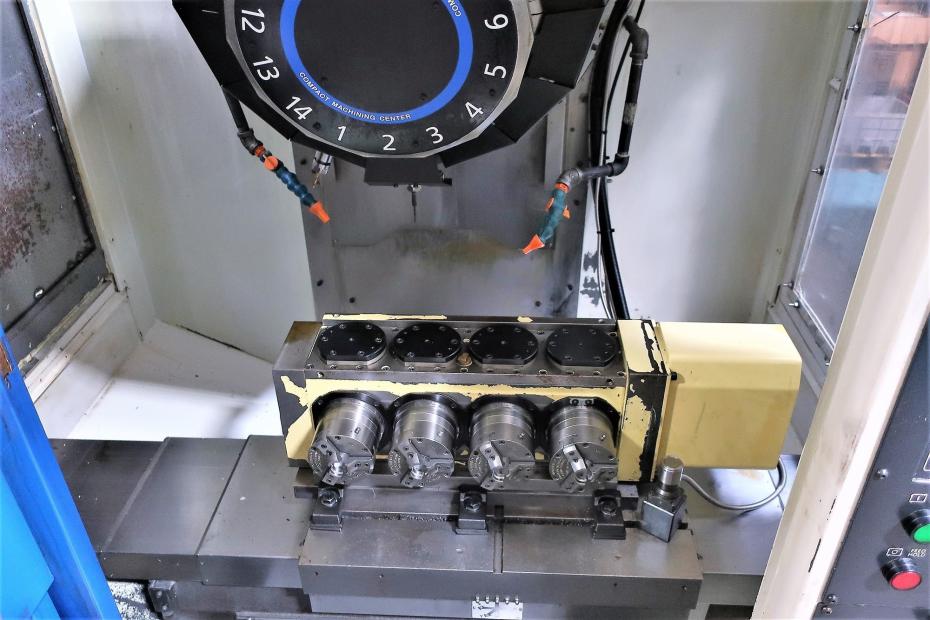

BROTHER SPEEDIO S500X1 4-AXIS CNC DRILL TAP CENTER NEW 2014 WITH TSUDAKOMA RN Series 4-Position Rotary 4-Axis Table

Stock Number 12875

More on this model

To view more information on the BROTHER SPEEDIO S500X1 4-AXIS CNC DRILL TAP CENTER NEW 2014 - BROTHER SPEEDIO S500X1, including reviews, brand information, photos, videos, and more,
