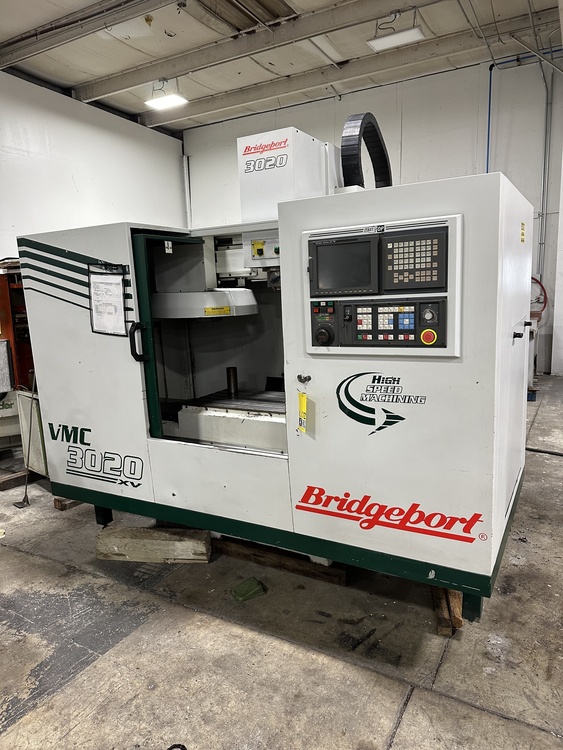

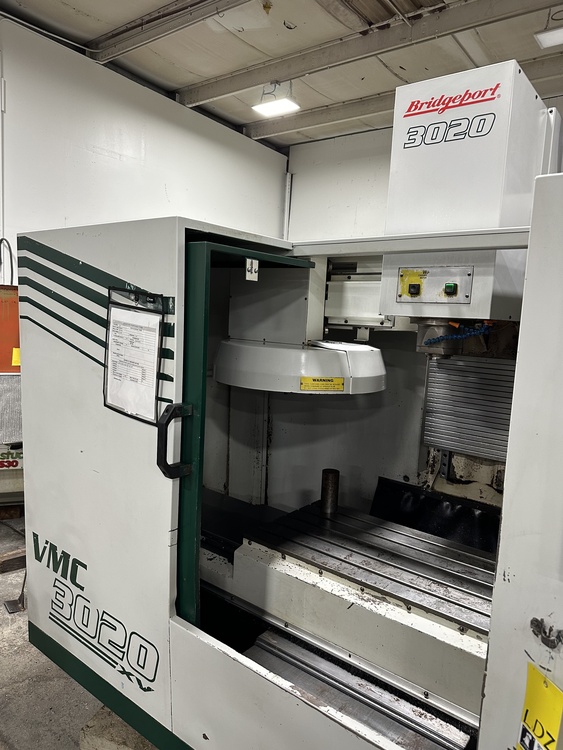

BRIDGEPORT VMC-3020 VERTICAL MACHINING CENTER

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


VMC-3020
Machining Centers Vertical Horizontal CNC
Vertical Machining Centers
used
8500 (LB)
0
$0.00

Description

Overview:

Type: Vertical Machining Centers
Manufacturer:  BRIDGEPORT
Model: VMC-3020
Condition: Used - Good
Stock #: LDZ
Status: For Sale

Description:
Bridgeport VMC 3020 SPECIFICATIONS:

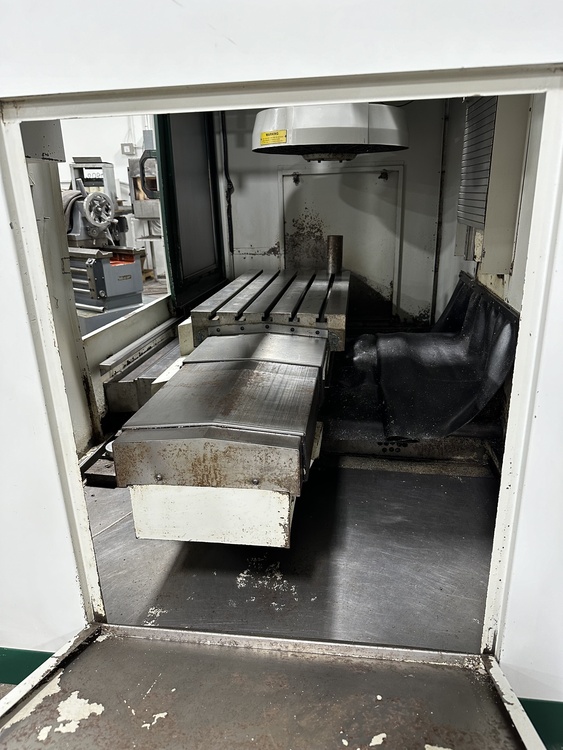

Table Size.........................................................36" x 18"
Table Load...............................................2,000 Lbs. (909 kg)
Table Tee Slots............................................................5
Machine Travel - X.......................................................30"
Machine Travel - Y.......................................................20"
Machine Travel - Z.......................................................20"
Rapid Traverse - X/Y.................................................826 IPM
Rapid Traverse - Z...................................................710 IPM
Tool Change......................................................4.8 Seconds
Spindle Taper.........................................................CAT 40
Main Motor.............................................................12 HP
Low Spindle Speed - Constant.......................................6,000 RPM
Low Spindle Speed - 30 Minutes.....................................7,500 RPM
High Spindle Speed - Constant......................................8,000 RPM
High Spindle Speed - 30 Minutes...................................10,000 RPM

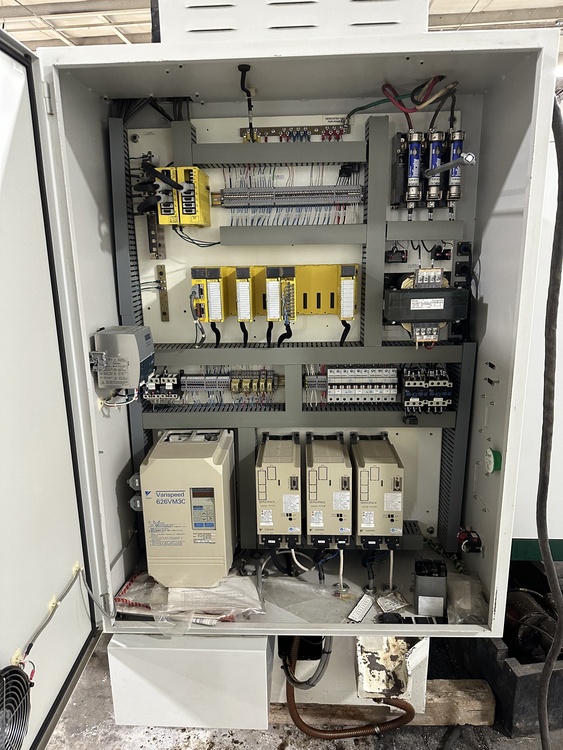

Electrical...........................230 Volts, 3 Phase, 38 Amps (Full Load)
Actual Machine Dimensions................................103"L x 94"W x 96"H
Actual Coolant System Dimensions..........................48"L x 18"W x 11"H
Approximate Weight................................................8,500 Lbs.
Located at our warehouse in Logan, Utah
To the best of our knowledge, all details listed are deemed correct. It is the buyers responsibility to confirm ALL details prior to purchase.


Specifications:
X-Axis 30" 762 mm
Y-Axis 20" 508 mm
Z-Axis 20" 508 mm
RPM 7,500 RPM 7,500 RPM
Specifications:
Table Size: 36" x 18"
Table Load: 2,000 Lbs. (909 kg)
Table Tee Slots: 5
Machine Travel - X: 30"
Machine Travel - Y: 20"
Machine Travel - Z: 20"
Rapid Traverse - X/Y: 826 IPM
Rapid Traverse - Z: 710 IPM
Tool Change: 4.8 Seconds
Spindle Taper: CAT 40
Main Motor: 12 HP
Low Spindle Speed - Constant: 6,000 RPM
Low Spindle Speed - 30 Minutes: 7,500 RPM
High Spindle Speed - Constant: 8,000 RPM
High Spindle Speed - 30 Minutes: 10,000 RPM
Electrical: 230 Volts, 3 Phase, 38 Amps (Full Load)
Actual Machine Dimensions: 103"L x 94"W x 96"H
Actual Coolant System Dimensions: 48"L x 18"W x 11"H
Approximate Weight: 8,500 Lbs.
