Specifications:
Table Travel with Power Feed 36 in
Quill Travel 5 in
Ram Travel 12 in
Throat Distance Min 6.75 in
Throat Distance Max 18.75 in

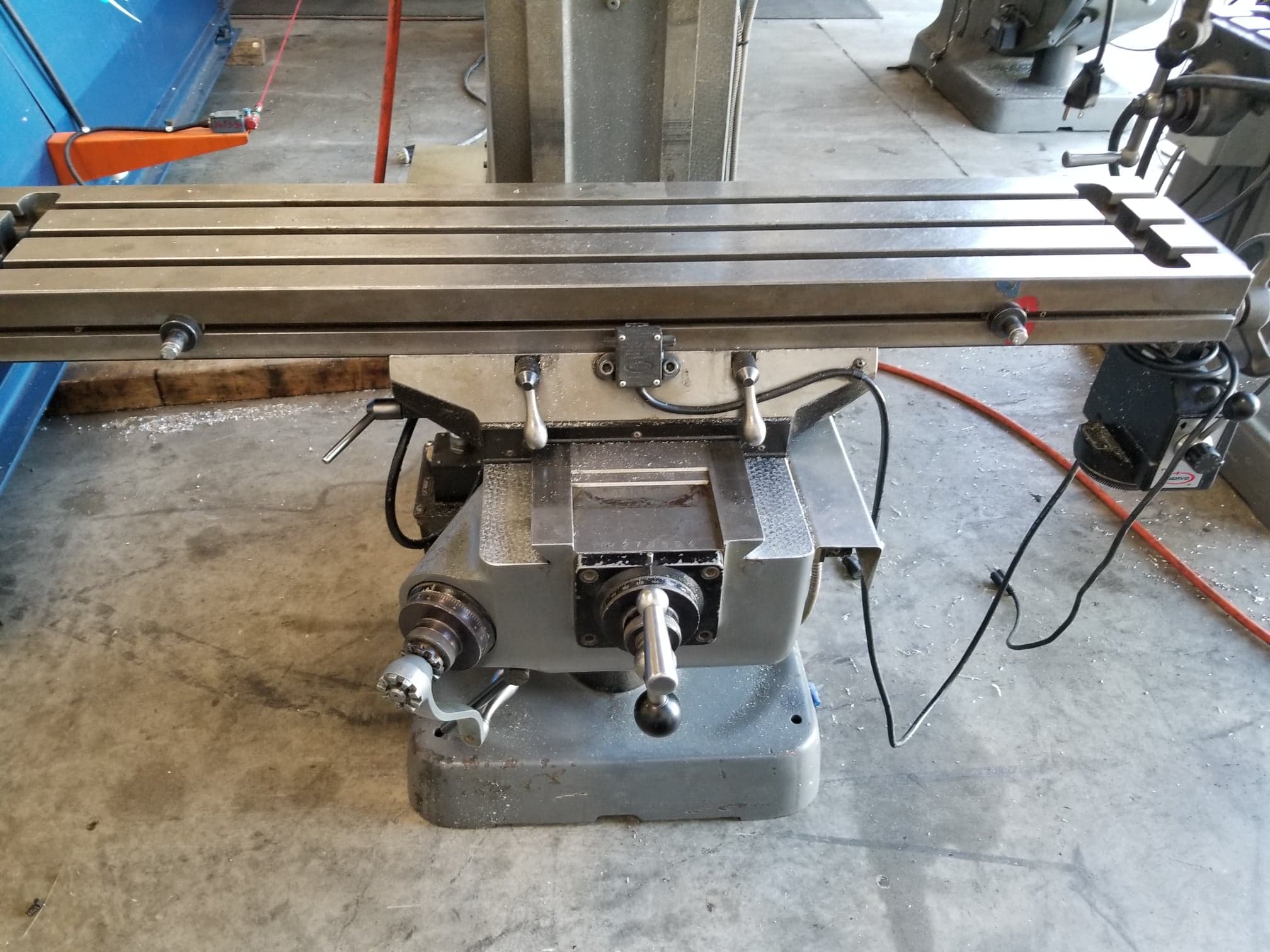

Table
Overall Size 49 in X 9 in
Working Size 49 in X 9 in
T Slot Centers 3 @ 2.5 in
T Slot Size .625 in
Height Above Floor Max 47.25 in
Weight 750 Lbs
Spindle
AC Power Rating
30 Min Duty Cylce 3HP
Continuous 2HP
Spindle Taper R-8
Speed Range
High 500-4200RPM @ 60 Hz
Low 60-500RPM @ 60 Hz
Drilling Capacity
Power Quill Feed 3/8 in
Milling Capacity Mild Steel 2 CL/min
Boring Range Mild Steel 6 in
Spindle Diameter 1.875 in
Quill Diameter 3.375 in
Dimensions
Weight 2,075Lbs
Floor Area 7 ft X 10 ft
Height 87 in
Optional Features
Power Drawbar

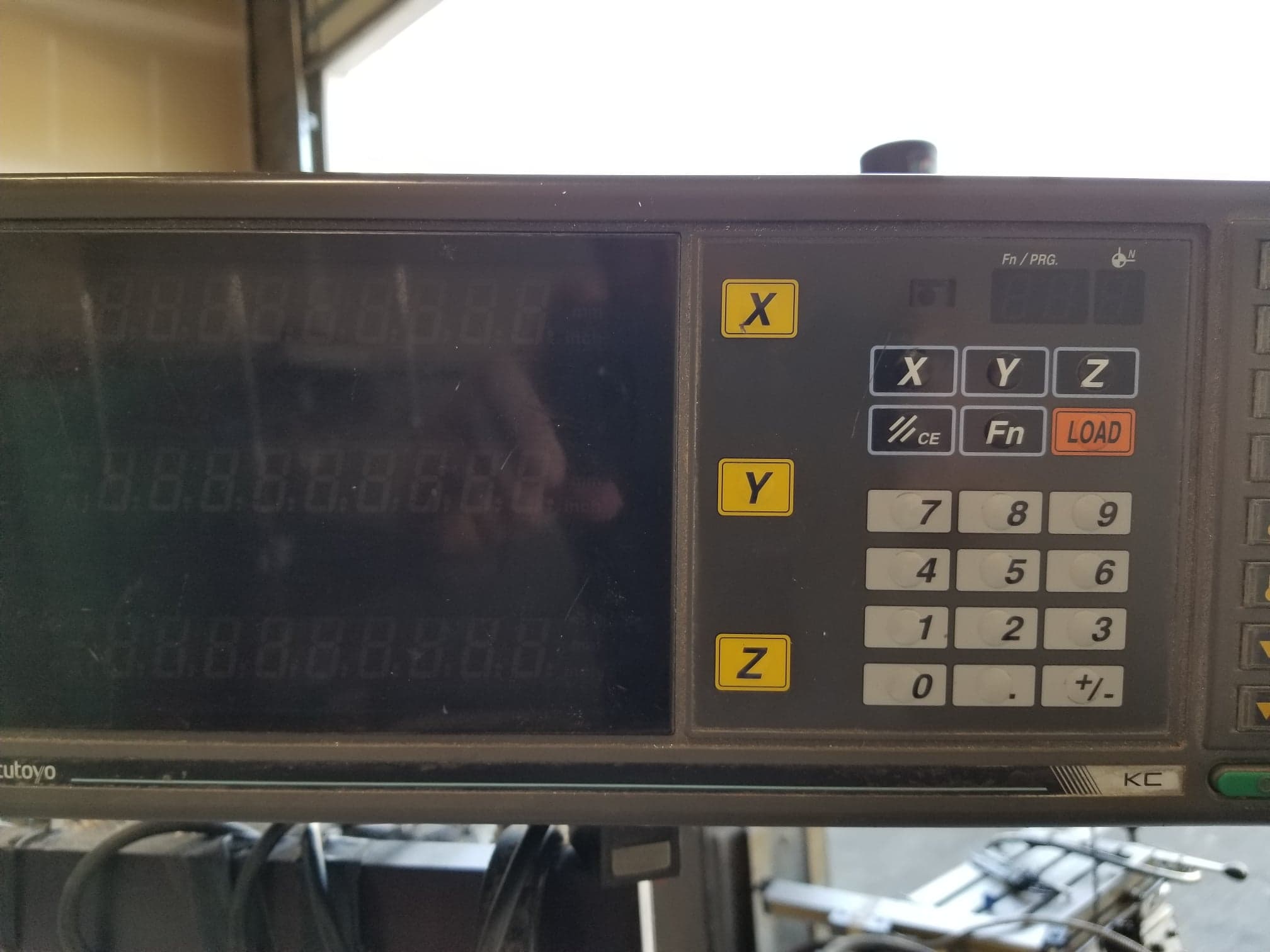

2 Axis DRO
X Axis Power Feed
TERMS: Net Prior to Shipping
FOB: Lynnwood, WA
DELIVERY: TBD
WARRANTY: Accept within 30 days from shipment any machinery and equipment sold with return privilege, freight prepaid, for refund of the purchase price if proven mechanically unsatisfactory; or repair at dealers option.
To view more information on the BRIDGEPORT SERIES 1 MILL, including reviews, brand information, photos, videos, and more,
