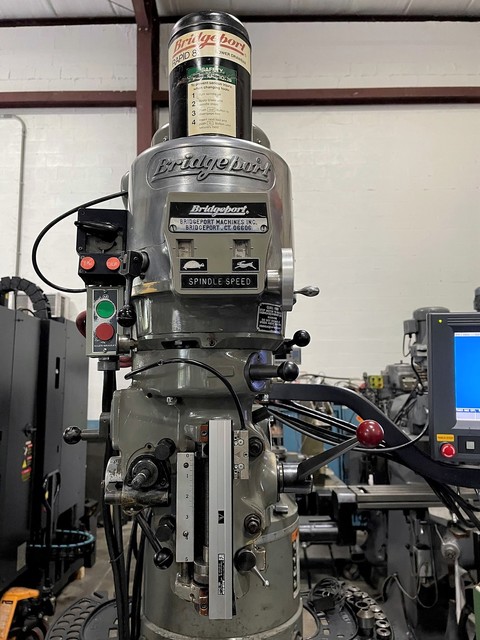

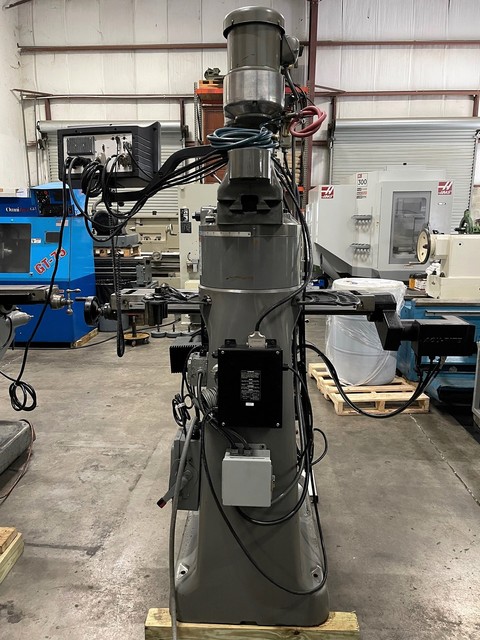

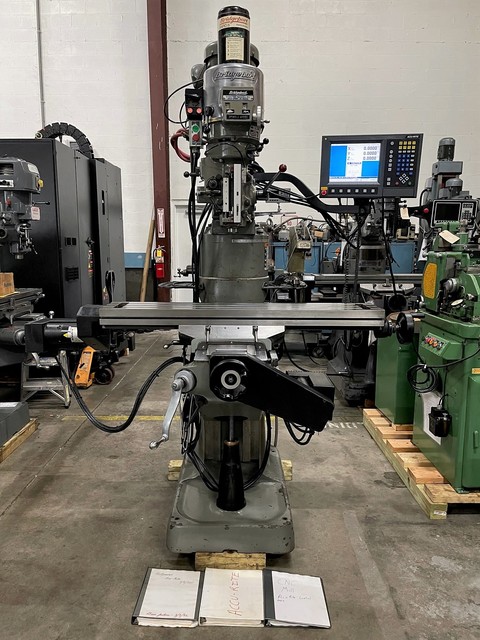

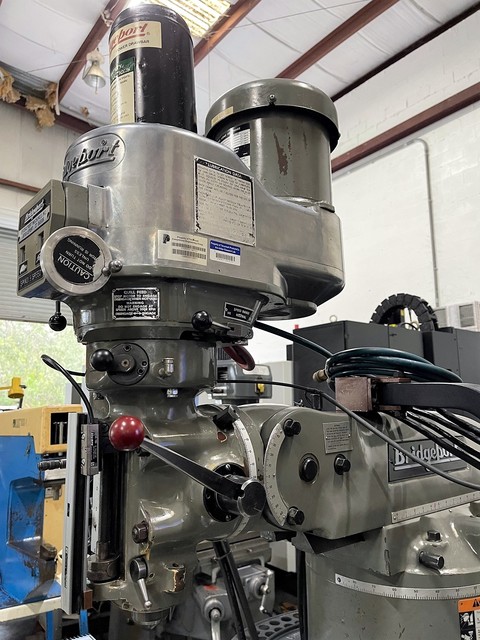

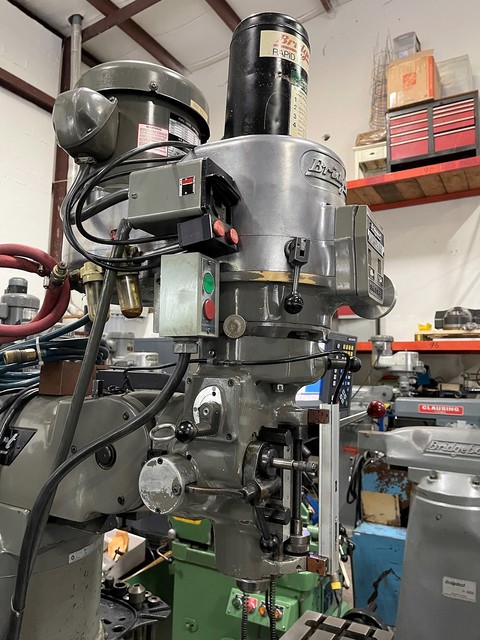

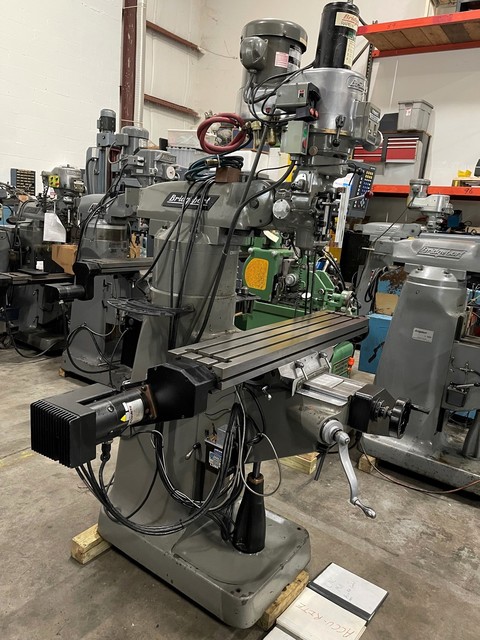

BRIDGEPORT SERIES 1 2 AXIS CNC VERTICAL MILLING MACHINE 1987’ #GMT-2939

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


Series 1
248467
Milling Machines
Knee Mills CNC
used
2000 (LB)
1987
$16,500.00

Description

SPECIFICATION:
Reference # GMT-2939
Model # Series 1

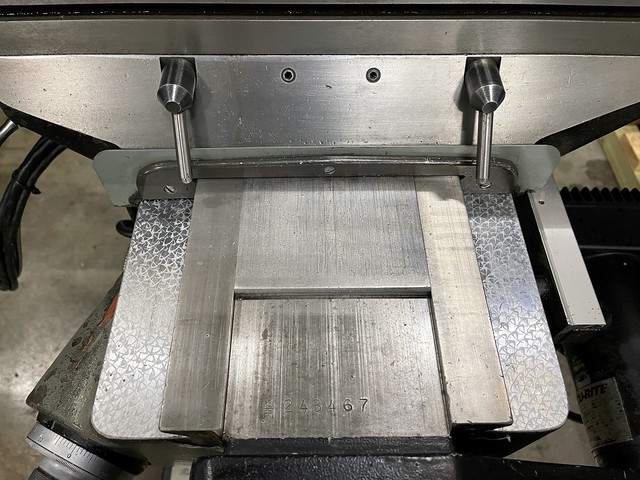

Serial # 248467
Year of manufacture 1987

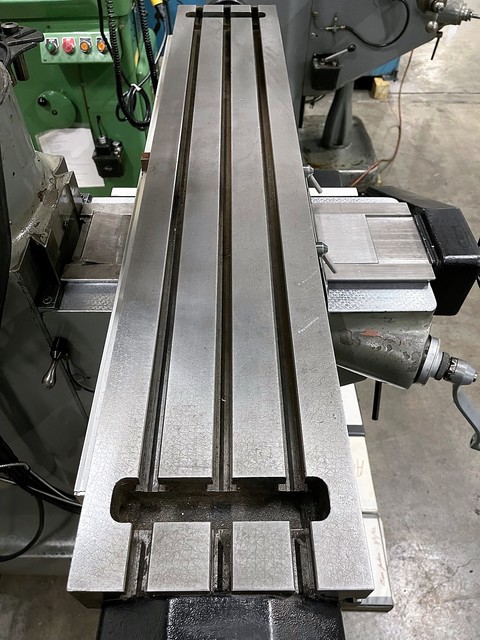

Table working surface 9 in x 48 in
Number of t-slots (3)
Longitudinal travel 26 in
Cross travel 12 in
Vertical, knee travel 16 in
Quill travel 5 in
Maximum/Minimum distance, spindle nose to table  18.5 in/2.5 in
Maximum/Minimum distance, centerline of spindle to face of column 18.75 in/6.75 in
Ram travel  12 in
Head tilt, left & right 90 degrees
Head tilt, front to rear, each way 45 degrees
(3) Power quill feeds  .0015, .003, .006 I.P.R.
Infinitely variable spindle speeds, two ranges  60-4,200 R.P.M
Spindle taper R-8
CHARACTERISTICS:
Equipped With:

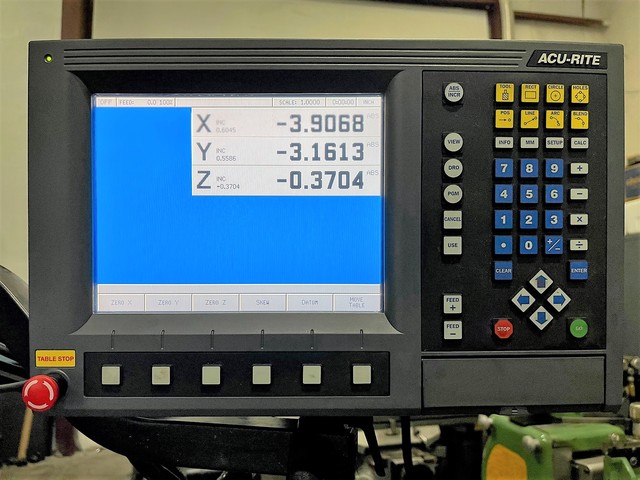

ACU-RITE MILLPOWER CNC CONTROL two-axis CNC/three-axis digital readout, RS-232 port
Three-axis digital readout during manual operations
Ballscrews installed in the table and saddle
Pneumatic drawbar
Assorted R-8 Collets
Factory column riser
Automatic lubrication system
2 H.P. 3/60/230 spindle drive motor and electrical controls
Machine is wired for 230 volt operation.
Approximate Weight (Machine Only):  2000 Lbs.
APPROXIMATE DIMENSIONS:  76 in L x 57 in W x 83 in H
PRICE:  $16,500
