Description:
1-USED BLOHM PLANOMAT MODEL 408 CNC HIGH PRECISION CREEP FEED GRINDER

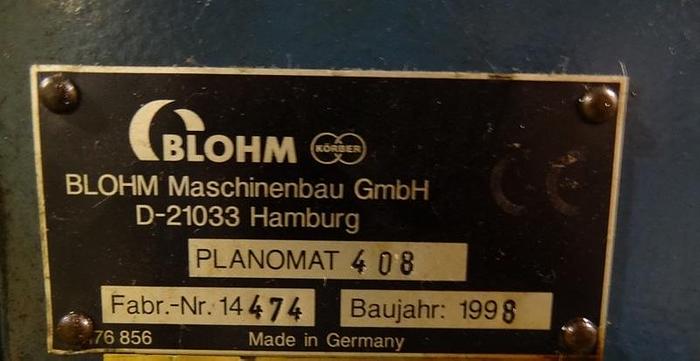

MACHINE SERIAL NUMBER 14474
NEW APPROX. 1998
STK# 103661
=============================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

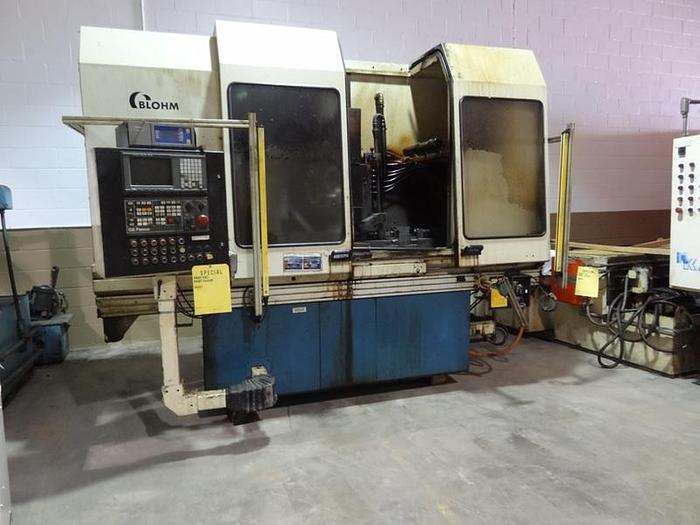

BLOHM "PLANOMAT" SERIES MODEL 408 HIGH-PRECISION CNC
CREEP FEED GRINDER
W/FANUC 16-M CNC CONTROLS
WIDTH X LENGTH GROUND (NOMINAL CAP.) ... 16" X 32"
MAXIMUM TABLE TRAVEL.................... 36"
MAX. CROSS TRAVEL ...................... 14.4"
MAX. DISTANCE UNDER WHEEL TO TABLE ..... 28"
SPINDLE SPEEDS, INFINITELY VARIABLE .... 50 TO 3,400 RPM
GRINDING WHEEL SIZE..................... 16" DIA.
1.2" TO 3.2"MAX
5" BORE
LONGITUDINAL TABLE SPEED (VARIABLE)..... 1.2" TO 1200" IPM
AUTO CROSS FEED RATE ................... 0.16" TO 160"
SPINDLE MOTOR........................... 15.4 HP
VERTICAL FEED RATE ..................... 1.6" TO 150" IPM
APPROX. DIMS. ........................ 190"L x 150"D x 100"H
APPROX. MACHINE WEIGHT ................. 8,580 LBS.
EQUIPPED WITH:
MACHINE TOOL BASE FOR THE ULTIMATE
IN RIGIDITY & STABILITY FOR GRINDING HIGH TOLERANCES

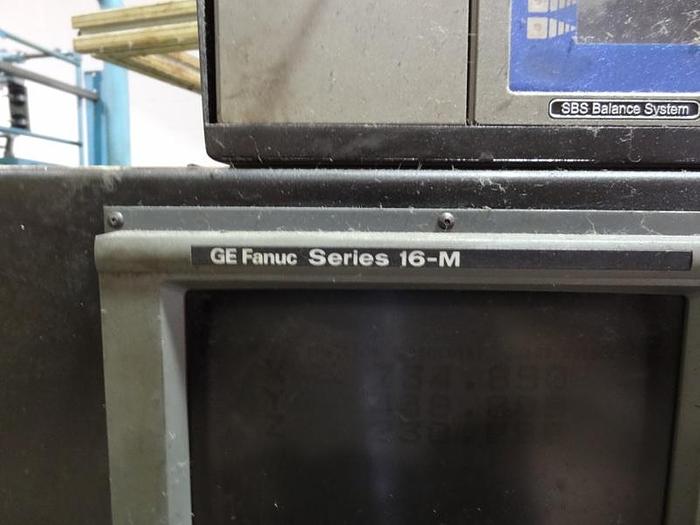

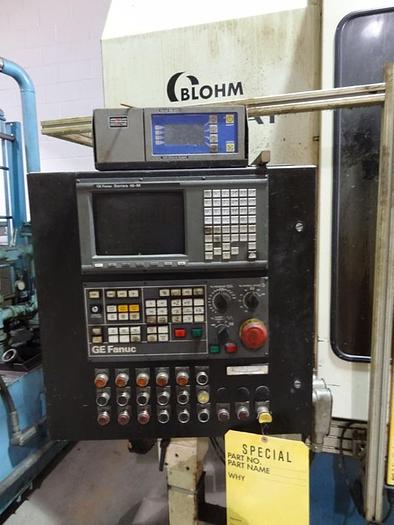

FANUC 16-M CNC CONTROL STATION W/CRT DISPLAY
..... SOME CONTROL OPTIONS INCLUDE GRAPHICAL OPERATOR
GUIDANCE, WHEEL DIAMETER SOFTWARE, DRESSING CYCLES, ETC.
ALL AXES WITH BALL SCREW DRIVES & FANUC AC SERVO DRIVES & MOTORS
GLASS MEASURING SCALES FOR Y & Z AXES

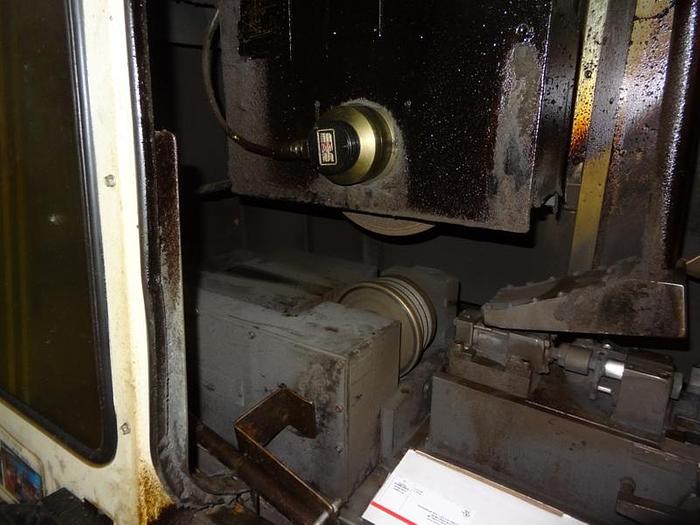

TABLE MOUNTED DRESSER TYPE PEA-TL28 FOR DIAMOND PROFILE
ROLLS OR UNIVERSAL DIAMOND ROLLS.
VARIABLE SPEED SPINDLE OPTION

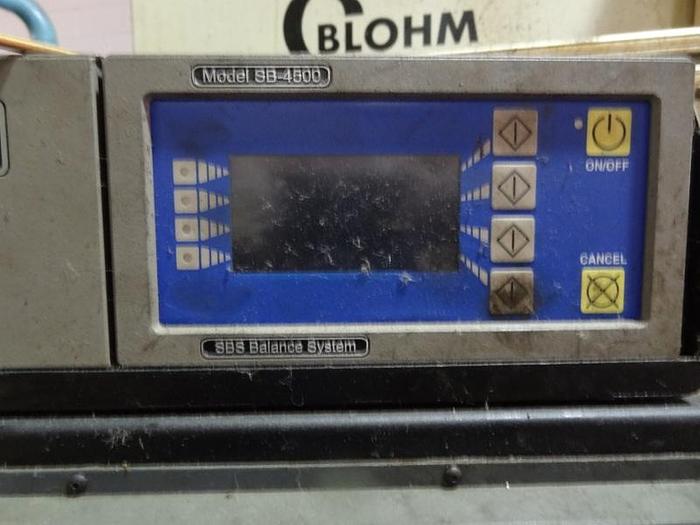

AUTO WHEEL BALANCING OPTION
COLUMN MOVES FOR CROSS FEED (Z-AXIS)
TOTALLY ENCLOSED WORK AREA

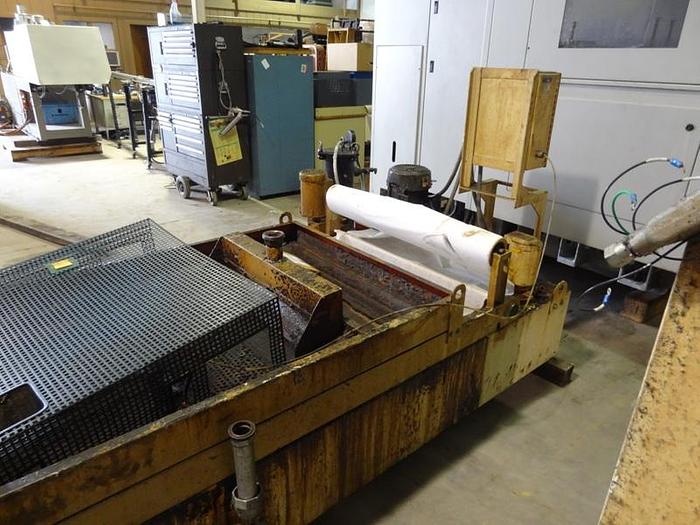

LARGE CYCLOTRON COOLANT SYSTEM W/PAPER FILTRATION AND MAGNETIC SEPERATION

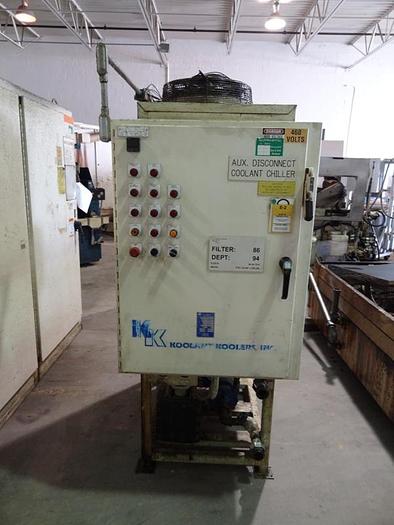

KOOLANT KOOLERS, INC CHILLER FOR COOLANT

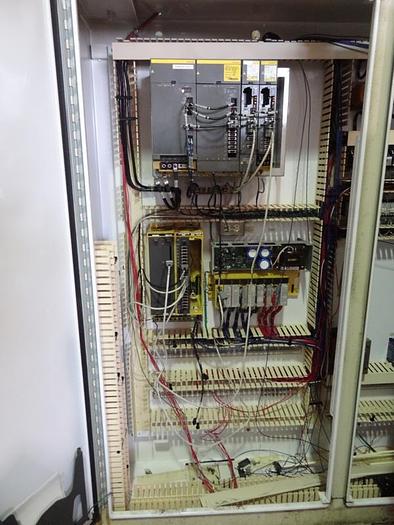

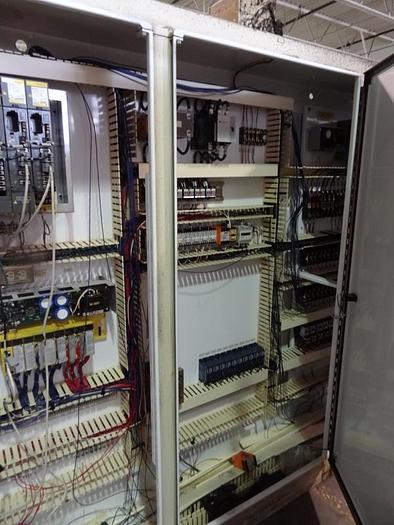

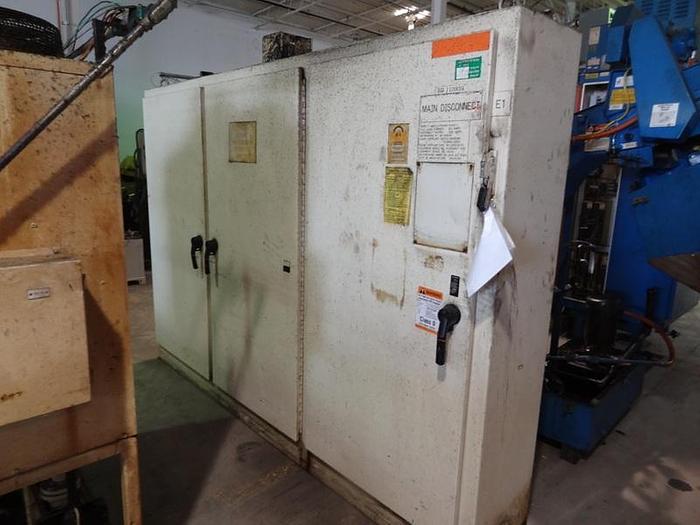

LARGE FREE STANDING THREE DOOR ELECTRICAL CABINET HOUSES MACHINE CONTROLS
COUNTRY OF ORIGIN GERMANY
FOB TRUCK, IMLAY CITY, MI 48444
THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND
BUYERS UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS
AND CONDITIONS.
(586)752-0090
WWW.RABIND.COM
Specifications:
Manufacturer BLOHM
Model 408 CNC HIGH PRECISION CREEP FEED GRINDER
Year 1998
Condition Used
Serial Number 14474
Stock Number 103661
