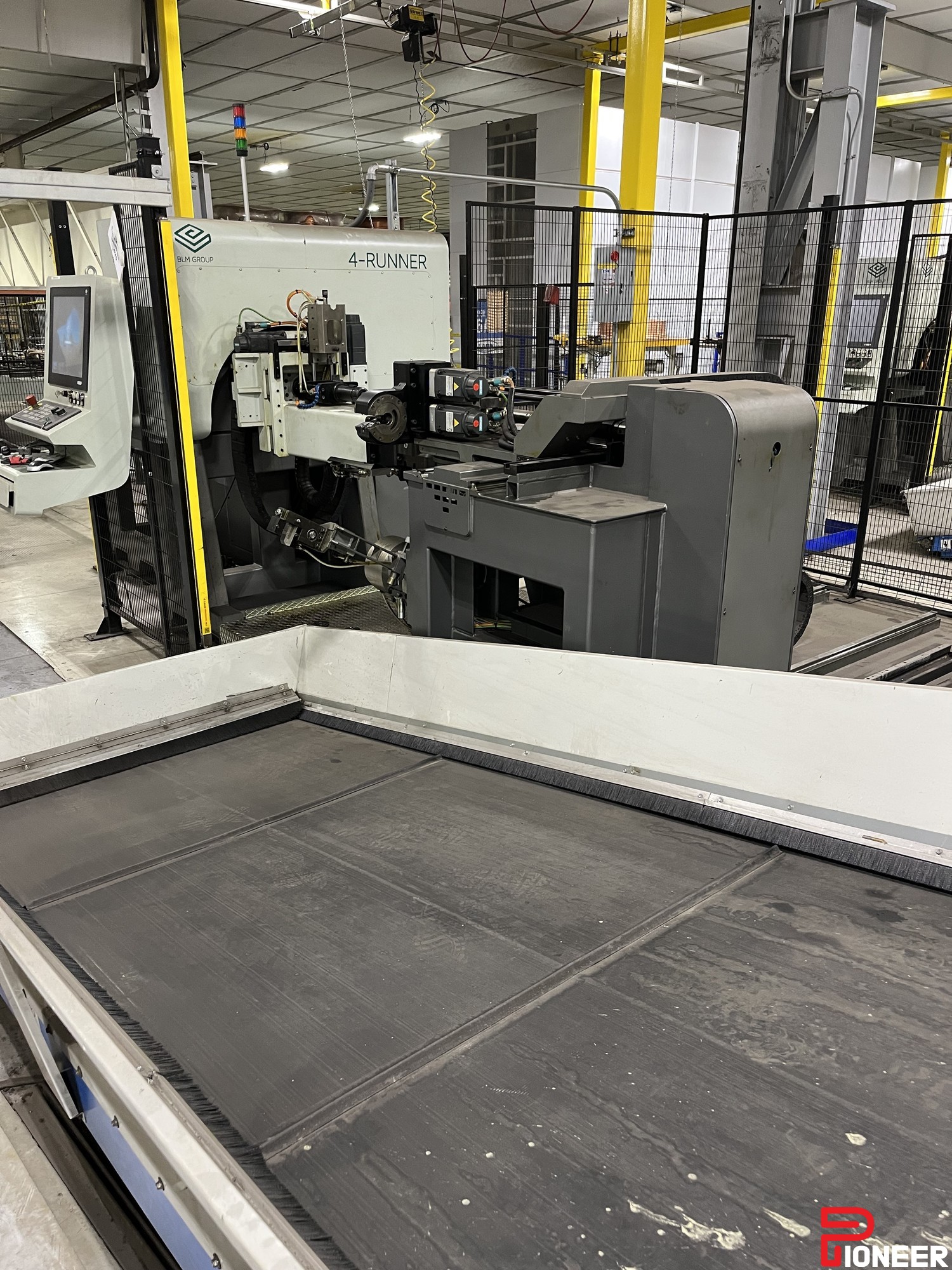

Overview:
Type: Pipe, Tube & Bar Benders
Manufacturer: BLM
Model: 4-RUNNER
Condition: Used - Excellent
Year: 2016
Stock #: 5457
Status: For Sale
Maximum bending capacity for copper tubes 28 x 1,5 mm (1.1 in x .060 in)
Maximum bending capacity for mild steel tubes 22 x 2 mm (.865 in x .075 in) - 24 x 1.5 mm (.944 in x .06 in)
Maximum bending capacity for stainless steel tubes 20 x 1.9 mm (.785 x. 0,074) - 22 x 1.5 mm (.865 in x .06 in)
Maximum bending capacity for solid bar 14 mm (.55 in)
Controlled axes 9
X axis accuracy Plus/minus 0,05 mm (.002 in)
Y axis accuracy Plus/minus 0,05 deg
Z axis accuracy Plus/minus 0,05 deg
X axis speed (brushless motor) 1800 mm/s (70 in / sec)
Maximum X axes speed with
optional 400 kg booster 900 mm/sec (35 in / sec)
Max bending radius (inquire for larger radius needs) 50 mm (2 in) - 70 mm (2.75 in) when only bending left or right
Min bending radius (inquire for smaller radius needs) 13 mm (.5 in) with 20 mm tool post
16 mm (.625 in) with 25 mm tool post
Machine bed length (inquire for longer bend lengths)
- from tool post to collet 1300 mm (51 in)
- from tool post to mandrel retraction 2670 mm (105 in)
Max bore through carriage 25 mm (1 in)
Automatic mandrel lubrication standard
Mandrel rods 8, 10, 16 mm diameter rods supplied
Max installed power 13 kW
Average absorbed power 3,5 kW
Noise level 65 dB(A)
Machine and Control weight 2100 Kg (4630 lbs)
Machine dimensions 3300 x 1200 x 1550 mm (11 ft x 4 ft x 5 ft)
Average production bends/hour 3000 to 3600
