SPECIFICATIONS:
Chuck Dia.: 120 inches
Spindle (Horz/Vert): vertical
Power: 300 horsepower
Swing: 144 inches
Under Wheel: 60 inches
Table Speeds: No Specs Attached
Grinding Wheel Width: No Specs Attached inches
Table Motor Horsepower: No Specs Attached horsepower
Grinding Wheel Dia.: 72 inches
CNC Control: no
Type of CNC Control: No Specs Attached
Dimensions: No Specs Attached
Weight: No Specs Attached ounces

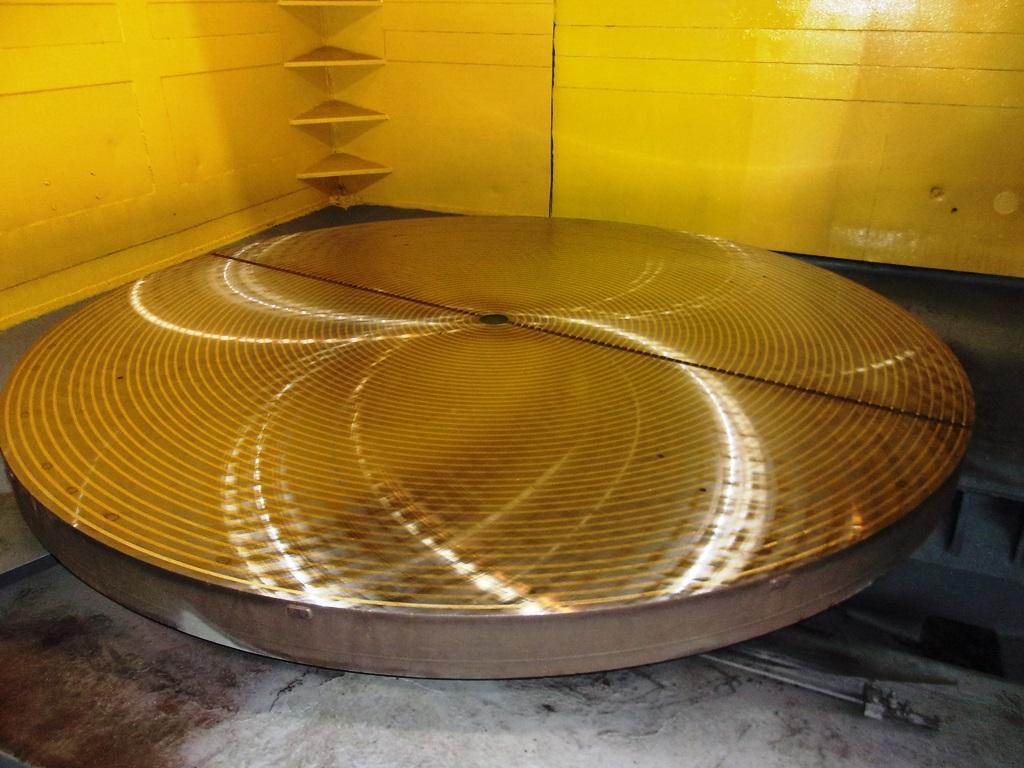

120" Magnetic Chuck
144+" Swing Inside Water Guards
60" Maximum Height Under Wheel (approximate)

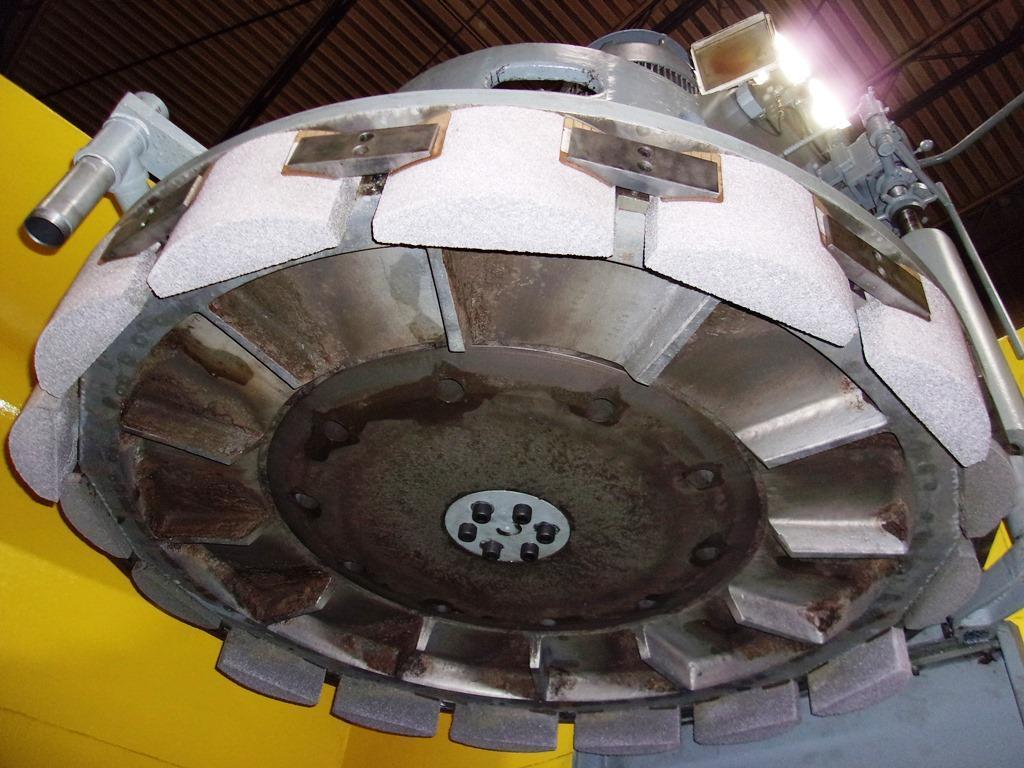

72" Grinding Wheel

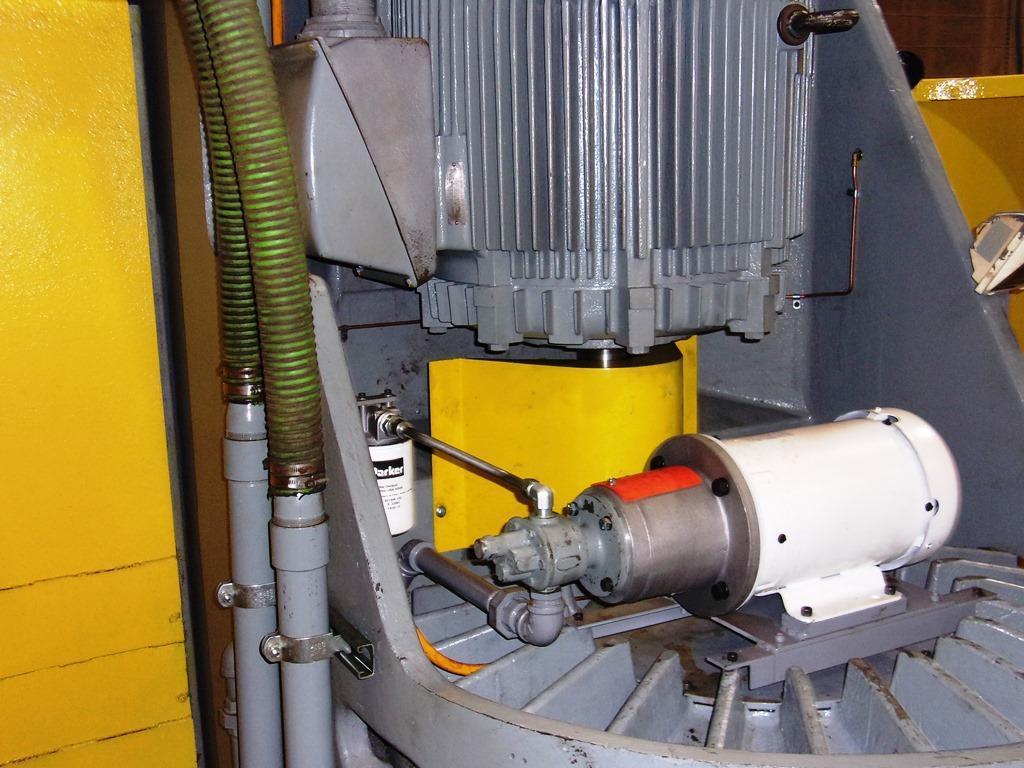

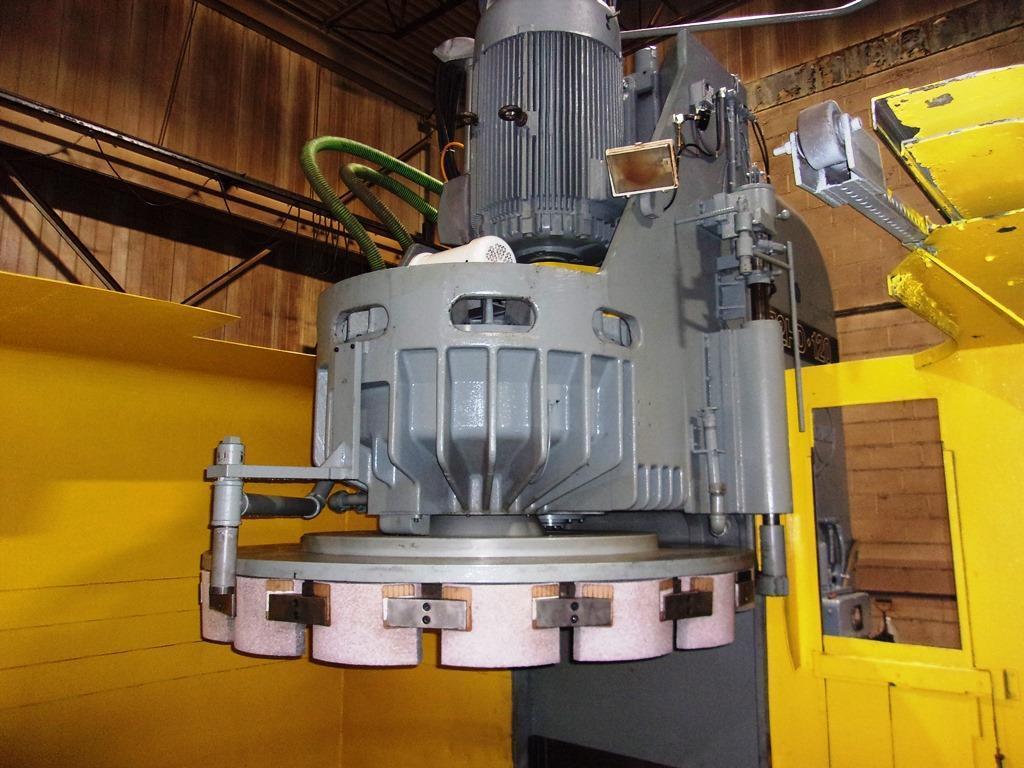

300 HP Main Spindle Drive
460 Volt/342 Amp Main Motor
(4) Table Speeds of 2.6, 4.1, 6.7, 10.2 RPM
.008" to .096" Per/Min Variable Vertical Down feeds
Equipped With:
Hardened Bed Ways
Water Guards
Automatic Lubrication
Magnetic Chuck Controls
Wheel Dresser
External Drag Out Coolant System
Spindle was completely rebuilt by F. P. Miller in 9-2018 including the Helical Gear Set, Bearings, seals and external spindle lubrication conversion
Original Owner, Still in operation, Inspect under power.
Terms of sale: As-Is, on location, payment in full prior to removal

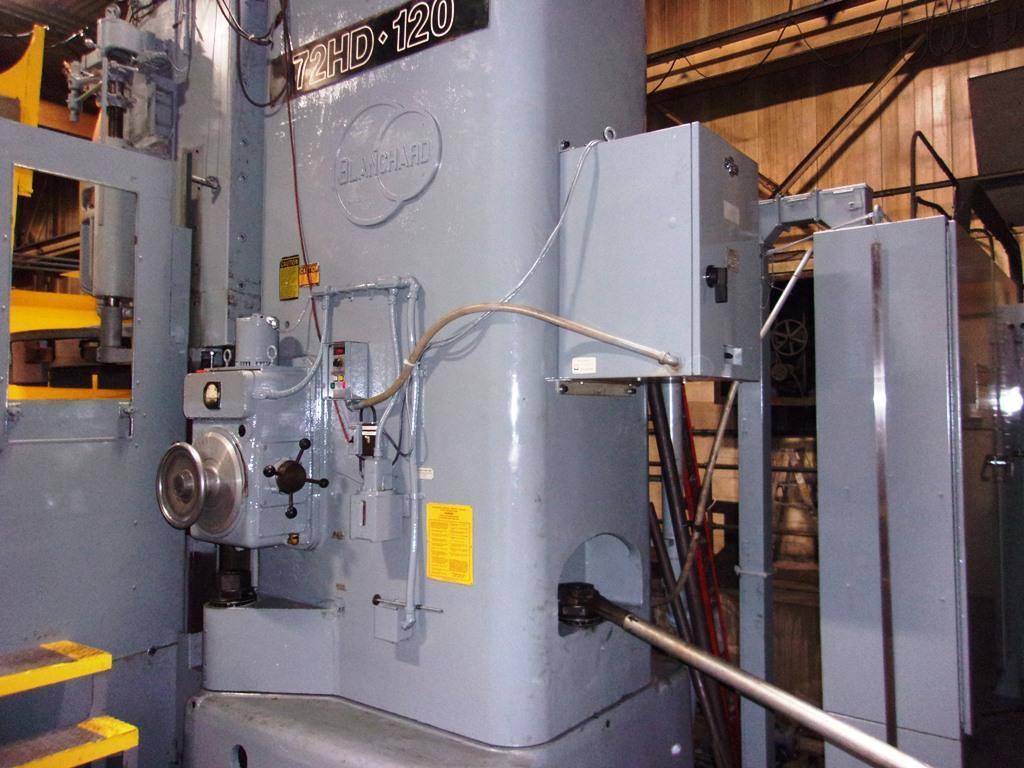

To view more information on the BLANCHARD 72HD-120, 120" DIAMETER VERTICAL SPINDLE ROTARY SURFACE GRINDER. 86, including reviews, brand information, photos, videos, and more,
