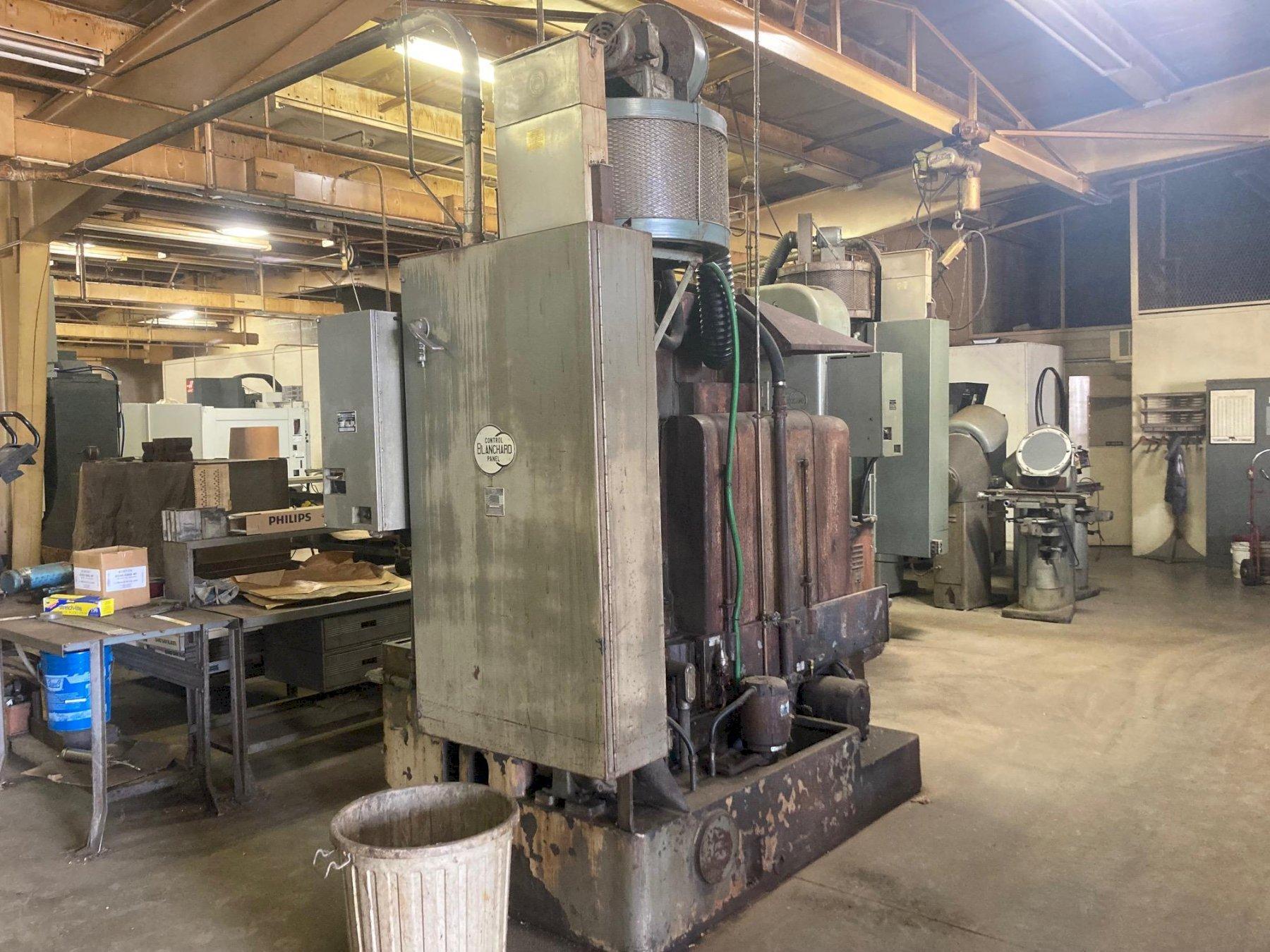

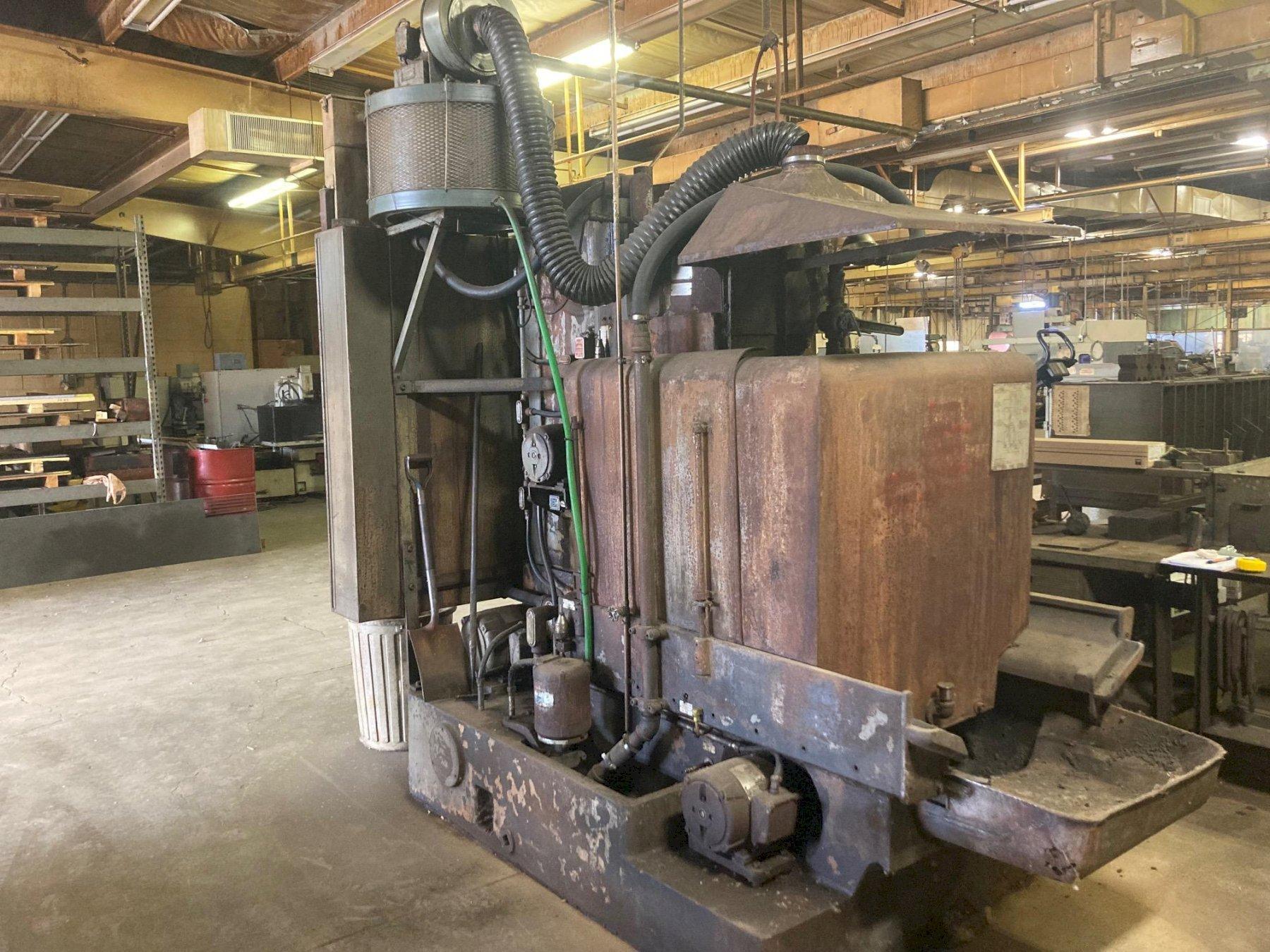

BLANCHARD #18-36, 36" VERTICAL SPINDLE ROTARY SURFACE GRINDER,64

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


#18-36
Grinders
GRINDERS, SURFACE, ROTARY TYPE (VERTICAL SPINDLE)
used
14500 (LB)
1964
$0.00

Description

STOCK #17169

SPECIFICATIONS:

Chuck Dia.: 36 inches

Spindle (Horz/Vert): No Specs Attached

Power: 40 horsepower

Swing: No Specs Attached inches

Under Wheel: No Specs Attached inches

Table Speeds: No Specs Attached

Grinding Wheel Width: No Specs Attached inches

Table Motor Horsepower: No Specs Attached horsepower

Grinding Wheel Dia.: No Specs Attached inches

CNC Control: no

Type of CNC Control: No Specs Attached

Dimensions: No Specs Attached

Weight: No Specs Attached ounces

Standard Specifications - SUBJECT TO VERIFICATION

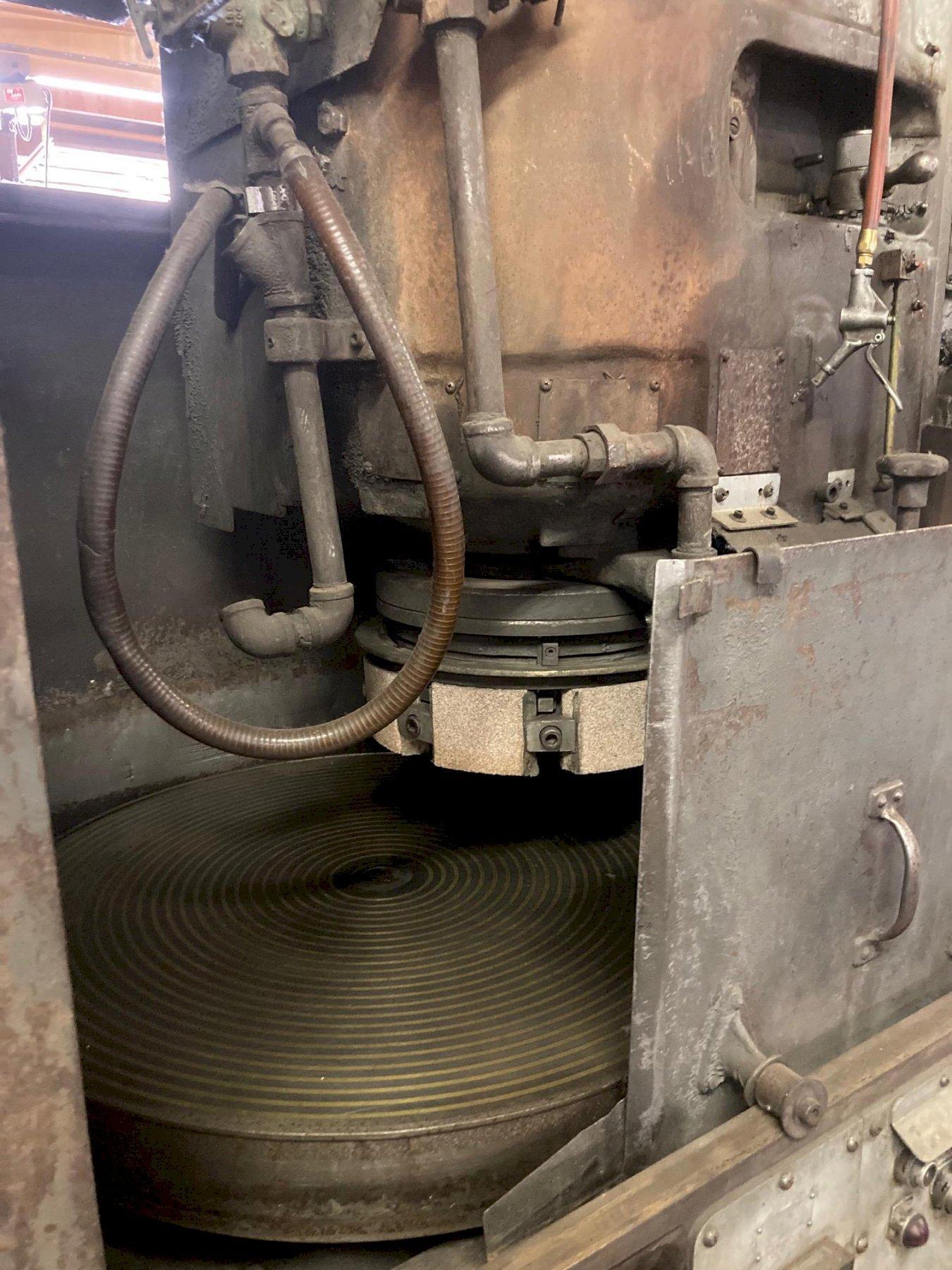

36" Magnetic Chuck Diameter, Approximately .200" Chuck Life

18" Approximate Range Over Chuck With New Wheel

18" Diameter of Wheel Chuck, Segmented Style

(6) Ranges of Chuck Speeds, 6, 9, 12, 18, 25, 33 RPM

Feed 0.004 - 0.080 IPM

720 RPM Wheel Speed

(6) Ranges of Chuck Speeds 6,9,12,18,25 & 33 RPM

40 HP- 3 Phase, 60 Cycle, 240/480 Volt (wired for 480 Volt operation)

Floor Space: 129"L x 60"W

Height: 71" Min., 82" Approximate Max.

Approx. Weight: 14,500 lbs

Equipped with:

Wet Base design

Coolant pump and piping

Magnetic Chuck controls

Norton style segmented wheel holder

Mist Collector

Wheel Dresser

Original owner machine

As taken from service

Cleaned , Tested and Painted

May be inspected under power
