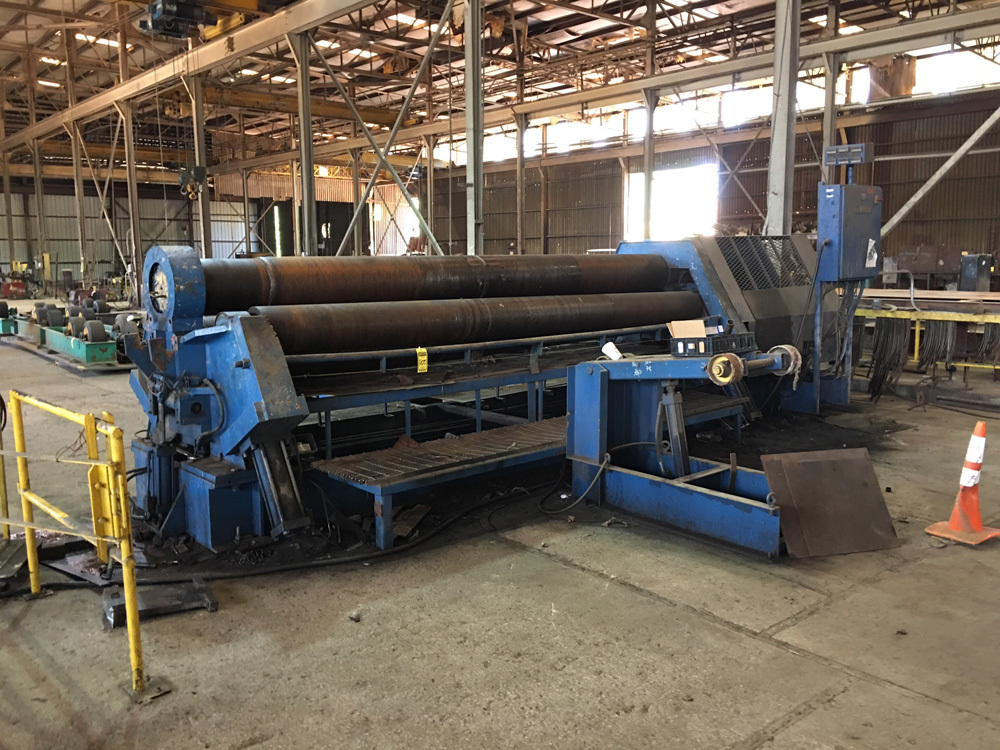

BERTSCH - 4 ROLL HYDRAULIC PLATE ROLL | 5/8" X 14
75-14
M-10819
Rolls
Hydraulic Rolls
used
(LB)
0
$0.00

Description

Basic Information

Model: 75-14

Manufacturer: Bertsch
Serial #: M-10819
Location: Painesville, OH
Year Built: 1994

Specifications

Capacity (60,000 PSI Max. Tensile Material): 5/8"/ 0.656"
Max. Forming Length: 14
Roll Diameter:
Top & Lower Rolls: 15"
Side Rolls: 12"
Rolling Speed (Variable): 0- 14 FPM
Dimensions (L x W xH): 270" x 96" x 90"
Weight: 35,000 Lbs.

Equipped with

  • Hydraulic Drop End
  • Hydraulic Feed Table (Front & Rear)
  • Cone Rolling Attachment
  • 6 Digital Read Outs: Two On Each Side Roll, Two On Bottom Roll
  • Crowned Rolls
  • Hydraulic Lower & Side Rolls Adjustment
  • Leveling System Insuring Parallelism & Individual Tilt Control Of Both Side Rolls
  • Independent Planetary Gear Reduction Of Top & Lower Rolls

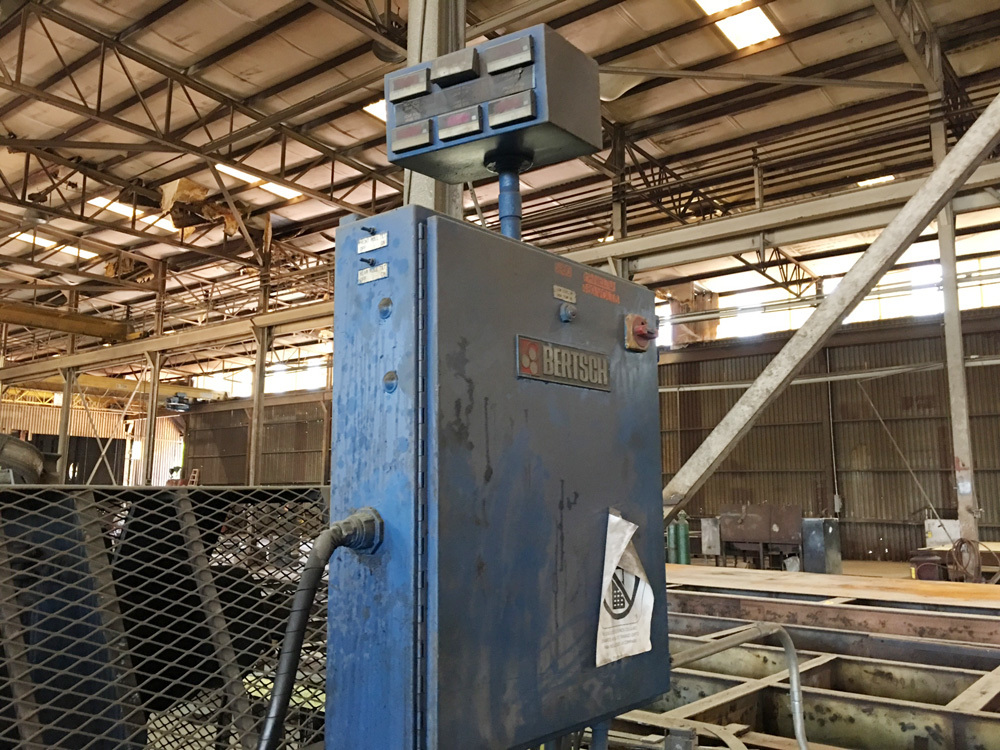

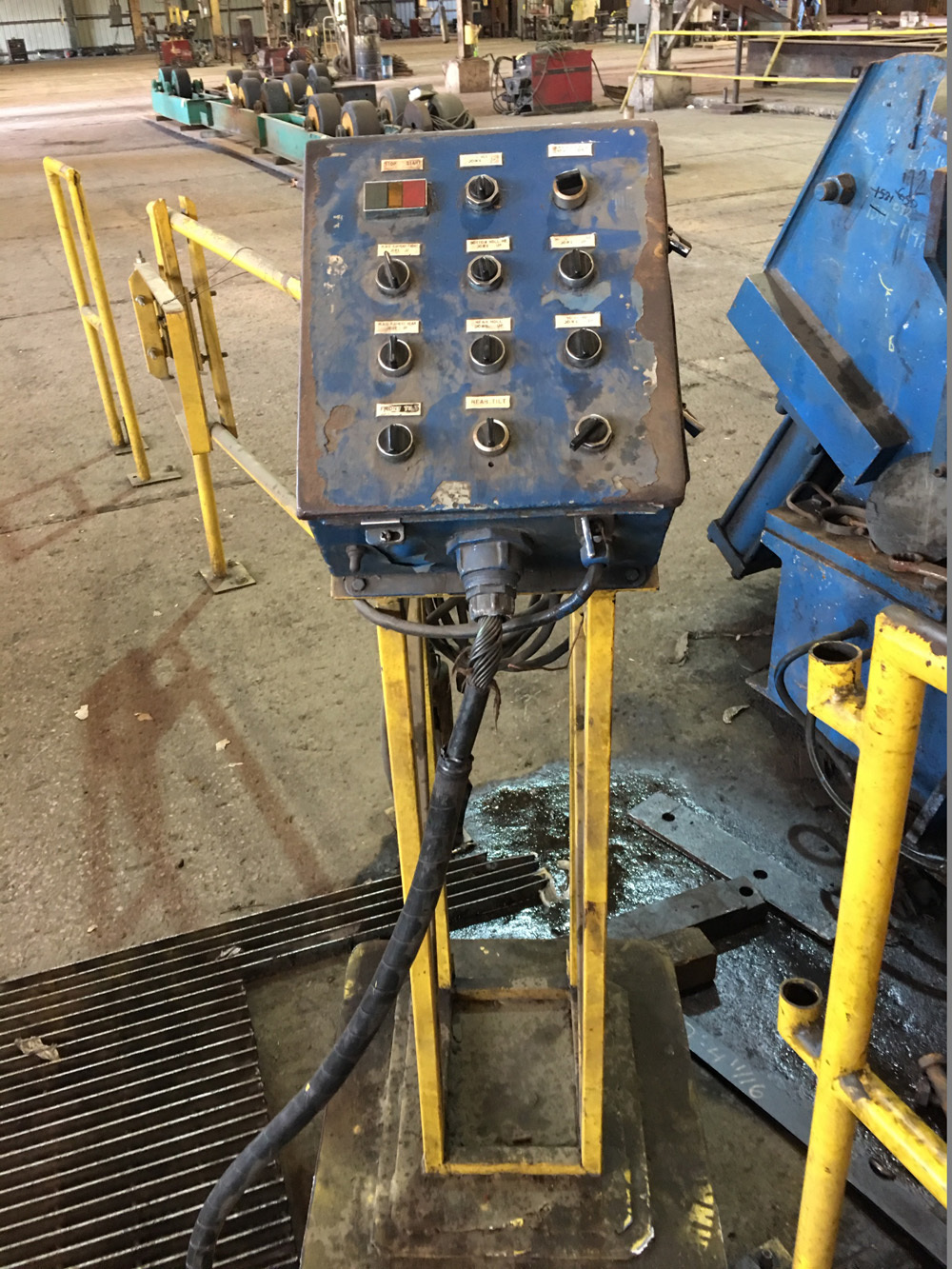

  • Movable Type Console Control Stand
  • Emergency Cable & Push Button Stop
  • Horsepower: 30
