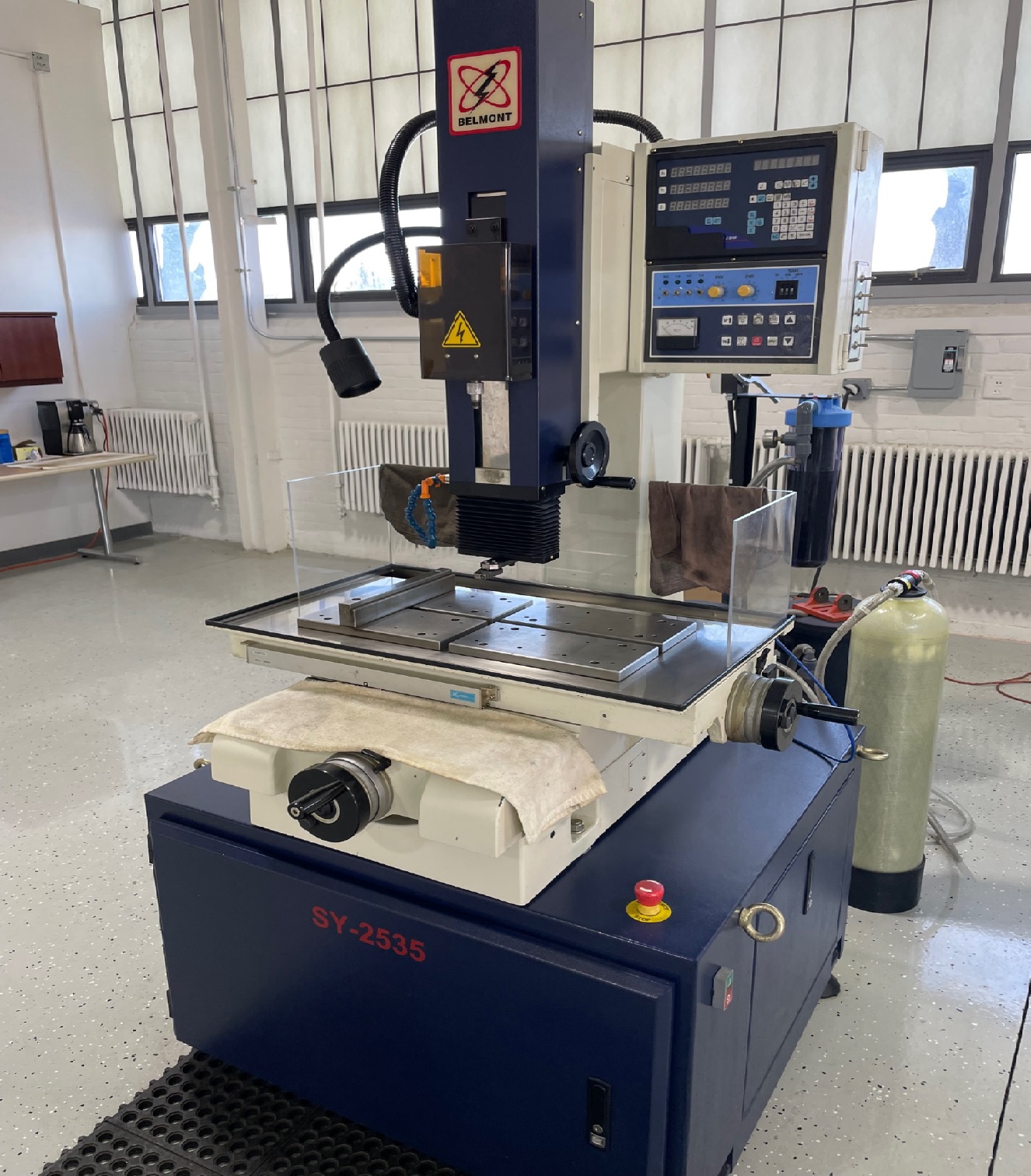

Belmont SY-2535 EDM Hole Driller

Stock Number: 1470

Belmont SY-2535
Age: 2015
Condition: As Is, Where Is
This machine is ideal for drilling "start holes" for wire EDM, gas escape holes in molds, and production holes in hardened materials where conventional drilling is difficult. Used in applications such as aerospace, medical, aircraft and automotive. The machine accurately drills holes in nearly any electrically conductive material, at high rates, on angles, curved surfaces, and through threads.

Request A Quote On Our Stock Number: 1470 Belmont SY-2535 EDM Hole DrillerRequest a quote on stock# 1470
Specification                                                            Description
Machine Travels (X x Y x Z)                            13.78" x 9.84" x 13.58"
W Axis Backslide                                                        7.87"
Guide Travel                                                                5.9"
Table Size                                                                  23.6" x 11.8"
Maximum Workpiece Weight                                    880 lbs
Feedback X, Y Axis                                                 Glass Scales
Feedback, Z Axis                                         Encoder, Direct-to-Shaft
Electrode Diameter Range                             .012" - .118" (0.3 - 3.0mm)
Included Guide Sizes                                     .35, 1.0, 1.6, 2.1 & 2.3mm
Maximum Machining Current                                    30A
Electrical Requirements                              220V/3Phz/50-60Hz 4kVA
Machine Dimensions (LxWxH)                          38" x84" x 80"H
Machine Weight                                                        1,500 lbs

Equipped With:

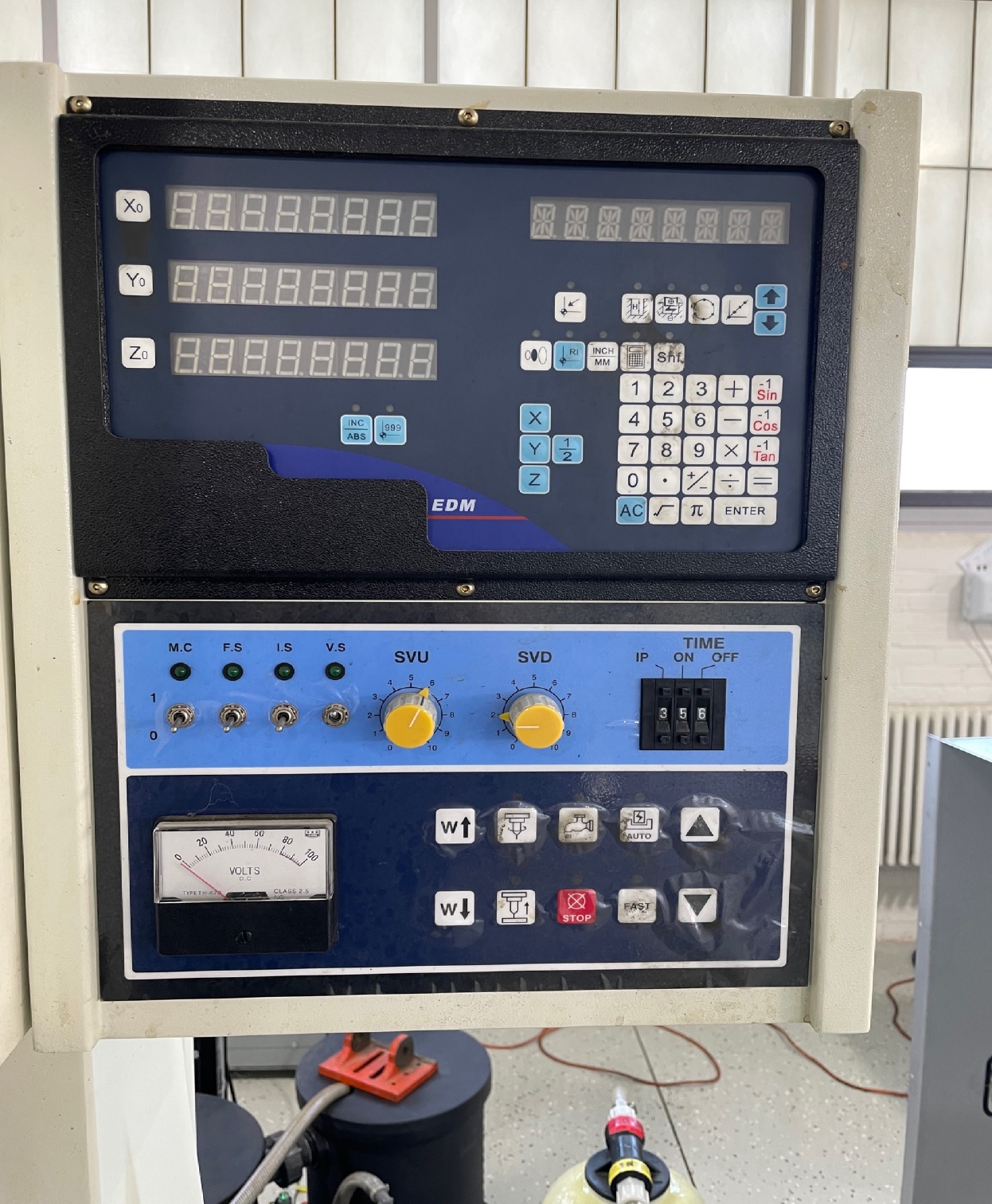

* 3 Axis Digital Readouts * Dielectric Filtration * Resin Bottle * Operation Manual * Included Guide Sizes: .35, 1.0, 1.6, 2.1 & 2.3mm
