Description

Belmont SY Series Features: * 6 Coordinate Systems * 3 Step Control of EDM Parameters * Password Protected Settings * 1,000 RPM Programmable Spindle * Windows Based Controller * Multi-tasking Capabilites * Ethernet Connectivity and USB Support * Automatic Depth Control * Glass Scale Feedback

 Stock Number: 1448

 Condition: As Is, Where Is

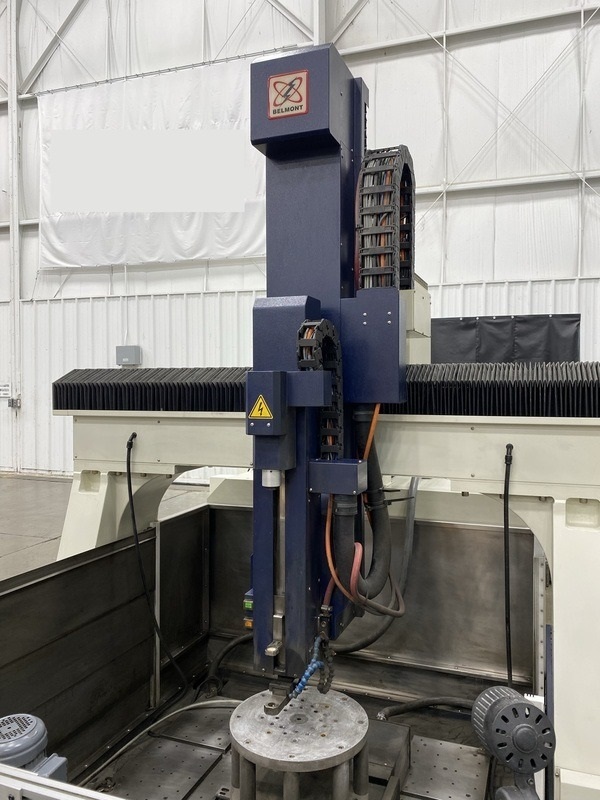

Request A Quote On Our Stock Number: 1448 Belmont SY-1210TGUR CNC High Speed Hole DrillerRequest a quote on stock# 1448

Specification                                          Description

X-Axis Travel                                               39.3"

Y-Axis Travel                                               47.2"

W-Axis Travel                                               39.3"

U-Axis (Tilt Head) Travel          +/-100 Degrees from Vertical

Z-Axis Travel                                                15.7"

Open Height                                           3.1" - 39.3"

Electrode Diameter Capability            .008" - .120" (0.2-3.0mm)

Worktable Dimensions                    43.3"(L-R) x 51.1" (F-B)

Worktank Dimensions                    59" (L-R) x 70.8" (F-B)

Max. Workpiece Weight                             5,500 lbs

Rotary Table Faceplate                              5.9" Dia.

Rotary Table Max Weight Capacity                110 lbs

Machining Maximum Amps                                   30

On & Off Time                                        1-99 Microseconds

Capacitors                                             0-1.81 MU F

Auto Electrode Changer                          20 Positions

Spindle Speed                                              1,000 RPM

Electrode Diameter Range                      w/o AEC .004" - .256"

Electrode Diameter Range                      w/AEC .012" - .120"

Max. Electrode Length                               17.7"

Min. Electrode Length                               2.75"

Electrical Requirement                208-220V, 3 Phase, 50/60Hz

Machine Dimensions - Catalog              104" x 134" x 142"H

Machine Weight - Catalog                         12,980 lbs

Control/Power Supply Dimensions       32" x 40" x 76" H

Control/Power Supply Weight                    875 lbs

Dielectric System Dimensions                  62" x 36" x 71" H

Dielectric System Weight                              320 lbs

Equipped With:

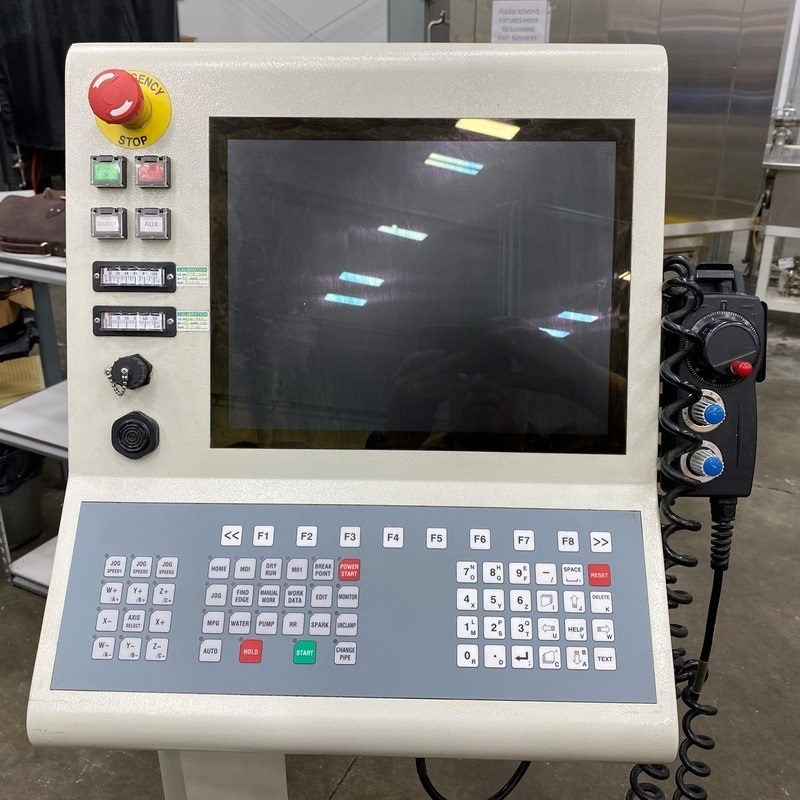

* Window Based Control w/G & M Code Programming * Integrated Rotary Table * Integrated Tilting Head * 20 Position Automatic Electrode Changer * Full Machine Tool Guarding * Stainless Steel Table & Riser Support * High Pressure Flushing Pump * Water Dielectric Unit * Ethernet Connectivity - Six Coordinate System - Three Step EDM Parameter Control - Automatic Depth Control * All Available Manuals and Accessories
