Description

SOLD          SOLD             SOLD

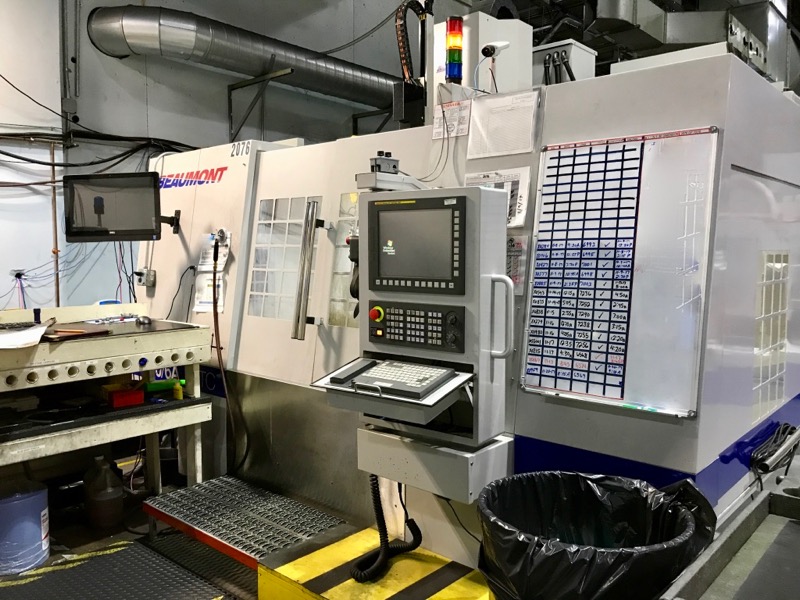

(2) Pre-owned: Beaumont 6-axis Fast Hole EDM Drills

Model: FH40-6A RTC

Year of Manufacture: 2015

Location: USA

Condition: Excellent

SPECIFICATIONS

Electrode Capability: 24 in

Electrode Diameter: .012 in to .250 in
Rapid Speed: 400 IPM
Feed Back: Absolute Encoders and Glass Scales
Spindle Speeds: 1500 RPM
X, Y, Z axis Travels: 40 in x 22 in x 26 in
Max Work Piece Weight: 2500 Lbs.
Max Work Piece Height: 22 in without riser
Granite Table with Stainless Steel Inserts, Size (X & Y): 45 in x 24 in
Power Supply
Output Amperage: up to 63 amps continuous
Amperage Settings: 1amp increments
Capacitance Range: 0 to 8.95 mf
Includes
DL-15 Troyke Rotary Table
Fanuc Robot Tool Changer
30 Station Tool Carousel
Full Enclosure
Fanuc 31i CNC
Machine Size (W x D x H): 138 in x 106 in x 110 in
Machine Weight: 20,000 Lbs.

Note: Specifications below are from the original PO and may not reflect the current condition of the machine.

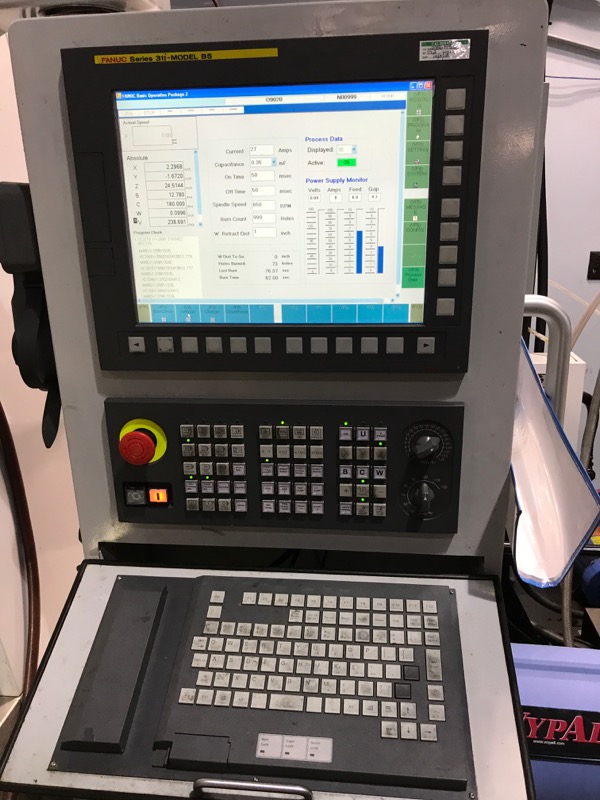

-Fanuc 31i CNC Pendant And Fanuc  (Handyman) Remote Pendant With G54 Thru G59;
-Additional Fanuc Controller Work Shift Offsets, G54 To Include P1 Thru P48;
-Pivoting Keyboard;
-Guide System And Arbors For Increased Accuracy And Repeatability;

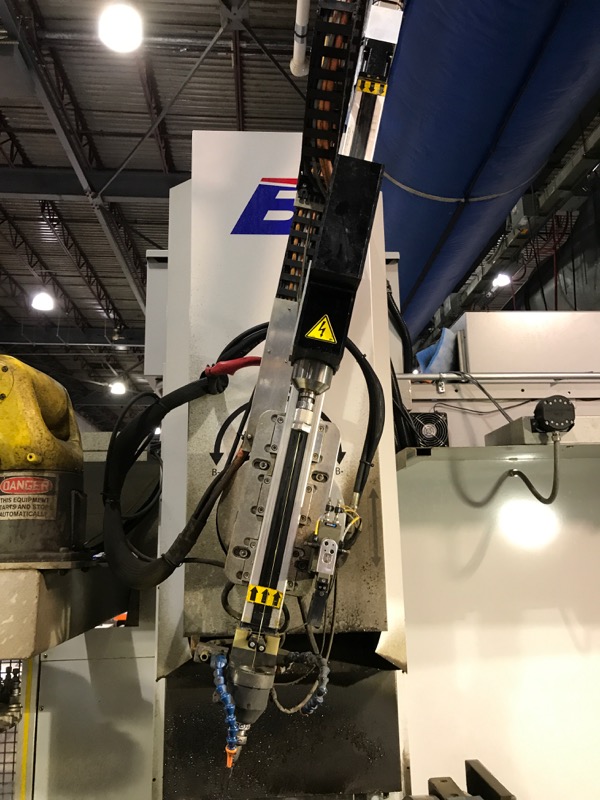

-Actuator Assembly With Pneumatic Tool Retention, Clamper And Stabilizer;
-4th (B) Axis 9 in-Dl-9 Troyke Rotary Table With Heidenhain Scale-Ina Bearing;

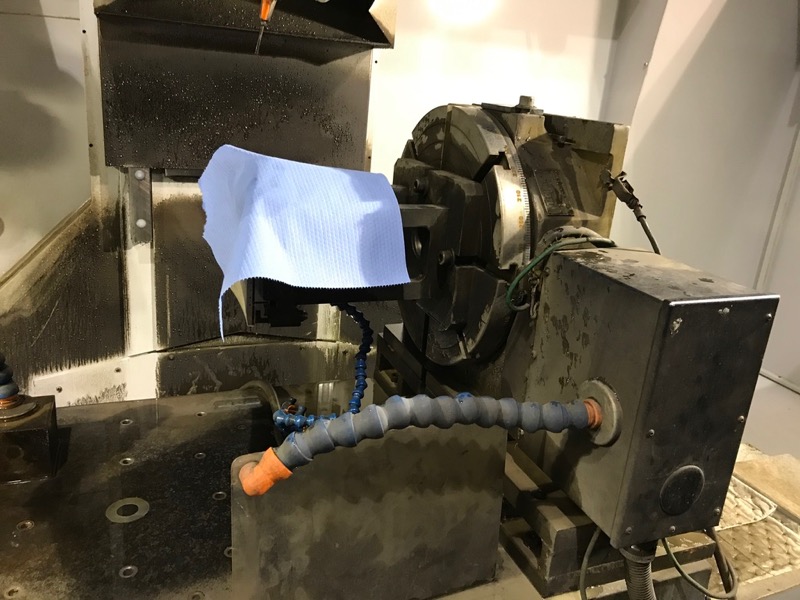

-5th (C) Axis 15 in Dl-15 Troyke Rotary Table-Ina Bearing, With Electrical Quick Disconnect, 3 To 5 Arc Seconds Accuracy;
-C axis heidenhain scales;

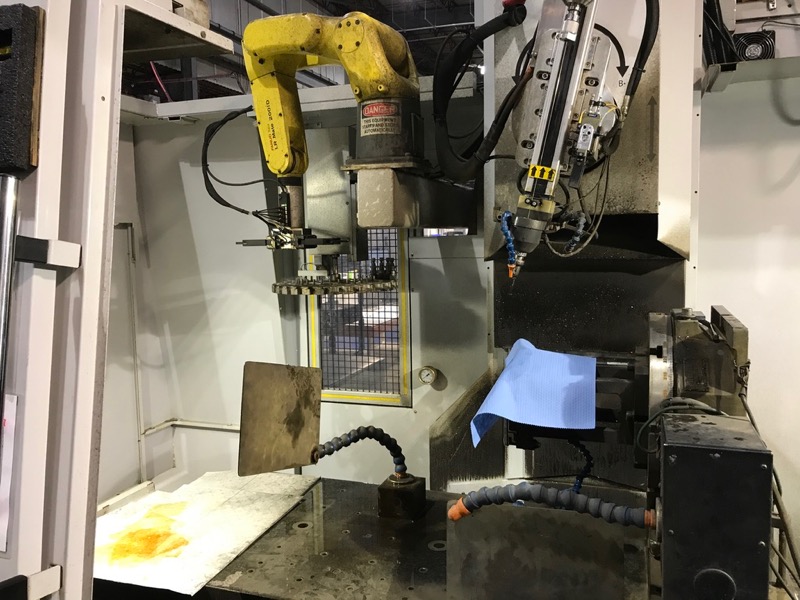

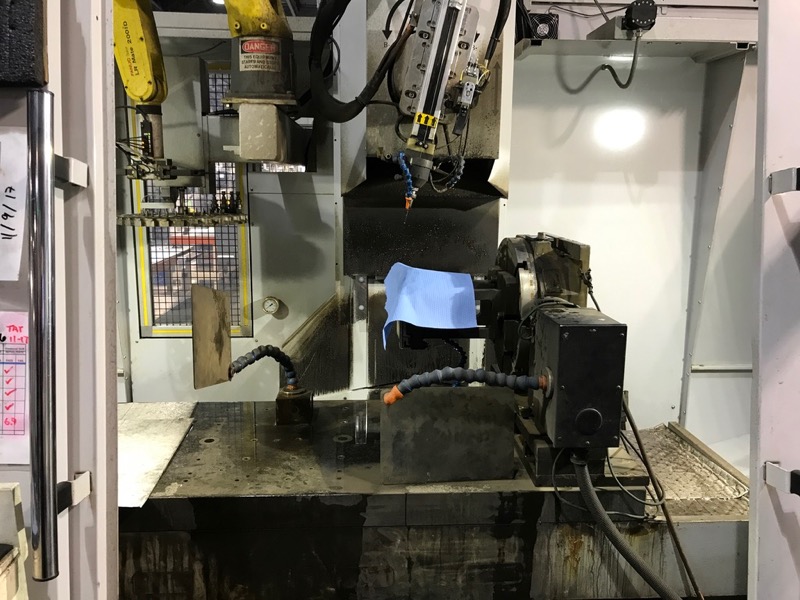

-30 station robotic tool changer (rtc) with fanuc lr mate robot which shall default to inactive while the front side machine doors are open;
the robot and w axis shall move simultaneously during tool changes
-2.5 in Wide Actuators For W Axis
-Rtc To Be Configured For Twenty-Two (22) Electrodes And Eight (8) Guides
-Machine Enclosure;
-Green Glass-Guide Gripper Pinned To Actuator With Nylon Pins;
-Depth Finder For Blind Hole Applications;
-Breakthrough Technology;
-Burn Timer;
-M71 Reverse Polarity With W/Zero Set;
-M41 Fast Probe Burn Cycle;
-Machine Shall Include Air Grinder Dresser Capability But The Grinder Dresser Itself Is Not To Be Included;
-Probing Capability In X, Y, X Axis;
-The Pivot Point Set Shall Be Set At 16.998-17.000 in;
-Diffuser Shape Technology-Edm Milling;
-To Include Optional Renishaw Probe
Prices: POR

To the best of our knowledge, the specifications contained herein are accurate but should be verified at time of inspection. If you have any further questions please call me at (207) 784-1999.
