44" X 16 AXELSON ENGINE LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA $14,500.00
HMC Stock #19186-P
Machine Serial No.: 1043
Machine Model No.: E 25" Raised by 8"
New Date: 1940

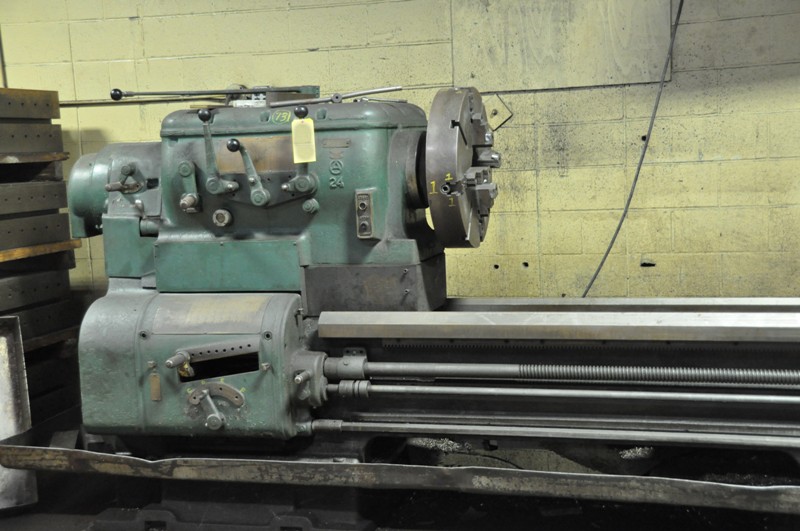

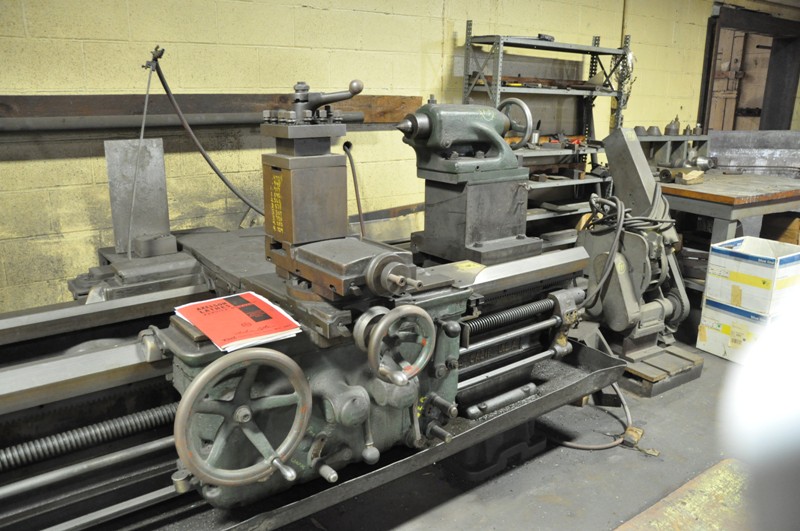

This machine is a standard model E 25" raised by adding 8" blocks under the headstock, tool post and tailstock. Custom intermediary gears were made to allow for standard thread and feed functions.
Swing Over Bed Ways: 44"
Swing Over Cross Slide: 35"
(24) Spindle Speeds: 6 to 555 RPM @ 60 Hz
Spindle Nose: D-1 11" Camlock
Hole Through Spindle: 2-5/16"
Headstock Centers Taper: #5 Morse
(45) Threads: 1 to 30 Per Inch (no metric threads)
(81) Feeds: 0.004" to 0.300" Inch / Revolution
Acme Lead Screw Size: 2" Dia. x 2 TPI Full Length
Tailstock Quill Size: 4-1/2" Diameter
Tailstock Quill Travel: 16-3/4"
Tailstock Set-Over: 1-1/2" Each Way
Cross Slide Travel: 16-3/4"
Tool Slide Travel: 8"
Taper Attachment Length of Taper Turned at One Setting: 24"
Taper Attachment Maximum Taper: 5" Per Foot / 12 Degrees with Center Line
EQUIPPED WITH:
Taper Attachment
24" 4 Jaw Chuck with 2 Piece Jaws with Hard Reversible Top Jaws with Wrench
7" Square Turret Type Tool Post
Built in Chip Pan Designed for Coolant
20 HP Motor, Wired for 3 Phase, 50/60 Hz, 220 / 440 Volts
NOTES: Top Tool Slide Dial is NOT Graduated
Tailstock Quill has a Fixed Non Removeable Live Center
Overall Size: 26 Long x 66" FB x 68" High x 24,000 Lbs.
