Reference #: 7662
Machine Type: Rolling Machines
Year:
Manufacturer: ASC - Proma
Model: Roll Forming Line
Control:
Condition: Used
Under Power: Can be inspected U/P
Code: R4496
Comments:
The rollformer, the feeder straightener and punch/shear units are Proma.
The rest is ASC equipment.
Components ..

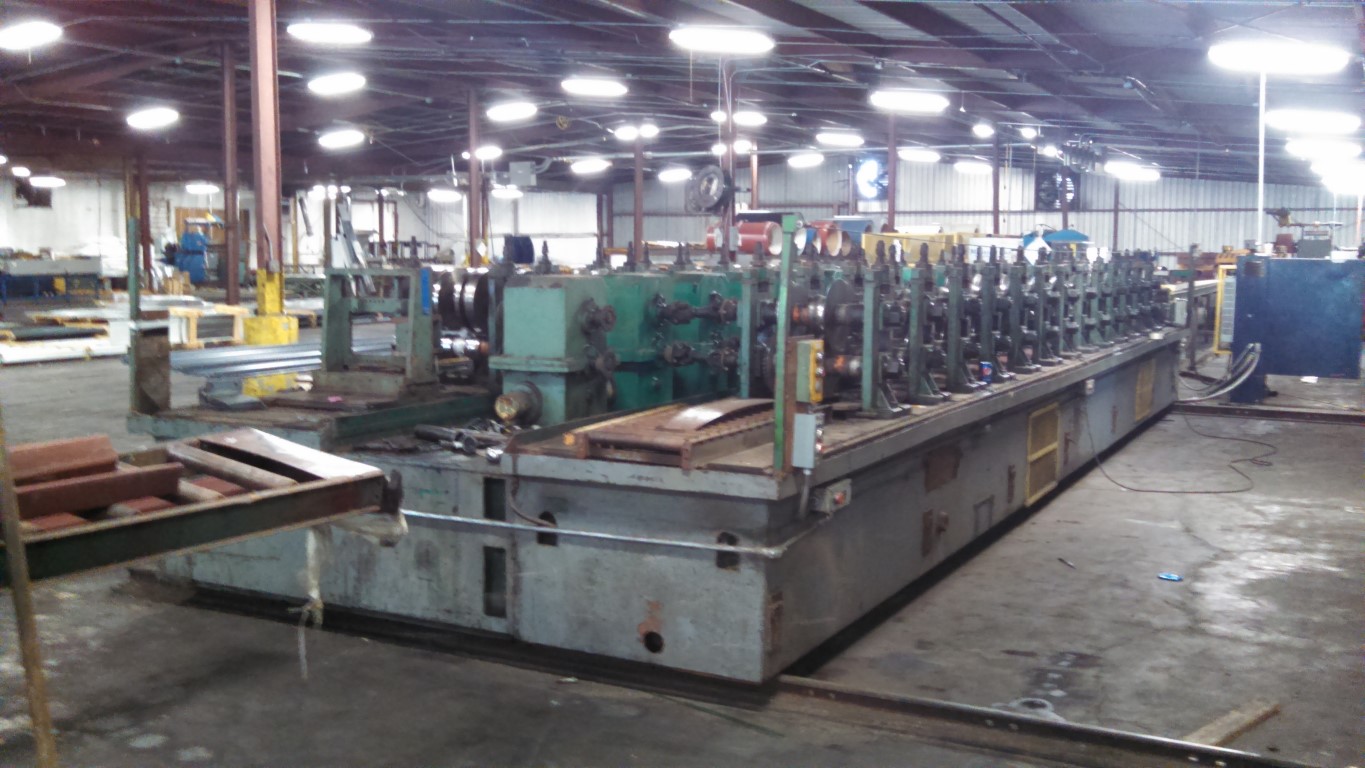

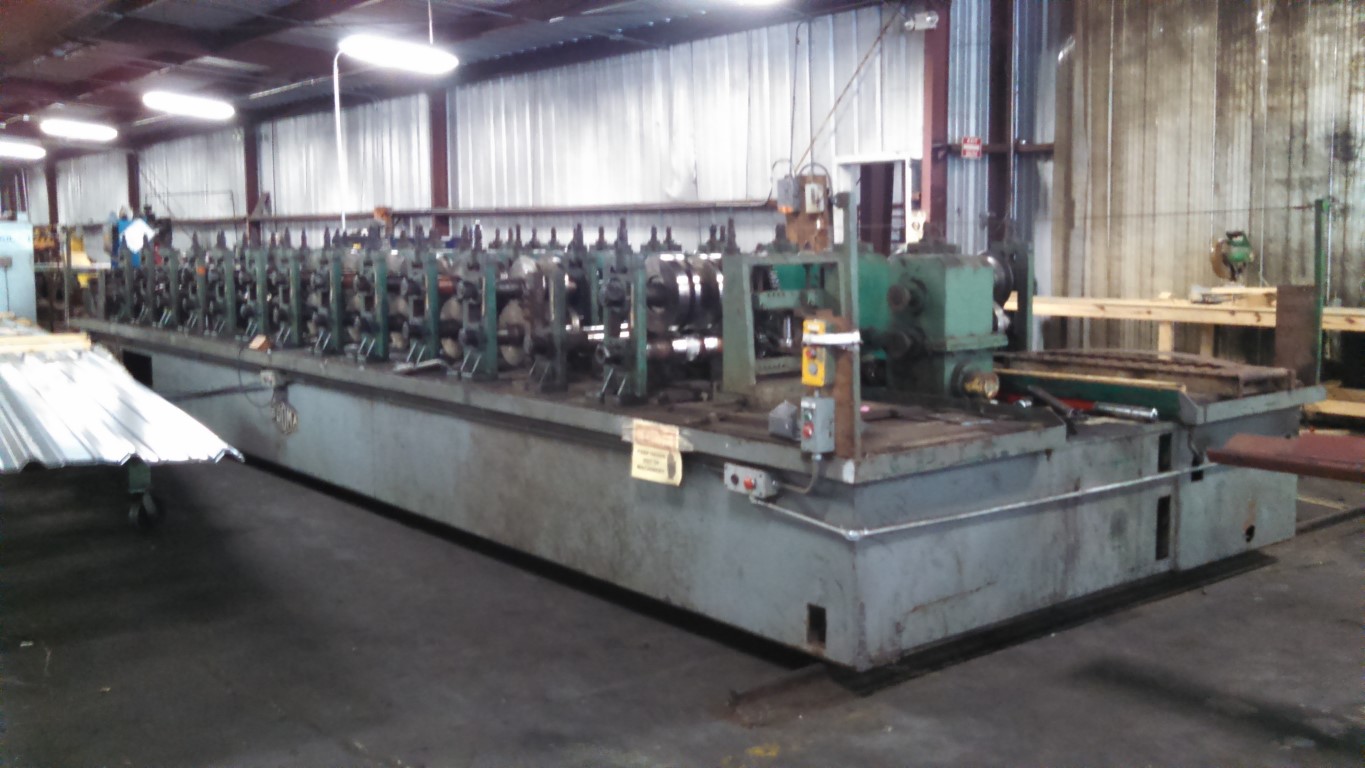

Proma 13 pass x 3" shaft side / side rollformer
Tooled for C & Z purlins, 4" - 12" web x 2 1/2" flanges with 3/8" return
16ga - 12 ga pre-painted steel
Hydraulic pinch roll with straightener, 24" strip width
Hydraulic Punch with movable tooling, exit shear, 24" strip width
Central hydraulic system

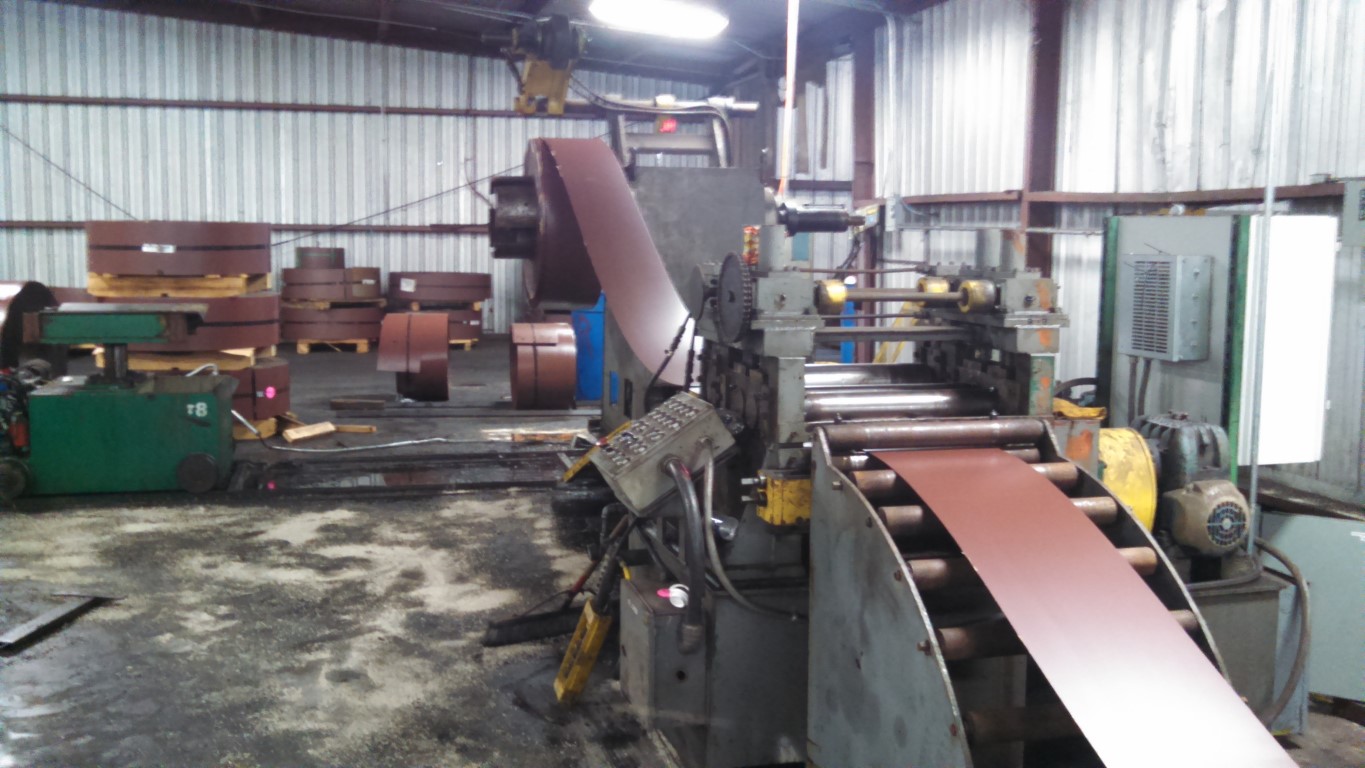

Powered 10,000 lb x 26" powered uncoiler, loop control,
hyd ID: 18" - 22", hydraulic entry coil car,

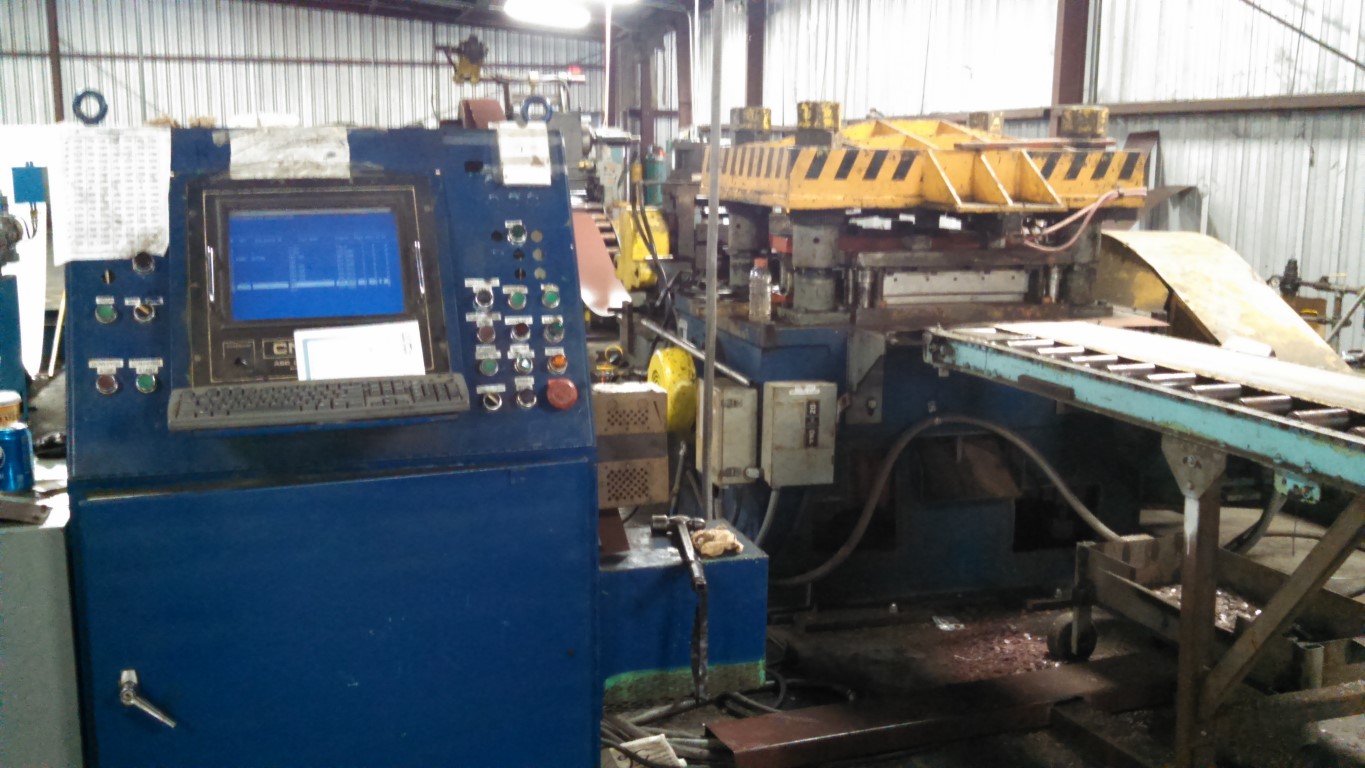

Operator control station with ASC touchscreen control
Elec: 460v 3ph 60cy
Line is still up but power has been disconnected.
Price includes loading on buyers truck.
The Proma from 1981
Tooling from later 1990s
Uncoiler / Car 2006
Straightener / Punch rebuilt 2006.
ASC touchscreen control new 2012.
C-Tooling is 6", 8", 10" & 12"
Uncoiler to end of punch shear is 46ft long. That is with all the looping
area. Then a 24 ft conveyor to the roll former.
The roll former is 29 ft long. 99 ft overall,
The R.F. moves left - right for changing from "cee" to "zee" profiles.
It is run all in a 22ft wide bay.
Buyer is responsible for dismantling and loading
