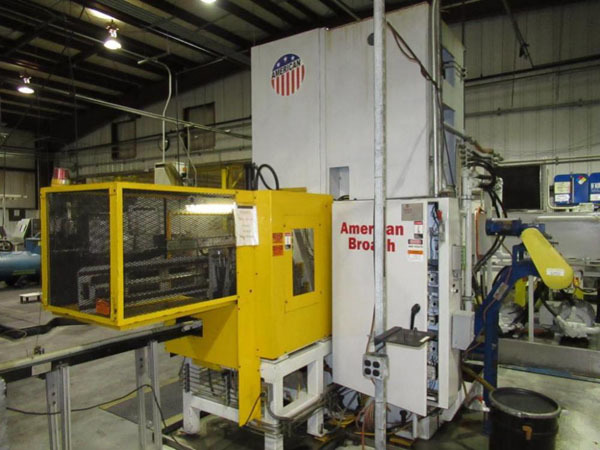

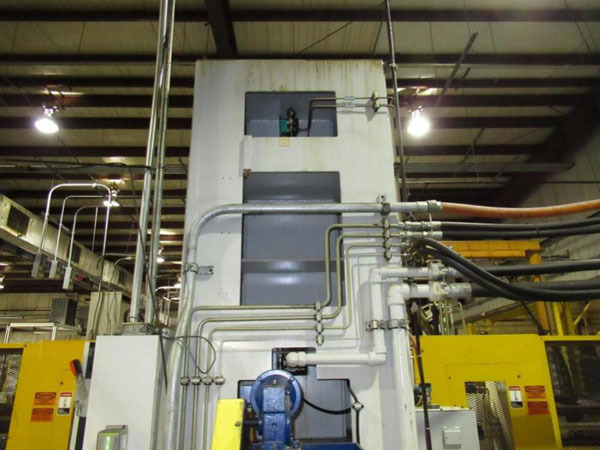

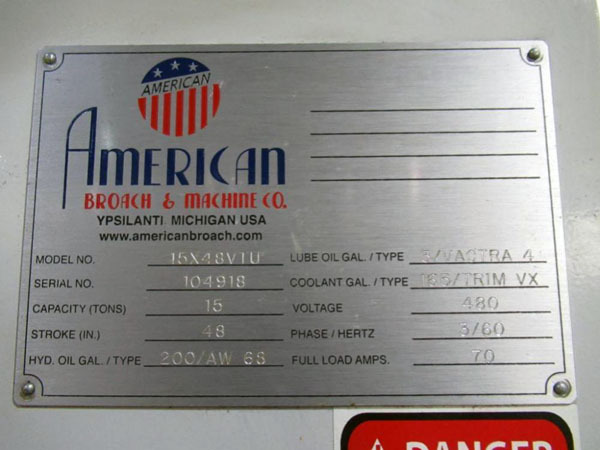

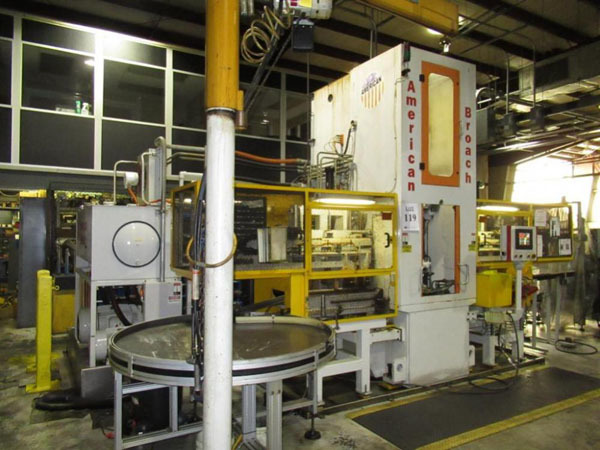

Model: 15x48VTU Manufacturer: American Serial #: 104918 Location: Painesville, OH Year Built: 2011
Specifications

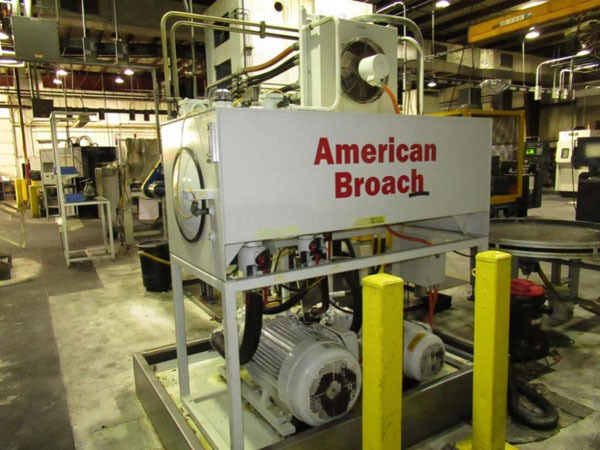

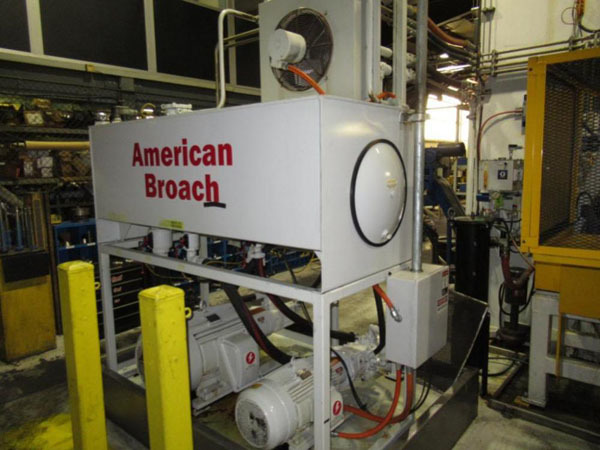

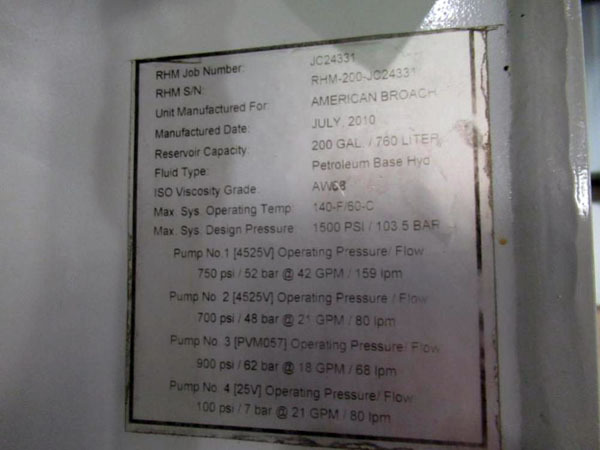

Tonnage: 15 Stroke: 48" Hydraulic Reservoir Capacity: 200 Gallons Coolant System Capacity: 165 Gallons Max System Operating Temperature: 140 Degrees F Max. System Pressure: 1,500 PSI/ 103.5 Bar Pump #1 Operating Pressure: 750 PSI/ 52 Bar @ 42 GPM/ 159 IPM Pump #2 Operating Pressure: 700 PSI/ 48 Bar @ 21 GPM/80 IPM Pump #3 Operating Pressure: 900 PSI/ 62 Bar @ 18 GPM/ 68 IPM Pump #4 Operating Pressure: 100 PSI/ 7 Bar @ 21 GPM/ 80 IPM Voltage: 480V Three Phase Full Load Amps: 100 Floor Space (L-R, F-B): 210" x 127" Weight: 19,500 Lbs.
Equipped with

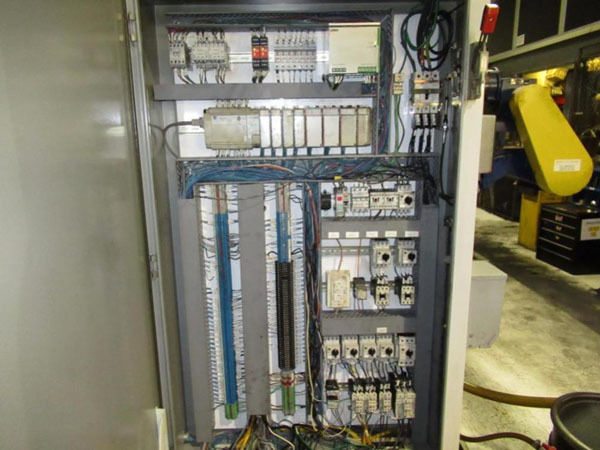

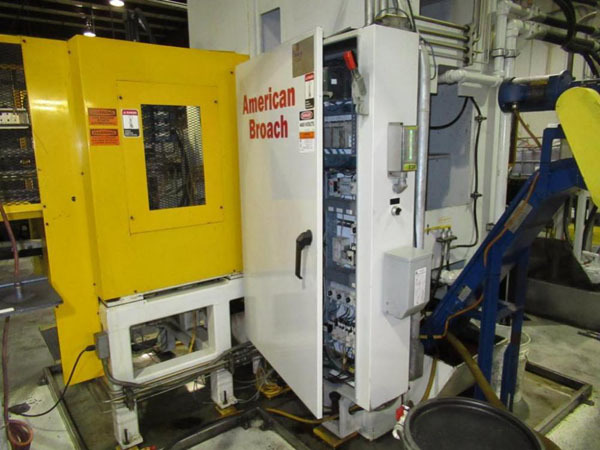

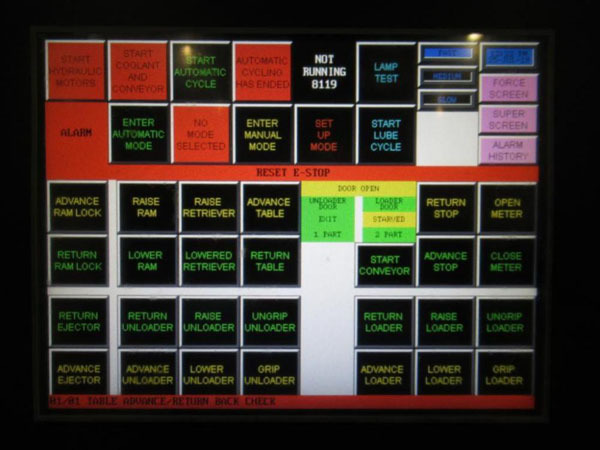

Allen Bradley PLC Control

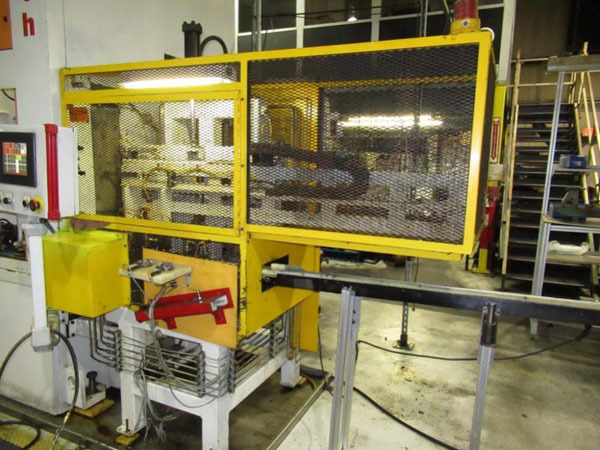

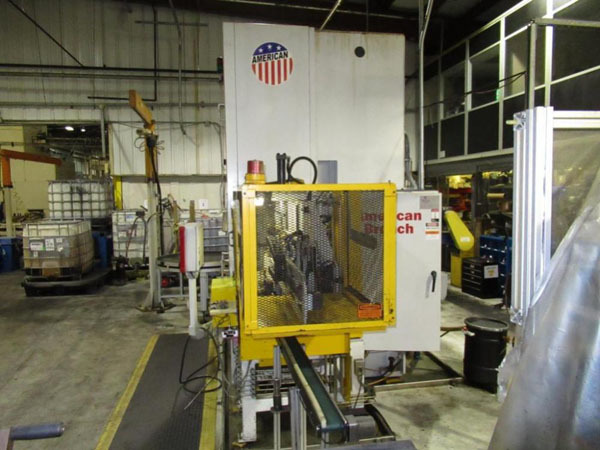

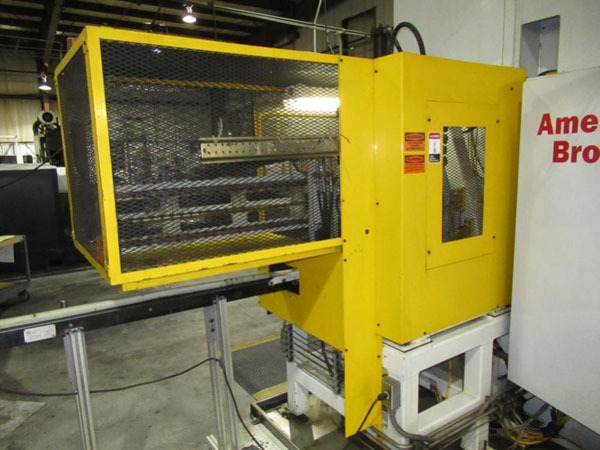

Parts Loading Conveyor
2 Parts Loading Robots
2 Pneumatic Part Clamp Fixtures
Parts Unload Conveyor

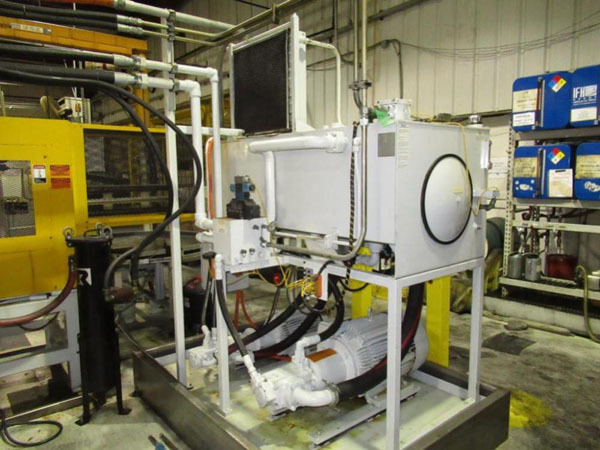

Oil Coolers

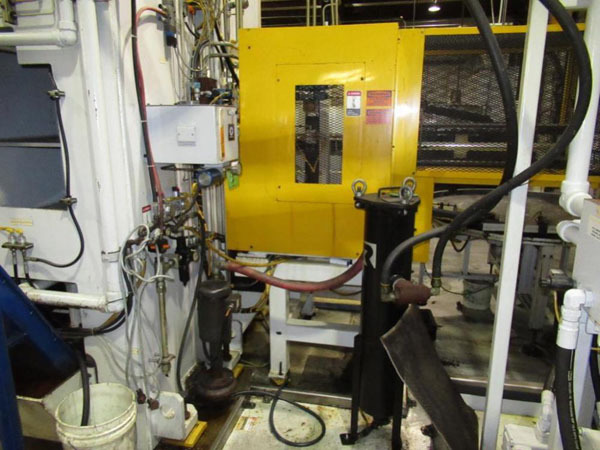

Coolant System
Box Way Engagement
Multi Station Lifting Tables
Cast Iron Construction
Chip Conveyor

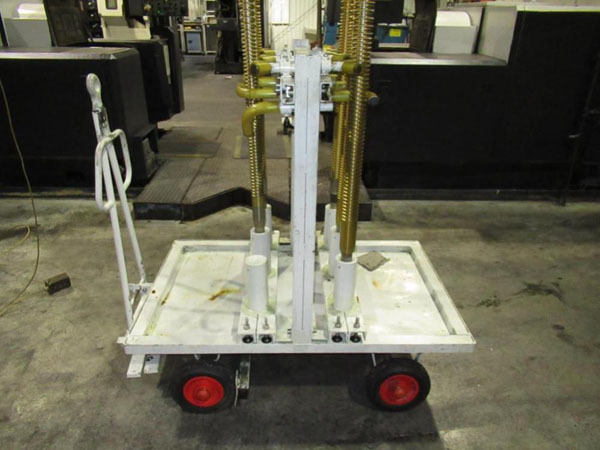

Extra Broaches
'
