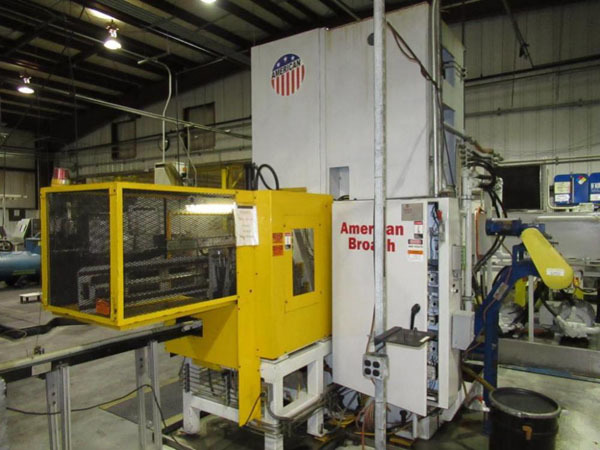

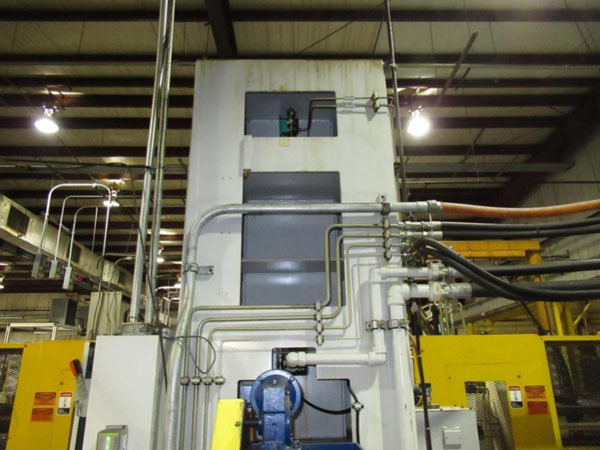

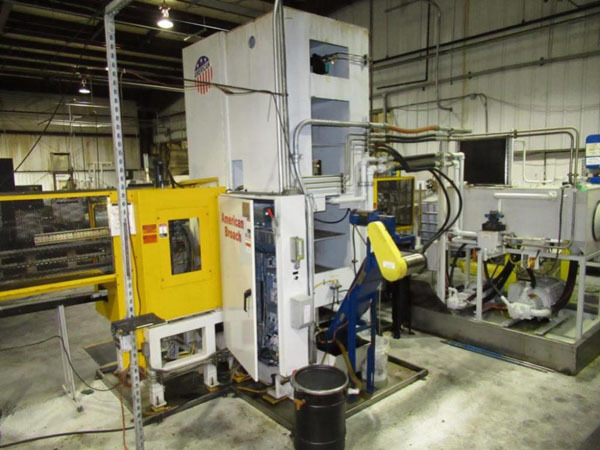

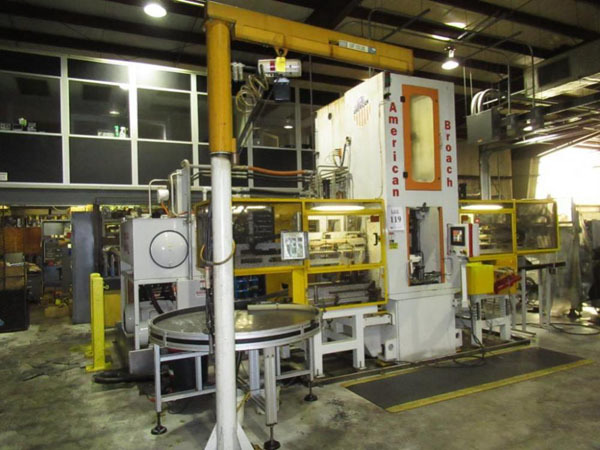

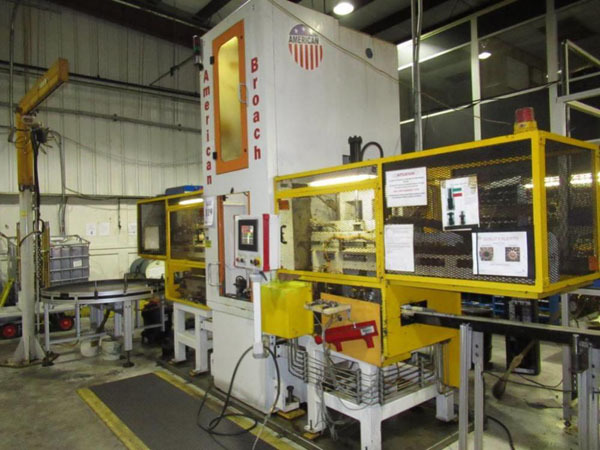

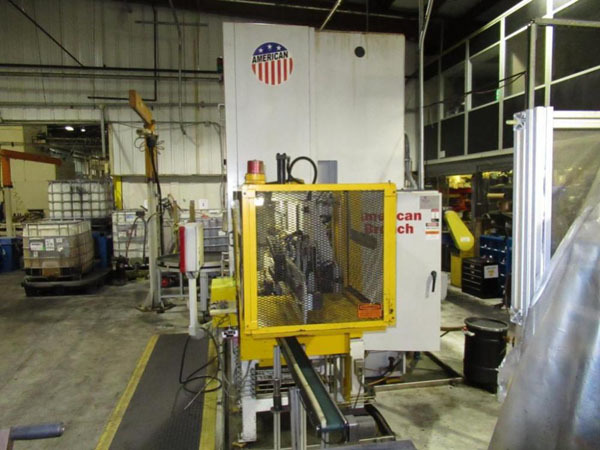

AMERICAN AUTOMATED VERTICAL HYDRAULIC BROACHING MACHINE 15 TON X 48"

Add to Your File

Brand: AMERICAN AUTOMATED VERTICAL HYDRAULIC BROACHING MACHINE 15 TON X 48"

Model: 15x48VTU

Serial No. : 104918

Category: Broaching Machines

Sub Category: BROACHES, VERTICAL, PRESS TYPE

Condition: used

Weight: (LB)

Year Built: 0

Status:

Price: $0.00

Description

Basic Information

Model: 15x48VTU

Manufacturer: American
Serial #: 104918
Location: Painesville, OH
Year Built: 2011

Specifications

Tonnage: 15
Stroke: 48"

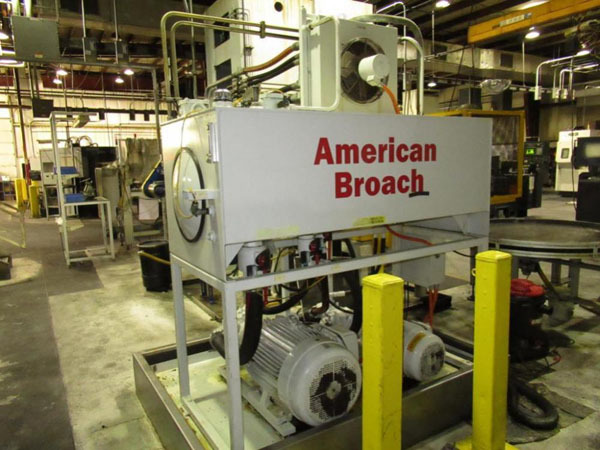

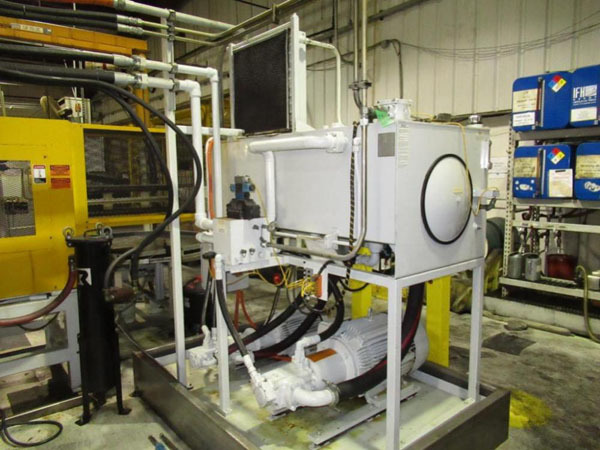

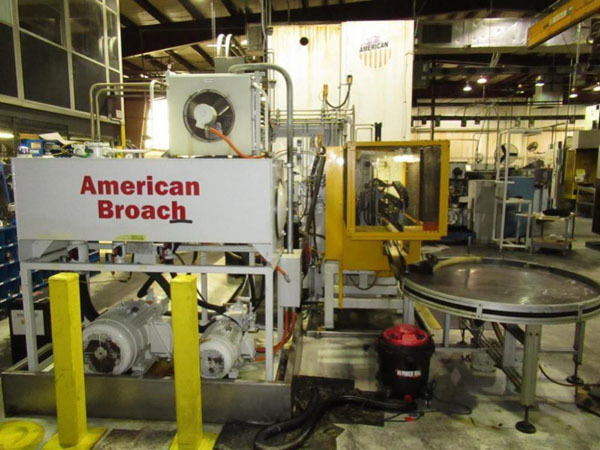

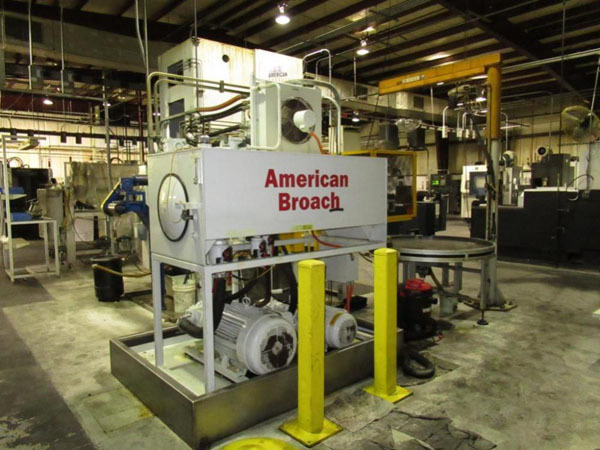

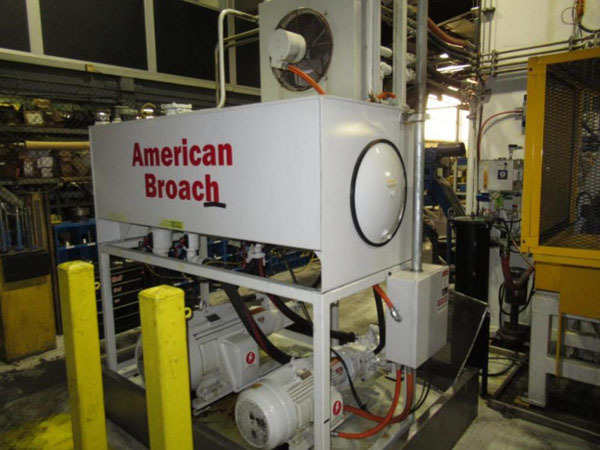

Hydraulic Reservoir Capacity: 200 Gallons
Coolant System Capacity: 165 Gallons
Max System Operating Temperature: 140 Degrees F
Max. System Pressure: 1,500 PSI/ 103.5 Bar
Pump #1 Operating Pressure: 750 PSI/ 52 Bar @ 42 GPM/ 159 IPM
Pump #2 Operating Pressure: 700 PSI/ 48 Bar @ 21 GPM/80 IPM
Pump #3 Operating Pressure: 900 PSI/ 62 Bar @ 18 GPM/ 68 IPM
Pump #4 Operating Pressure: 100 PSI/ 7 Bar @ 21 GPM/ 80 IPM
Voltage: 480V Three Phase
Full Load Amps: 100
Floor Space (L-R, F-B): 210" x 127"
Weight: 19,500 Lbs.

Equipped with

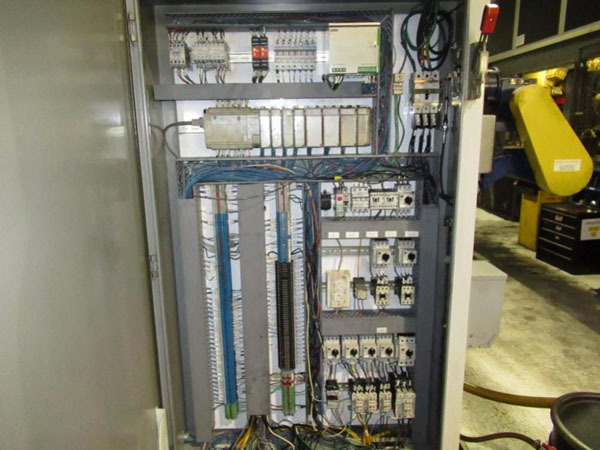

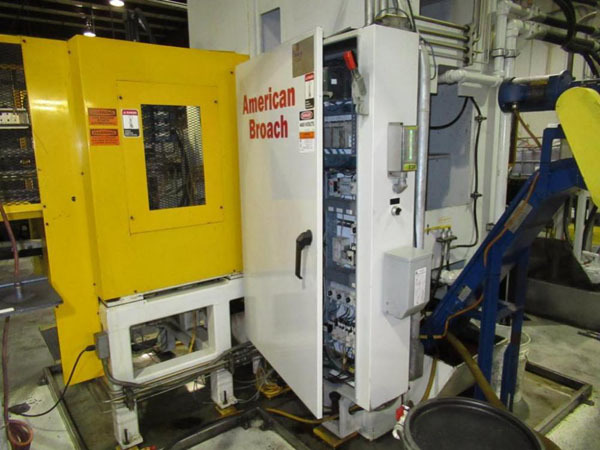

Allen Bradley PLC Control

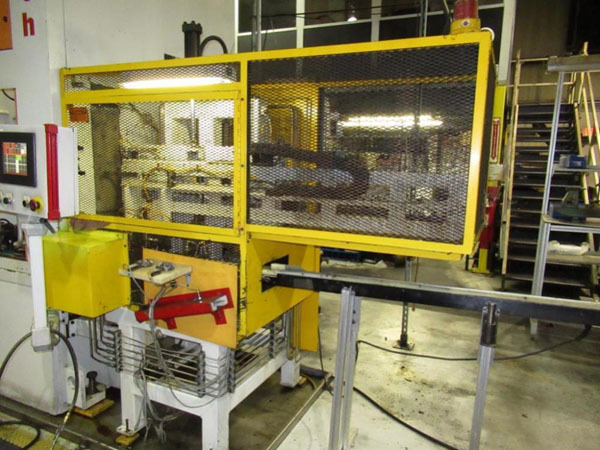

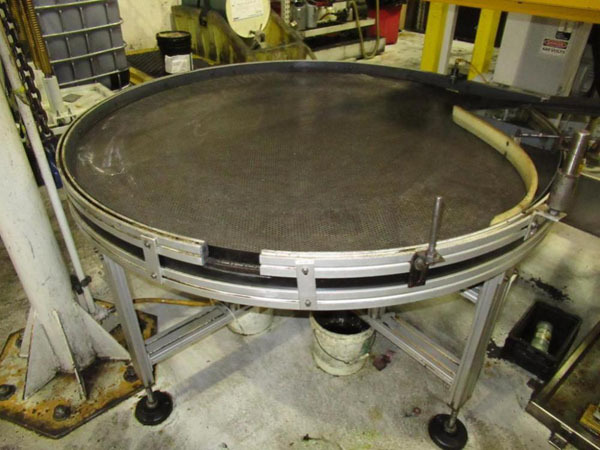

Parts Loading Conveyor

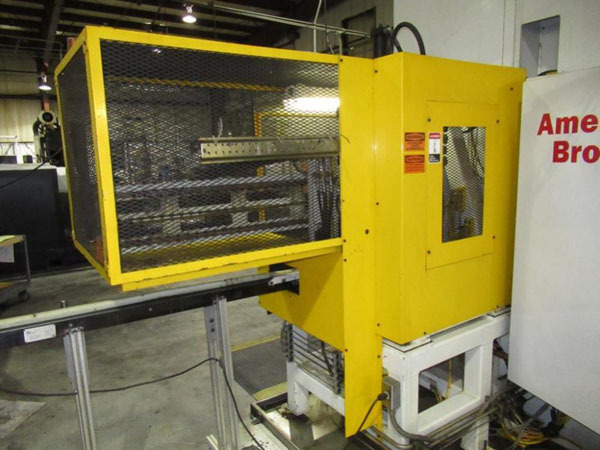

2 Parts Loading Robots

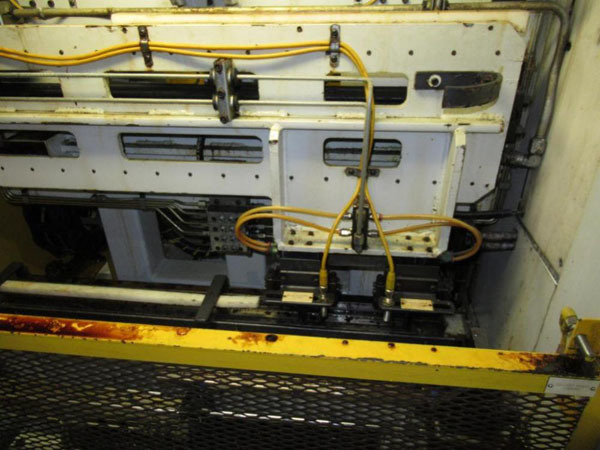

2 Pneumatic Part Clamp Fixtures
Parts Unload Conveyor
Oil Coolers

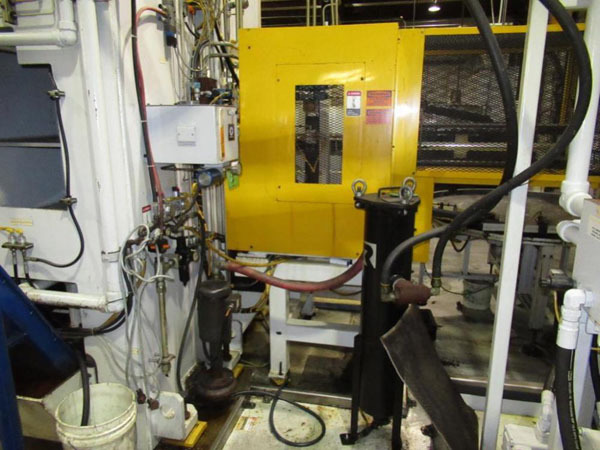

Coolant System
Box Way Engagement
Multi Station Lifting Tables
Cast Iron Construction

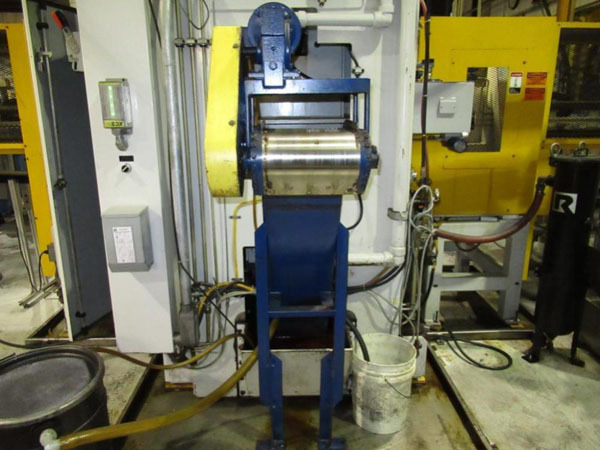

Chip Conveyor

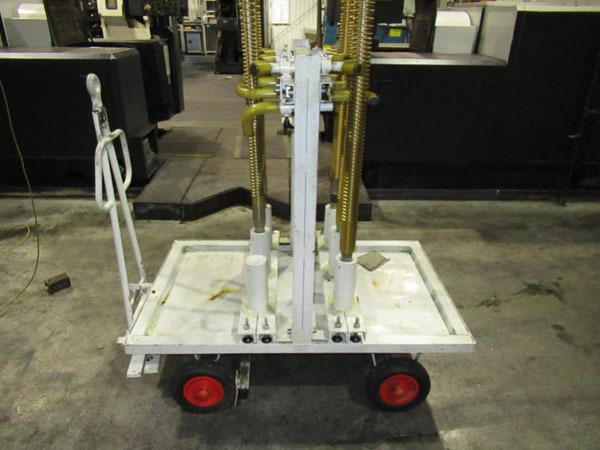

Extra Broaches
