AMADA SERVO DRIVEN PUNCH PRESS

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


EM-2510NT
Punches
PUNCHES, FABRICATING, NC and CNC
used
39683 (LB)
2005
$0.00

Feature Video

Description

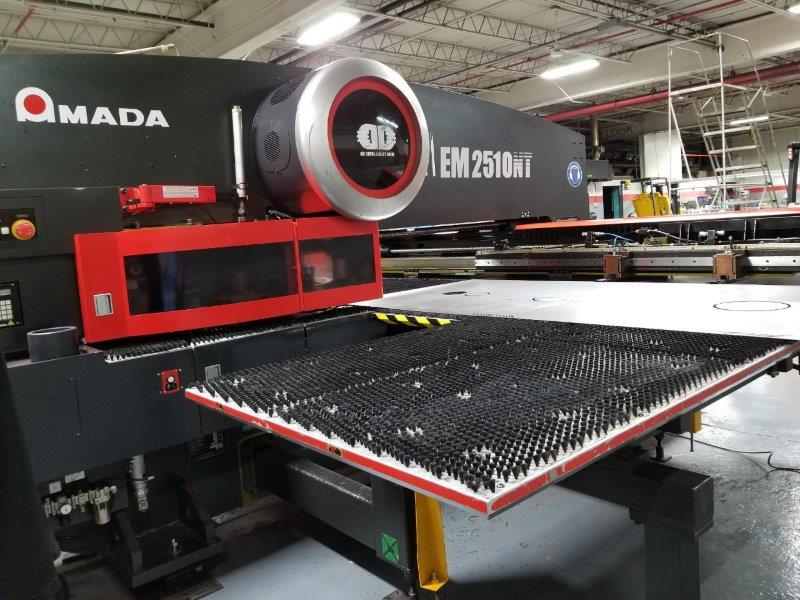

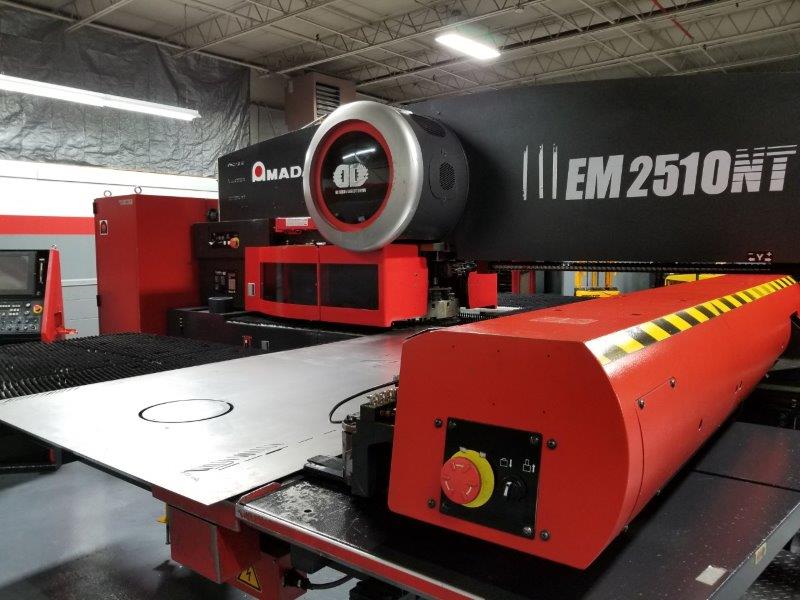

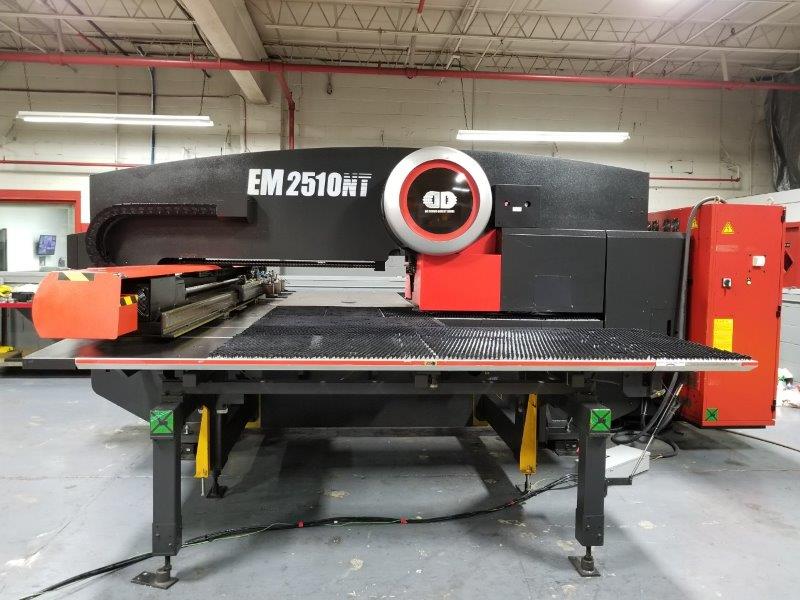

AMADA EM-2510NT AC SERVO DRIVEN PUNCH PRESS
SERIAL NUMBER# 041 - NEW: 03/2005
Specifications:
X-AXIS TRAVEL ...................... 98.425"
MAXIMUM SHEET SIZE ................. 196.85" X 50"
MAXIMUM SHEET WEIGHT ..... 110 LBS (FI) / 330 LBS (F4)
FEED CLEARANCE ..................... 0.984"
STROKE LENGTH ...................... 1.45"
MAXIMUM SHEET THICKNESS ............ 0.135"
PUNCHING ACCURACY ........ +- 0.004" (+/- 0.0027"
HIGH ACCURACY MODE
TABLE POSITIONING SPEED .. X: 3937 / 3150 IPM
TURRET ............................. 45 STATIONS
AUTO-INDEX STATIONS ................ 4
TURRET ROTATION SPEED .............. 30 RPM
HIT RATE 1" PITCH X / Y ...... 500 HPM,330 HPM/ 0.197 STROKE
HIT RATE 0.039 PITCH X/Y ..... 780 HPM,515 HPM
HIT RATE MARKING X/Y ......... 1800 HPM,830 HPM
ELECTRIC POWER REQUIRED ...... AC200V/3-PHASE/50/60 HZ/22 KVA
MACHINE WEIGHT ............... 39,683 LBS
MACHINE DIEMSNIONS ... 239" X 201" X 91"

EQUIPPED WITH:

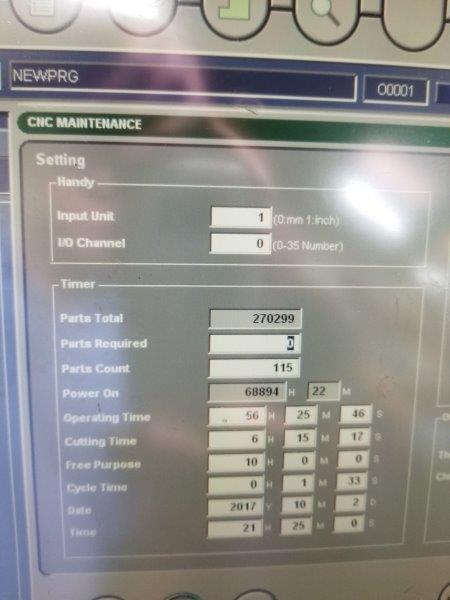

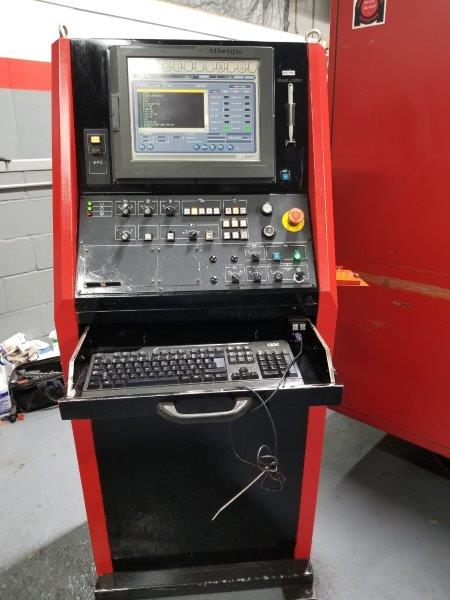

* Amada AMNC/Fanuc PC CNC Control
Air Blow Tooling, Bar Code Reader
Sheet Metal Deformation Sensors

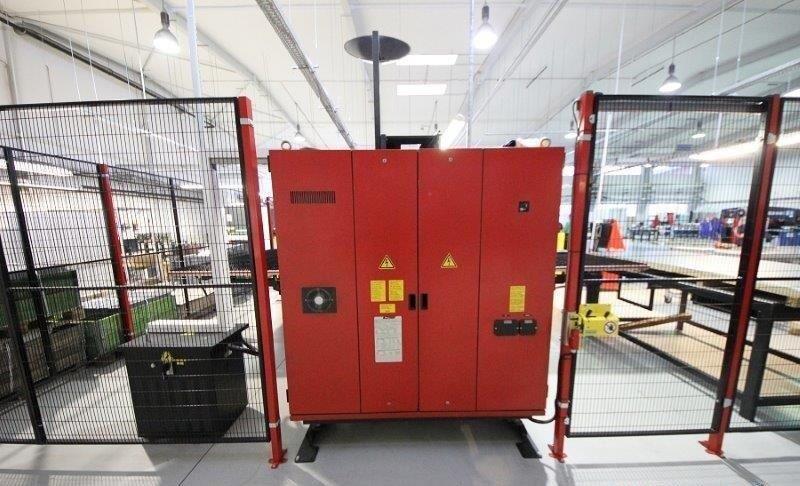

Light Curtains Barriers And Safety Fence
Brush Table Scratch-free, Part Processing
The Cutting Edge EM series Turret Punch Press Uses
Twin AC Servo Drives Directly Coupled To The Drive Shaft.
Amadas Third Generation Drive System Combines The Simplicity
Of The Original Clutch And Brake Technology With The High Speeds
Of The Fastest Hydraulic Ram Driven Systems.
Precision Ram Motion Control (speed,Stroke Length,
Hover Height And Hold Time) Helps reduce Tooling wear And
Punching Noise.


Inspect Under Power In New York Warehouse
