1.1
Motion Package
Travel
Method
Stationary
table, X, Y and Z-axis movement for cutting head
Control
Method
X,
Y and Z simultaneous 3 axis control
Drive
Motors
Fanuc
AC servo motors
Maximum
Sheet Size
61in
(Y) x 122.8in (X)
Maximum
Axis Travel
61in
(Y) x 122.8in (X) x 7.87in (Z)
Maximum
Axis Positioning Speed
3,150
inches per minute (80m/min) per axis (4,554 inches per minute
45o
vector.
Maximum
Speed Z-Axis
2,362
inches per minute
Positioning
Accuracy
0.0004in/20in
Maximum
Material Weight
1,875
lbs.
Assist
Gas
4
ports with NC pressure Control
Machine
Footprint
385in
x 107in
Machine
Weight
12
Metric Tons
Electrical
Requirement
208V,
3 Phase, 60Hz, 10KVA
1.2
CNC Controller
Model
Fanuc
160iL - 32 Bit
Display
LCD
Color Graphics Display
Control
Function
X,
Y, Z-Axis Simultaneous and Focus Lens B-axis, Adaptive Optic and
Laser
Power
control (CW, Gated Pulse, Pierce Routines etc.).
Data
Input Method
Manual
(MDI), Edit, DNC, or 3 in PC compatible disk.
Minimum
Command Unit
0.0001in
(X, Y, Z)
Minimum
Travel Unit
0.0001in
(X, Y, Z)
Standard
Memory
512K
(1280m)
Operating
Modes
Automatic,
MDI and Manual
Display
Modes
Program
Contents, Position Information, Program Check, Settings,
Parameters,
Beam
Diameter Compensation, Assist Gas Status, Self Diagnostics
Interlock
Displays
Cooling
Water Status, Gas Pressure Status, Vacuum Status, Turbo
Blower
Malfunction,
Shutter Status, Beam Power, Resonator Discharge, Door Open,
WACS.
Electrical
requirements
See
Motion Package

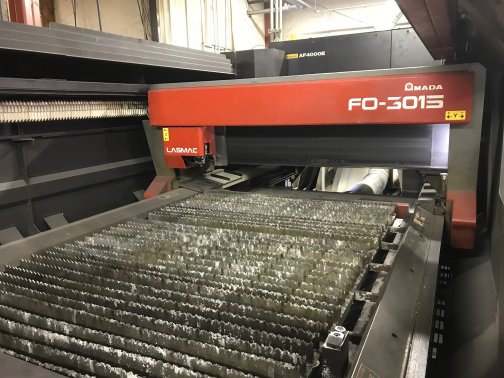

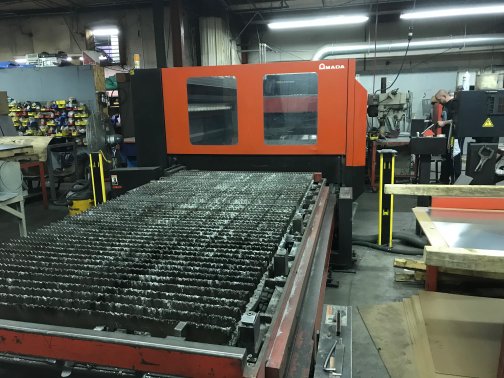

To view more information on the AMADA GEMINI FO-3015, 4,000 WATT, APPROX.37,000 HRS,MFG:2003 OUR STOCK NUMBER: 11406, including reviews, brand information, photos, videos, and more,
