Description

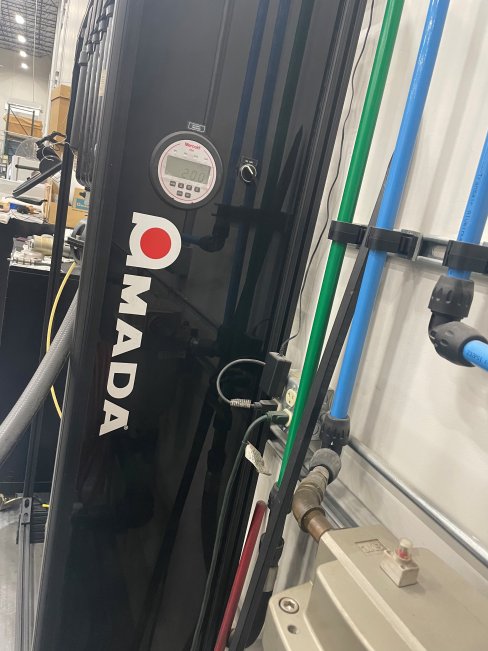

Series M5 Membrane Nitrogen Gas Generator
1500 scfh @ 5000 ppm O2 (99.5%)
o 2000 @ 1% O2 (99.0%)
o 2900 @ 2% O2 (98.0%)
o 3800 @ 3% O2 (97.0%)
o 4700 @ 4% O2 (96.0%)
o Max flow 5000 scfh @ 5% O2 (95.0%)
Field Selectable Dry Air Option
o 1800 scfh (30 scfm) Dry Air Assist Gas
o Product Pressure Dew Point -40F
Delivery Pressure of 205 psig
Five Stage Air Pretreatment Package
o Water Separator
o Activated Carbon
o Coalescing
o Particulate
o Oil Vapor Removal
Product Pressure Dew Point -70F

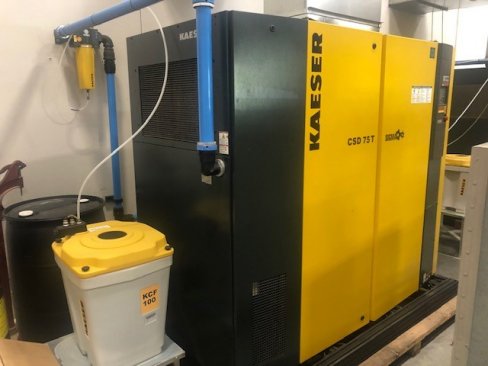

Kaeser 75 HP Fixed Speed Compressor
Refrigerated Air Dryer
Compressor Condensate Oil Water Separator
TEFC Motor
Efficiency = 90.2%
Compressor Carries a NEMA 1 Classification
Integrated Compressor Electrical Cabinet Carries a NEMA 12 Classification

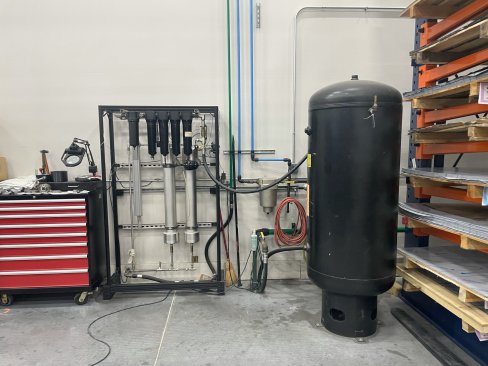

200 Gallon 250 psig Wet Air Receiver
Safety Relief
2" Dial Pressure Gauge
Manual Drain
System Connections
1/2" FNPT
Compressor Start Up Included

Components Not Included:
System / component receiving and placement which may include rigging
Piping or plumbing from nitrogen generator to application
Electrical installation costs
Shipping and Delivery Costs
Federal, State or Local Tax
Component Installation:
The nitrogen generator will be built be (3) individual components that

interconnect on location
All components are free standing units and shall be anchored to the floor at

installation when applicable
All components will be joined on location to complete the system
Power Requirements:
Air Compressor
460 Vac / 3 ph / 60 Hz / Input kW = 57
Full Load Ampere = 99
Disconnect Fuse Size = 150 Ampere
Wire Size = 1/0 AWG
Dimensions:
96"W x 40"D x 84"H / 3820 lbs (N2 Generator/Air Compressor)
88" H x 30" Diameter / 588 lbs (Wet Air Tank)
Installation: Indoor Only / 40F through 115F
