AMADA 22 TON EM2510NT NT SERVO-ELECTRIC TURRET PUNCH PRESS MFG:2004

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images


EM2510NT NT
Punches
PUNCHES, TURRET, NC and CNC
used
(LB)
2004
$0.00

Description

High productivity with slug pull protection
          o 500 HPM on 1" center - worlds highest hit rate!
          o Vacuum-powered slug pull protection system!
    * Up to 50% documented cost reduction over conventional turret presses
    * Connectivity with your entire shop through the machines NT-based
controller - instantly access part programs, multi-media help files and
production schedules

EM2510NT Standard Features

    * High speed punching - newly designed AC servo direct twin drive improves
hit rate, 500 HPM on 1" centers and 1800 SPM marking system
    * 100" X-axis table can process 8 sheets without repositioning, reducing
process time and improving accuracy
    * Energy-saving design levels out power consumption, reducing it by up to
60% compared to conventional machines
    * Higher positioning speed improves productivity
    * Brush table design provides scratch-free processing, eliminating
secondary finishing, and also minimizes noise during positioning

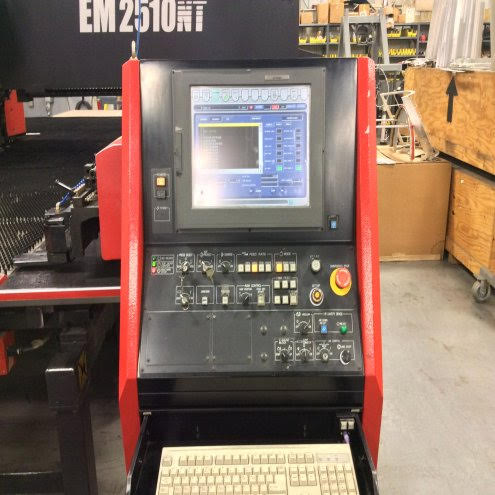

    * Free-standing, PC-based network CNC Control allows for flexible layout
    * Increased turret feed clearance - .984" accepts higher forming process
    * Large turret, 45 station, 4 auto-index standard, reduces setup
    * Power vacuum slug pull system (patent pending) virtually eliminates slug
pull concerns


Technical Specifications
HPM 500HPM (0.197" stroke & 1" pitch)
780SPM (0.197" stroke & 0.040" pitch)
1800SPM (0.197" pitch marking)
Turret 45 Station 4 A/I
Slide Type Die Holder  Standard
Feed Clearance0.984"
Press Capacity20 Metric Tons
AMNC-F (Fanuc) Controller Network support and job input by bar code
Sheet Size (without reposition) 50" x 100"
Axis Speed X-Axis: 3950"/min.
Y-Axis: 3150"/min.
Brush Table Standard
