OR20VHE Round Bowl Vibratory Deburring Machine
D0654
Deburring Machines
used
(KG)
$0.00

Description

'

Specifications:

  • Working deburring capacity: 18 Cubic Feet
  • Length (overall including electric control box): 80\"
  • Width (overall): 60\"
  • Height (overall): 54\"

Bowl:

  • Diameter: 60\"
  • Cross Section: 17-1/2\" (Diameter)
  • Lining (Thckness of Polyurethane): 1\"

Comments:

  • New Style Almco Vari-Drive System

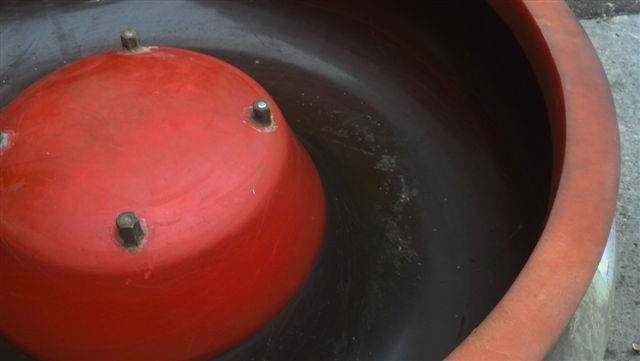

  • Center Dome Feature
  • Pedestal mounted control panel
  • Tub 17,5\" cross section
  • Bowl Diameter 60\"
  • The machine has been cleaned and is ready to be primed and painted

Power Unit:

  • 10 hp, 1800 RPM totally enclosed, ball bearing motor for 230/460 volt (please
  • specify voltage), 3 phase, 60 cycle operation driving a variable pitch pulley.
  • The pulley is connected to two flat V-belts in a companion sheave on the
  • vibratory mechanism. Frequemcy of vibration is variable from 900 to 1400
  • cycles per minute by turning the handwheel on the motor base resulting in a
  • change in pulley pitch diameter. All moving drive componensts are well
  • guarding for operator protection.

General:

  • This High-Energy \"OR\" Series Machine is composed of the following basic
  • compoents:
  • (1) The support base and framework
  • (2) The Drive Unit
  • (3) Almco\'s Natural Contour Molded Urethane Lined Tube
  • (4) The Vertical Shaft Vibrator
  • (5) The Electrical Control Enclosure

Description:

  • Discharge of parts and media from the round bowl is accomplished with a plug
  • type door with molding lining at one end of the bowl near the bottom periphery.
  • The door is equipped with a quick-acting, overcenter cam lock that assures a
  • positive seal when closed during processing. When the plug door is removed,
  • the parts and media flow from the bowl onto a heavy gauge steel chute that channels them to a
  • collection pan or conveyor.

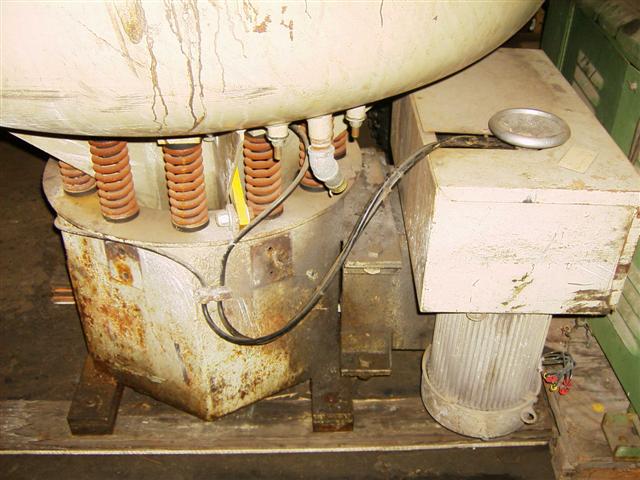

  • The round bown is supported on the stationary framework of the machine on
  • heavy coil wound springs that serve to supplement the finishing motion of the
  • bowl and at the same time to eliminate finishing vibration from the stationary
  • framework.
  • Finishing motion of the round bowl is accomplished by adjustable counterweights
  • on the output shaft of a heavy duty vibratory mechanism equipped with self-aligning spherical
  • roller bearings that are mounted in a precision machined housing. The shaft of
  • the vibratory mechanism is driven by two V-belts running in a deep groove, off-set
  • sheave to eliminate shock loading and whip in the V-belts. A manual lubrication
  • system is provided to allow lubrication into the bearings of the vibratory
  • mechanism from the stationary base.
  • The machine is equipped with a water system designed to inject water into the

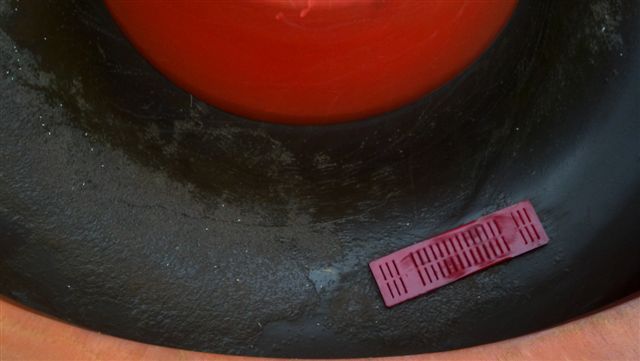

  • processing tub. The tub is equipped with two perforated (replaceable) molded
  • drain plates in the tub bottom to allow continuous flow of liquids in the vibratory
  • tub.
  • The electrical controls for the machine are in conformance to N.E.C. electirical
  • specifications with the motor operating on either 230 or 460 volt current and with
  • all operator controls on 110 volt current supplied by a transformer within the
  • control box. All necessary controls for the machine\'s operation including
  • Automatic Reset Timer (adjustable time range) are housed in one NEMA type 12
  • panel enclosure mounted on a pedestal separate from the machine to allow
  • positioning the enclosure as needed.
  • '
