Description:

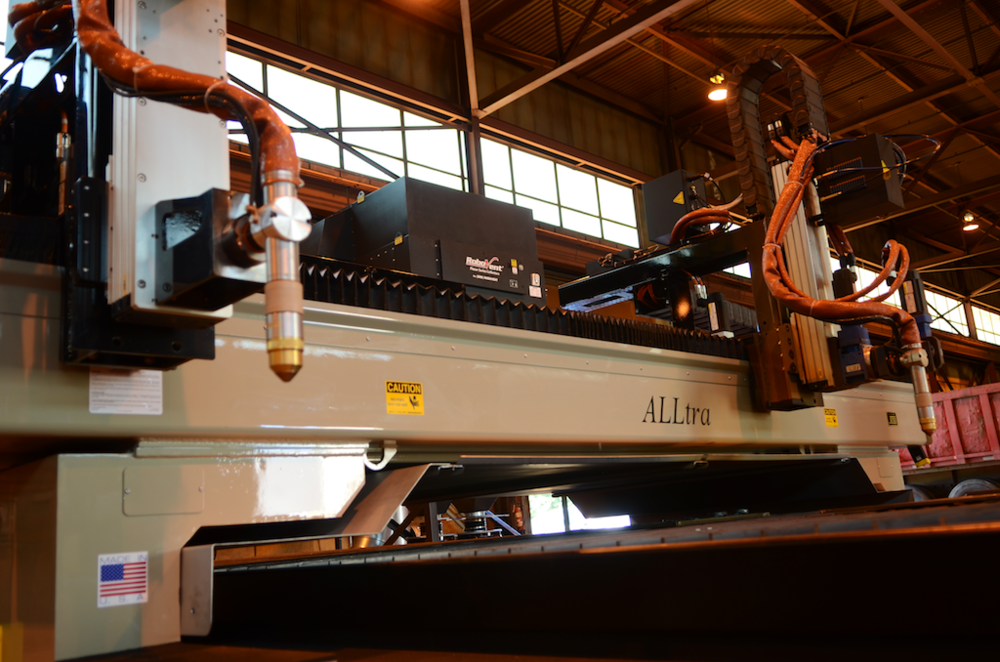

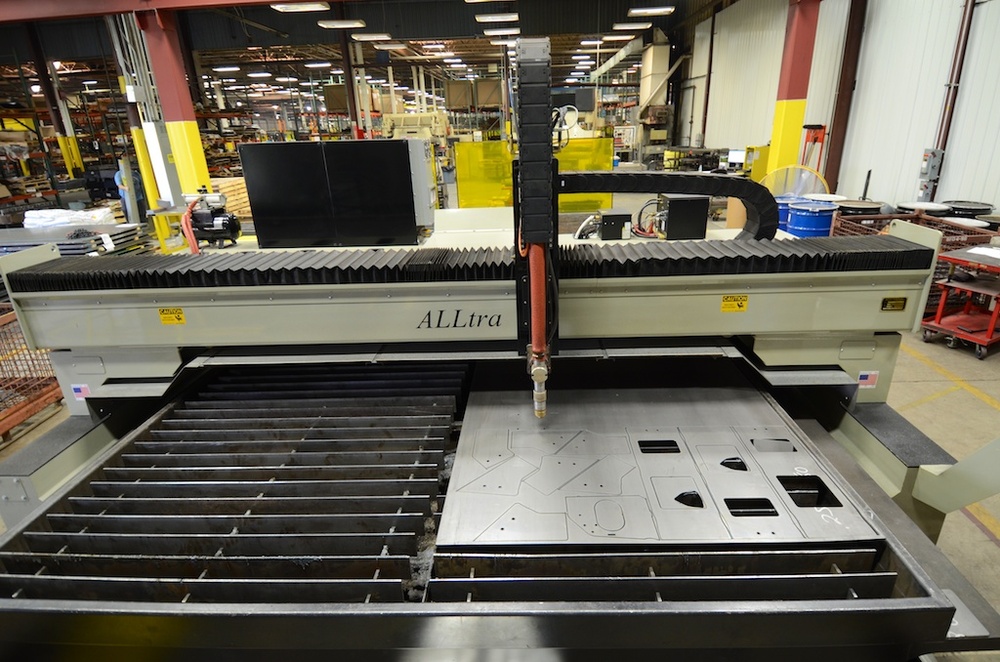

MODEL HG16 MACHINE GANTRY
BEAM ASSEMBLY
Allows Table Widths From 6 8" (80") to 17 8" (212")
Fabricated and Machined In-House to Strict Tolerance Requirements
Constructed From 12" by 12" Steel Tube, 1/2" Wall Thickness
Dual Linear Ways That Are Plated and Have Cap Seals to Prevent Dirt Incursion
DECK ASSEMBLY
Provides a Rugged Surface to Hold Critical Machine and Process Components
Aids the Machine Beam in Providing Structure for the Machine
STANDARD TRUCK ASSEMBLY
Houses Hardened Steel Wheels (8" Diameter), Motor Assembly, and Guide Bearings
Features Rail & Wheel Scrapers to Help Maintain the Rails While the Machine is in Motion
Air Blast Nozzles Located on Each End Help Keep Debris Off of the Rails
Available in Standard or Tucked Designs of Different Heights
OPERATORS STATION BRACKET
Provides Several Options and Locations for Attaching the Operators Console to the Machine
MACHINE INPUT/OUTPUT CABINET
I/O Module is Digitally Linked to the CNC for Better Noise Immunity, Faster Response Times,
and a Lowered Number of Electrical Connections To Help Reduce Potential Failure Points
Temperature Controlled Via Heat Exchanger or Air Conditioner
Designed with Future Expansion Capabilities for Fast Response to Changing Needs
AC BRUSHLESS SERVO DRIVE SYSTEM
High-Precision Bosch-Rexroth Indramat Series Servo Drive System
600 Inches Per Minute Maximum Traverse Speed (Standard)
Higher Traverse Speeds Available Upon Request - May Require Additional Safety Devices
COMPRESSED AIR FILTER KIT
Includes: Particulate Filter, Water Separator and Oil Mist Separator
MACHINE POWER DISCONNECT & TRANSFORMER
Power Required: 480VAC, Three-Phase, 22 Amps
Specifications:
Manufacturer Alltra
Model HG16-11
Condition New
Stock Number Alltra HG16
