AGMA PATRIOT CNC VMC, TROYKE 20" 4TH AXIS ROTARY TABLE W/TAILSTOCK INCLUDED 2011 - 3184 MACHINING CENTERS, VERTICAL

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


VMC-2210N P/G
Machining Centers Vertical Horizontal CNC
Vertical Machining Centers
used
44000 (LB)
2011
$0.00

Description

Overview:

Type: Machining Centers, Vertical
Category: Machining Centers
Manufacturer: AGMA
Model: VMC-2210N P/G
Condition: Used - Good
Year: 2011
Stock #: 3184
Status: For Sale

Description:
Spindle
Taper No.50
Transmission Gear
Spindle Speed 6,000 RPM

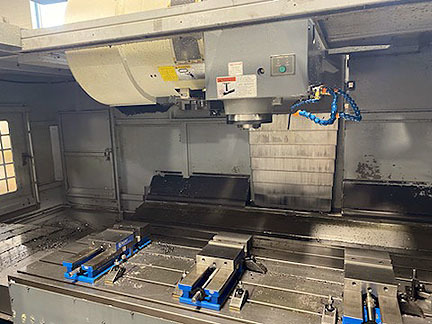

Table
Size 94.49" x 39.37" Std.
T-Slot size .71" x 7 x 5.91" Std
Work Area 86.61" x 39.37" Std
Max. Table Load 8,000 lbs
Travel & Feed Rate
X Axis 86.61"
Y Axis 39.37"
Z Axis 31.50"
Distance from Spindle Nose to Table 5.91" ~ 37.40"
Distance from Spindle Center to Column Ways 43.31"
Rapid Traverse X, Y = 12/ M/min (590 IPM)
Z=10 M/Min (393 IPM)
Cutting Feedrate X, Y, Z: 1~10,000mm/min (393 IPM)

ATC
CAT 50
Pull Stud MAS P50T-1 (45 deg)
Magazine Capacity 32
Max Tool Diameter (with adjacent pocket empty) 9.84"
Max. Tool Diameter (full storage) 4.92"
Max. Tool Length 13.78"
Max. Tool Weight 33 lbs
ATC Type Arm Type

Motor
Spindle (Cont./30min) 25/30 HP
X/Y/Z Axes (Fanuc) 9.33/9.33/9.33HP
Lubrication Pump .033 HP
Coolant Pump .66 HP

Machine Dimensions:
Height 142"
Floor Space 225" x 154"
Machine Weight 44.000 lbs

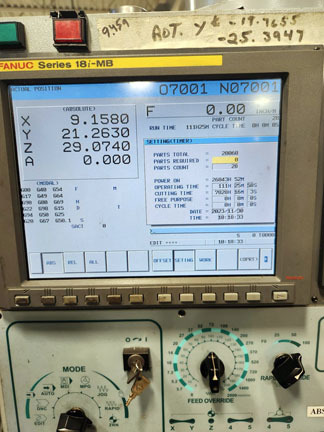

Control Fanuc OiMF

Equipped with:
Coolant through the spindle

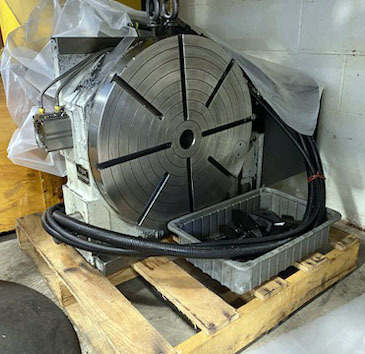

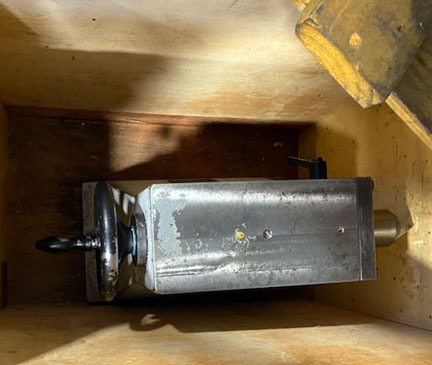

Troyke 20" 4th Axis Rotary Table with Tail Stock
Coolant through the spindle
Troyke 20" 4th Axis Rotary Table with Tail Stock
