AGIE CLASSIC 3S GOLD EDITION WIRE EDM

Add to Your File

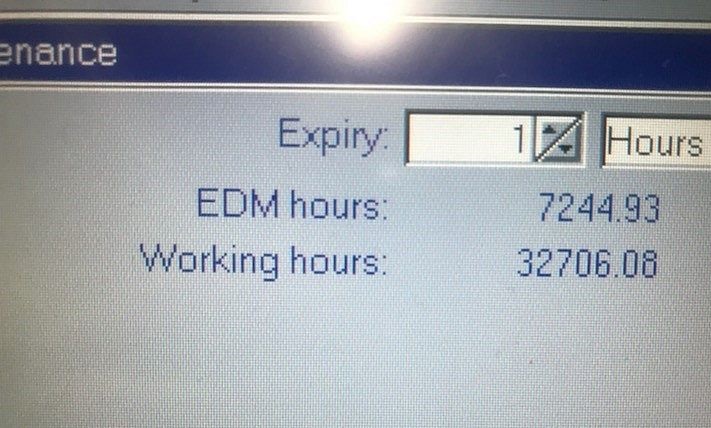

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images


Unknown
Electrical Discharge Machining EDM
Wire Cut EDM
used
9900 (LB)
2005
$0.00

Feature Video

Description

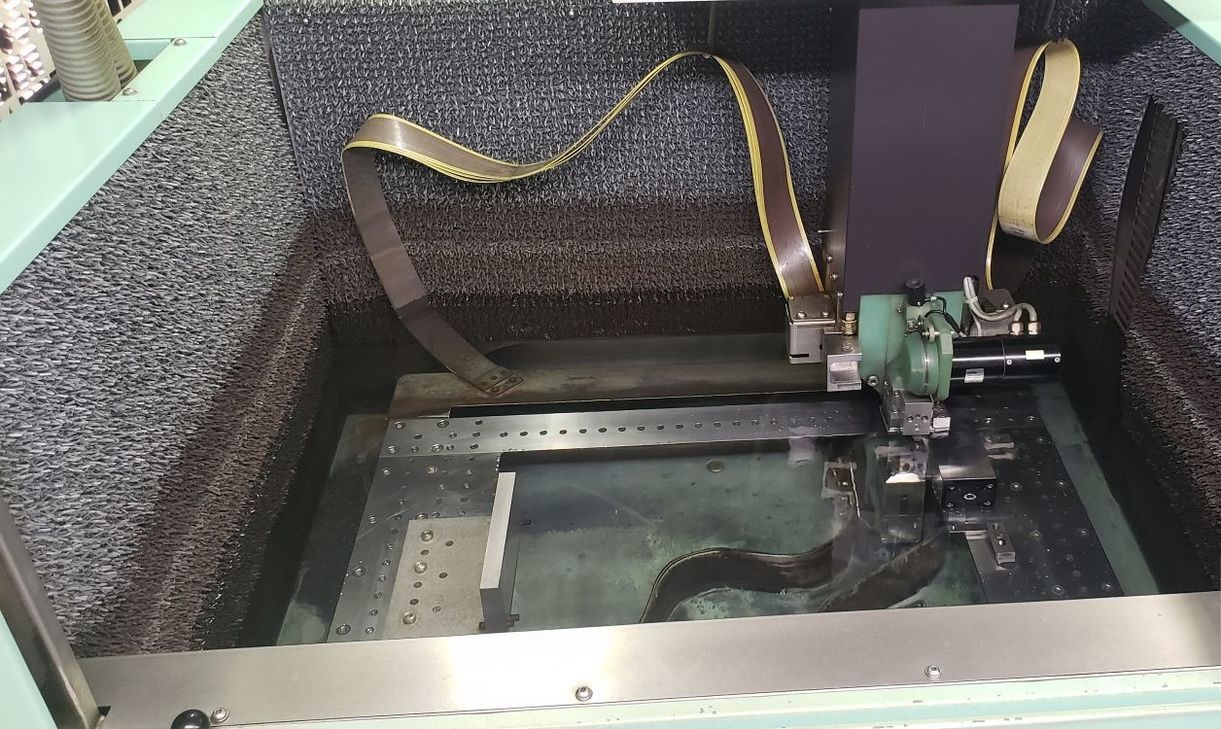

Key Points * Four sided table with universal clamping frame. * Wire sizes range from 0.004" - 0.013". Finishes of 0.3 Ra. * HSSC Generator - State-of-the-art generator combines ultra-high cutting speeds of 28 square inches/hour with super surface integrity for high productivity. * AgieJogger - a handy, manual operations hand box with LED readouts for XYZUV postioning. Use it for set up functions, axis movements, cycle start/stop and emergency stop. * ACsetup 3D - includes a probing system that checks the top surface of a workpiece and programs the angle of the EDM wire to match the A/B angle of the workpiece. After the wire is square to the work being machined, the wire picks up a specified side surface and then rotates the program in true 3D to match the C-skew of the block. The system then uses the wire to pick up a reference on the workpiece using one of the pick-up macros in AgieVision. These values are automatically loaded into the control under a specific file name. This feature can be programmed off-line and executed unattended. ACsetup 3D saves an average of 20 minutes per part when compared to traditional methods of workpiece set up. * Access your GF AgieCharmilles EDM off-line through the standard Ethernet connection. This unique feature enables the user to monitor or run the GF AgieCharmilles system from a remote location. It also provides for real time support from the local applications and service agent. * Lotto - this standard contol feature allows multiple jobs to be setup and linked in the controller to dramatically improve the hours of unattended cutting.


Specification                                                       Description

Travels X, Y, Z                                                19.7" x 13.7" x 16.8"

 U, V                                                                           +/- 2.75"

Maximum Workpiece Size                                  41.3" x 25.6" x 16.5"

Maximum Workpiece Weight                                     1,763 lbs

Rapid Traverse                                                            35.43 ipm

Max Cutting Speed                                                     28" sq/hr

Wire Diameter Capability                                         .004" - .013"

Wire Guide Type                                     Indexable Zero Universal "V"

Contacts                                                            Indexable Carbide

Max Taper Angle, Height Standard                 +/- 30 deg @ 3.93"

Wire Spool Size Max                                                     55 lbs

Control/Servo Resolution                                          0.000004"

Repeatability, Pa                                                 0.000080"

Processors                                                                Dual Pentium

Electrical Requirements                                 200-500V/3Phz/60Hz

Machine Dimensions                                       76.37" x 90.55" x 103"

Machine Weight                                                      9,900 lbs

Equipped With:

* Agievision 3 CNC Control * Agiejet Auto Wire Threader * Submerged Machining Capability * Agie Patented V-Guide System * Agie Setup 3D Probe * Agiejogger Advanced Hand Control * Front Drop Door * Dynamic Corner Control * Variocut * Four Sided Table * Lotto * 8 Filter Dual Filtration System w/Extra Water Tank * Electric Chiller * All Available Manuals and Accessories

Stock Number: 0790

Condition: As Is, Where Is
