AGIE CHARMILLES PROGRESS FOCUS 2 WIRE EDM

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images


Progress Focus 2
Electrical Discharge Machining EDM
Wire Cut EDM
used
5676 (LB)
2012
$0.00

Feature Video

Description

Stock Number: 0825

Agie Charmilles Progress Focus 2
Age: 2012
Condition: As Is, Where Is

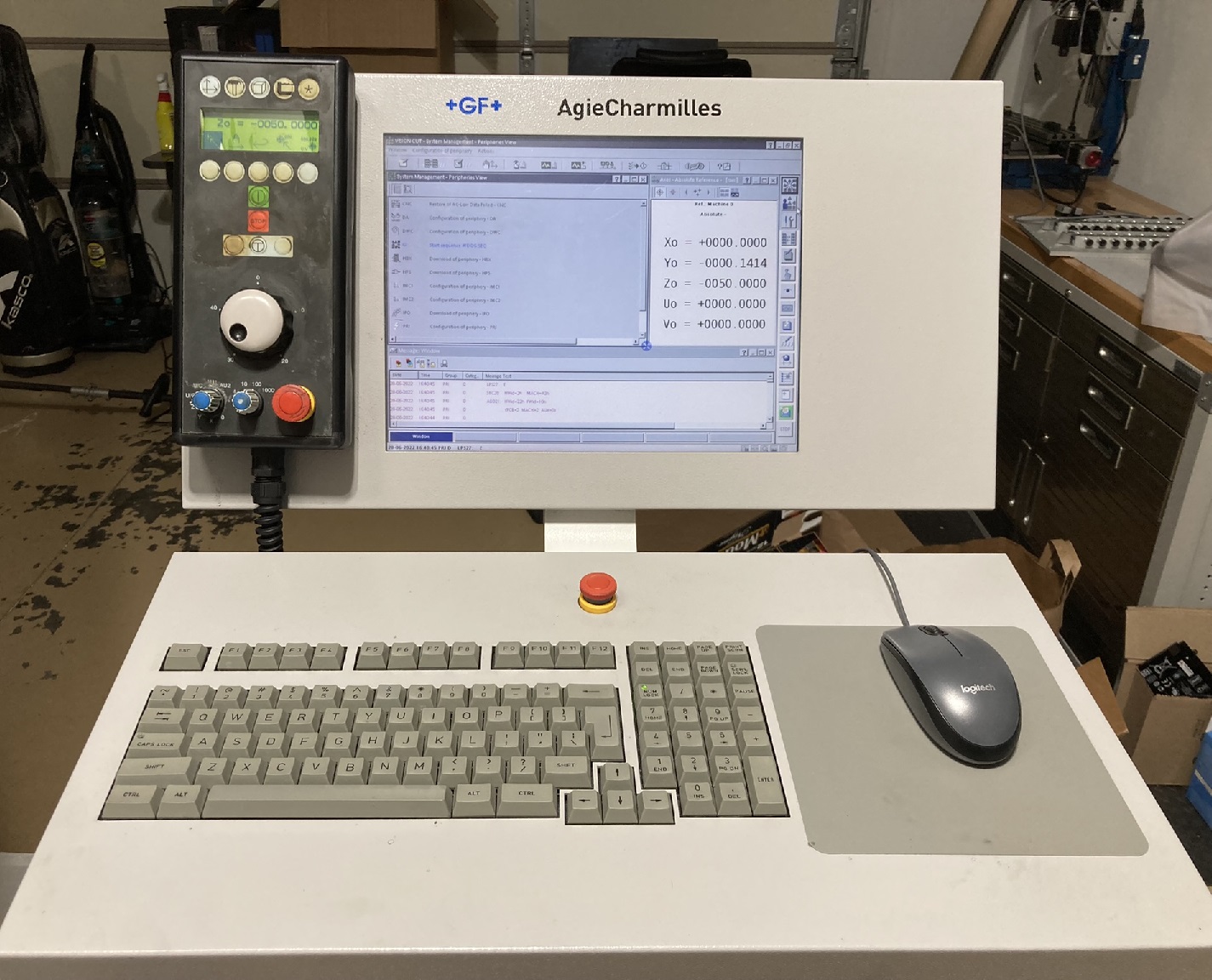

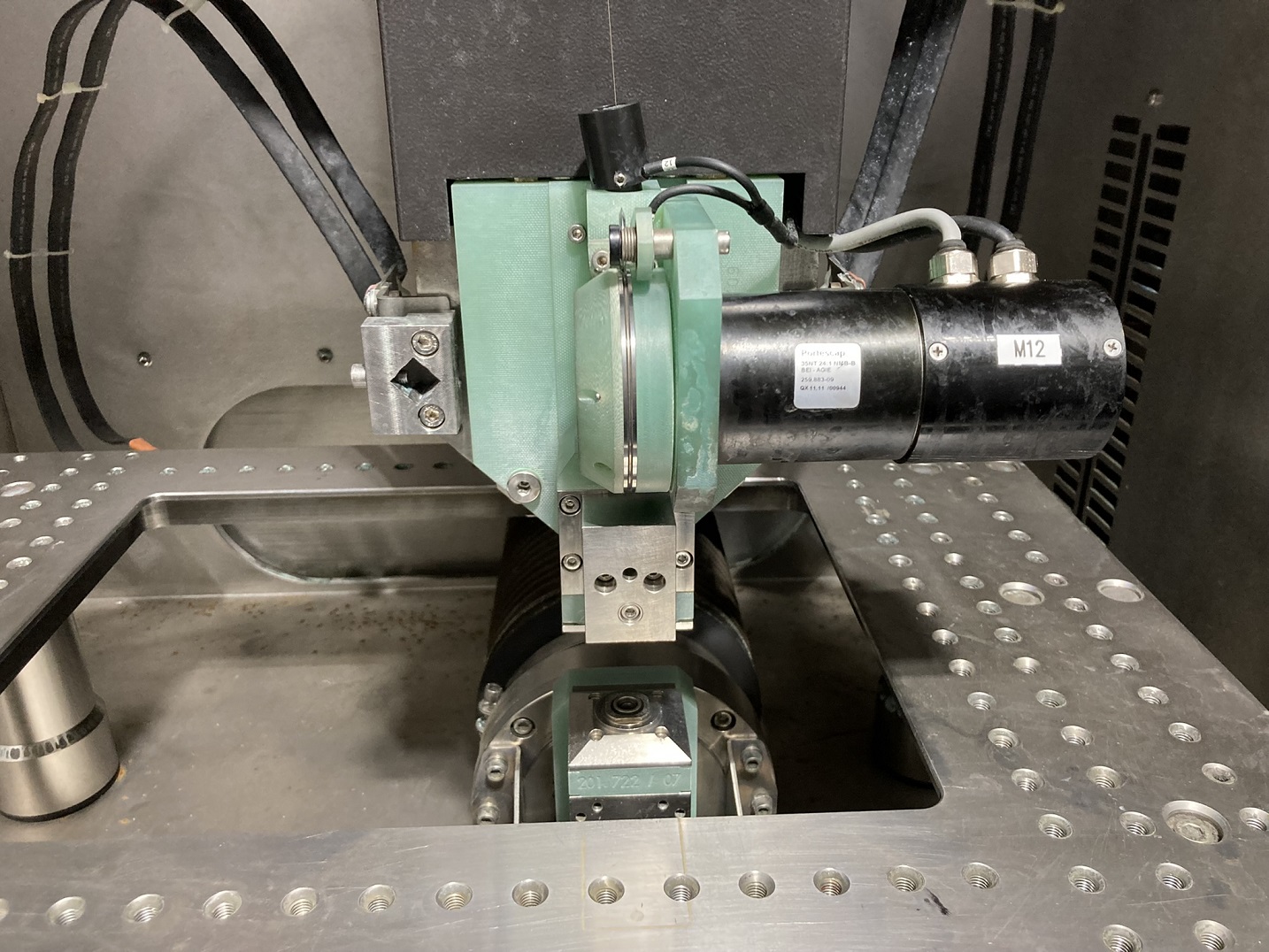

Key Features * Four sided table with universal clamping frame. * Wire sizes from 0.006" - 0.013". * Finishes of 0.2 Ra. (8 micro inch) * ACvision 5 control runs on Windows XP. This control delivers more power with less space required. * IPG-VPC Dual Generator has 2 in series power modules in a modern design and technology that delivers finer spark gap for better part accuracy and surface finish. It also has low power consumption and takes up a minimum amount of space. * ACjogger is a handy, manual operations hand box. Use it for set up functions, axis movements, cycle start/stop and emergency stop. * ACsetup 3D - includes a probing system that actually sets the machine axis up to the part orientation. It checks the top surface of a workpiece and programs the angle of the EDM wire to be perpendicular to the A/B angle of the workpiece. After the wire is square to the work being machined, the wire picks up a specified side surface and then rotates the program to match the C-skew of the block. The system then uses the wire to pick up a reference on the workpiece using one of the pick-up macros in ACvision. These values are automatically loaded into the control under your specific file name. This feature can be programmed off-line and executed unattended. ACsetup 3D saves an average of 20 minutes per part when compared to traditional indicator methods of workpiece set up. * Pieceinsert control feature allows the "pausing" of a job in progress in order to "insert" and machine another (emergency) workpiece, with the click of a mouse. When finished, you can automatically return to the exact point where the previous job was paused and "resume" erosion. * Contact Manager - Access your GF AgieCharmilles EDM off-line through the standard Ethernet connection. This unique feature enables the user to monitor or run the GF AgieCharmilles system from a remote location. It also provides for real time support from the local applications and service agent. A Youtube video of this machine operating can be seen at: https://youtu.be/c5NJaXzzjcE


Request A Quote On Our Stock Number: 0825 Agie Charmilles Progress Focus 2 Wire EDMRequest a quote on stock# 0825
Specification                                                                   Description
Travels X, Y, Z                                                             13.77" x 9.84" x 10"
 U, V                                                                          +/- 2.75"
Maximum Workpiece Size                                              29.5" x 21.6" x 9.8"
Maximum Workpiece Weight                                             990 lbs
Rapid Traverse                                                                     35.43 ipm
Max Cutting Speed                                                          28" sq/hr
Wire Diameter Capability                                                  .006" - .013"
Wire Guide Type                                             Idexable Zero Universal "V"
Contacts                                                             Indexable Carbide
Max Taper Angle, Height Standard                          +/- 30 deg @ 3.93"
Wire Spool Size Max                                                           55 lbs
Control/Servo Resolution                                                 0.000004"
Repeatability, Pa                                                         0.000080"
Processors                                                                        Dual Pentium
Machine Dimensions                                                      87" x 87" x 88"
Machine Weight                                                                    5,676 lbs
Total Shipping Weight                                                    6,380 lbs

Equipped With:
* Agievision 5 CNC Control * Agie Charmilles IPG-VPC Generator * ACSetup 3D Probing * Agiejet Auto Wire Threader * Submerged Machining Capability * Agiejogger Advanced Hand Pendant * Agie Patented V-Guide System * .006" -.013" Wire Capability * Drop Door * Four Sided Table * Agie Purecut * Variocut * Dynamic Corner Control * Lotto * 8 Filter Dual Filtration System * Affinity Electric Chiller * 2) Isolation Transformers (Machine & Chiller) * All Available Manuals, System Disks, and Accessories
