Stock Number: 1446
Agie Charmilles Form 2000 VHP
Age: 2015
Condition: As Is, Where Is
GF Machining Solutions is pleased to present the Agie Charmilles Form 2000 VHP CNC Sinker EDM with PC numerical control, utilizing micro-processors that allow the automatic machining of openings, from roughing to finishing, by the automatic step-by-step execution of elementary machining operations, machining cycles, part programs, and any other necessary operations between programs, such as tool changing, filling up the worktank, etc. This machine is based on the Form 2000 standard with the main particularity to be high accuracy extreme precision part production. The features allow pushing further the EDM performance in term of speed, wear and fine surface roughness. * Space saving compact design * High speed Z pulse 24.6 ft/sec (7.5 m/sec) for no flushing applications with Acceleration speed of 16.4 ft/sec sq. * Traverse for X,Y,Z travel of 2.36 in/sec (60mm/sec) for fast tool changing, measuring time * 3 sided drop tank design for easy access * 0.000004" resolution glass scales on all axes * Collision protection on all axes * Vision 5 Control - Windows PC based
Request A Quote On Our Stock Number: 1446 AgieCharmilles Form 2000 VHP CNC Sinker EDMRequest a quote on stock# 1446
Specification Description
Machine Travels 15.75" x 11.81" x 13.78"
Max Workpiece Dimensions 32.28" x 22.83" x 9.84"
Maximum Electrode Weight 220 lbs
Maximum Workpiece Weight 1,764 lbs
Working Range Measurement Resolution 0.000004"
Distance Between Chuck & Table 5.9" - 17.7"
Max Worktank Dielectric Depth 11.4"
Dielectric Unit Capacity 130 gal

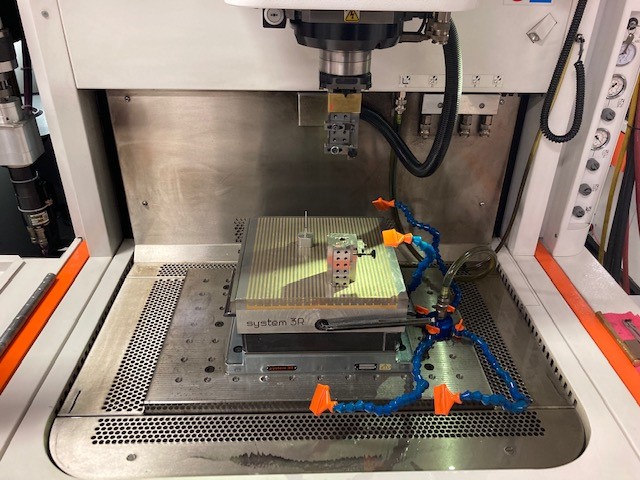

Type of Tank 3-Sided Drop Tank
Number of Filter Elements 4
Generator ISPG Integrated
Max Machining Current 80 avg/140 peak amps
Minimum Surface Roughness (Ra) 0.3 uin
Electrical 400V/3Ph/60Hz
Machine Dimensions 83" x 97" x 105"
Machine Weight 9,326 lbs
Equipped With:

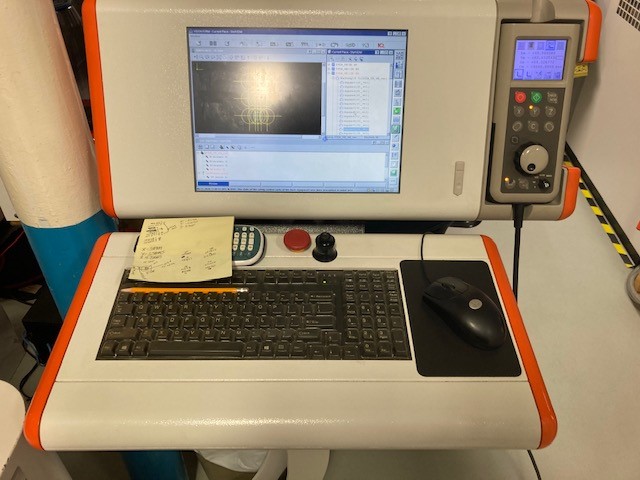

* Agie Charmilles Vision 5 CNC Control * C-Axis (Erowa) * 40 Position Automatic Electrode Changer * Programmable 3 Sided Droptank * 80 Amp IPGS Generator * Glass Scales on All Axis * 12" TFT Color Screen * Ethernet & USB Capable * Remote Hand Control * IQ Module Gr * IQ Module Cu * VMI * Camlink * Easyrun * Path3D * Toolmanager * Superfinishing * Electric Chiller * Transformer * All Available Manuals and Accessories ** Table chuck, magnet, and tooling are NOT included with the machine.
